Old 03-09-2011, 07:31 PM   #1
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default Catch can or not?

Right now my breather hose is routed directly back into my intake as pictured:
Name:  Untitled-17.png
Views: 135
Size:  998.6 KB

I just bought the car before winter and haven't had the time to touch anything under the hood yet, but should I get a catch can?

I don't really know the pros/cons, but if it is something that should be done, I'd like to do it. And if I should do it, where can I get a catch can?

I'm hoping to recirculate my BOV soon, but other than that, anything else you guys would recommend from what you see here? A Megasquirt will happen down the line.
_spyder is offline   Reply With Quote
Old 03-09-2011, 07:57 PM   #2
Newb

Join Date: Jun 2010
Location: Ontario
Posts: 29
Total Cats: 0
Default

Only thing I would suggest is a hood prop rod...
SKAR is offline   Reply With Quote
Old 03-09-2011, 08:14 PM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

I just picked up a hood lift kit, now I just gotta install it. Thanks tho.
_spyder is offline   Reply With Quote
Old 03-09-2011, 08:42 PM   #4
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 487
Total Cats: 45
Default

Quote:
Originally Posted by SKAR View Post
Only thing I would suggest is a hood prop rod...
Nah, keep the one you got, it'll come in handy when you need to beat the living **** out of something/someone - can't do that with a hood prop rod.
Lokiel is offline   Reply With Quote
Old 03-09-2011, 08:51 PM   #5
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by Lokiel View Post
Nah, keep the one you got, it'll come in handy when you need to beat the living **** out of something/someone - can't do that with a hood prop rod.
The guy that sold it to me actually used that logic
_spyder is offline   Reply With Quote
Old 03-09-2011, 09:13 PM   #6
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

FWIW, my hood prop is an axe...
rider384 is offline   Reply With Quote
Old 03-09-2011, 09:30 PM   #7
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

crankcase hooked up to exhaust with catch can
Techsalvager is offline   Reply With Quote
Old 03-09-2011, 09:36 PM   #8
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Badass heatshield.

Hideous vacuum lines.

Yes use a catch can- even at low boost I was getting shitloads of oil in the intake.
Faeflora is offline   Reply With Quote
Old 03-09-2011, 10:41 PM   #9
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Your going to be sucking oil through your turbo, blowing it through your intercooler, and may even be getting it into your im. Get a catch can and hook it up to that spot and to an adapter in the pcv bung to delete the pcv. If you want to draw vac use the slash cut tube like techsalvager or faeflora is rocking
astroboy is offline   Reply With Quote
Old 03-09-2011, 11:39 PM   #10
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Honestly I just vent mine to atmosphere. No catch can, works great.
dustinb is offline   Reply With Quote
Old 03-09-2011, 11:43 PM   #11
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I tested the slash cut at the track and I pulled vac on a gauge, check the thread, I also didn't loose any oil that day.
Gotpsi? is offline   Reply With Quote
Old 03-09-2011, 11:45 PM   #12
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Gotpsi? View Post
I tested the slash cut at the track and I pulled vac on a gauge, check the thread, I also didn't loose any oil that day.
You kept the baffles and enlarged the "tiny hole" right?
Faeflora is offline   Reply With Quote
Old 03-09-2011, 11:47 PM   #13
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I kept the baffles but didnt bother with the hole, the pcv hole is big enough and not restricted in the valve cover like the other side. If I bother to mod the valve cover I will do what Sav said and just make new holes all together on the top so that it is less likely to pick up oil. However since I didn't loose any oil and so far seem to solve my other positive crack case pressure problems I don't see a need to.

Last edited by Gotpsi?; 03-09-2011 at 11:58 PM.
Gotpsi? is offline   Reply With Quote
Old 03-09-2011, 11:57 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

On a track car, yes. For the street it probably won't matter aside from detonation.
hustler is offline   Reply With Quote
Old 03-10-2011, 01:20 AM   #15
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by Faeflora View Post
Badass heatshield.

Hideous vacuum lines.

Yes use a catch can- even at low boost I was getting shitloads of oil in the intake.
Thanks on the heatshield, but it's currently off because it was rattling and I'd like to come up with something else.

And yes, I know about those hideous lines, I'd like to replace em. Where can I get black ones?

On the catch can, how do I even go about installing one?

Quote:
Originally Posted by astroboy View Post
Your going to be sucking oil through your turbo, blowing it through your intercooler, and may even be getting it into your im. Get a catch can and hook it up to that spot and to an adapter in the pcv bung to delete the pcv. If you want to draw vac use the slash cut tube like techsalvager or faeflora is rocking
I thought that if I were to get a catch can, all I would have to do is unhook the hose from where it currently is, plug the hole and connect it to something that would hold the oil, and then empty it out every so often. What is this talk about PCV, etc? Maybe this isn't as easy as I thought it was... explain?

Quote:
Originally Posted by dustinb View Post
Honestly I just vent mine to atmosphere. No catch can, works great.
So, could I unhook the hose from the crankcase and then just secure it somewhere letting it leak into the atmosphere? I don't know what this talk about PCV is, etc. I don't know if it's this easy.

Quote:
Originally Posted by hustler View Post
On a track car, yes. For the street it probably won't matter aside from detonation.
It's my DD when the weather is nice, and I do plan on tracking it atleast at a few events this year. I run ~10 psi on the turbo and would like to do it if it would make things a little safer.
_spyder is offline   Reply With Quote
Old 03-10-2011, 01:43 AM   #16
Junior Member
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

Can people post links to catch cans that they're using? I am a little iffy on ebay ones but if they work I wouldn't mind getting one!
longuyen88 is offline   Reply With Quote
Old 03-10-2011, 07:53 AM   #17
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 487
Total Cats: 45
Default

Track Dog Racing oil catch can:
http://www.gomiata.com/mxmitrdograo1.html
Lokiel is offline   Reply With Quote
Old 03-10-2011, 10:29 AM   #18
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Buy replacement vacuum lines from https://www.siliconeintakes.com/

Do this. Get a VTA catch can like that TDR one or anything with two bungs and a filter, drill out your pcv valve (With a drill), and route your pcv and breather to the can. That's all. I think 8mm hose will work.
Faeflora is offline   Reply With Quote
Old 03-10-2011, 04:14 PM   #19
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Okay, be patient with me as I honestly don't really know how to do this.

Would a catch can like this work?
http://cgi.ebay.com/ebaymotors/HIGH-...item4aa95f8288

Now how do I go about hooking this up?
From my understanding there is one location on the exhaust side of the valve cover, one location on the intake side of the valve cover, and then one more location on the intake manifold. Do I put a small air filter on the exhaust side location as well as the one on the intake manifold? Then do I take the hose and connect it from the intake side of the valve cover to the inlet on the catch can? Then can I put a little filter on the outlet of the catch can?

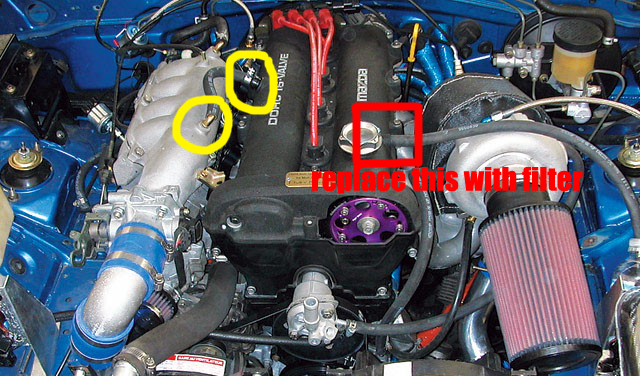

Name:  Untitled-1-1.png
Views: 431
Size:  504.1 KB
Here is a pic I grabbed online, I circled in red what I need to do with the one spot (putting a filter on it). But what do I do with the two spots I circled in yellow? And then what do I do with the two outlets on the catch can?

Sorry for the noobish question, I appreciate the help.
_spyder is offline   Reply With Quote
Old 03-10-2011, 04:21 PM   #20
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

The ebay one should work, there are a few ways to hook up a catch can, run the exhaust side to the can and the intake side to the can and cap off the port on the intake.
Gotpsi? is offline   Reply With Quote
