Old 03-10-2011, 04:28 PM   #21
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by Gotpsi? View Post
The ebay one should work, there are a few ways to hook up a catch can, run the exhaust side to the can and the intake side to the can and cap off the port on the intake.
Just make sure its either venting to air, or pressure in crankcase is escaping somehow.
Techsalvager is offline   Reply With Quote
Old 03-10-2011, 04:47 PM   #22
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by Techsalvager View Post
Just make sure its either venting to air, or pressure in crankcase is escaping somehow.
So if I were to run both the intake/exhaust sides on the valve cover to the catch can, I'd need to get one with one of those filters on top?
_spyder is offline   Reply With Quote
Old 03-10-2011, 04:53 PM   #23
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by _spyder View Post
So if I were to run both the intake/exhaust sides on the valve cover to the catch can, I'd need to get one with one of those filters on top?
Or you can drill and tap a hole to fit a fitting.

Either way if you hook up both sides into the same oil catch can, you can route it back to the intake or vent to air or hook it up to the exhaust correctly.

Basically you need to allow the crankcase pressure buildup to escape.
Techsalvager is offline   Reply With Quote
Old 03-10-2011, 05:19 PM   #24
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by Techsalvager View Post
Or you can drill and tap a hole to fit a fitting.

Either way if you hook up both sides into the same oil catch can, you can route it back to the intake or vent to air or hook it up to the exhaust correctly.

Basically you need to allow the crankcase pressure buildup to escape.
Ok, that's understandable. Thank you.

So, would this work? Hook up an air filter to the exhaust side, plug the intake. Then run a hose from the intake side to the catch can inlet and put a filter on the catch can outlet.

Right now I'm planning on buying one of those eBay catch cans and doing what I described about with two filters, so if that would not work I'd like to know.

Thanks for all the help so far guys, its much appreciated.
_spyder is offline   Reply With Quote
Old 03-10-2011, 05:49 PM   #25
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

If you are going to do the filter on the exhaust side you dont need a catch can, if you use a catch can hook them both to it and put a filter on the top. I know its a mess in this pic but its the only on I have of my catch can. Its made from left over IC pipe. I have also replaced the drilled out pcv with a brass fitting since I need it to seal for my exhaust vacuum set up now. [IMG][/IMG]
Gotpsi? is offline   Reply With Quote
Old 03-10-2011, 05:57 PM   #26
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I feel better about my "hot mess of vacuum lines and wires" behind my intake plenum now.
hustler is offline   Reply With Quote
Old 03-10-2011, 06:13 PM   #27
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Quote:
Originally Posted by _spyder View Post
do i put a small air filter on the exhaust side location

here is a pic i grabbed online, i circled in red what i need to do with the one spot (putting a filter on it).
Quote:
Originally Posted by _spyder View Post
ok, that's understandable. Thank you.

So, would this work? Hook up an air filter to the exhaust side.
NO

Quit acting like a damned ricer.
fooger03 is offline   Reply With Quote
Old 03-10-2011, 06:41 PM   #28
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by Gotpsi? View Post
If you are going to do the filter on the exhaust side you dont need a catch can, if you use a catch can hook them both to it and put a filter on the top. I know its a mess in this pic but its the only on I have of my catch can. Its made from left over IC pipe. I have also replaced the drilled out pcv with a brass fitting since I need it to seal for my exhaust vacuum set up now.
Thanks for the pic!

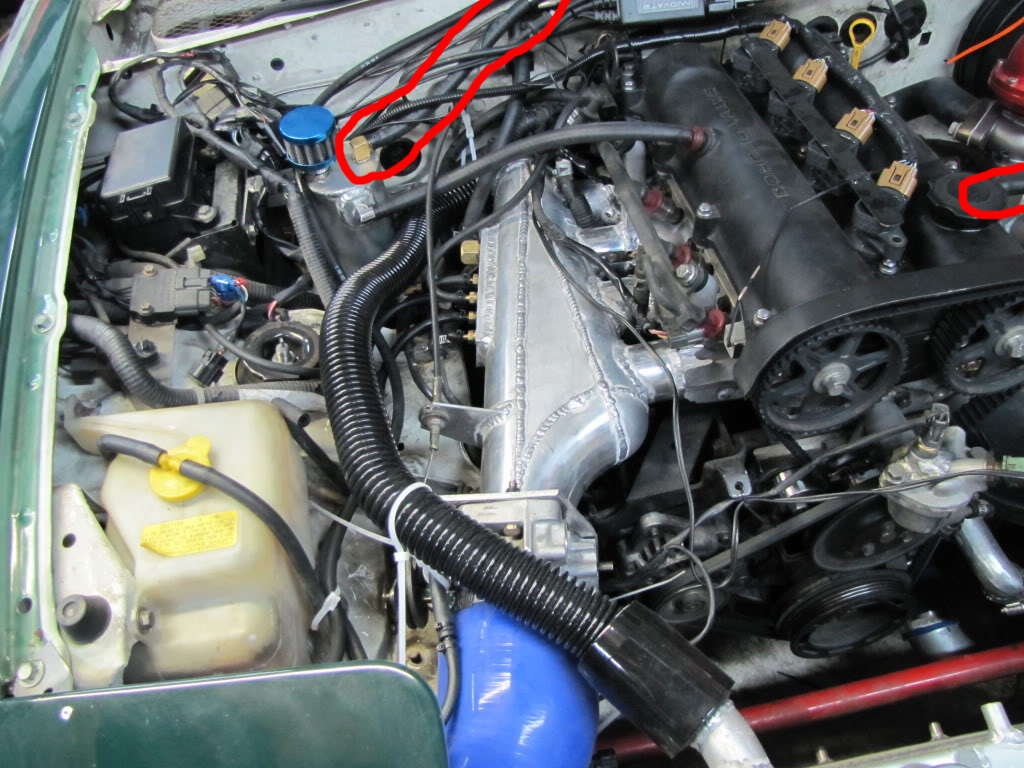

Name:  Untitled-1-2.png
Views: 71
Size:  1.00 MB

So, the hose I outline in red, is that going over and connecting to the valve cover on the exhaust side?

If so, then I can just connect both sides of the valve cover to the catch can, then drill/weld a fitting on of the catch can and put a filter on it and plug off the thing on the intake manifold. If that would work, that's probably what I'll end up doing.

Quote:
Originally Posted by fooger03 View Post
NO

Quit acting like a damned ricer.
Not trying to act like a damn ricer, just trying to figure stuff out.
_spyder is offline   Reply With Quote
Old 03-11-2011, 01:10 AM   #29
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What the **** is this ****???

I ******* told you what to do.

Cap off that bigass breather port on the intake manifold plenum. RUN THE TWO VALVE COVER LINES TO A VETN TO ATMOSPHERE CAN. SUCK DICKS AND MAKE MONEY
Faeflora is offline   Reply With Quote
Old 03-11-2011, 01:32 AM   #30
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

your drawing on my pic is correct. And it doesn't look like that anymore, that was my test fit of my first intake mani.
Gotpsi? is offline   Reply With Quote
Old 03-12-2011, 12:10 AM   #31
Junior Member
Thread Starter
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Alright guys I got it. I've got it all planned out, any ideas to what I should use to plug the breather port on the intake manifold plenum? I'm sure I can find something, just wondering what you guys use.
_spyder is offline   Reply With Quote
Old 03-12-2011, 12:47 AM   #32
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Just a vacuum plug, through a small hose clamp around it.
Gotpsi? is offline   Reply With Quote
