Default Ceramic Fins on TT set up

I know TT set ups have been done before. Let me explain my situation and hopefully you can help me out.

I just got offered a pair of turbos off of a JDM 2JZ.
Which has ceramic internals and makes me nervous if they will hold up.

What I'm shooting for right around 250rwhp of a 1.8 with forged rods, pistons, and APR studs. With a 3in exhaust all the way back.

Turbo(s) Specs:
Turbine 60/48
Compressor 62/39
.42ar

Thanks,

Tim
TimR is offline   Reply With Quote
Old 02-06-2014, 05:34 PM   #2
Junior Member
iTrader: (6)

Join Date: May 2008
Location: Goodrich, MI
Posts: 182
Total Cats: 2
Default

Take both, sell both, buy sr20 t25, be happy.
MustangMike is offline   Reply With Quote
Old 02-06-2014, 05:36 PM   #3
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by MustangMike View Post
Take both, sell both, buy sr20 t25, be happy.
This. I wouldn't trust 2jz turbos to get you to that power goal. Unless you used both of them or something.
concealer404 is offline   Reply With Quote
Old 02-06-2014, 05:43 PM   #4
Junior Member
iTrader: (1)

Meeners's Avatar

Join Date: Jul 2008
Posts: 194
Total Cats: 0
Default

Take everything I say below with a grain of salt.

Some nissans have ceramic turbines as well. The general consensus of the ceramic nissan turbos (some RB engine nissan turbo comes with this, as well as the Y33 Cima vq30det) is that they shine because their material is light. Unfortunately, when you are pushing them to where you are out of their efficiency they tend to fail and fatigue the blades until they crack. It's another general rule of thumb that they go at "15 psi" but I'm positive is more of a velocity bounding issue.

Check and see where your engine lies on the compressor chart based on the power goal you are looking for and I say if it's all good, get the turbo inspected. If it's still good, booyah... roll with it.

Honestly, you may have a tough time getting rid of them because all the nissan guys know the deal, and most people that sell them have already pushed them pretty hard.

Check the skyline boards, and the cima boards for first hand information if you have a chance.
Meeners is offline   Reply With Quote
Old 02-06-2014, 06:13 PM   #5
Junior Member
iTrader: (1)

Meeners's Avatar

Join Date: Jul 2008
Posts: 194
Total Cats: 0
Default

I don't know anything about the 2jz turbo, but from what he posted, it sounds like it might be large enough to push that max hp IMO. A 40 trim 60mm turbine and 64 trim 62mm compressor? is that right? Tiny a/r but larger blade than say a gt28r. Like a small t3 compressor.

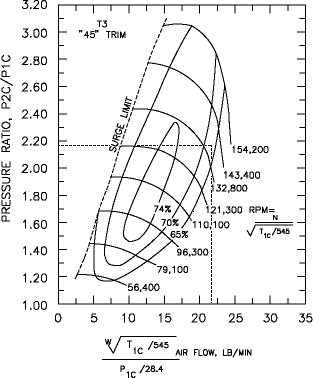

edit: I think this is the compressor map for a CT12b turbo if that's what you have
Attached Thumbnails
Ceramic Fins on TT set up-ct12bmap.gif
Meeners is offline   Reply With Quote
Old 02-07-2014, 10:47 AM   #6
Junior Member
Thread Starter

Join Date: Jun 2009
Location: Lancaster, PA
Posts: 240
Total Cats: -2
Default

Quote:
Originally Posted by MustangMike View Post
Take both, sell both, buy sr20 t25, be happy.
What do these go for on average?

Quote:
Originally Posted by concealer404 View Post
This. I wouldn't trust 2jz turbos to get you to that power goal. Unless you used both of them or something.
I would be using both.

Quote:
Originally Posted by Meeners View Post
I don't know anything about the 2jz turbo, but from what he posted, it sounds like it might be large enough to push that max hp IMO. A 40 trim 60mm turbine and 64 trim 62mm compressor? is that right? Tiny a/r but larger blade than say a gt28r. Like a small t3 compressor.

edit: I think this is the compressor map for a CT12b turbo if that's what you have
That is the correct compressor map, CT12b's are the standard twins on the JDM 2JZ.
TimR is offline   Reply With Quote
Old 02-07-2014, 10:56 AM   #7
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Both?

Honestly?

On 2 separate cars?
nitrodann is offline   Reply With Quote
Old 02-07-2014, 11:08 AM   #8
Junior Member
Thread Starter

Join Date: Jun 2009
Location: Lancaster, PA
Posts: 240
Total Cats: -2
Default

Quote:
Originally Posted by nitrodann View Post
Both?

Honestly?

On 2 separate cars?
Seriously, one car. I'm looking for a supercharger curve only with twins. I'm open to hear objections of why I shouldn't.

Edit: I have a friend who will be doing all the fab work. Whether single or twin..
TimR is offline   Reply With Quote
Old 02-07-2014, 12:05 PM   #9
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,574
Total Cats: 151
Default

Quote:
Originally Posted by TimR View Post

Seriously, one car. I'm looking for a supercharger curve only with twins. I'm open to hear objections of why I shouldn't.

Edit: I have a friend who will be doing all the fab work. Whether single or twin..
Objection: It has been done by a very talented fabricator on this board. The results were mediocre and he said it wasn't worth the additional cost and complexity.

Inline fours do not lend themselves to twin turbo setups very well. There are simply not enough cylinders to produce adequate exhaust gasses.
Ryan_G is offline   Reply With Quote
Old 02-07-2014, 01:02 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Twin turbos are great for packaging restraints. We don't have any. Sell them and buy a good single turbo.
Savington is offline   Reply With Quote
Old 02-07-2014, 01:12 PM   #11
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by TimR View Post



I would be using both.




******* ABORT.
concealer404 is offline   Reply With Quote
Old 02-11-2014, 11:32 AM   #12
Junior Member
Thread Starter

Join Date: Jun 2009
Location: Lancaster, PA
Posts: 240
Total Cats: -2
Default

Sold on not using them. Thanks for the input fellas.
TimR is offline   Reply With Quote
Old 02-11-2014, 02:45 PM   #13
Junior Member
iTrader: (6)

Join Date: May 2008
Location: Goodrich, MI
Posts: 182
Total Cats: 2
Default

You can get an SR20 pull off for less than $150. I just grabbed one of ebay for a buddys car for $140 shipped....
MustangMike is offline   Reply With Quote
