Default Confused on how to install Vortech FMU

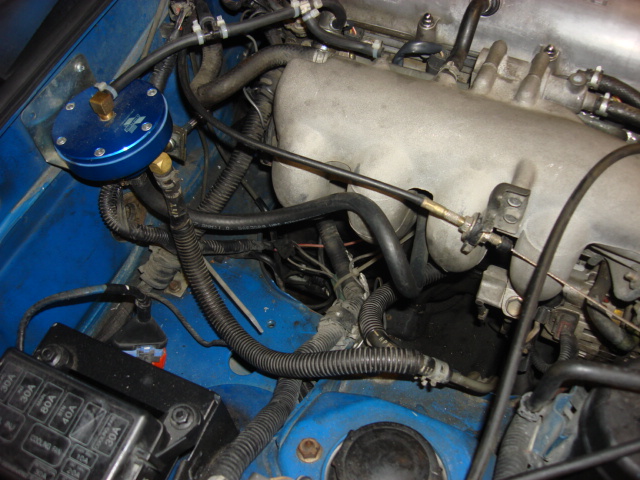

OK so I am still waiting for my manifold adapter plate and then I still have to sort out the lines and fittings clock the turbo and figure out a DP but in the meantime I figure I can install some stuff now to save me time later like the MSD, Vortech FMU, do the DIY dual fuel rail mod and pierburg fuel pump. I have looked up the vortech instructions but the diagrams are hard to see. I did find this picture but in Brain said it was hooked up backwards. Can someone either draw on this pic or draw me a diagram so that I know I get it right. Thanks.

I know I am dumb
Attached Thumbnails
Confused on how to install Vortech FMU-61lz6ug.jpg
akthor is offline   Reply With Quote
Old 05-01-2007, 07:22 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

READ MY FAQ


Installation is Easy!

Hard Line -> Front of Fuel Rail -> OEM FPR -> OFFSET Fitting of FMU -> CENTER fitting of FMU -> Return Line


the picture you attached is installed backwards.
Braineack is offline   Reply With Quote
Old 05-01-2007, 07:34 PM   #3
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

I do read it! I didn't remember seeing that tho
