Default Connecting Plumb Back BOV to silicone hose?

Ok, I have a Blitz BOV on my '91 Miata DIY turbo setup. It vents to the atmosphere. I find it too loud, as I am going for a stealthy setup. I have just bought a Turbo Smart dual port BOV and plan to use this to plumb back into the intake.
My setup has a 90 degree 3 inch silicone hose connecting the air filter to the turbo.
I am wondering how I should connect the outlet port on the BOV into the silicone hose?

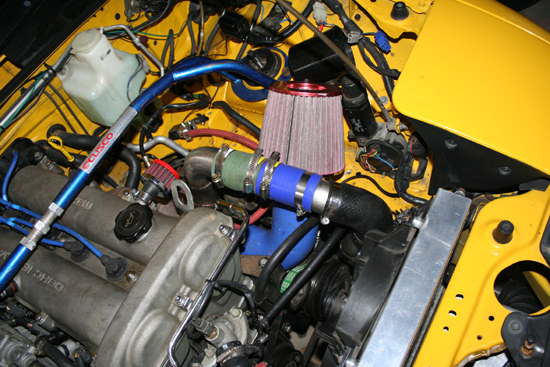

Please see photo below of the setup, showing the 90 degree silicone hose. Please ignore the other hoses, they have all been replaced since that photo was taken.

Note that I have a FM/Link ECU, with MAP sensor, so I do not have the MAF concerns to consider.

Thanks
D

__________________
Attached Thumbnails
Connecting Plumb Back BOV to silicone hose?-224835_111_full.jpg
Juffa is offline   Reply With Quote
Old 01-04-2007, 08:16 PM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Anyplace preturbo will do it. Into the elbow; before; or after will work. The quietest would be right at the turbo inlet.
olderguy is offline   Reply With Quote
Old 01-04-2007, 09:03 PM   #3
Junior Member
Thread Starter

Join Date: Feb 2005
Posts: 65
Total Cats: 0
Default

Thanks older guy, thats what I thought.


My question is not so much where, but how? I was thinking of drilling a 25mm (1 inch) hole into the silicone hose, but what do I use to connect the hose from the BOV to the inlet hose/pipe?

J
Juffa is offline   Reply With Quote
Old 01-04-2007, 09:15 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you could put a 45* bend after the silicone....and drill and tap into that a 1" pipe. Gotta move that alarm :gay:

I've done it into silicone...it was very ghetto.

Braineack is offline   Reply With Quote
Old 01-09-2007, 11:46 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

use something like this....

http://www.aircraftspruce.com/catalo...uctflanges.php

try the 1", drill a 3/4" hole in the silicone and pop that sucker through and silicone adhesive a bead around it.
Braineack is offline   Reply With Quote
Old 01-09-2007, 11:51 AM   #6
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Cut off a couple of inches from the silicone 90* bend and splice in a hard pipe. Drill and tap the pipe. Will require two additional hose clamps.
jayc72 is offline   Reply With Quote
Old 01-09-2007, 12:07 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

that would be the easiet.
Braineack is offline   Reply With Quote
Old 01-09-2007, 12:33 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

JB WELD!



actually I think that's epoxy...


edit: wtf where'd my all caps go?
y8s is offline   Reply With Quote
Old 01-09-2007, 12:44 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yeah, JB WELD FTW.


Y8s, Cap filter on this site.
Braineack is offline   Reply With Quote
Old 01-09-2007, 01:27 PM   #10
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Quote:
Originally Posted by braineack View Post
Y8s, Cap filter on this site.
Wow...what will Phi...err...they think of next?
bripab007 is offline   Reply With Quote
Old 01-09-2007, 02:40 PM   #11
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Quote:
Originally Posted by Brian View Post
Wow...what will Phi...err...they think of next?

I bet he Filter's WTF!!!
Jefe is offline   Reply With Quote
Old 01-09-2007, 03:00 PM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

hey brainz put my caps backs. so yeah, JB WELD ftw. caps filter ftl.

edit: it's apparently a caps-only filter. well ok.
y8s is offline   Reply With Quote
Old 01-09-2007, 10:27 PM   #13
Junior Member
Thread Starter

Join Date: Feb 2005
Posts: 65
Total Cats: 0
Default

Thanks for the input. I have decided to buy a Turbosmart 3 inch T-Pipe and put it between the air filter and the silicone hose.

and by the way, I moved the alarm.

J
Attached Thumbnails
Connecting Plumb Back BOV to silicone hose?-imturbosmartfg_ada_ht250.jpg
Juffa is offline   Reply With Quote
