Default Couple of questions....

I am looking only for re-assurance that I am proceeding in the right direction. I have read about as much as I can in anticipation to installing my turbo, and will finally have the time to do so this weekend.

What I have accumulated over the last year or so is:

T25 off a 2nd gen DSM
Stainless manifold (gouged, re-welded, and decked by a machinist)
Stainless down pipe, with o2 and wideband o2 bungs
Intercooler and respective piping
Begi rising rate FMU
MSD "miata box"
Oldguy O2 clamp
Hallman pro boost controller
Boost guage
LC-1 wideband O2 and guage
190HP walbro fuel pump
1st gen DSM BOV which will be vented to the atmosphere (with a check valve) for the time being until I get the bung welded to re-circulate it (im not a fan boy looking for cool noises its just what I have for now)

I will be getting megasquirt at some point but im getting married in September, and in the process of buying a house in the next moth or so. Money is all but non-existent, and while still finishing my engineering degree it will most likely stay that way.

I plan to only run 5 to 8psi, not looking for anything crazy just a quicker track car. I have been tracking this car for just over 2 years and its time to go faster.

My questions are:

What if anything in this setup is going to be my weak point i.e: what other than the ECU would you guys not do, or make sure to do extra?

I have 305cc injectors but I would like to have them tested / cleaned, what process should I use to do this or do I need to send them somewhere? If so where?

What reliability issues would you guys address first? (I have a stage 3, 6 puck clutch already.)

Im just making sure I am going in the right direction, I don't want to blow my car up, but its not my daily so I do want to have fun with it. I have read and searched alot of these topics im just hoping to get some re-assurance.

On a side note im going to test out a gauge mount I threw together at work cutting some parts on my water jet and welding some stuff together. I wanted to make a mount out of the way, but also in my field of vision. I didn't want to be looking down at it or have it on my A pillar so this is what im going to try out. ( I usually have my passenger seat out so nobody rides with me)

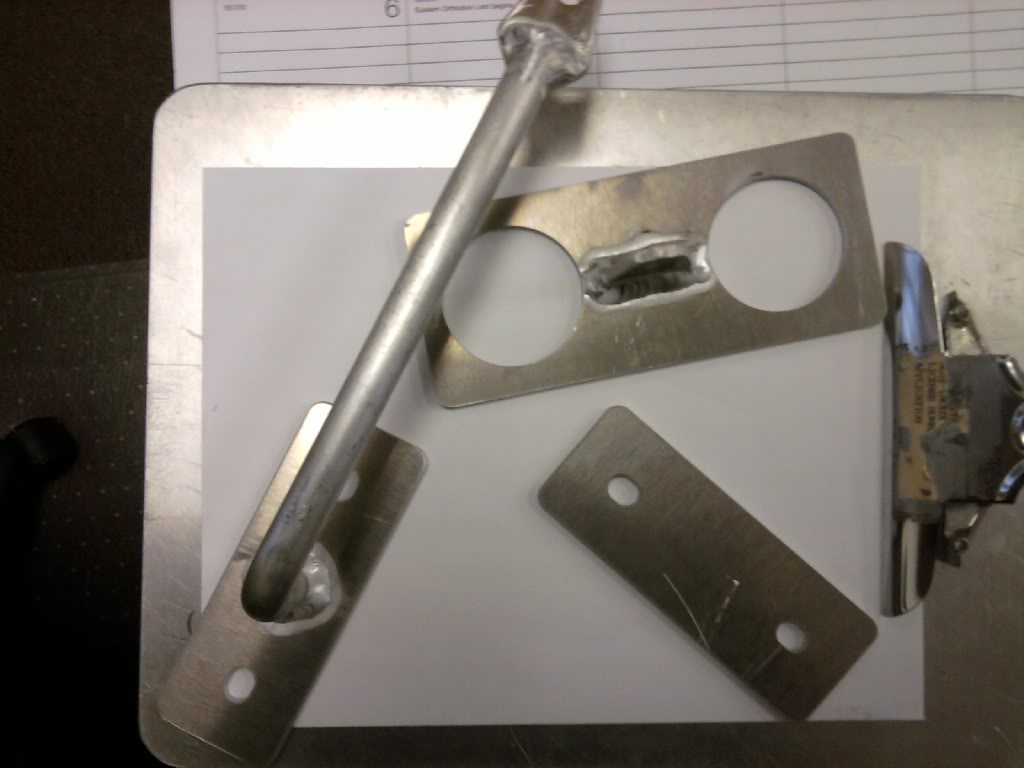

Parts:
Name:  Photo0302.jpg
Views: 0
Size:  53.7 KB

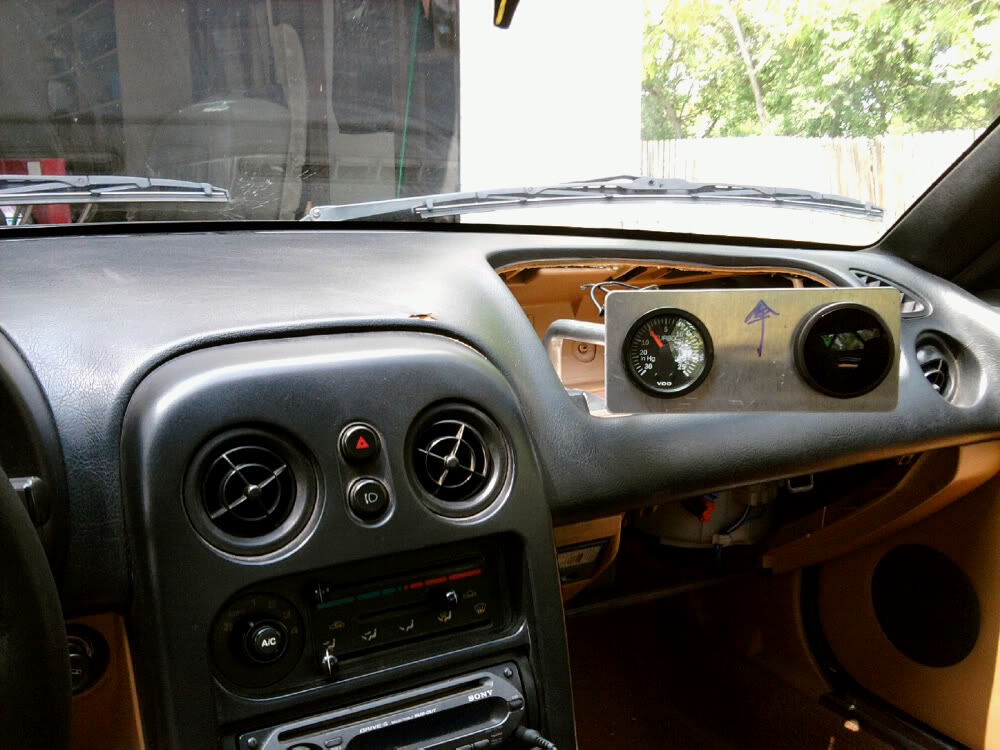

Mounted:
Name:  Photo0310.jpg
Views: 0
Size:  117.5 KB

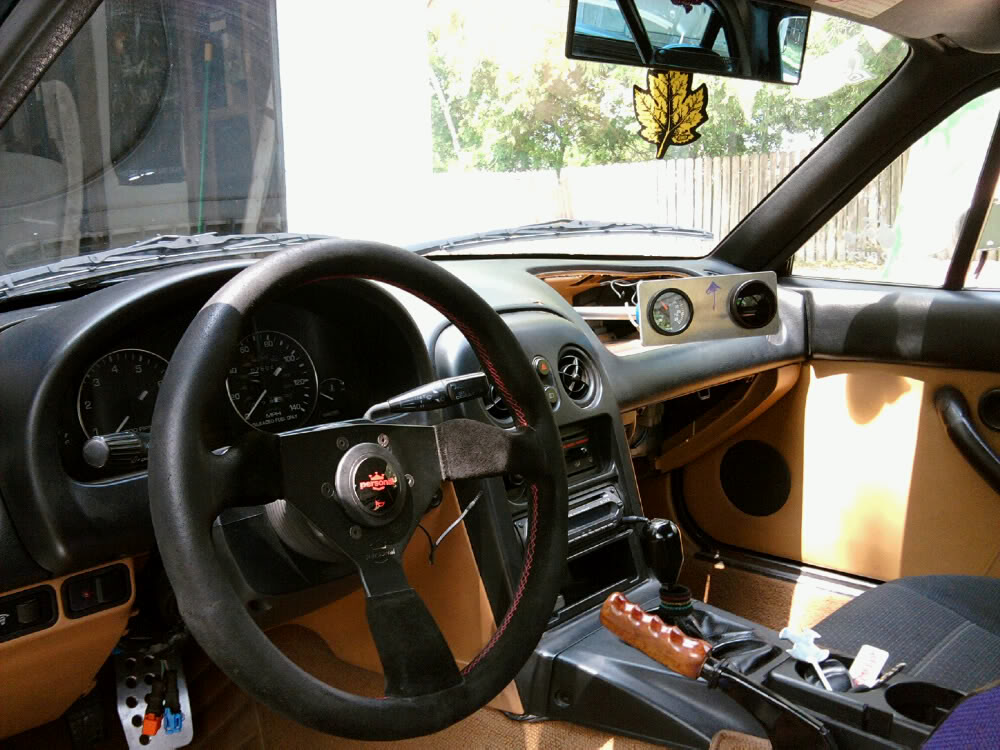

Another view:
Name:  Photo0311.jpg
Views: 0
Size:  139.4 KB

Thanks ahead of time, I understand if you guys bash me for being newbish on turbos.

Kris
SnakeKP is offline   Reply With Quote
Old 04-06-2011, 01:15 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Haha, that's great. Temporary or permanent? Looks great for temp, although a bit unfinished for a permanent solution.
curly is offline   Reply With Quote
Old 04-06-2011, 01:16 PM   #3
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Details on car? Decent bandaid setup but the problem with bandaid setups is if you build a decent one you could probabbly sell it all and get a ms2 . What kind of manifold/downpipe? Will it bolt up to your exhaust or are you doing new exhaust? Oil feed/return lines and associated fittings?
Golferluke is offline   Reply With Quote
Old 04-06-2011, 01:24 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

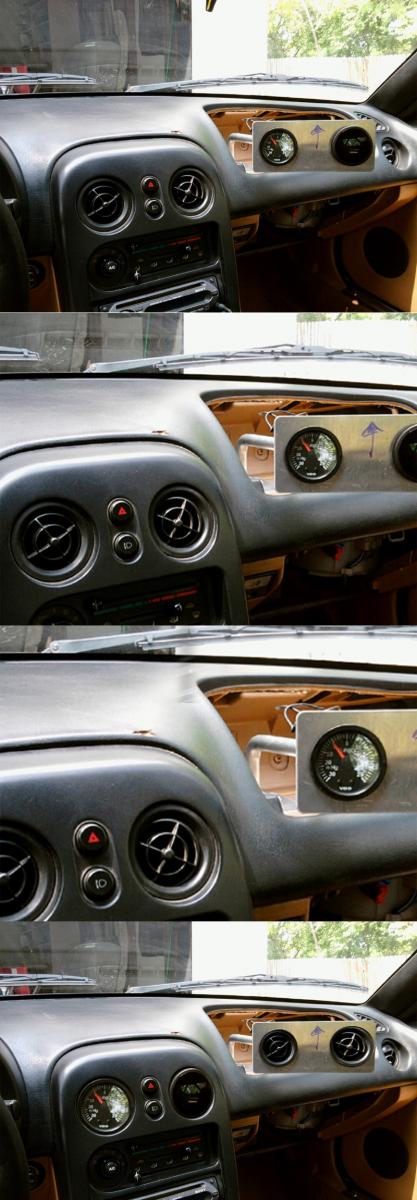

funny thing happens when you look closer:

Attached Thumbnails
Couple of questions....-gauges.jpg
Braineack is offline   Reply With Quote
Old 04-06-2011, 01:32 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Posts: 71
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
funny thing happens when you look closer:

LOL, I know, I went through some options on mounting it, but even though its my beat to hell track car, I do live in south Texas (corpus christi) and my AC on this car is ice cold. Im not giving that up.

Im going to clean the mount up a bit and paint it so it doesn't look so ruff.

As far as manifold and Down pipe, they are both stainless, the manifold is a custom built one from the guy I bought most of the stuff from, but I tore it apart and made it a hell of alot more reliable (ill take a pic if I remeber) the DP is stainless as well with a flex joint on it. This will all connect to my 2.5" exhaust with a test pipe. Im planning on cutting up my rear bumper and doing a strait out exhaust but that will have to come in time.
SnakeKP is offline   Reply With Quote
Old 04-06-2011, 01:34 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Posts: 71
Total Cats: 0
Default

Quote:
Originally Posted by Golferluke View Post
Details on car? Decent bandaid setup but the problem with bandaid setups is if you build a decent one you could probabbly sell it all and get a ms2 . What kind of manifold/downpipe? Will it bolt up to your exhaust or are you doing new exhaust? Oil feed/return lines and associated fittings?
I did an into thread with most of my upgrades listed a good while back, but yes I have a stainless oil feed lines and im picking up the return line after work today. Im using 3/8" npt to 5/8" hose fittings, seams to be the norm. Ill be drilling and tapping the oil pan while its on the car.
SnakeKP is offline   Reply With Quote
Old 04-06-2011, 02:47 PM   #7
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Did you really search? Or do you just want us to hold your pacifier to convince you that what you searched for is legitimate?

Quote:
Originally Posted by SnakeKP View Post
What if anything in this setup is going to be my weak point i.e: what other than the ECU would you guys not do, or make sure to do extra?

Search Term: "Weak Links"

I have 305cc injectors but I would like to have them tested / cleaned, what process should I use to do this or do I need to send them somewhere? If so where?

Search Term: "Injector Cleaning"

What reliability issues would you guys address first? (I have a stage 3, 6 puck clutch already.)

Answered in another search term.
fooger03 is offline   Reply With Quote
Old 04-06-2011, 02:58 PM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

I used Deatschwerks for my injector cleaning and they did a good job. They are also a sponsor of this forum.
sixshooter is offline   Reply With Quote
Old 04-06-2011, 03:01 PM   #9
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

I just searched "weak links" and it said "fooger", lol. Go easy, brother!
sixshooter is offline   Reply With Quote
Old 04-06-2011, 03:04 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Posts: 71
Total Cats: 0
Default

Quote:
Originally Posted by sixshooter View Post
I used Deatschwerks for my injector cleaning and they did a good job. They are also a sponsor of this forum.
Thanks man ill probably use them as well.
SnakeKP is offline   Reply With Quote
Old 04-06-2011, 03:11 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Posts: 71
Total Cats: 0
Default

Quote:
Originally Posted by fooger03 View Post
Did you really search? Or do you just want us to hold your pacifier to convince you that what you searched for is legitimate?
I did search, and have been searching and reading as much as I can since I bought the car. Im not asking dumb, irrational questions. Im just seeing that if based upon the items which I have listed there might just be a better alternative.

I do appreciate alot of the info you, and many others, have compiled on this site and have used it to make some of the choices with products on my own vehichle. And like I said before, a little re-assurance before I dive into this for my first time isnt going to hurt anything.
SnakeKP is offline   Reply With Quote
Old 04-06-2011, 04:12 PM   #12
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

https://www.miataturbo.net/diy-turbo-discussion-14/your-path-power-selecting-your-starting-platform-eliminating-weak-links-56507/

There's a pretty epic "weak links" thread. As far as weak links in YOUR setup, as long as turbo/manifold/dp all bolt up your setup should be ok. I would get all the bandaids setup before you install the turbo, that way you can get the kinks worked out and it will be easier to diagnose issues (it's a DIY build, there WILL be issues.) as far a bov goes it may not be the coolest looking or sounding but will be perfectly fine, ecspecially for recirc. Then after that all you need is a dsm badge to go with your turbo and bov and your good to go
Golferluke is offline   Reply With Quote
Old 04-06-2011, 05:07 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Posts: 71
Total Cats: 0
Default

Quote:
Originally Posted by Golferluke View Post
https://www.miataturbo.net/showthread.php?t=56507

There's a pretty epic "weak links" thread. As far as weak links in YOUR setup, as long as turbo/manifold/dp all bolt up your setup should be ok. I would get all the bandaids setup before you install the turbo, that way you can get the kinks worked out and it will be easier to diagnose issues (it's a DIY build, there WILL be issues.) as far a bov goes it may not be the coolest looking or sounding but will be perfectly fine, ecspecially for recirc. Then after that all you need is a dsm badge to go with your turbo and bov and your good to go
No kidding, I have some friends with DSM's and they want to know why im using the worst turbo that came on there cars. Also they have tried to convince me to "crush" the BOV in order to reach 20 or more psi.....
SnakeKP is offline   Reply With Quote
Old 04-09-2011, 10:36 PM   #14
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,109
Total Cats: 127
Default

I heard its running, I could smell the gas all the way over here. Get that wideband on asap, your running way rich, bitch

Edit, then we race...muhahaha
jacob300zx is offline   Reply With Quote
Old 04-11-2011, 09:15 AM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Posts: 71
Total Cats: 0
Default

Everything is running and doing good, ill post some picks and a write up a bit later.

Kris
SnakeKP is offline   Reply With Quote
Old 04-22-2011, 03:47 PM   #16
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,109
Total Cats: 127
Default

Car is totalled :( I'll let Kris post up the details, I'll see if I can get some sweet pics of the carnage.
jacob300zx is offline   Reply With Quote
Old 04-22-2011, 03:52 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

gauge too distracting? wasnt watching the road
Braineack is offline   Reply With Quote
Old 04-22-2011, 04:37 PM   #18
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Posts: 71
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
gauge too distracting? wasnt watching the road
Nope let a Co-worker "test drive" it, I told him I was going to sell it after I get married in September so I can get something with back seats, even though its not my daily I want something a little bigger maybe. Obviusly I threw a kinda high number at him 7500$ and said we can deal down from there. He drove it a couple hours ago and 1st gear + 8 psi + turn with bumps = curb at 45mph (give or take speed limit he has no idea how fast he was going). Bumper, front sub frame, fenders, radiator, intercooler, front wheels, all destroyed. Frame rail on driver side is cracked, door dosent shut right either. He is handing me cash monday, he is acctually a good guy and luckly is rich enough to just deal with it without worry.

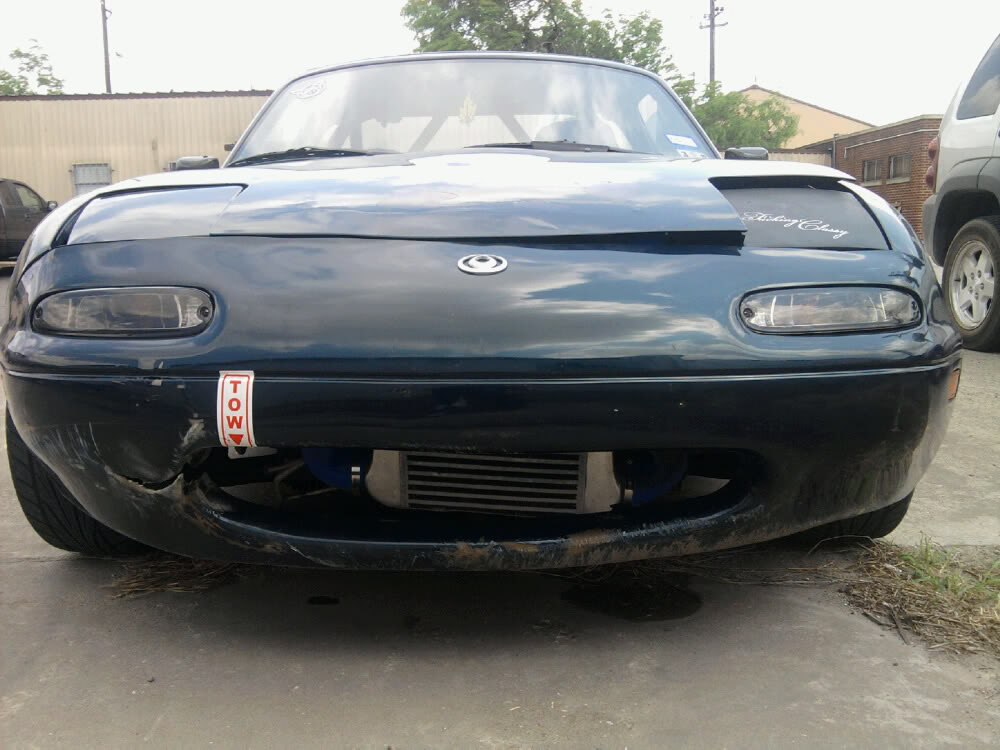

Dosent look as bad as it is....

Name:  Photo0330.jpg
Views: 0
Size:  103.3 KB
SnakeKP is offline   Reply With Quote
Old 04-22-2011, 04:41 PM   #19
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Posts: 71
Total Cats: 0
Default

For the 60 or so miles I put on it, the car was an f-ing blast, and I have learned so much about it and how turbo systems work in the last few weeks, and racing over the last 2 years has brought me so much enjoyment that even though its gone now, and I am very bumbed about it. Im glad I got what I did out of it.


BTW....

WTS: 15 x 8 6uls in black with RA-1s on them
stock soft top (tan) in great shape
stock suspension

el oh el

This is Kris sighing off, and even though I was not much of a participant in this community, thanks to everyone that helped me or put a smile on my face. Ill poke my head in from time to time, ill still be racing too, but it looks like my miata days are running slim. Ill track my dads stock 2000 sport miata for the next couple months just so im not itching to bad.
SnakeKP is offline   Reply With Quote
