did the dyno today 1993 1.6 stock+turbo - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 04-12-2016, 02:23 PM   #1
Newb
Thread Starter

Join Date: Jul 2014
Posts: 8
Total Cats: 2
Default did the dyno today 1993 1.6 stock+turbo

1.6 stock engine
ECUMASTER EMU system
garrett 2554r
intercooler
700cc injectors

267HK 315NM IN ENGINE NOT ON RW
Attached Files
File Type: pdf 232,3whp_282,[email protected],10bar.pdf (95.4 KB, 240 views)
pl11 is offline   Reply With Quote
Old 04-12-2016, 02:31 PM   #2
Newb
Thread Starter

Join Date: Jul 2014
Posts: 8
Total Cats: 2
Default

som pictures
Attached Thumbnails

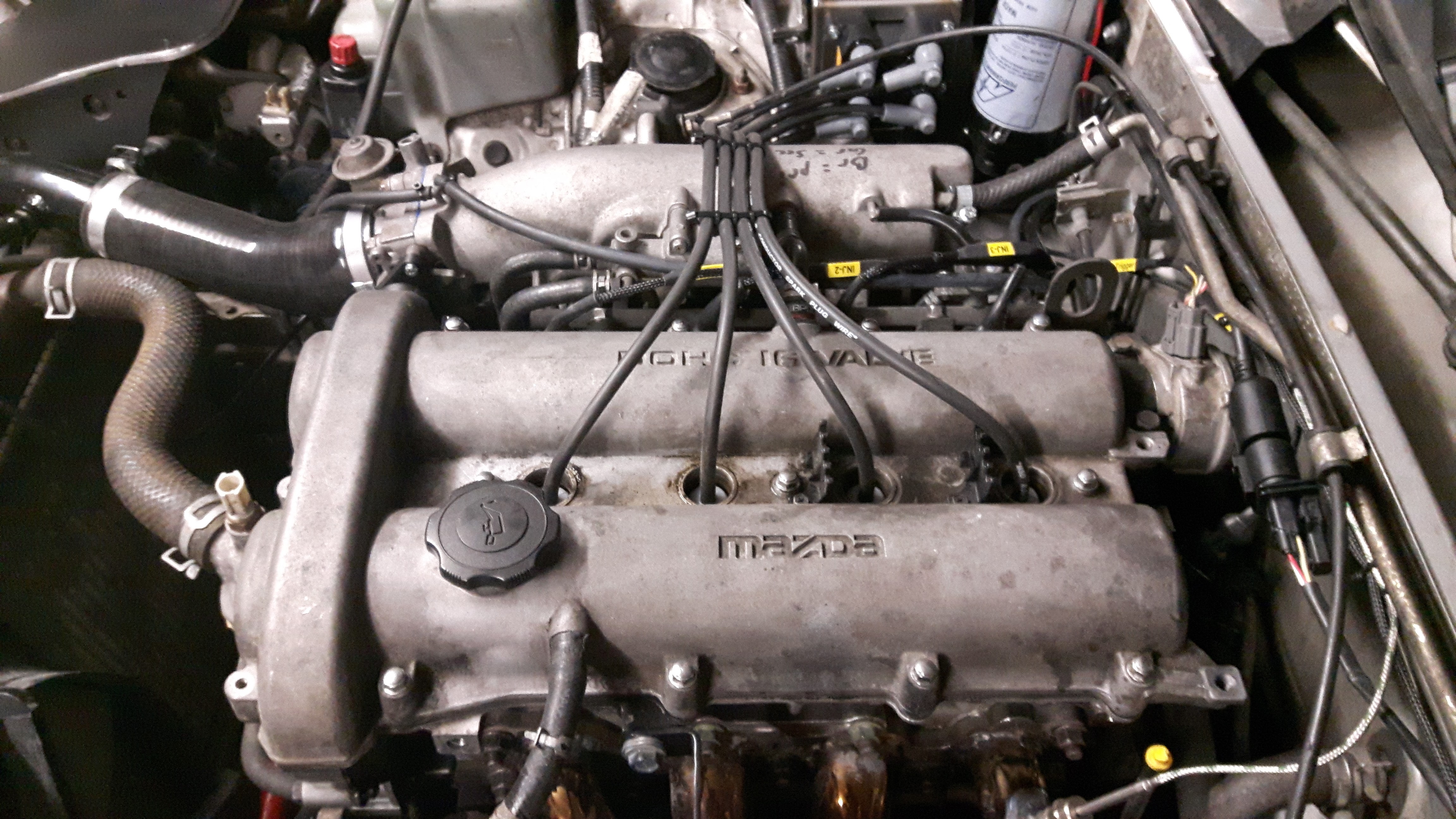

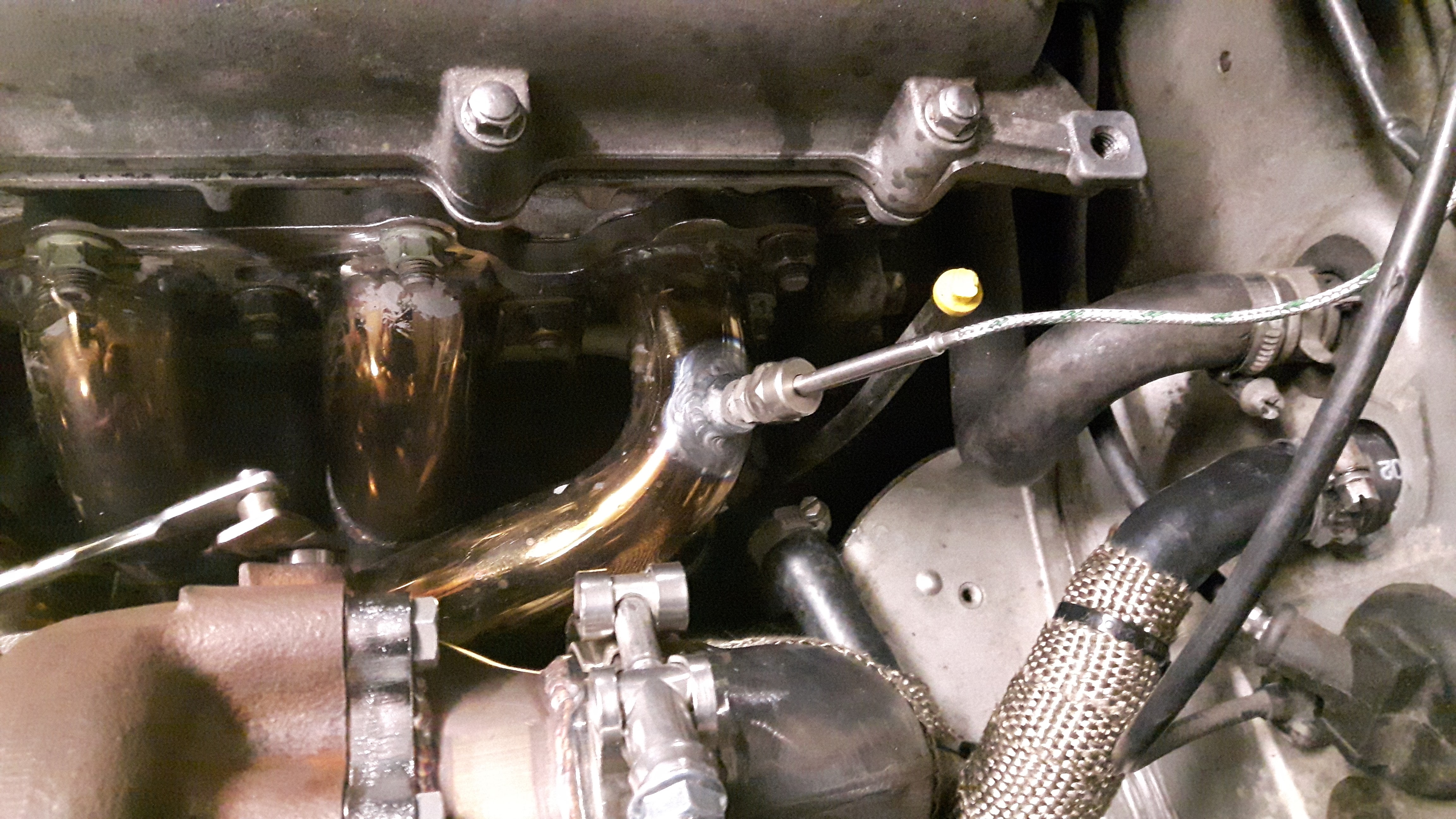

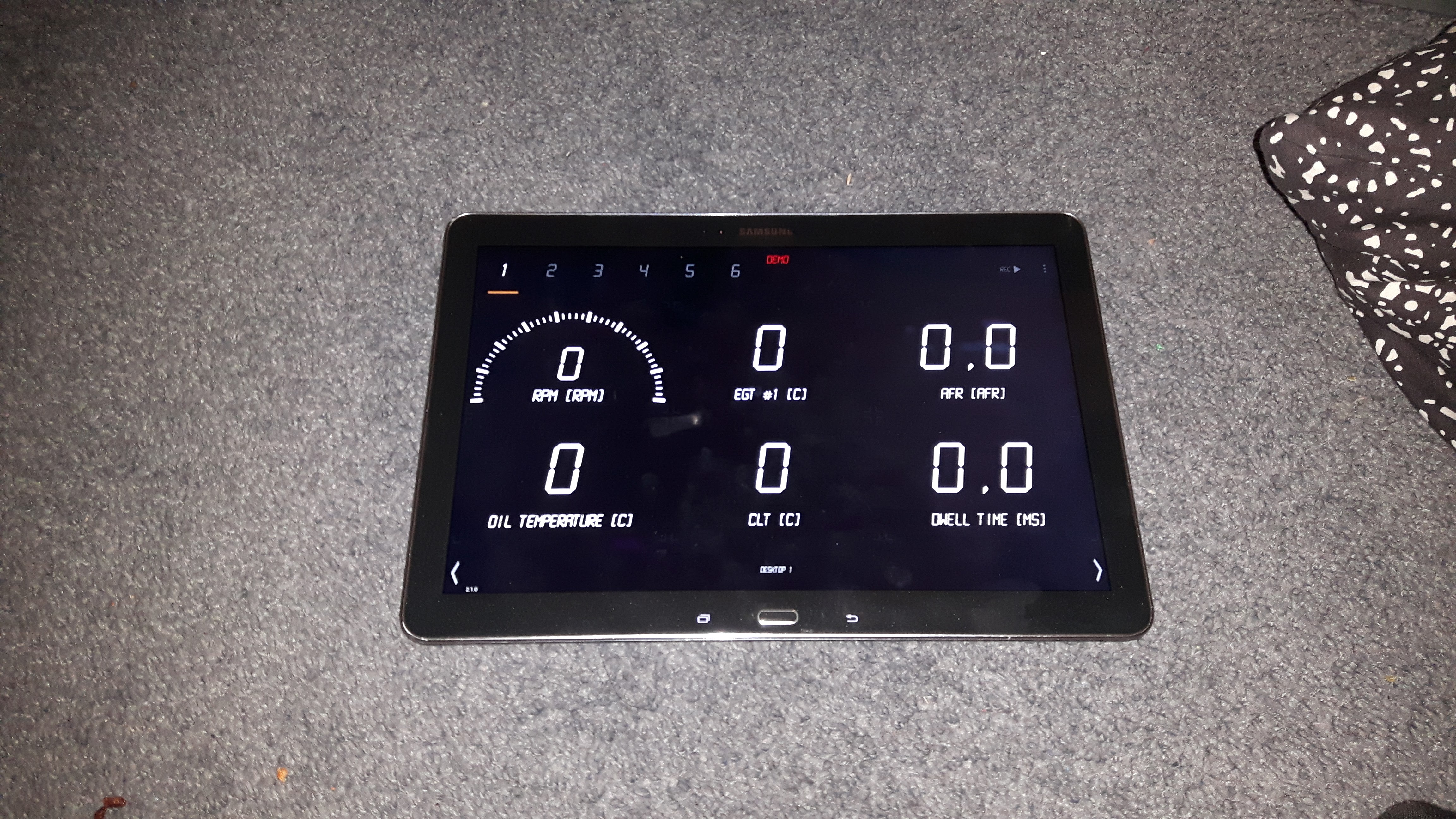

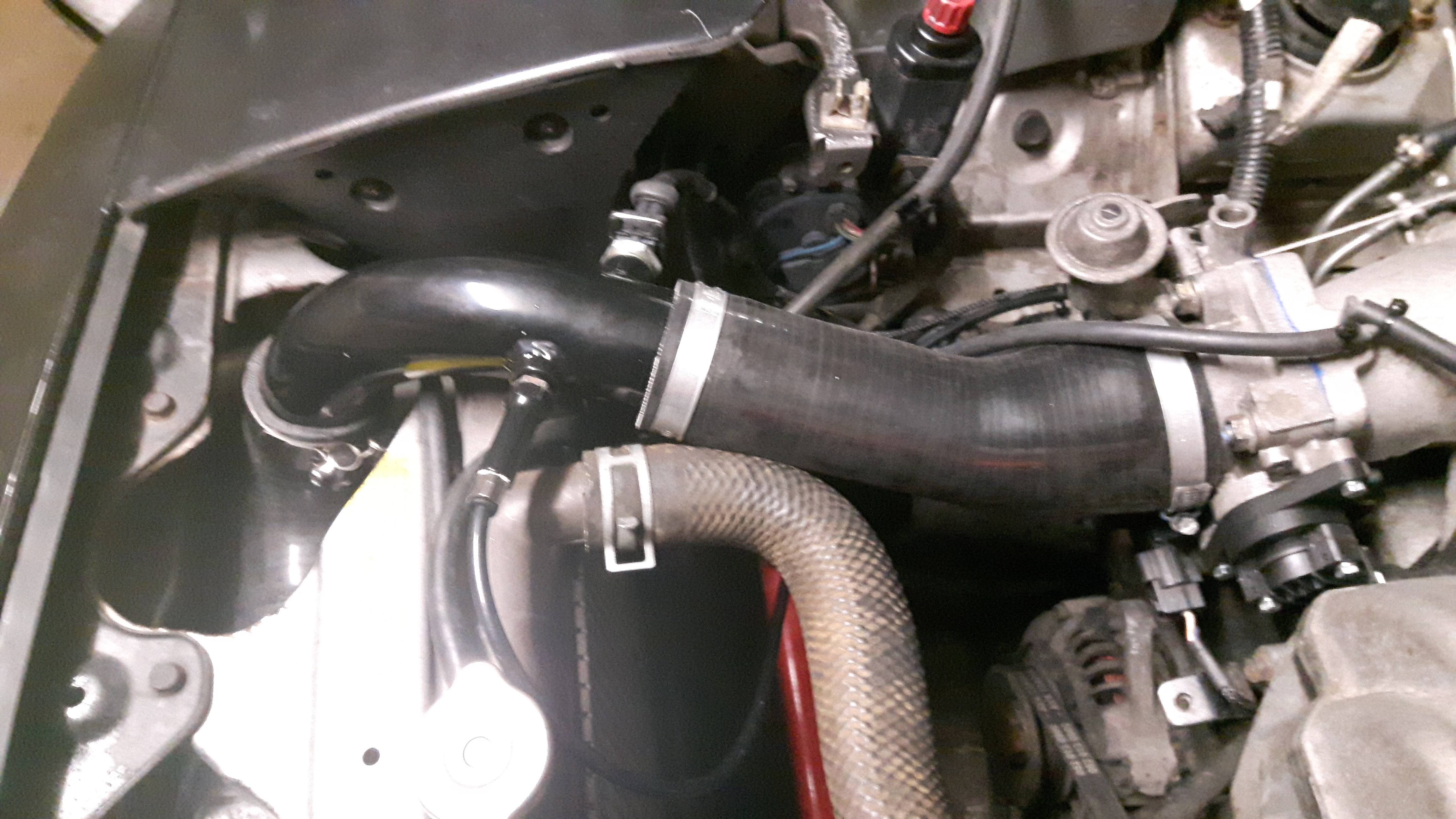

did the dyno today 1993 1.6 stock+turbo-display.jpg   did the dyno today 1993 1.6 stock+turbo-dyno.jpg   did the dyno today 1993 1.6 stock+turbo-engine-2.jpg   did the dyno today 1993 1.6 stock+turbo-engine-3.jpg   did the dyno today 1993 1.6 stock+turbo-engine.jpg

pl11 is offline   Reply With Quote
Old 04-12-2016, 02:55 PM   #3
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 128
Default

Congratulations man, looks like some solid numbers. I'm surprised it's not spooling a little earlier with the 2554.
pdexta is offline   Reply With Quote
Old 04-12-2016, 03:01 PM   #4
Junior Member

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default

Snygt. söta bror.
omnia is offline   Reply With Quote
Old 04-12-2016, 03:38 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by pdexta View Post
Congratulations man, looks like some solid numbers. I'm surprised it's not spooling a little earlier with the 2554.
perhaps you didnt notice what size motor he's running?
Braineack is offline   Reply With Quote
Old 04-12-2016, 03:49 PM   #6
Newb
Thread Starter

Join Date: Jul 2014
Posts: 8
Total Cats: 2
Default

driving on E85
the engine is very soft and fine over the all registry.
the control system has warning for many different things.(good for safty)
exhaust temperature.
oil pressure.
turbo pressure adjustment and oweboost controll and many more things.


link to a bad movie (phone) from the dyno


https://goo.gl/photos/tQjCotdfPuynUMad6
pl11 is offline   Reply With Quote
Old 04-12-2016, 03:57 PM   #7
Newb
Thread Starter

Join Date: Jul 2014
Posts: 8
Total Cats: 2
Default

we had to keep the torque down so much thad we could.
according guy how run the dyno (profisional) the car had about 90-120 more torque to give
but the original engine can not take that.
pl11 is offline   Reply With Quote
Old 04-12-2016, 04:03 PM   #8
Newb
Thread Starter

Join Date: Jul 2014
Posts: 8
Total Cats: 2
Default

nämen se en norsk gutt..
haha kul med folk från norden här
pl11 is offline   Reply With Quote
Old 04-13-2016, 04:16 AM   #9
Junior Member

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Also water/methanol i see...
Pepino is offline   Reply With Quote
Old 04-17-2016, 12:18 PM   #10
Newb
Thread Starter

Join Date: Jul 2014
Posts: 8
Total Cats: 2
Default

Quote:
Originally Posted by Pepino View Post
Also water/methanol i see...
Yes but dont nead it whit ny new bigger intercooler.
pl11 is offline   Reply With Quote
