Quote:
Originally Posted by Preluding
Quote:
Originally Posted by da chop View Post
instead of running a vacuum line you want to run a wire? Is that the point?
yes...instead of splicing/splitting a vacuum line into the car...I want a splice off a wire already in the car.
My map sensor is within the ms. I tee the vacuum line into the ms for my vacuum/boost gauge. Why create the extra work if you already are done.
Braineack is offline   Reply With Quote
Old 05-20-2011, 11:20 PM   #22
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
(zack morris's phone)



My map sensor is within the ms. I tee the vacuum line into the ms for my vacuum/boost gauge. Why create the extra work if you already are done.
Thats 6 points of failure.
- 1 at intake manifold
- 3 at the T
- 1 at the gauge
- 1 at the ECU.

I have 1 at the map sensor which is screwed into the intake manifold.
Wires are more reliable then a vacuum line, IMO. And by the Map sensor being screwed directly into the intake manifold...Could I say it is far more accurate as well???


All this being said, you're car is more reliable then mine
Preluding is offline   Reply With Quote
Old 05-25-2011, 04:36 PM   #23
Newb

Join Date: Mar 2011
Posts: 31
Total Cats: 0
Default

Where are you going to place the gauge at? on a pillar? We put ours in the left drivers side vent. It fit perfectly into the spherical swivel vent housing. I think most gauges would fit.
elbeezy is offline   Reply With Quote
Old 07-31-2011, 01:50 AM   #24
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

So I finally got some time to waste. Pulled the gauge.. check it out so far.

This is a scan of the autometer gauge and my guide.


Here it is. This will be my final gauge...once i get some damn ink. Printers suck.
triple88a is offline   Reply With Quote
Old 07-31-2011, 04:44 PM   #25
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Looky here. Sexy as hell.

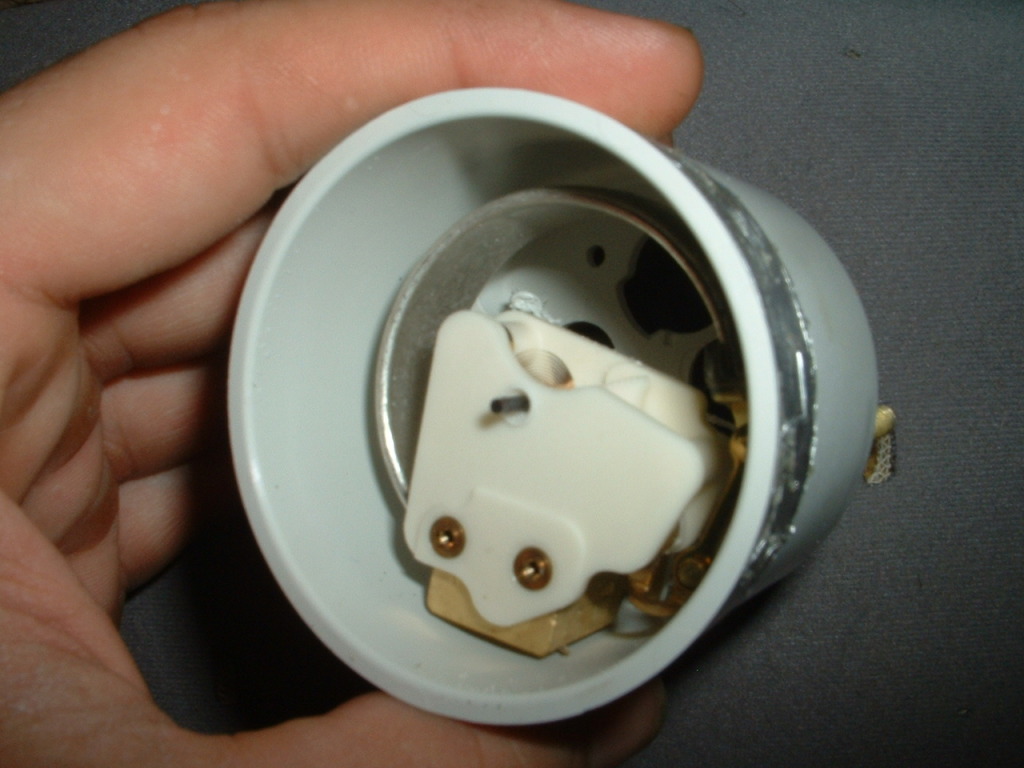

Autometer gauge 30in vac to 20 psi gauge... thats what it looks like when its open.





The face plate is aluminum or some **** like that... doesnt allow light through as the reason why it uses a refracting lens which actually holds my softer faceplate in place.

The over all quality of the faceplate came out great. You cannot notice its been printed even if you take it apart and feel the material in your hand.

Attached Thumbnails
diy boost gauge-autometer3020open.jpg
Attached Files

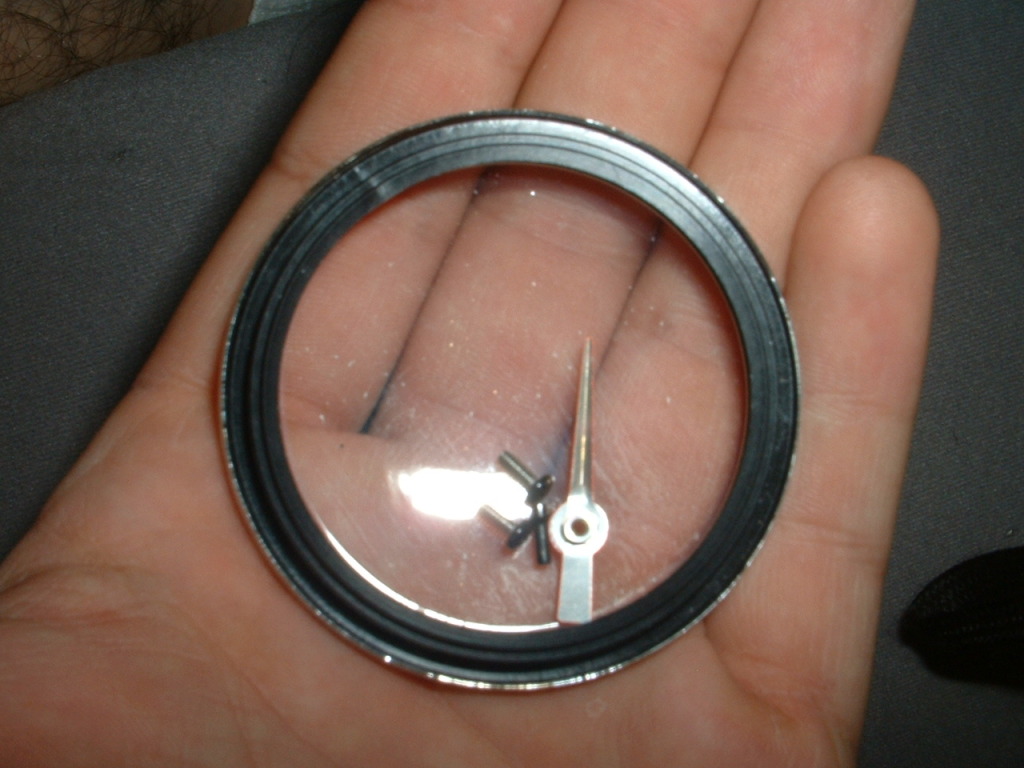

File Type: autometer3020gl-------- (163.1 KB, 875 views)
triple88a is offline   Reply With Quote
Old 08-06-2011, 03:28 AM   #26
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

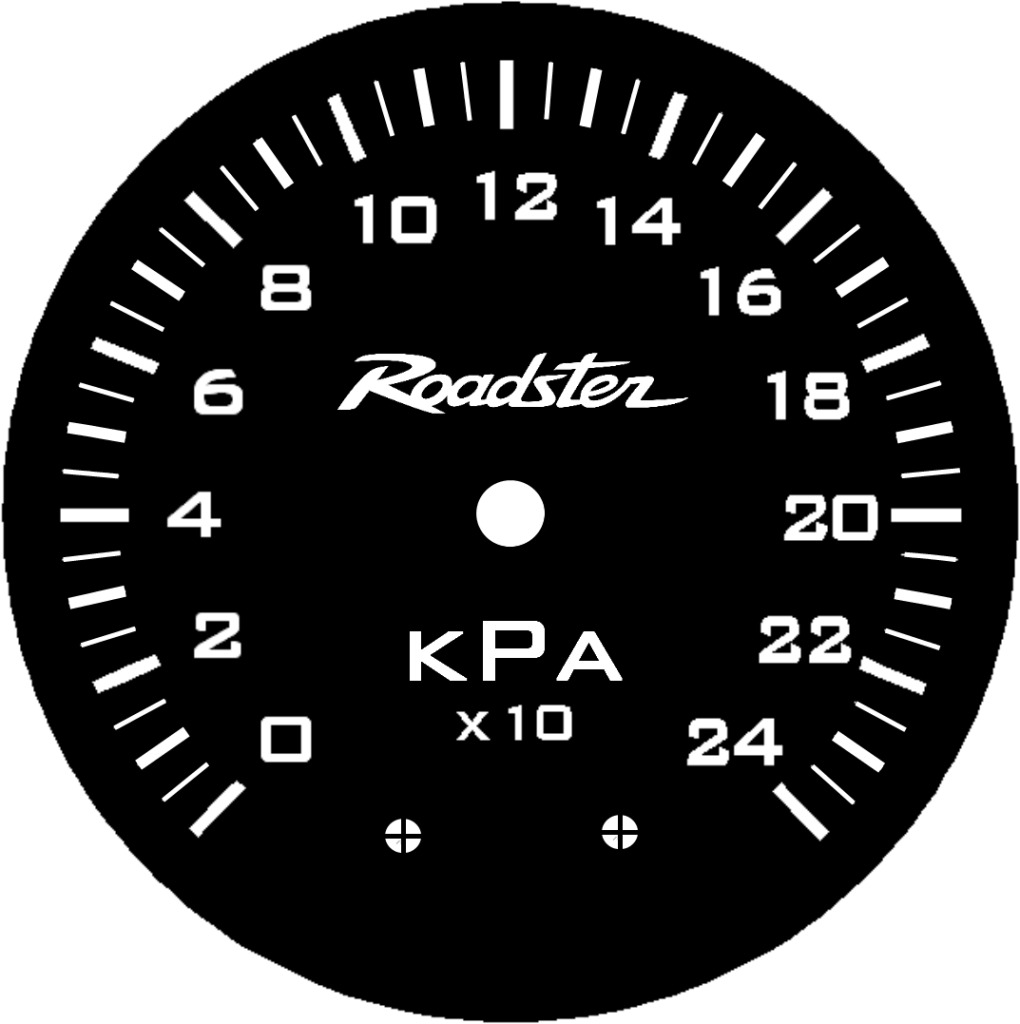

After running this gauge for a week now its clear to me the little lines between the major points are too skinny and cant be seen. I also edited the cutouts. They are exact so if u cut them at this size the holes end up too big, if u cut them too small then the white shows. This is my new model. 5 kpa lines are little bigger than above, 10kpa lines are almost as fat as the 20 kpa lines.

Attached Thumbnails
diy boost gauge-024kpa-1.jpg

Last edited by triple88a; 08-06-2011 at 03:43 AM.
triple88a is offline   Reply With Quote
Old 08-06-2011, 02:22 PM   #27
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

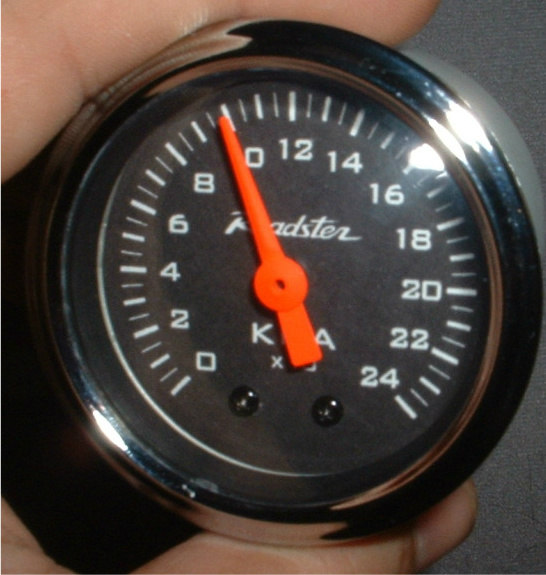

gauge #2 Also the autometer gauge is same **** on both sides so you can turn it around and glue the new face plate to the back of it. If u dont like it simply turn it around to stock.

Attached Thumbnails
diy boost gauge-024kpa-2-1.jpg

Last edited by triple88a; 08-06-2011 at 02:48 PM.
triple88a is offline   Reply With Quote
