Looks good, however it's a lot more work than is needed especially when you can do it without having to cut holes and remove fenders.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-09-2009, 04:21 PM   #22
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by Flawxy View Post
Personal Opinion.. I'd replace this coupler with a weld. Even though you can access that without pulling fender it'd still be a huge bitch to get to and might not be repairable easily with wrenches and screwdrivers on the side of the road..
elesjuan is offline   Reply With Quote
Old 06-10-2009, 12:59 AM   #23
I'm Miserable!
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

Quote:
Originally Posted by Flawxy View Post
i agree that i now have very limited space for air filter replacement.
Is okkk, we all fiendsss
railz is offline   Reply With Quote
Old 06-10-2009, 01:16 AM   #24
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Hey Ive never seen routing like that before, thats pretty slick

Im considering doing something kind of similar, except on an NB, so I think I can route mine down, like this:



but i suppose you cant do that due to the headlights, haha

but anyway keep up the good work and keep us posted!

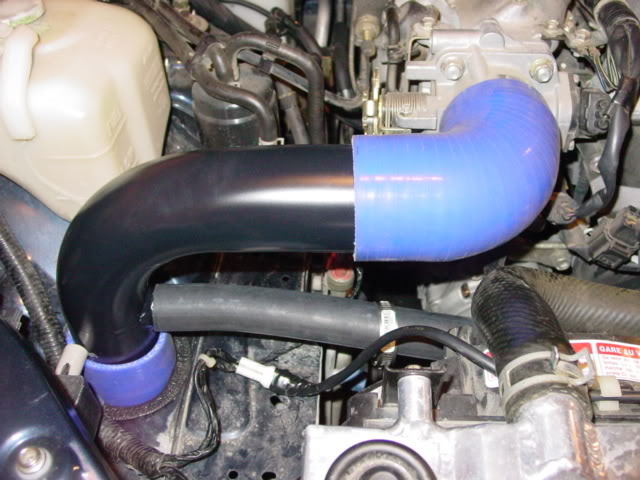

Huh, never saw that before, but the cold side is how I did mine.

Name:  Picture210.jpg
Views: 4
Size:  59.5 KB
Stein is offline   Reply With Quote
Old 06-10-2009, 02:48 AM   #25
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

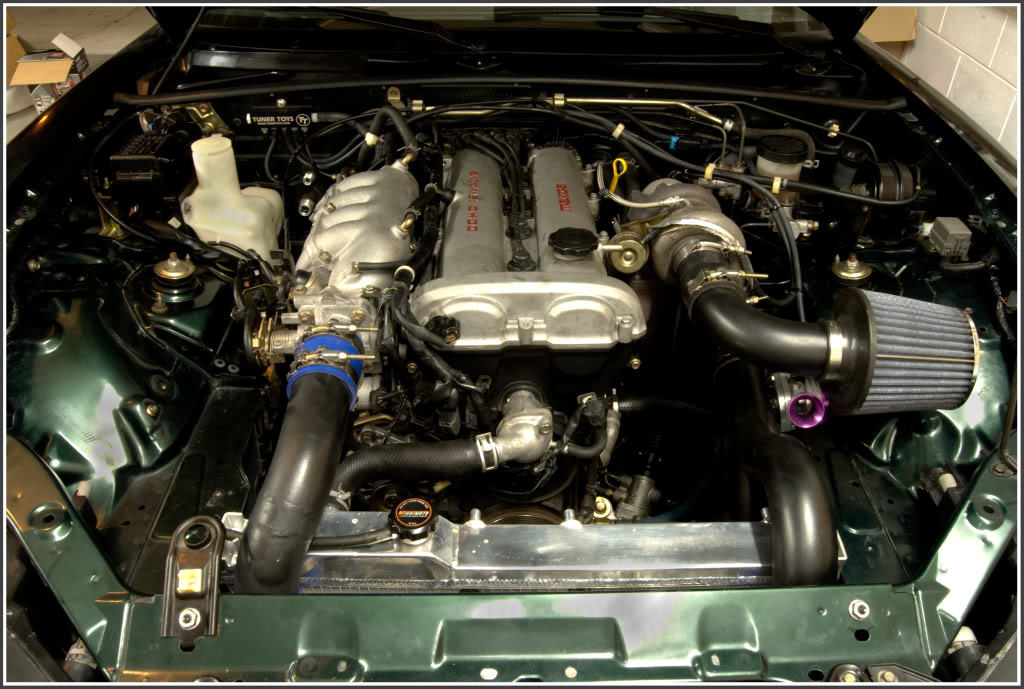

I too did an unconventional routing...

Name:  DSC_1465-Edit.jpg
Views: 4
Size:  146.4 KB
coastertrav is offline   Reply With Quote
Old 06-10-2009, 03:13 AM   #26
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Looks like a standard over the radiator routing to me, unless I'm missing something.
NA6C-Guy is offline   Reply With Quote
Old 06-10-2009, 08:25 AM   #27
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

I don't understand over the radiator. sure it's easy to route but you're picking up all that heat pre/post intercooler. Anyone read intake temps w/ an over the radiator setup? I wonder if the IC is event able to lower the temp of the charge air.
Project84 is offline   Reply With Quote
Old 06-10-2009, 09:55 AM   #28
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

What are you talking about? Do you really think the air moving through the charge pipes sticks around long enough to absorb heat post ic? IF anything its a better method if you have a IC with the correct up facing endtanks. More direct routing, less bends = faster response, better flow.
neogenesis2004 is offline   Reply With Quote
Old 06-10-2009, 10:55 AM   #29
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

If the charge pipes are absorbing some of the heat the radiator is... radiating.... you're expecting the air passing through the hot pipes to not get compromised? That's bold.

Take a map torch to an aluminum pipe, get it to 200*F, blow air at turbo-psi (10psi, whatever) through the pipe and tell me the air coming out the other end isn't warmer than the air going in.

Not to be rude but this is like 3rd grade 101.

On the "less bends = faster response" statement:

I'm betting you could route the charge pipes out the fender, down the side of the car, wrapping around the tail lights, back up the passenger side, and into the intake, effectively using 18 feet of chargepipe, and you wouldn't notice a hint of hesitation.
Project84 is offline   Reply With Quote
Old 06-10-2009, 11:34 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

like neo, i doubt it matter how hot the pipe really. the air is moving so fast within the pipe it will be hard for it to absorb much/any heat from the surface of the pipe. some, but not much.

likewise, unsure about the bends, I'm sure its fast enough that bends/length doesn't matter, but it certain would be more "ideal" to be as straight and short as possible.
Braineack is offline   Reply With Quote
Old 06-10-2009, 01:10 PM   #31
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

I don't really disagree, it's just that aluminum radiates heat very easily, so although the charge air passing over the hot section may not be altered much, there is heat inside the tube regardless, and cool air will absorb that heat.

I think it looks cool, no doubt about that.
Project84 is offline   Reply With Quote
Old 06-10-2009, 01:26 PM   #32
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,086
Total Cats: 30
Default

Quote:
Originally Posted by Project84 View Post
If the charge pipes are absorbing some of the heat the radiator is... radiating.... you're expecting the air passing through the hot pipes to not get compromised? That's bold.

Take a map torch to an aluminum pipe, get it to 200*F, blow air at turbo-psi (10psi, whatever) through the pipe and tell me the air coming out the other end isn't warmer than the air going in.

Not to be rude but this is like 3rd grade 101.

On the "less bends = faster response" statement:
Not to be rude, but if you've taken a transport phenomena class (or any sort of fluid flow, really) You'd know that convective heat transfer is going to be essentially negligible at that flowrate. If you're that worried about it, coat the pipe in some nonconductive material.
albumleaf is offline   Reply With Quote
Old 06-10-2009, 06:11 PM   #33
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

I'm not worried about it at all, because I wouldn't route my IC plumbing that way.
Project84 is offline   Reply With Quote
Old 06-10-2009, 06:40 PM   #34
Newb

Join Date: Sep 2007
Posts: 6
Total Cats: 0
Default

it looks real nice
slickrick is offline   Reply With Quote
Old 06-10-2009, 09:02 PM   #35
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by coastertrav View Post
I too did an unconventional routing...

I still say again for a bunch of "kids" (no offense..) in a garage with a wire feed welder and some misc hand tools.. MAD Props!!
elesjuan is offline   Reply With Quote
Old 06-10-2009, 09:07 PM   #36
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by Project84 View Post
I don't understand over the radiator. sure it's easy to route but you're picking up all that heat pre/post intercooler.
Simply line the pipes with weasel fur. Problem solved.
Joe Perez is offline   Reply With Quote
Old 06-10-2009, 09:23 PM   #37
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by Joe Perez View Post
Simply line the pipes with weasel fur. Problem solved.
Cspence is offline   Reply With Quote
Old 06-10-2009, 09:25 PM   #38
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

See... why couldn't I have just gotten that response instead of the debate I hate to withstand.

Awwww... he cute!
Project84 is offline   Reply With Quote
Old 06-10-2009, 09:42 PM   #39
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

IDK but in my opinion doing the intercooler like you is ******* stupid!
miataspeed2005 is offline   Reply With Quote
Old 06-10-2009, 09:50 PM   #40
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

[Waylon Jennings]
Now some folks 'round these parts just can't pass up a good argument. Reckon if their mouths ever stopped movin', their brains just might start.
[/Waylon Jennings]
Joe Perez is offline   Reply With Quote
