Default Do I have to clock this turbo????

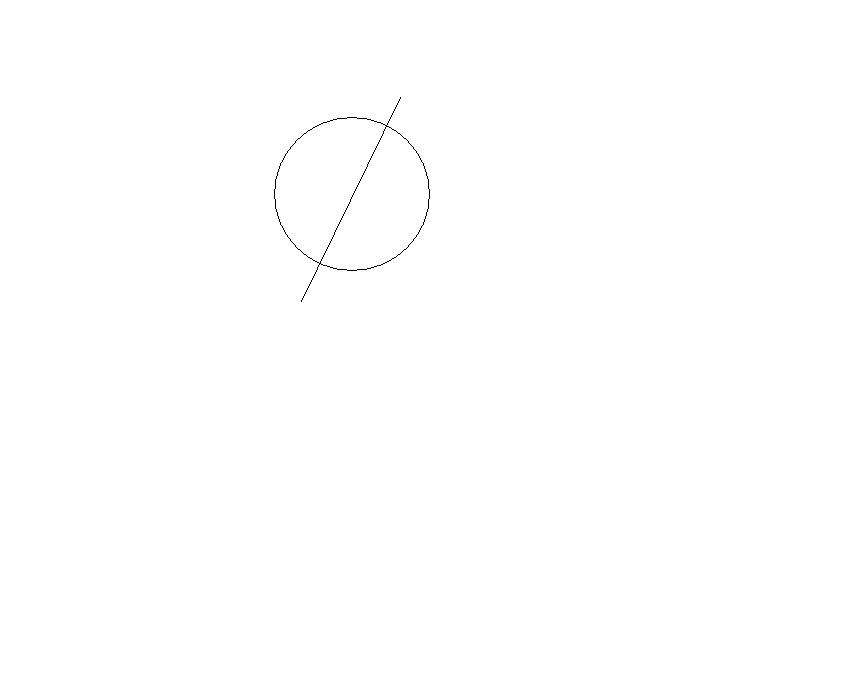

So in looking at how the turbo will mount to the manifold I have it seems to me that the oil lines are almost at vertical as is. Is this good or do I need to clock it? The drawing with the circle represents the angle the lines are at as is.
Attached Thumbnails

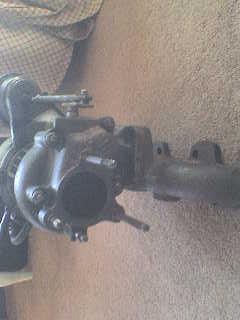

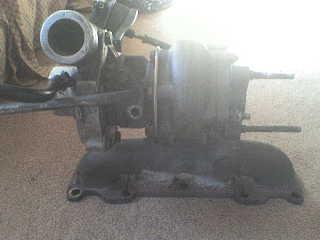

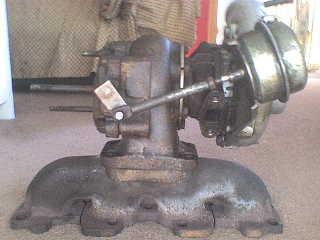

Do I have to clock this turbo????-dsc00027.jpg   Do I have to clock this turbo????-dsc00028.jpg   Do I have to clock this turbo????-dsc00029.jpg   Do I have to clock this turbo????-clock.jpg
akthor is offline   Reply With Quote
Old 04-23-2007, 05:38 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

yes.



didnt even have to make the pics bigger :gay:
Braineack is offline   Reply With Quote
Old 04-23-2007, 05:40 PM   #3
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Would i work as is? Probably be just fine.

Having said that, I would clock it now while it's off the car. Do it.
UofACATS is offline   Reply With Quote
Old 04-23-2007, 05:41 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

at even 10° off vertical (which is the accepted maximum tilt) i was having bad oil drainage issues.....

considering you are about 150° off :gay: i'd assume it needs a good rotation....

if you need directions, look for the "diy projects" thread in the diy seciton.
Braineack is offline   Reply With Quote
Old 04-23-2007, 05:43 PM   #5
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Oh, look at that.


Yeah, you have to clock it if the feed's on the botttom..
UofACATS is offline   Reply With Quote
Old 04-23-2007, 05:46 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

Ahhh see I didn't know one was feed and one was drain I thunk either could be either I am not very smart, glad I have help!
akthor is offline   Reply With Quote
Old 04-23-2007, 05:48 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

nope, feed is the little 1/8" threaded hole...the the drain is the bigger smooth-squared hole.
Braineack is offline   Reply With Quote
Old 04-23-2007, 06:06 PM   #8
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

Where's the clocking directions in the DIY? I see the rebuild part but you didn't really detail the clocking part is it pretty self explanatory?
akthor is offline   Reply With Quote
Old 04-23-2007, 07:00 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Yes. Loosen bolts and or snap ring, turn housings to appropriate position. Reassemble.
cjernigan is offline   Reply With Quote
Old 04-23-2007, 07:36 PM   #10
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

Make it 100% vertical.. take away any foults...
Make a new bracket for the wastegate.

Exhaust side: just loosen the bolds and turn...(be carefull for the blades)
1 Intake snapring: remove, turn, place back. (old style t25)
2 Intake bolds: undo all 2 turns, then turn. (new style t25)
greddymx5 is offline   Reply With Quote
