Does this mean it's time for a rebuild - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 11-26-2006, 06:38 AM   #1
Junior Member
Thread Starter
iTrader: (3)

timhill78's Avatar

Join Date: Aug 2006
Location: Oregon
Posts: 241
Total Cats: 0
Default Does this mean it's time for a rebuild

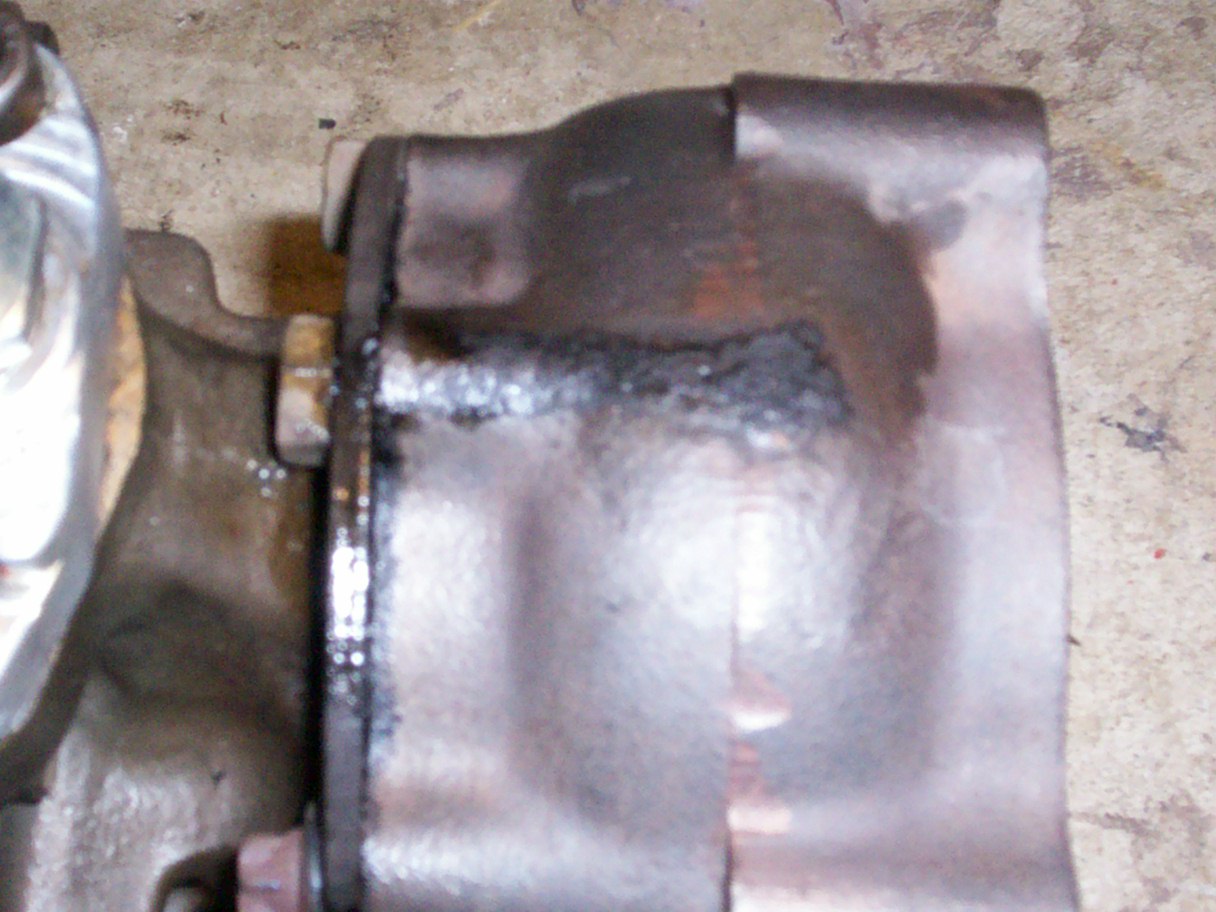

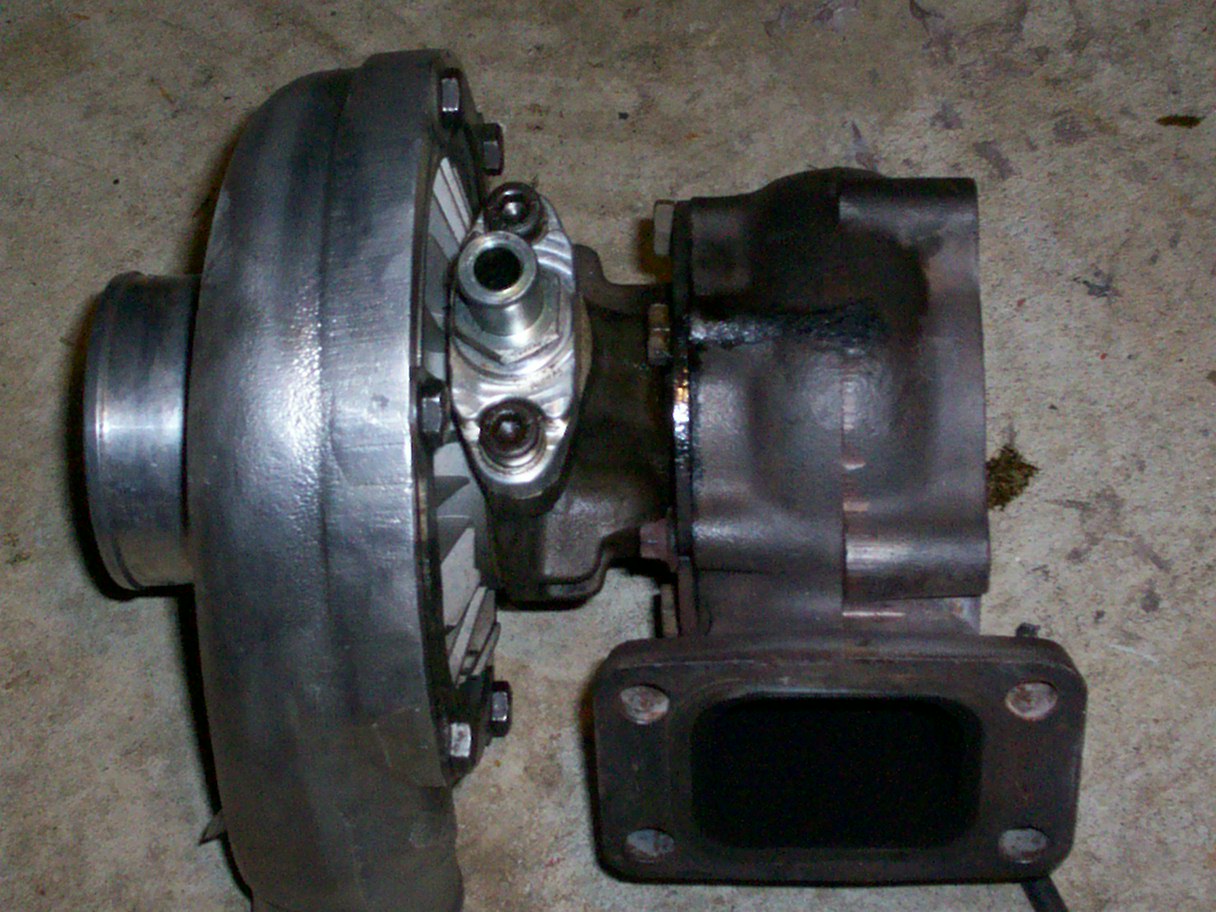

I'm just in the first test driving stages of my new turbo install and I have a oil leak. I took some pictures of what I think is the leak but I need advice. I have a few other minor leaks but this one has got me concerned. The oil on the turbo produces an awful lot of smoke. Rebuild? I've also got an exhaust manifold leak that i'm trying to deal with. Man this things takin a while..
Attached Thumbnails
Does this mean it's time for a rebuild-000_0104.jpg   Does this mean it's time for a rebuild-000_0105.jpg
timhill78 is offline   Reply With Quote
Old 11-26-2006, 09:31 AM   #2
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by timhill78 View Post
I'm just in the first test driving stages of my new turbo install and I have a oil leak. I took some pictures of what I think is the leak but I need advice. I have a few other minor leaks but this one has got me concerned. The oil on the turbo produces an awful lot of smoke. Rebuild? I've also got an exhaust manifold leak that i'm trying to deal with. Man this things takin a while..
Looks like the center section is leaking, you might want to try to restrict flow a bit first but assuming that you don't have too much flow, it's rebuild time.

Mark
Markp is offline   Reply With Quote
Old 11-26-2006, 03:03 PM   #3
Junior Member
Thread Starter
iTrader: (3)

timhill78's Avatar

Join Date: Aug 2006
Location: Oregon
Posts: 241
Total Cats: 0
Default

I don't have anything restricting the flow and it's coming from a sandwich plate off the oil filter. I'll try that next. Thanks.
timhill78 is offline   Reply With Quote
Old 11-26-2006, 03:59 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

try an oil restirctor on the line, and make sure you crankcase breather is routed correctly. if that doesn't solve it then a rebuild may be in order.
Braineack is offline   Reply With Quote
Old 11-26-2006, 04:49 PM   #5
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Definitely use a restrictor. I have a Function 7 one lying around for a T3 if your iterested.
-Michael-
TheBandit is offline   Reply With Quote
Old 11-26-2006, 05:01 PM   #6
Junior Member
Thread Starter
iTrader: (3)

timhill78's Avatar

Join Date: Aug 2006
Location: Oregon
Posts: 241
Total Cats: 0
Default

Damn, I just ordered one from JGS Precision Turbo for way too much money.
timhill78 is offline   Reply With Quote
Old 11-30-2006, 07:04 AM   #7
Junior Member
Thread Starter
iTrader: (3)

timhill78's Avatar

Join Date: Aug 2006
Location: Oregon
Posts: 241
Total Cats: 0
Default

That was it! It works fine now. Now, what's the most boost I can run on my stock 96 injectors? 9psi too much?
timhill78 is offline   Reply With Quote
Old 11-30-2006, 09:59 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

your injectors should be good for about 190rwhp at 100-110psi or so of fuel. So 7-8-9psi is nearing the limits, depending on your setup. I was personally seeing fairly good results around 7-8psi, 9-10psi wasn't good.

http://www.rev2red.com/images/cars/7psi_265cc.jpg
Braineack is offline   Reply With Quote
