Default Does your intercooler have turbulators? or turdulators.

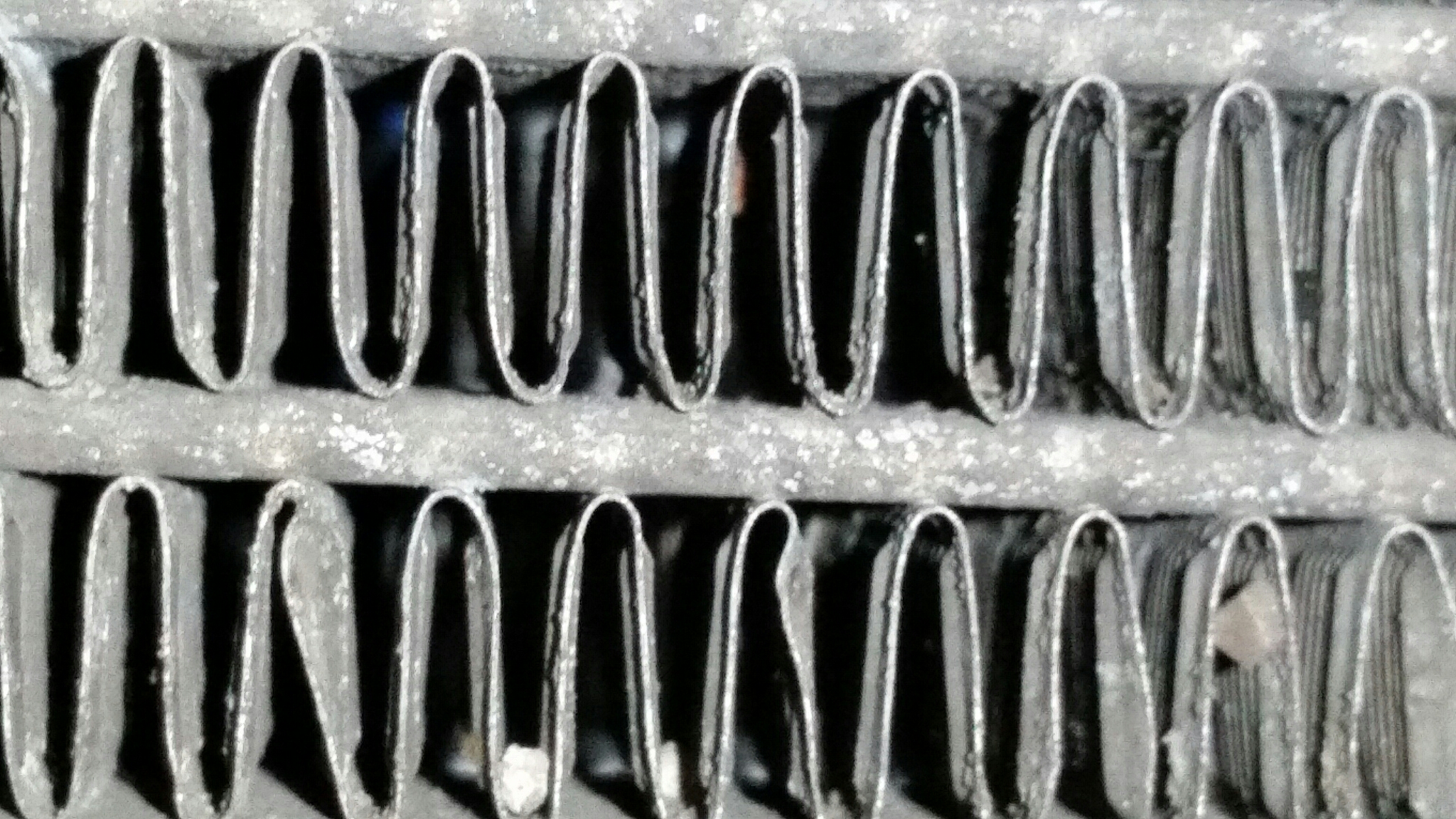

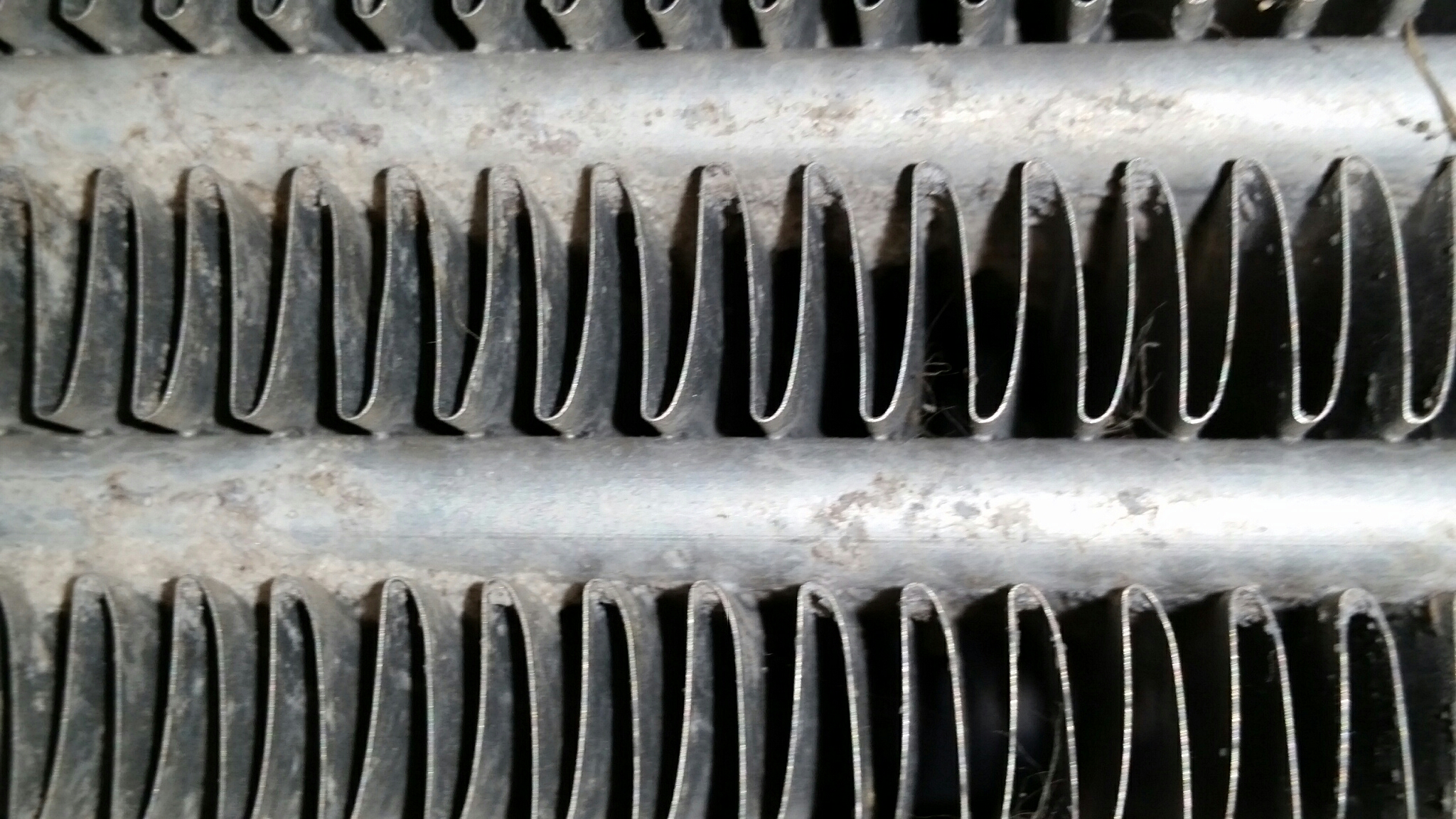

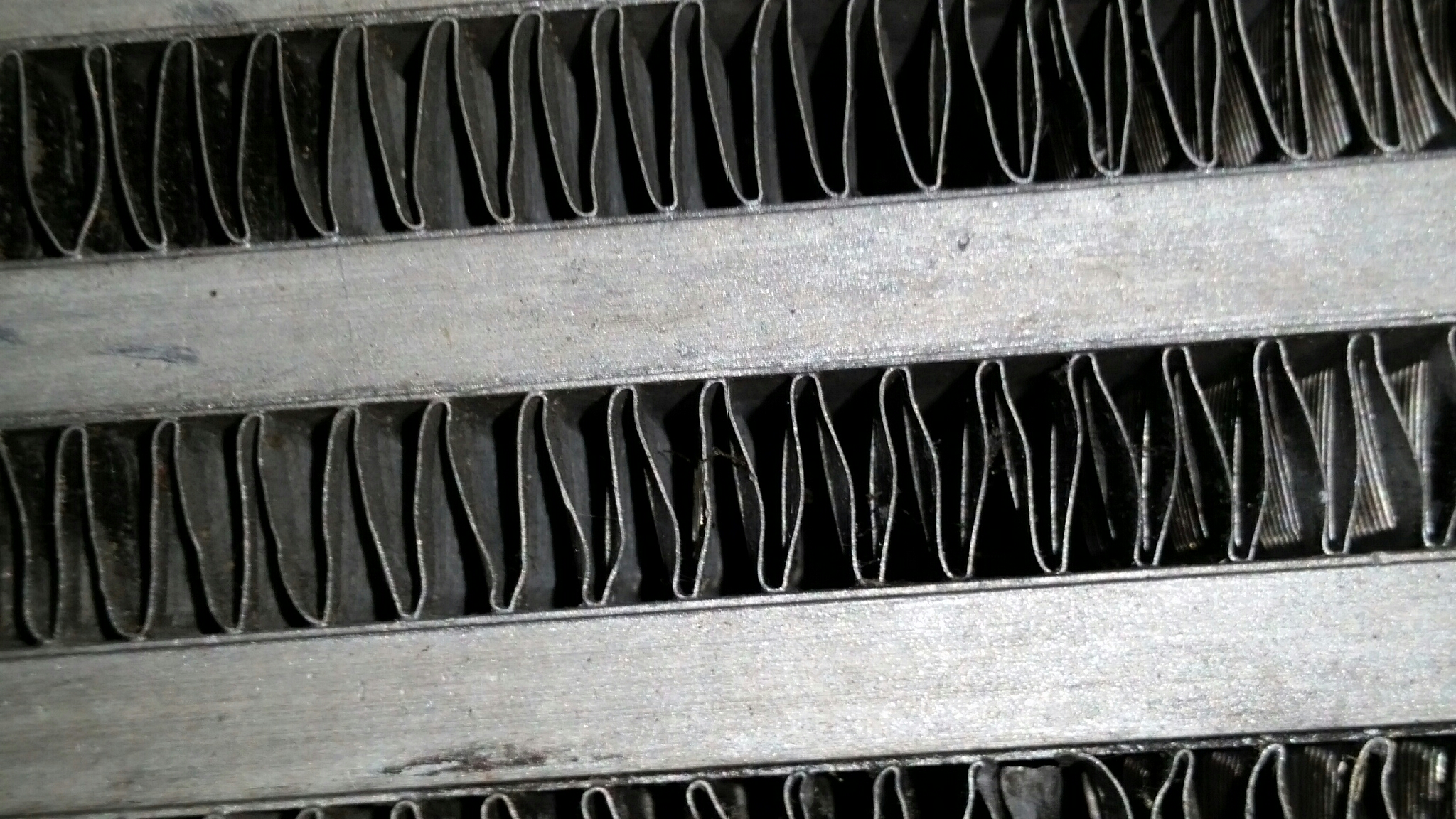

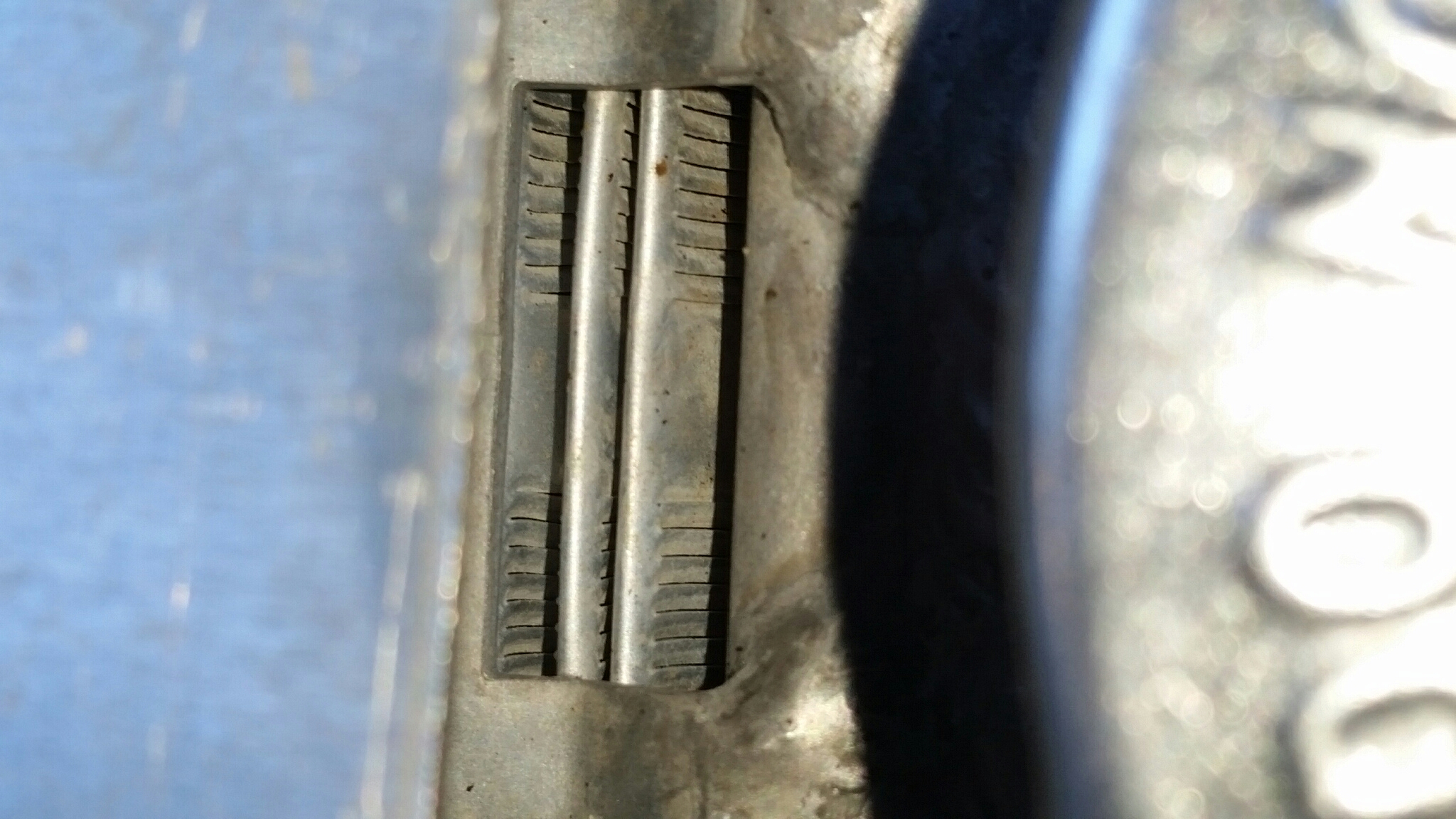

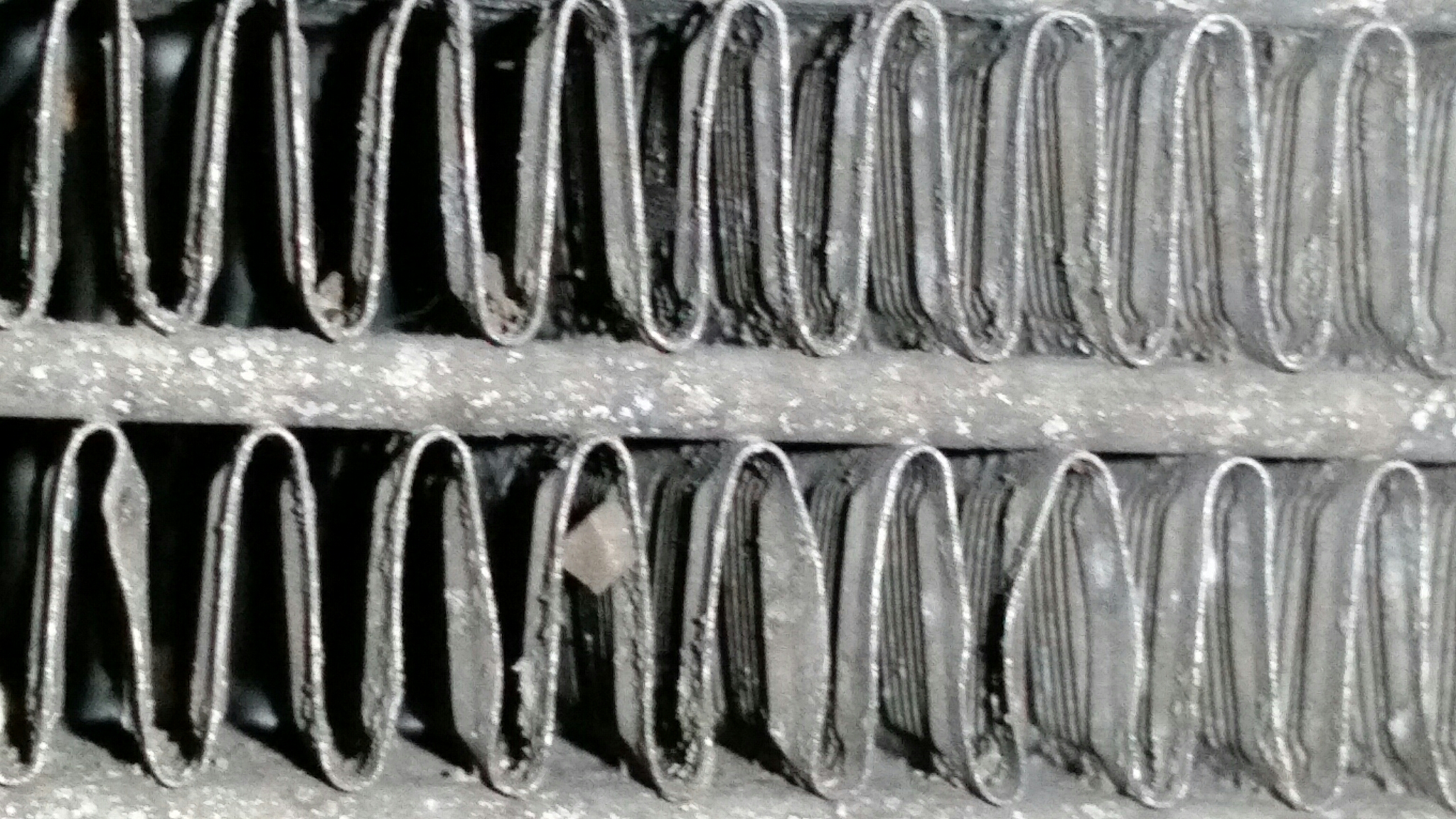

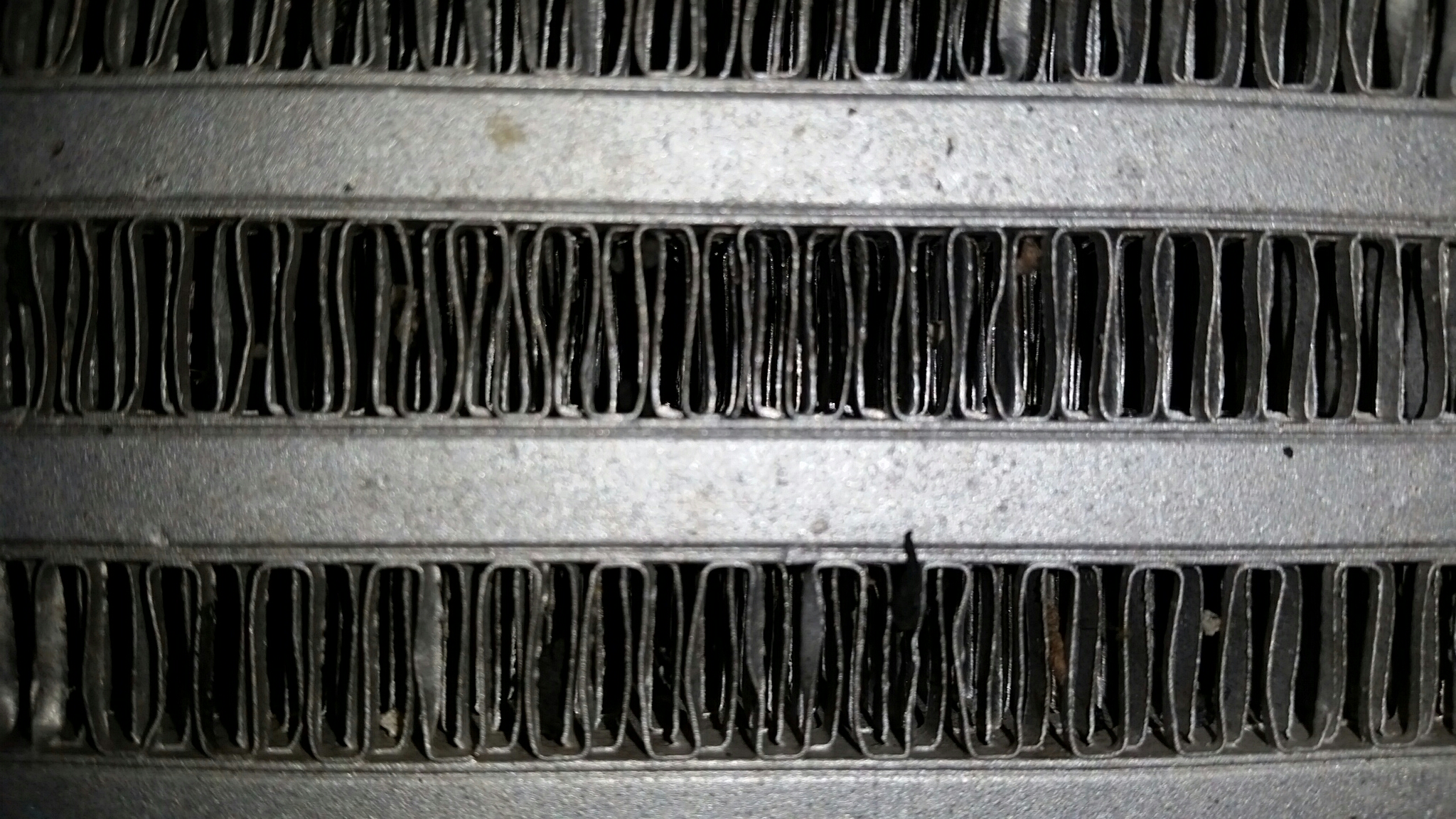

Does your intercooler have turbulators?

With and without. Tell me which ones you see them in?
Attached Thumbnails
Does your intercooler have turbulators? or turdulators.-20151003_173940.jpg   Does your intercooler have turbulators? or turdulators.-20151003_173721.jpg   Does your intercooler have turbulators? or turdulators.-20151003_173954.jpg   Does your intercooler have turbulators? or turdulators.-20151003_174143.jpg   Does your intercooler have turbulators? or turdulators.-20151003_173756.jpg

Does your intercooler have turbulators? or turdulators.-20151003_174149.jpg   Does your intercooler have turbulators? or turdulators.-20151003_173647.jpg
sixshooter is offline   Reply With Quote
Old 10-03-2015, 11:01 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

You want em. You want lots of em. You want em staggered. BP doesn't flow that well, and most of us don't run astronomical boost with grossly oversized turbos, so really, the thing you want to go for is efficiency/heat transfer, which the turbulators are primarily responsible for.

garrett cores are good
precision cores are good
I think treadstone is right up there with those
there's a few ebay clones too (like the one I was running on the msm) that seemed to be well built
18psi is offline   Reply With Quote
Old 10-03-2015, 11:10 PM   #3
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

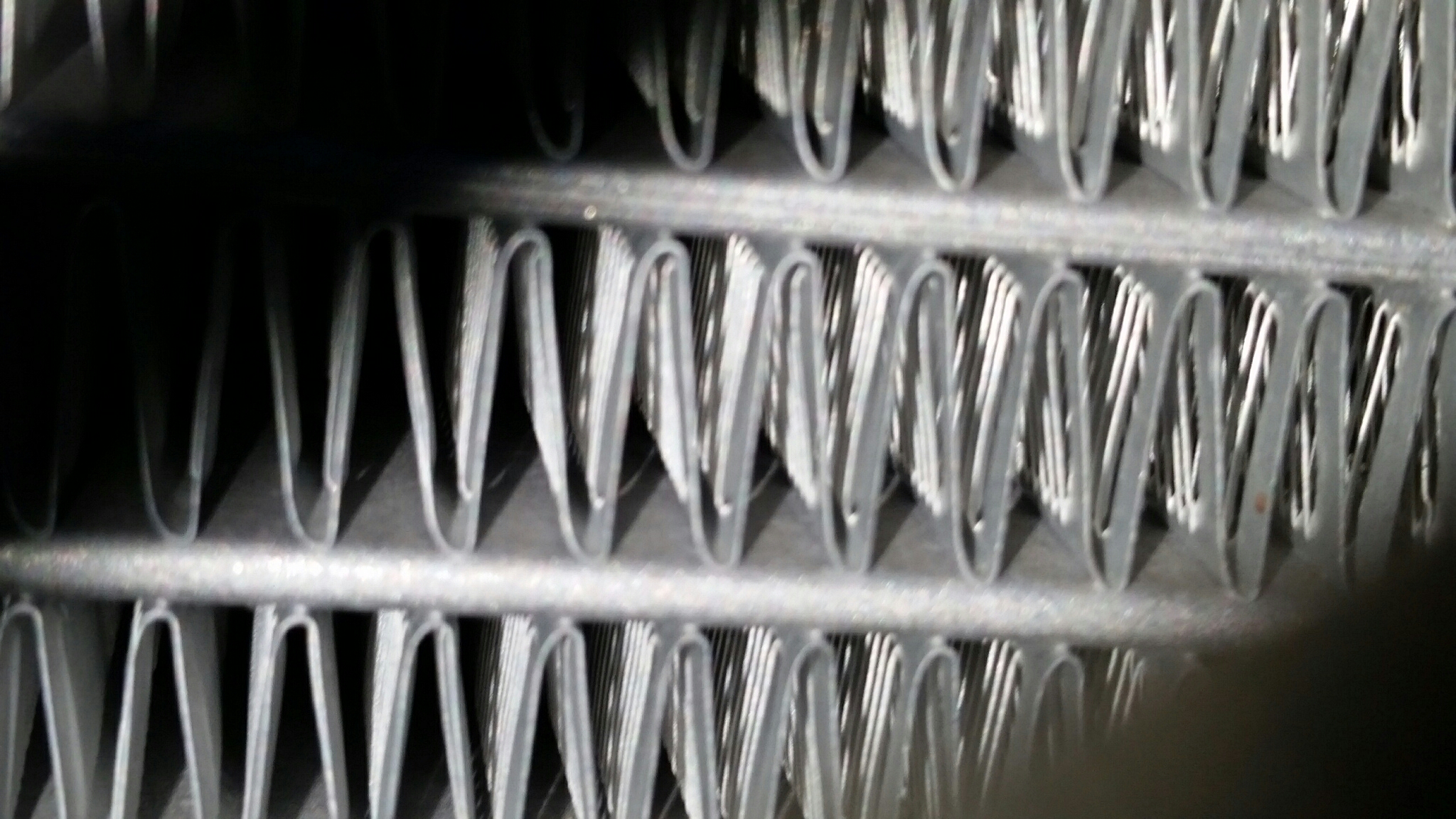

The ~$60 bar/plate ebay intercooler does not have turbulator turbulators internally, just staggered straight blade ones, much like one of those pictures. The fins are thin, they wouldn't take the stamped baffle very well.



External fins are straight 2.5" long or as thick as the core. They are baffled the whole way down, external turbulators I guess. Like this picture.

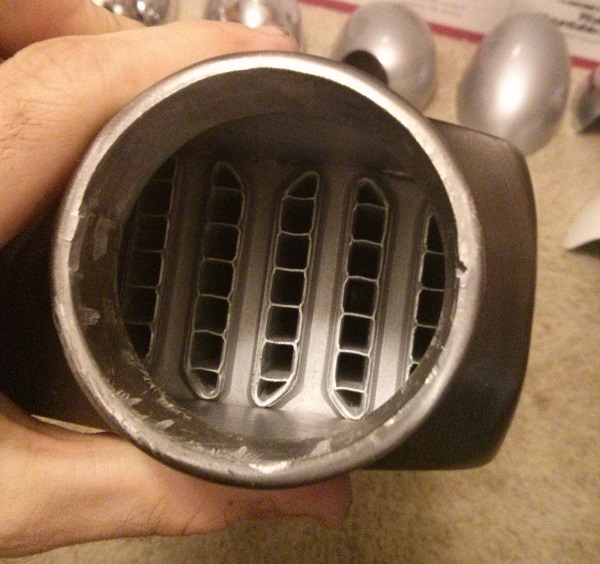

The tube/fin monstrosity was a single piece extruded tube with endtanks, I don't even think the external fins were baffled, just straight cut. It looks like an intercooler, but I assume aluminum tubing would dissipate more heat.





Tube fin/delta fan Junk!
Attached Thumbnails
Does your intercooler have turbulators? or turdulators.-151778d1443923630-does-your-intercooler-hane-turbulators-20151003_173954.jpg
Attached Images

deezums is offline   Reply With Quote
Old 10-04-2015, 12:13 AM   #4
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

External only on most of the ebay coolers Ive seen.
nitrodann is offline   Reply With Quote
Old 10-04-2015, 01:10 AM   #5
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

My ebay intercooler has straight fins externally and staggered ones internally. I'm okay with this because the volume of air passing through the external side of the intercooler should be considerably larger than the volume going through the intake side (Plus it won't add as much resistance for air to get through the radiator)
Itty is offline   Reply With Quote
Old 10-04-2015, 03:13 AM   #6
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 782
Total Cats: 103
Default

Am I doin' it wrong?

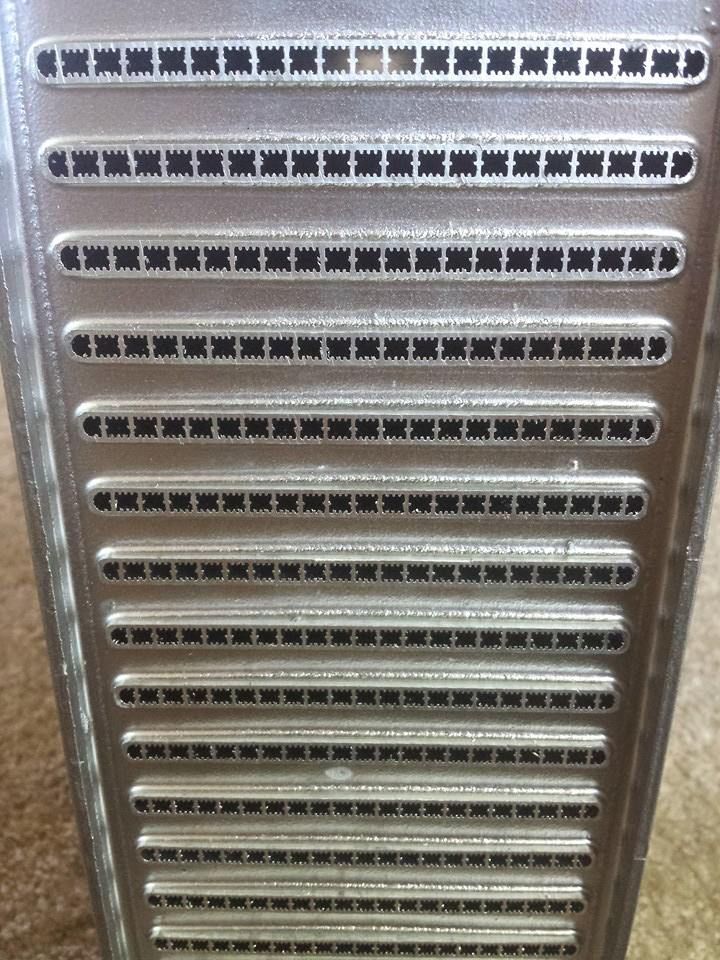

My ~1000HP core that I'm using on the RX-8...



Attached Thumbnails
Does your intercooler have turbulators? or turdulators.-80-11169950_10153280431727533_2083070856027771619_n_42f86cf934b8e2a7de1df3f8dd1bb800b4d11f7a.jpg
Arca_ex is offline   Reply With Quote
Old 10-04-2015, 11:46 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default


that heatsink looks like ****.

Last edited by Braineack; 10-05-2015 at 09:30 AM.
Braineack is online now   Reply With Quote
Old 10-04-2015, 06:59 PM   #8
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I'd be pissed if I spent real money on that intercooler.

I bet it has a super duper low pressure drop, at least. That's what the ebay vendor kept telling me about the delta fin monstrosity.
deezums is offline   Reply With Quote
Old 10-04-2015, 11:00 PM   #9
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 782
Total Cats: 103
Default

Don't worry I halfway expected those responses, judging all tube/fin or extruded intercoolers from an experience with a shitty one from eBay is pretty funny though lol.
This one is definitely not the type available on eBay and has already been proven. If you spend some time on the Googles you might find the data.
Arca_ex is offline   Reply With Quote
Old 10-04-2015, 11:29 PM   #10
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

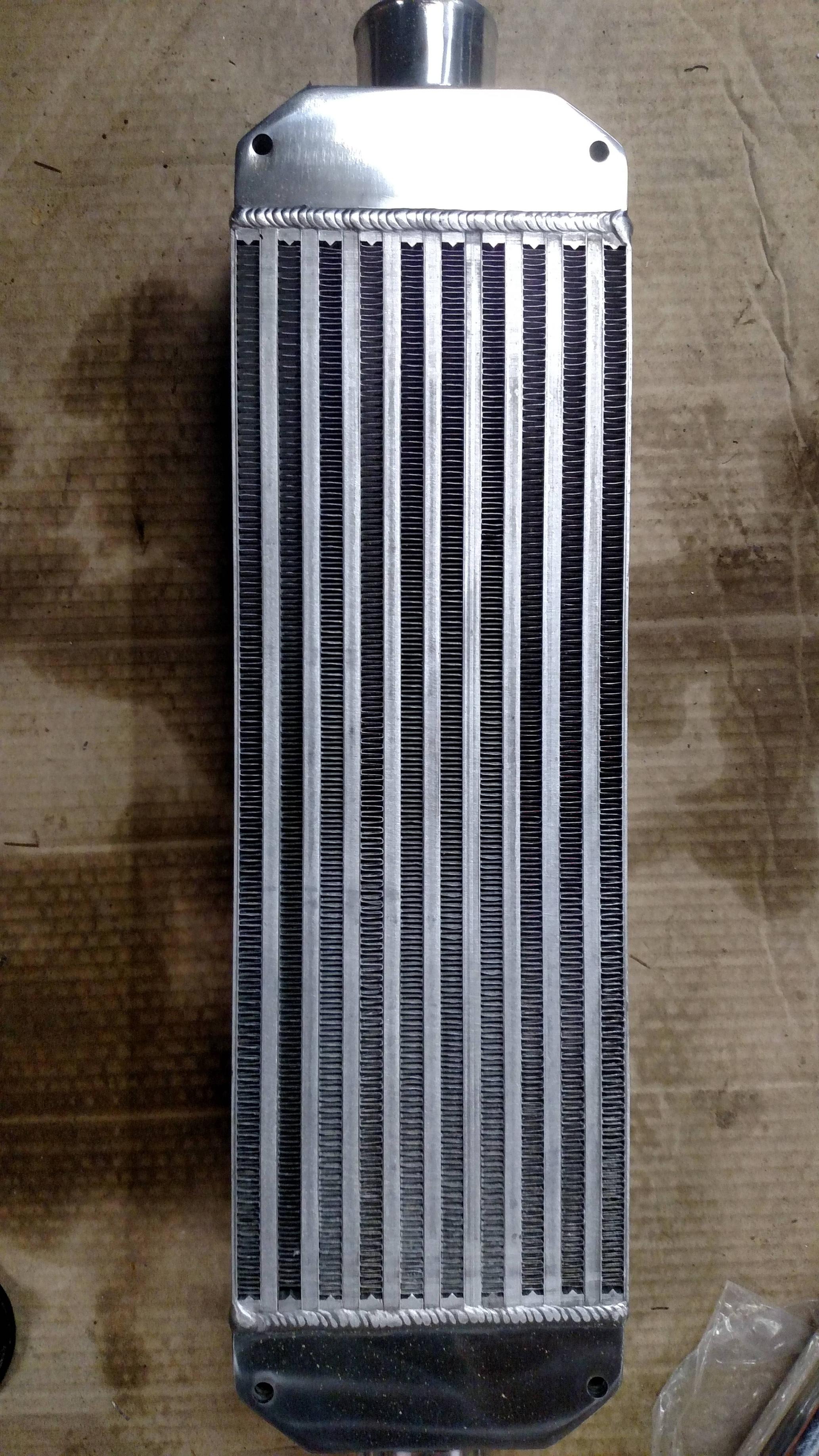

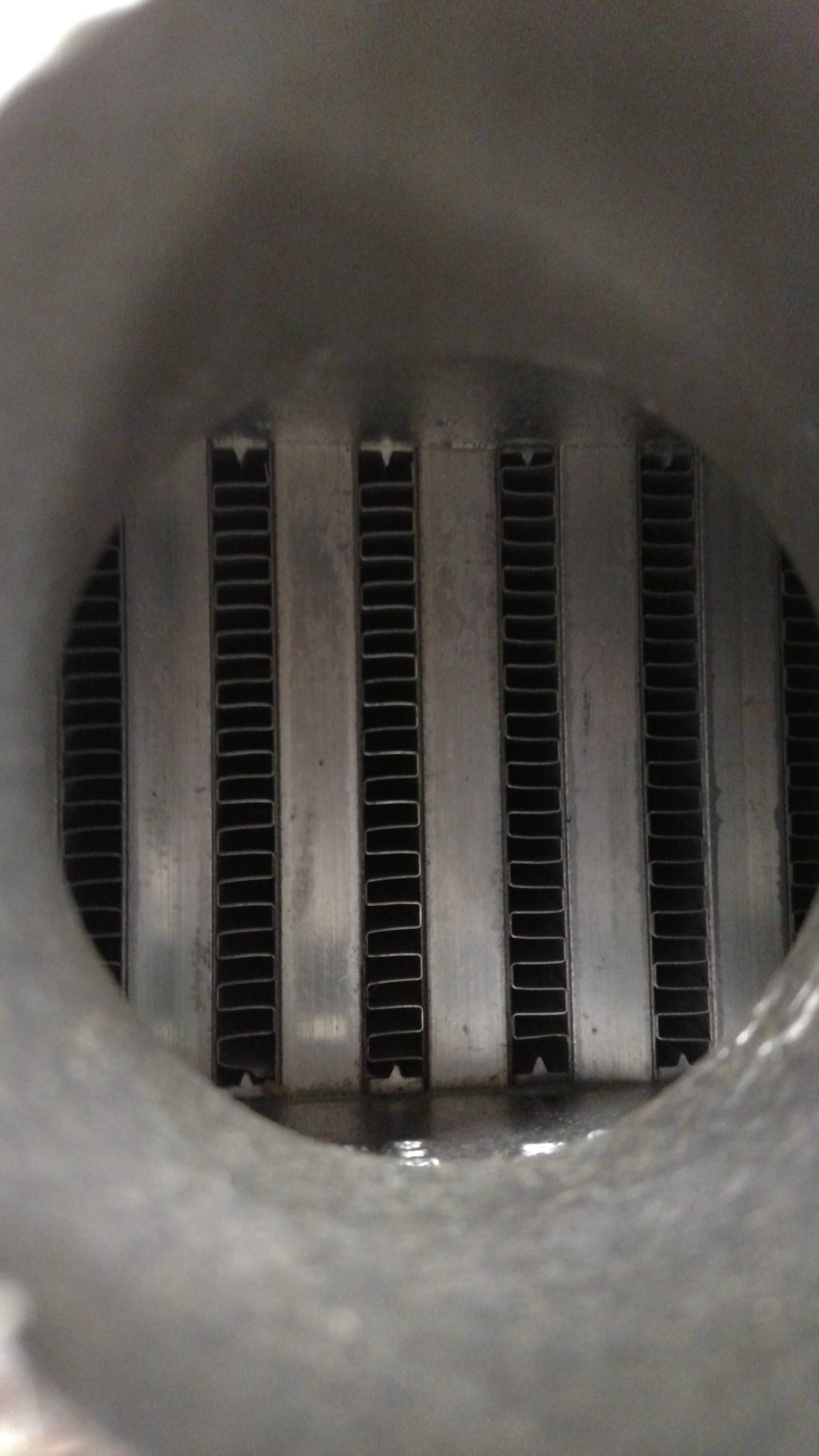

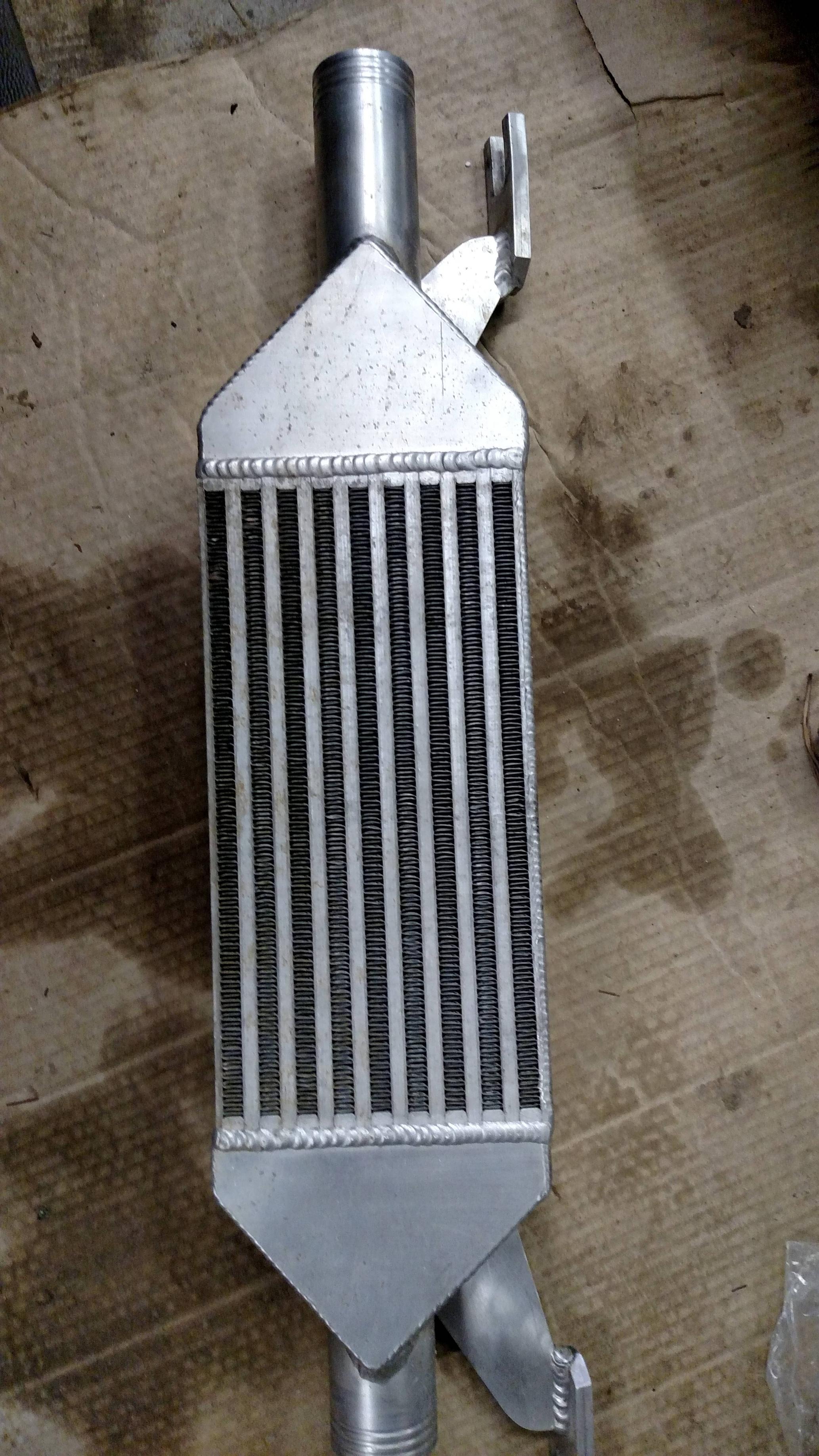

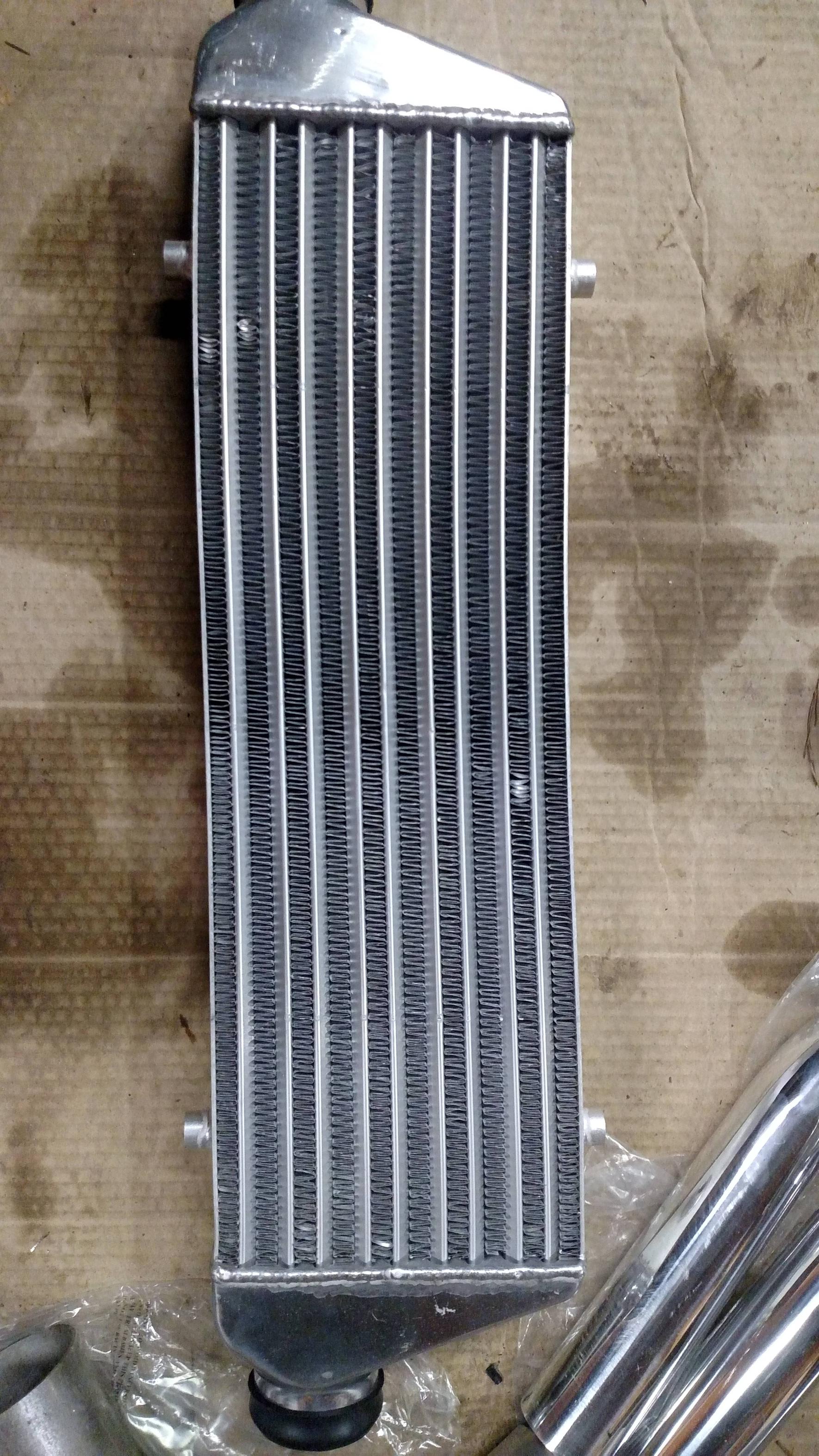

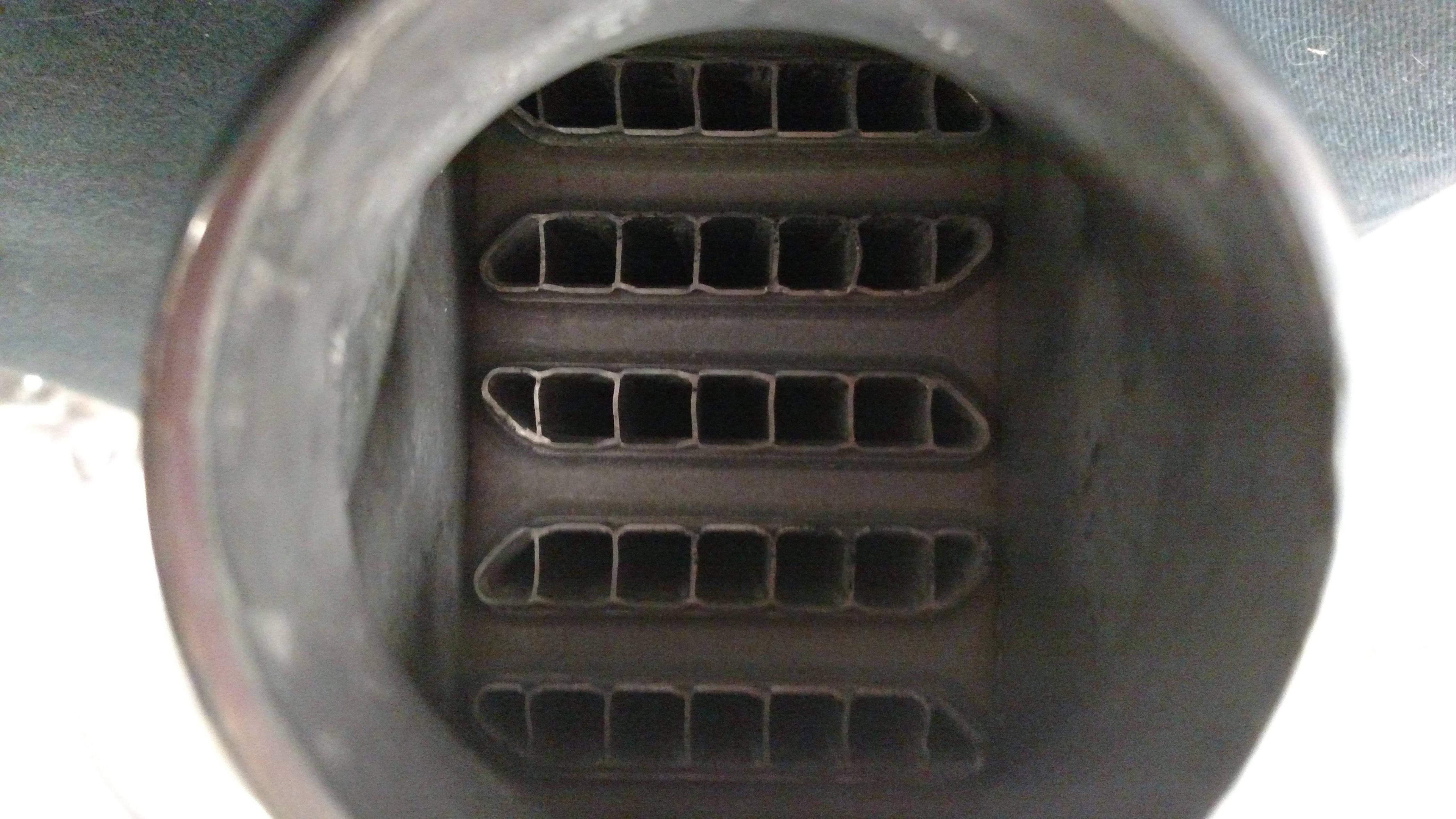

$68 JDM Sport ebay special.



Vibrant 12800 Air-to-Air Intercooler Vibrant 12800 Air-to-Air Intercooler



Begi 1 intercooler.

Attached Thumbnails
Does your intercooler have turbulators? or turdulators.-vd1bz87.jpg   Does your intercooler have turbulators? or turdulators.-vfxckjl.jpg   Does your intercooler have turbulators? or turdulators.-rycxpwv.jpg   Does your intercooler have turbulators? or turdulators.-ratfnot.jpg   Does your intercooler have turbulators? or turdulators.-cbxarx0.jpg

Does your intercooler have turbulators? or turdulators.-a217obu.jpg
shuiend is offline   Reply With Quote
Old 10-05-2015, 09:34 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

I'm pretty sure i had the same Delta-fin and the core looked acceptable, looks like they started making them as cheap as possible now.

I'd never buy one again however, they use the weakest material and you could probably bend one in half with your bare hands...they dont hold up well at all.
Braineack is online now   Reply With Quote
Old 10-05-2015, 10:06 AM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Yep, the delta-fin I had on my '00 was WAY better than the junk they make today. It actually had, you know, turbulators
18psi is offline   Reply With Quote
Old 10-05-2015, 10:06 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

now they have turdulators.
Braineack is online now   Reply With Quote
Old 10-07-2015, 03:47 PM   #14
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Pics from FAB9 intercooler thread earlier in the year. I sold that BEGI intercooler to SHUIEND a while back. These pictures show the internals a little better. He also got the same Vibrant core that I used for my build.


Vibrant claimed that they had changed the small core design back at the end of 2014, but that there were still a lot of older cores sitting on the shelf that do not have the turbulators.


Has anyone seen the Vibrant cores with the upgraded turbulator internal fins or seen an upgraded FAB9 stage 1 core?


I understand that the larger cores have been available with turbulators for some time now.


Quote:
Originally Posted by Rallas View Post
I pulled the trigger and got the Stage 1 Fab9 (Vibrant) intercooler. It showed up this past weekend.

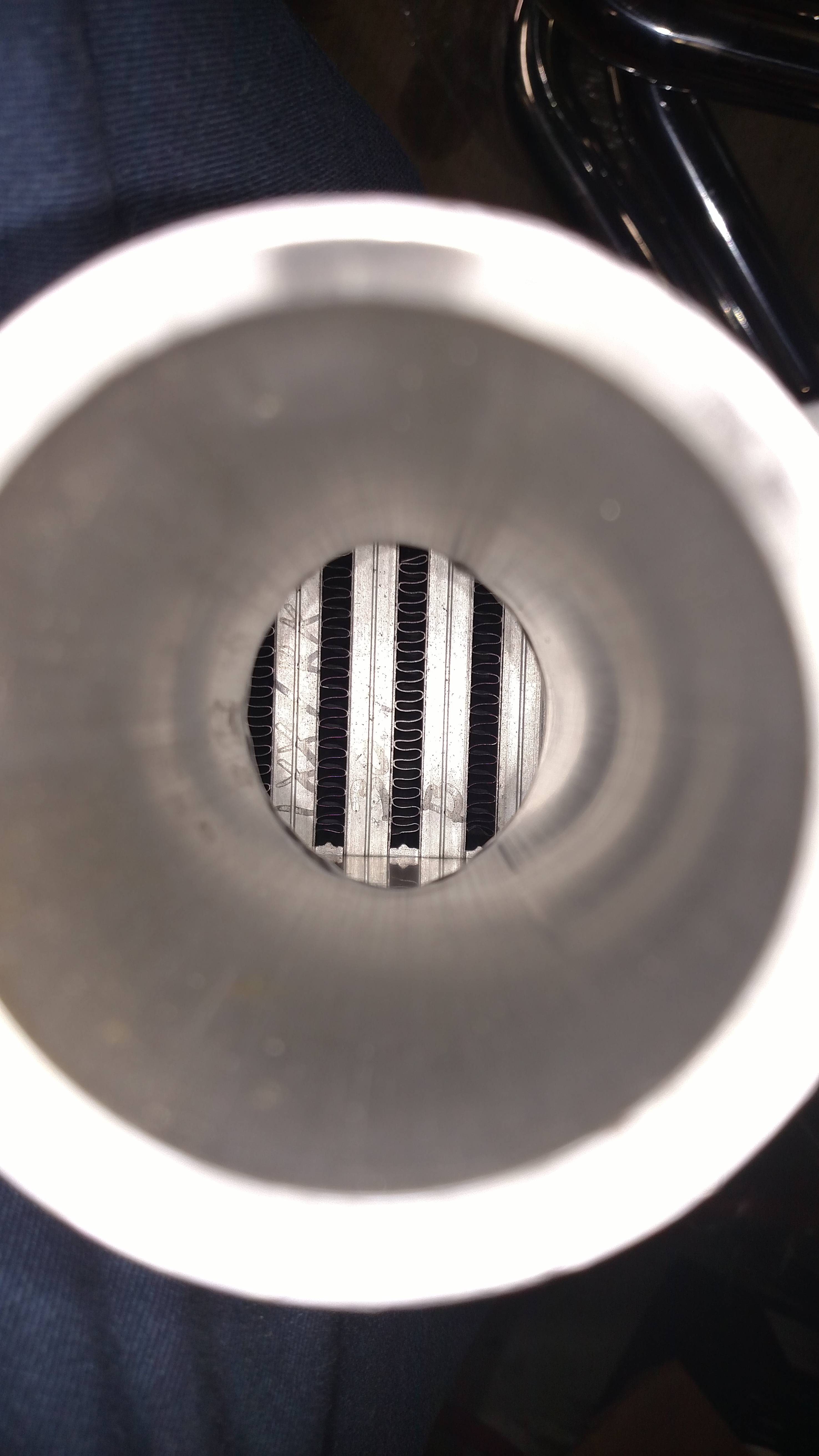

This guy is real beafy and super strong. I wouldn't doubt some of the claims that you can jack the front end up with this thing . The intercooler itself is very well made and you can see the internal core is of much higher quality than most ebay cores. My only concern is that the fin count internally seems pretty low. As you can see in the pic with the ligh shining through the intercooler, each internal passage is nice and straight with no fins or protrusions into the air flow. This is awesome to ensure the minimum pressure drop accross the intercooler, but as an mechanical engineering I am concerned that this will reduce the heat transfer between the inside and outside air since turbulent air moving through those passages will transfer more heat from the hot charge air to the outside air.

The core is 18" long (FAB9 site claims 20") which is 50% longer than the core of my current old BEGI intercooler at 12". I wasn't looking for more HP capacity, just more surface area to transfer the additional heat for track use.

I know the BEGI cores are more efficient, but by how much? Will the 50% of increased frontal area of the FAB9 at a reduced efficiency still give me more cooling capacity than the smaller BEGI with higher cooling efficiency?

Here are some pics comparing the outside of the two intercoolers.



Here is a picture of the inside BEGI core fins. I know its a crappy pictyure, but you should be able to tell how the internal fins are shaped to cause a turbulent path of the air to pass through the core, similar to how the external air fins look like. This is the main difference that I am concerned about.


Lastly here is a weight comparison of the two. The Fab9 is right at 11 pounds and the BEGI came in at ~7.5lbs. Just for info.



No doubt the FAB9 is much better quality than any crappy ebay intercooler.

I am just concerned that I will not be gaining that much more cooling effeciency due to the lower cooling fin count with no internal fins or flow disturbing measures. I might have to return this one for now and wait until a newer core comes out like the updated one avaliable with the Stage 2 cores (see post #20). The pictures below show the staggered fin design that I was expecting.
Rallas is offline   Reply With Quote
