Default Drilling NB return on the car

Wait! Don't get out the pitch forks yet!

So, there is tons of documentation on how to tap the pan itself. But, what about getting to the block? However, when Shuiend and I tried to do this today, there was a tonnn of stuff in the way, mainly PS and A/C related. It looked like a tremendous amount of work to remove enough stuff to fit it all.

I know a 90 drill would do this just fine, but with the number of "**** off noob. Drill it on the car. Easy ****" posts, surely we overlooked something. Otherwise, it can wait until I do the clutch.
Schuyler is offline   Reply With Quote
Old 10-26-2014, 12:01 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

what about unbolting the mounts and lifting it up at least a few inches?
on a phone right now can't really post up pictures illustrating ways to do it.
18psi is offline   Reply With Quote
Old 10-26-2014, 12:03 AM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by 18psi View Post
what about unbolting the mounts and lifting it up at least a few inches?
on a phone right now can't really post up pictures illustrating ways to do it.
Major problem is several hoses (read: rubber with rigidity of hard lines) are in the way, and would go up with the motor. So i'm not sure lifting it would help much.
Schuyler is offline   Reply With Quote
Old 10-26-2014, 12:15 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I usually tap behind the ac pump and not under it like fm/begi recommends.

msm has the return in the same exact spot I always tap
18psi is offline   Reply With Quote
Old 10-26-2014, 12:26 AM   #5
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,699
Total Cats: 267
Default

Quote:
Originally Posted by 18psi View Post
I usually tap behind the ac pump and not under it like fm/begi recommends.

msm has the return in the same exact spot I always tap
With engine in the car? I looked at that, as it makes sense, but saw no way to get to it with the, IIRC, the motor mount.
DNMakinson is offline   Reply With Quote
Old 10-26-2014, 12:33 AM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by DNMakinson View Post
With engine in the car? I looked at that, as it makes sense, but saw no way to get to it with the, IIRC, the motor mount.
I suspect it works with these two combined:

Quote:
Originally Posted by 18psi View Post
I usually tap behind the ac pump and not under it like fm/begi recommends.

msm has the return in the same exact spot I always tap
Quote:
Originally Posted by 18psi View Post
what about unbolting the mounts and lifting it up at least a few inches?
Can't speak for hoses etc. though without seeing it.
Schuyler is offline   Reply With Quote
Old 10-28-2014, 10:56 AM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

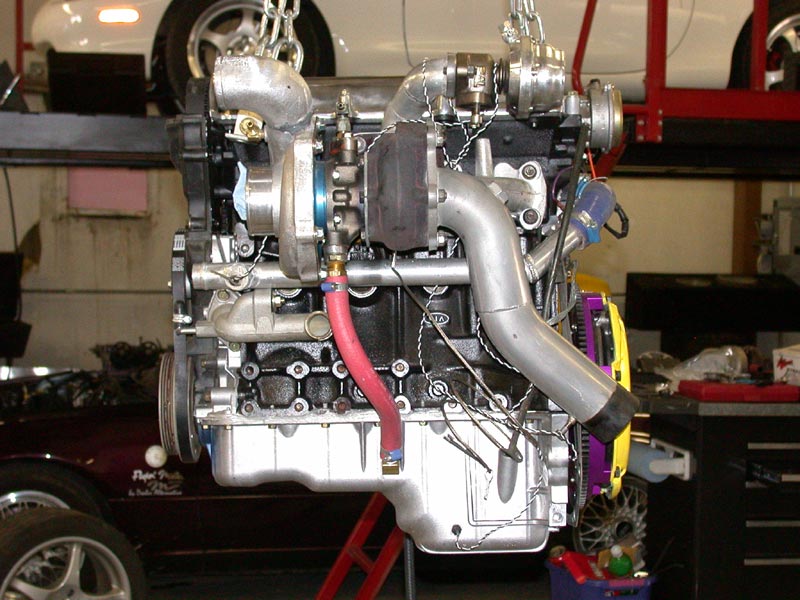

This is what I had in mind earlier
Attached Thumbnails
Drilling NB return on the car-click-format%3Dgo-jsonp%3Dvglnk_14145042585047-key%3De7a6f005fab2cf9f1521e459be93b2fd-libid%3Db53b7b63-.jpg
18psi is offline   Reply With Quote
Old 10-28-2014, 01:57 PM   #8
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by 18psi View Post
This is what I had in mind earlier
This is where I did it as well:


It sits right between the motor mount and the subframe, a straight downward drain, but there's no way you could drill it on the car.

--Ian
codrus is offline   Reply With Quote
Old 10-28-2014, 02:09 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

even if you removed the mount and lifted the engine as high as it will go?
18psi is offline   Reply With Quote
Old 10-28-2014, 02:23 PM   #10
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by 18psi View Post
even if you removed the mount and lifted the engine as high as it will go?
You just cannot fit a drill in there to do it in that position. My guess would be that you are hitting the subframe with the drill. When the motor is out of the car, then I think it is a perfect place to install the fitting.
shuiend is offline   Reply With Quote
Old 10-28-2014, 02:57 PM   #11
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

I drilled a couple in the front corner in front of the compressor.
sixshooter is online now   Reply With Quote
Old 10-28-2014, 05:34 PM   #12
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by shuiend View Post
You just cannot fit a drill in there to do it in that position. My guess would be that you are hitting the subframe with the drill. When the motor is out of the car, then I think it is a perfect place to install the fitting.
You could probably do it if you took the subframe all the way out of the car, but at that point you might as well just pull the engine out.

--Ian
codrus is offline   Reply With Quote
Old 10-28-2014, 06:19 PM   #13
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Quote:
Originally Posted by sixshooter View Post
I drilled a couple in the front corner in front of the compressor.
This didn't require special tools.
sixshooter is online now   Reply With Quote
Old 10-29-2014, 10:57 AM   #14
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by sixshooter View Post
I drilled a couple in the front corner in front of the compressor.
Did they have power steering and AC? On the NB the power steering has 2 hard lines that I think are for cooling in the way, they are not there on NA's. Then you still have the normal AC lines and another PS line in the way. With a drill that had a 1/2" chuck it was just to big to fit in around the lines and still be reasonably straight. I will try to get a picture in the next day or so of everything that is in the way.
shuiend is offline   Reply With Quote
Old 10-29-2014, 11:05 AM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

please post pictures when you can

we haven't had a "tap the pan" discussion in a long time, perhaps people figured out new ways/tricks
18psi is offline   Reply With Quote
Old 10-29-2014, 01:40 PM   #16
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,699
Total Cats: 267
Default

Quote:
Originally Posted by Schuyler View Post

I know a 90 drill would do this just fine...
The answer is in the first post. That's how I did it. Still was tight and I scarred up the chuck a little. Sorry, I have no pictures of the operation.

Then I used, IIRC, a racheting box wrench to turn the tap, very gingerly.

At Home Depot
DNMakinson is offline   Reply With Quote
Old 10-29-2014, 01:49 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

oh wow thanks for that link, I was actually looking around the interwebz for super compact right hand drills, and that one looks like its about as good as it gets for tapping the pan.
And I am about 2 minutes away from a Home Depot
18psi is offline   Reply With Quote
Old 10-29-2014, 02:13 PM   #18
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by DNMakinson View Post
The answer is in the first post. That's how I did it. Still was tight and I scarred up the chuck a little. Sorry, I have no pictures of the operation.

Then I used, IIRC, a racheting box wrench to turn the tap, very gingerly.

At Home Depot
Quote:
Originally Posted by 18psi View Post
oh wow thanks for that link, I was actually looking around the interwebz for super compact right hand drills, and that one looks like its about as good as it gets for tapping the pan.
And I am about 2 minutes away from a Home Depot
That drill chuck unfortunately is not large enough for the correct size drill bit. You need a 1/2" chuck.
shuiend is offline   Reply With Quote
Old 10-29-2014, 02:17 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

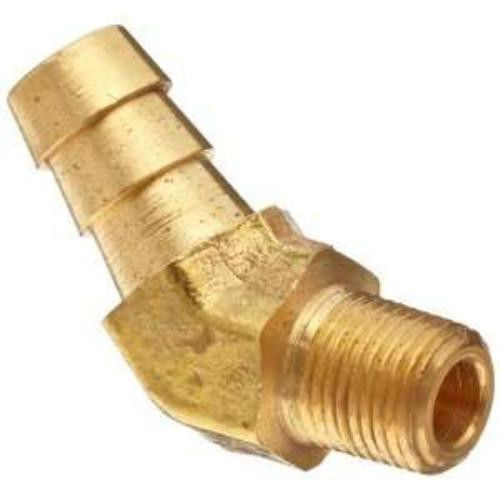

I was gonna use a 3/8" fitting....

Attached Thumbnails
Drilling NB return on the car-%24_12.jpg
18psi is offline   Reply With Quote
Old 10-29-2014, 02:53 PM   #20
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by 18psi View Post
I was gonna use a 3/8" fitting....

The drill bit that I received from Begi and the one I just got from JeffBucc both require a 1/2" chuck to fit into. When I am home tomorrow taking pictures of engine bays I will take some pictures of the drill bit and tap and some sizes to go along with them.
shuiend is offline   Reply With Quote
