Old 10-29-2014, 03:13 PM   #21
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

perfect thanks Lars
18psi is offline   Reply With Quote
Old 10-29-2014, 09:49 PM   #22
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 268
Default

I used a step drill that fits the small chuck. The aluminum pan cuts easily. Conversely, drill bits can be turned down. As they are case hardened, you will lose a lot of strength, but, again, the aluminum is easy to drill.
DNMakinson is offline   Reply With Quote
Old 10-29-2014, 10:12 PM   #23
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 268
Default

Here you go:

*EDIT* we'll try amazon:


small shank
DNMakinson is offline   Reply With Quote
Old 10-30-2014, 11:34 AM   #24
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

if you search amazon for "3/8 stub drill bit" there are a bunch that are already really short (under 2") and look to be perfect for what we're trying to do.

like this:
Robot Check Robot Check
18psi is offline   Reply With Quote
Old 10-30-2014, 12:24 PM   #25
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 268
Default

Shorter may not be better, due to A/C bracket. That's where I rubbed my chuck a little using the short step drill. I think the one I linked to, with the angle drill, would be ideal.

Waiting for Lars' pictures.
DNMakinson is offline   Reply With Quote
Old 10-31-2014, 02:01 PM   #26
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I did not get a chance to take pictures or get measurements last night. I will be home again sometime tomorrow and will get them then.
shuiend is offline   Reply With Quote
Old 11-01-2014, 02:35 PM   #27
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Not the best pictures but these should give you an idea. Both cars have AC and PS.
Nb




NA



Drill and tap.
shuiend is offline   Reply With Quote
Old 11-18-2014, 01:40 PM   #28
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,996
Total Cats: 1,460
Default

Quote:
Originally Posted by codrus View Post

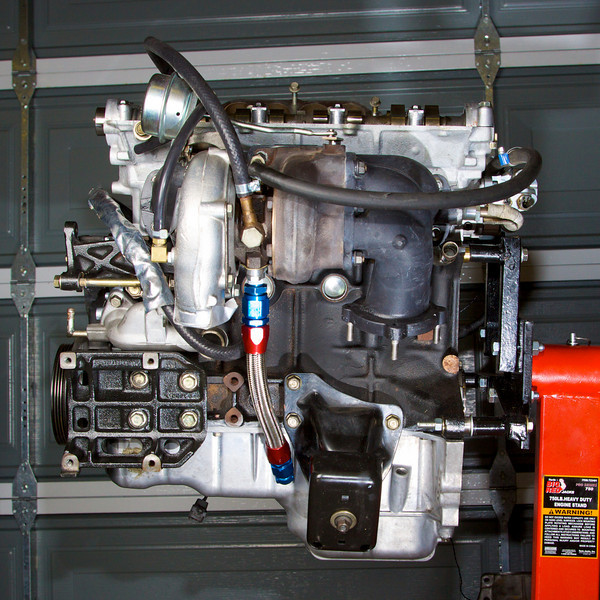

This is where I did it as well:


It sits right between the motor mount and the subframe, a straight downward drain, but there's no way you could drill it on the car.

--Ian
Does this location have anything behind it in the oil pan? Do the baffles get in the way?
Attached Thumbnails
Drilling NB return on the car-img_5561-l.jpg
aidandj is offline   Reply With Quote
Old 11-18-2014, 09:47 PM   #29
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by aidandj View Post
Does this location have anything behind it in the oil pan? Do the baffles get in the way?
That depends on what you mean by "behind it". There's nothing interfering with it when installed, but you can't drill it on the car.

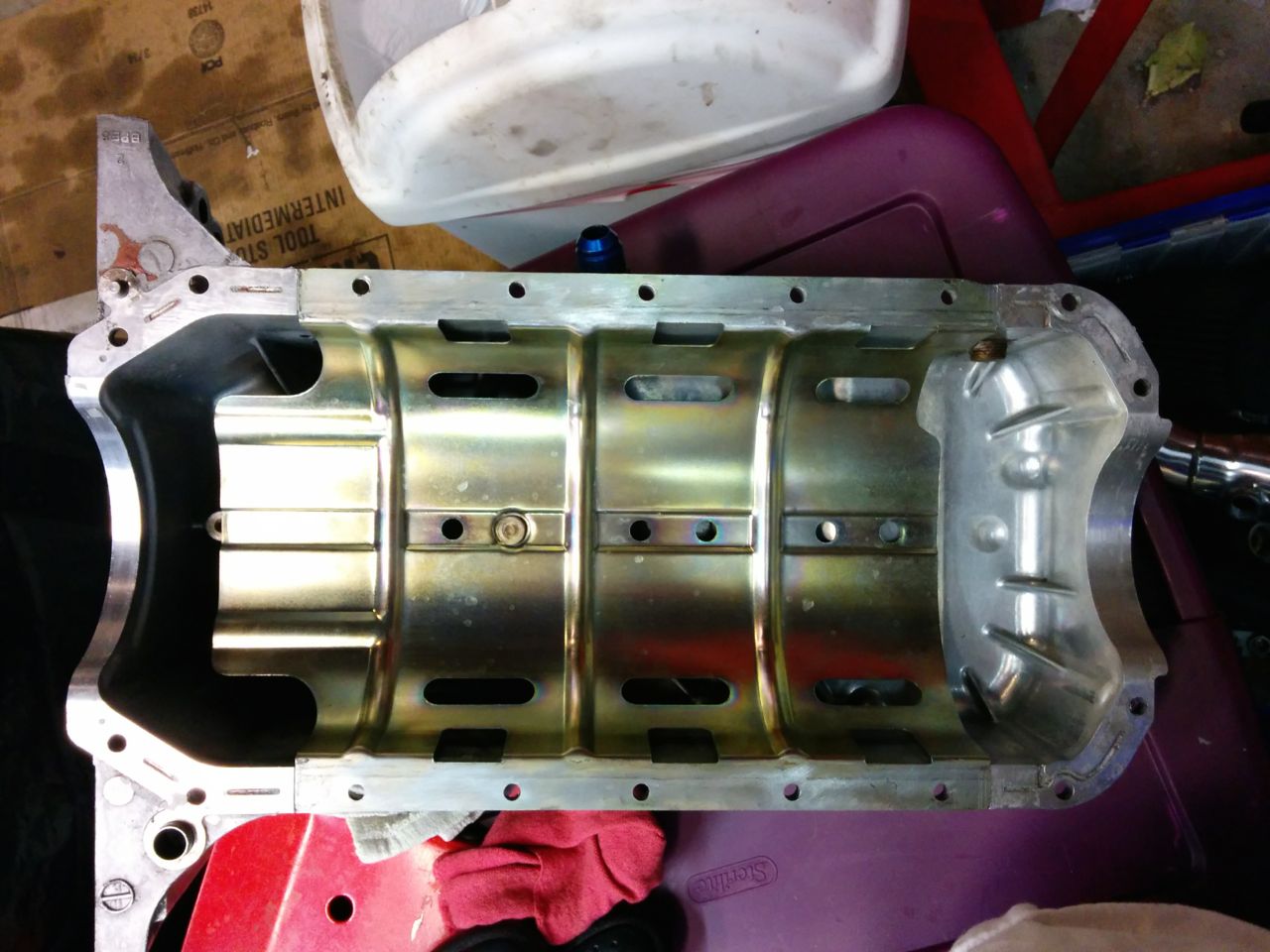

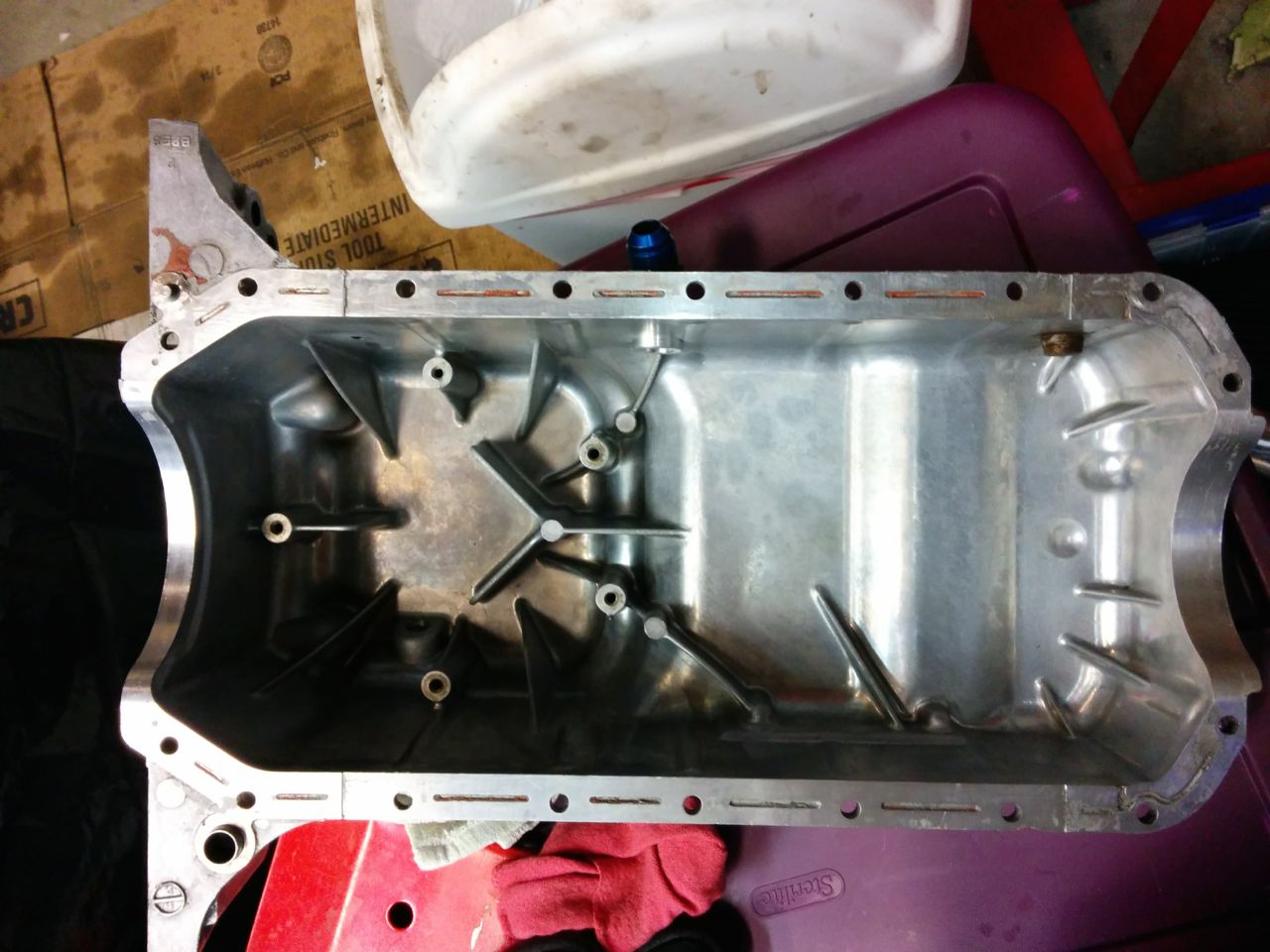

I happen to have the pan off the car right now, so I shot a couple photos:




--Ian
codrus is offline   Reply With Quote
Old 11-18-2014, 09:53 PM   #30
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,996
Total Cats: 1,460
Default

I have the engine off the car, but the oil pan isn't off. I wanted to know how close the baffles/pickup were.
aidandj is offline   Reply With Quote
Old 11-18-2014, 10:22 PM   #31
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by aidandj View Post
I have the engine off the car, but the oil pan isn't off. I wanted to know how close the baffles/pickup were.
If you have the engine out, you'd be an idiot to try to drill the pan while it's still bolted to the motor.

--Ian
codrus is offline   Reply With Quote
Old 11-21-2014, 04:21 PM   #32
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Am I missing something? Why not take the oil pan off the car, with the engine in the car? Like, i don't know, every other turbo build on any other car?
NBoost is offline   Reply With Quote
Old 11-21-2014, 04:36 PM   #33
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by NBoost View Post
Am I missing something? Why not take the oil pan off the car, with the engine in the car? Like, i don't know, every other turbo build on any other car?
Have you ever looked at the bottom of a miata's engine bay? To remove the oil pan you have to lift the engine up a good amount to get clearance around the subframe. Then you have to attempt to put it and the windage tray back on upside down with a subframe in the way. With the amount of effort that would take, you might as well pull the engine and then do it properly.
shuiend is offline   Reply With Quote
Old 11-21-2014, 08:37 PM   #34
Junior Member

Join Date: Feb 2014
Location: Chicago, IL
Posts: 95
Total Cats: 1
Default

I used a Christmas tree drill bit (Step drill bit) to drill mine. It was EXTREMELY EASY to drill. Then used a 1/2 NPT tap, all from Harbour Freight. This was when the engine was out of the car. I also somehow managed to drill in the wrong spot the first time... On the opposite side of the pan... Plugged it with a 1/2 NPT plug from Home Depot. Not a single drop has leaked. I am going to convert over to a -10 AN this winter however. I did use a dab of loctite on the threads, I thought it may prevent leaks.
AdrianD2 is offline   Reply With Quote
