Default Drilling out turbo water lines to be wider..

So i have a TD04-13, 12mm water hose, 14mm x 1.5 to 12mm barbs, with a 14mm tap.
Considering the turbo has 12mm inlets / outlets. I have pulled the radiator, will move the AC and i'm planning to drill and tap the thermo housing and the coolant outlet to 1/2 inch (12.6?) and tap it to 14mm thread. Will simply close off the throttle body inlet, as it never gets below 10'C here.

Just measured the current housings and they seem to be 18mm at the thinnest point. Will 2mm on either side of the thread be enough to hold the barb?

Any reason why i shouldn't?

1/2 to 3/8 reducers cost $6, with $40 shipping to australia (or a 2-4 week wait). So i'm kinder out of options... unless i use two barbs with a brass joiner which ends up being $30 a pop and defeats the purpose of a 1/2 hose.
adryargument is offline   Reply With Quote
Old 06-30-2016, 08:11 AM   #2
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Why do you need a 1/2" hose? Almost everyone uses a 3/8" and it works just fine.

A 1/2 to 3/8 reducer should be a hardware store item.
ryansmoneypit is offline   Reply With Quote
Old 06-30-2016, 09:08 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2015
Location: Brisbane
Posts: 219
Total Cats: -16
Default

I want to use 1/2 cause i have the bloody equipment already and otherwise i need to work out what thread the turbo is and find a suitable attachment. At the moment they are Subaru banjo fittings with brass 1/2 ends.

And reducers.... Not in Australia.
I'm a carpenter, i know my way around hardware stores.
Ain't seen any reducers in performance shops either. Always a simple 3/8 to 3/8 etc.

Ther'es none on ebay australia... Only international...

Maybe a hydraulics shop...ill call a few tomorrow.
adryargument is offline   Reply With Quote
Old 06-30-2016, 09:10 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by adryargument View Post
Any reason why i shouldn't?
because it's stupid and pointless?
Braineack is offline   Reply With Quote
Old 06-30-2016, 10:15 AM   #5
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

The threads are M12x1.25.

They are ridiculously difficult to find fittings for, other than banjos. Everything is normally M12x1.5. I ended up making my own 8mm / 5/16" barbs.

https://www.miataturbo.net/build-thr...1/#post1203187

https://www.miataturbo.net/build-thr...1/#post1203382

Oddly enough though, I recall the 1 option I found, being in AUS.... but was $30 plus $30 shipping or something stupid like that.

2mm wall should hold, but that's close. Also, 1/2" water lines are retarded. I would personally find a way to just keep the 8mm barb on the housing, and do what you have to at the turbo to make an 8mm line work.
hi_im_sean is offline   Reply With Quote
Old 06-30-2016, 10:29 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

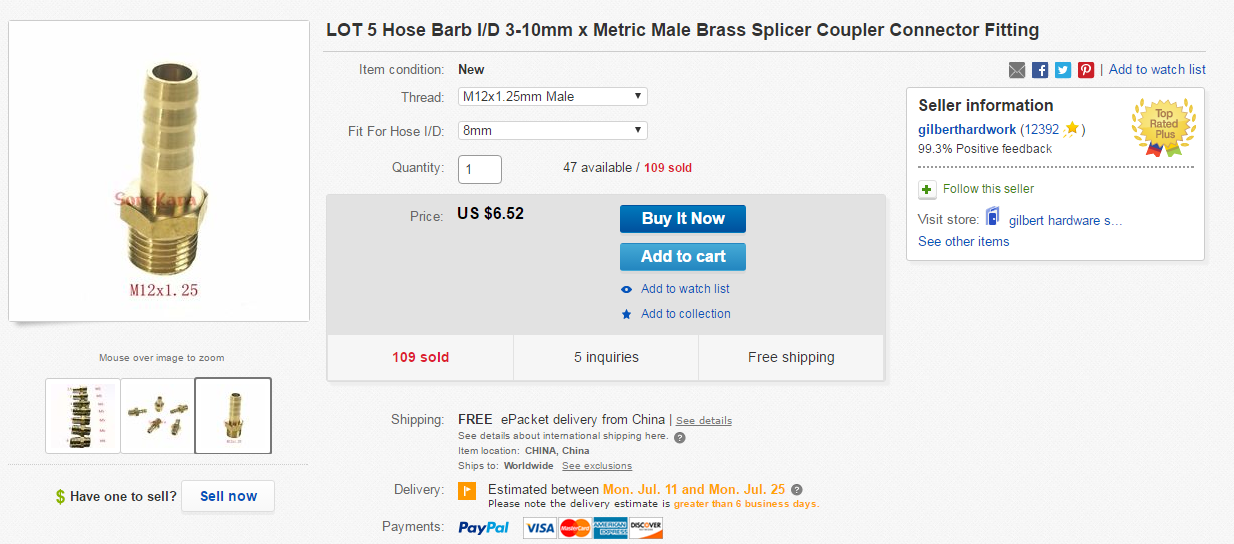

Attached Thumbnails
Drilling out turbo water lines to be wider..-80-blob_afe7f813b5193e304c8eae03fc02c8b2ad53b41d.png
Braineack is offline   Reply With Quote
Old 06-30-2016, 11:17 AM   #7
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

Not hard to make. If you can find a bolt that size/thread just drill out the middle and weld a male AN bung to the bolt head and just run -6 (3/8) fittings and push lock hose

Failing that buy some 3/8 hose unions and cut them down the middle and have the brazed/welded to the current banjo fittings
Sirnixalot is offline   Reply With Quote
Old 06-30-2016, 08:02 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2015
Location: Brisbane
Posts: 219
Total Cats: -16
Default

Unfortunately China is 2-4 weeks away.
Looks like I'm daisy chaining a bunch of brass fittings. With 2 separate hose sizes.
adryargument is offline   Reply With Quote
Old 07-01-2016, 01:38 PM   #9
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

Banjo Fitting 12mm TO 10mm Pipe 12mm TO 10mm Converter | eBay

wouldn't that work? reuse the existing banjo bolts?
Sirnixalot is offline   Reply With Quote
Old 07-02-2016, 07:23 AM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2015
Location: Brisbane
Posts: 219
Total Cats: -16
Default

Quote:
Originally Posted by Sirnixalot View Post
Banjo Fitting 12mm TO 10mm Pipe 12mm TO 10mm Converter | eBay

wouldn't that work? reuse the existing banjo bolts?
Brillant. Didn't think of that.
I ended up just welding 8mm stainless tube to 12mm tube and beading the ends.
