Default turbo outlet issues

Hello everybody,

Why no line up??? Its a t25 off of a 180sx and a FM outlet manifold. Am i missing something here??
Attached Thumbnails

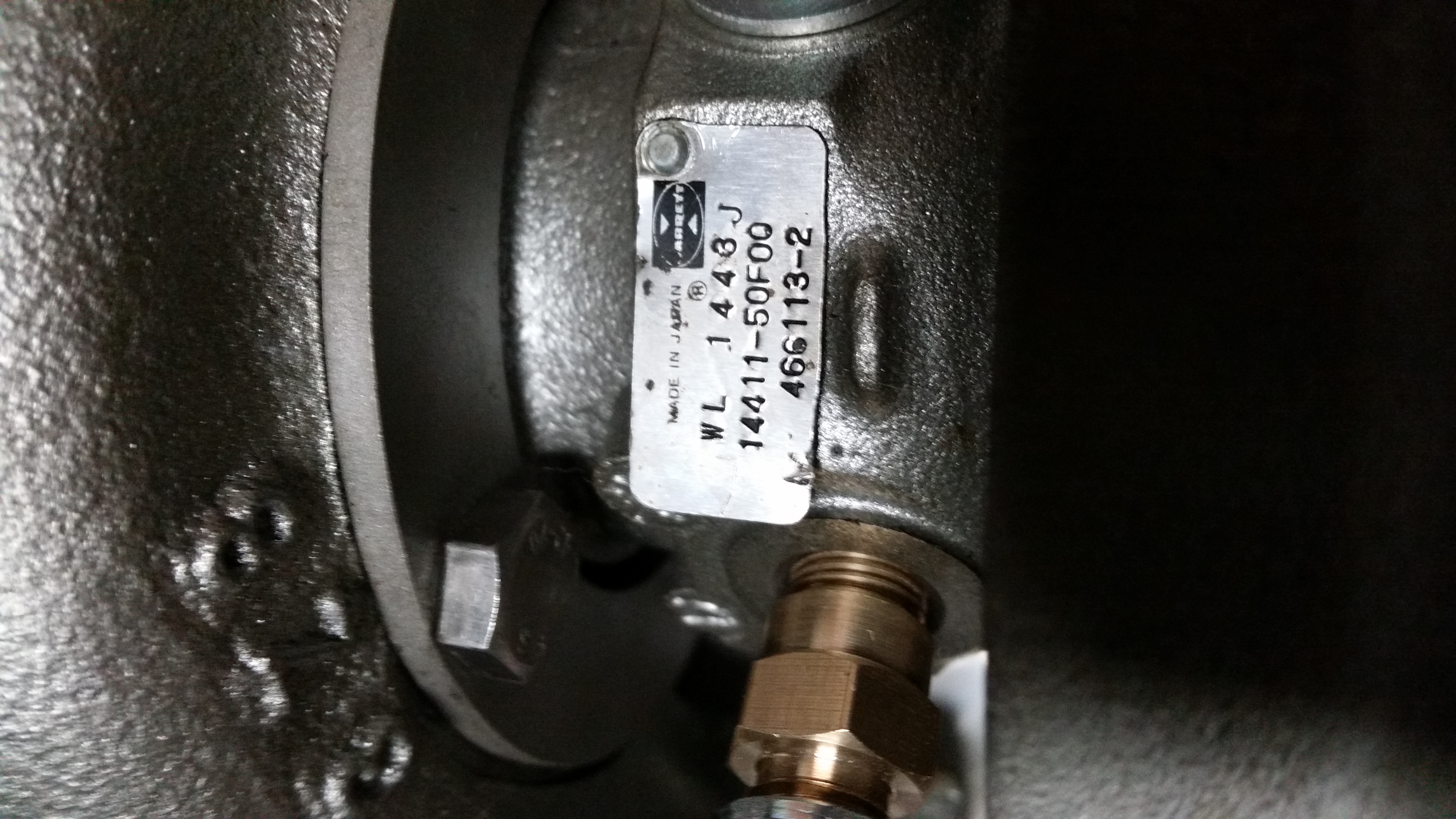

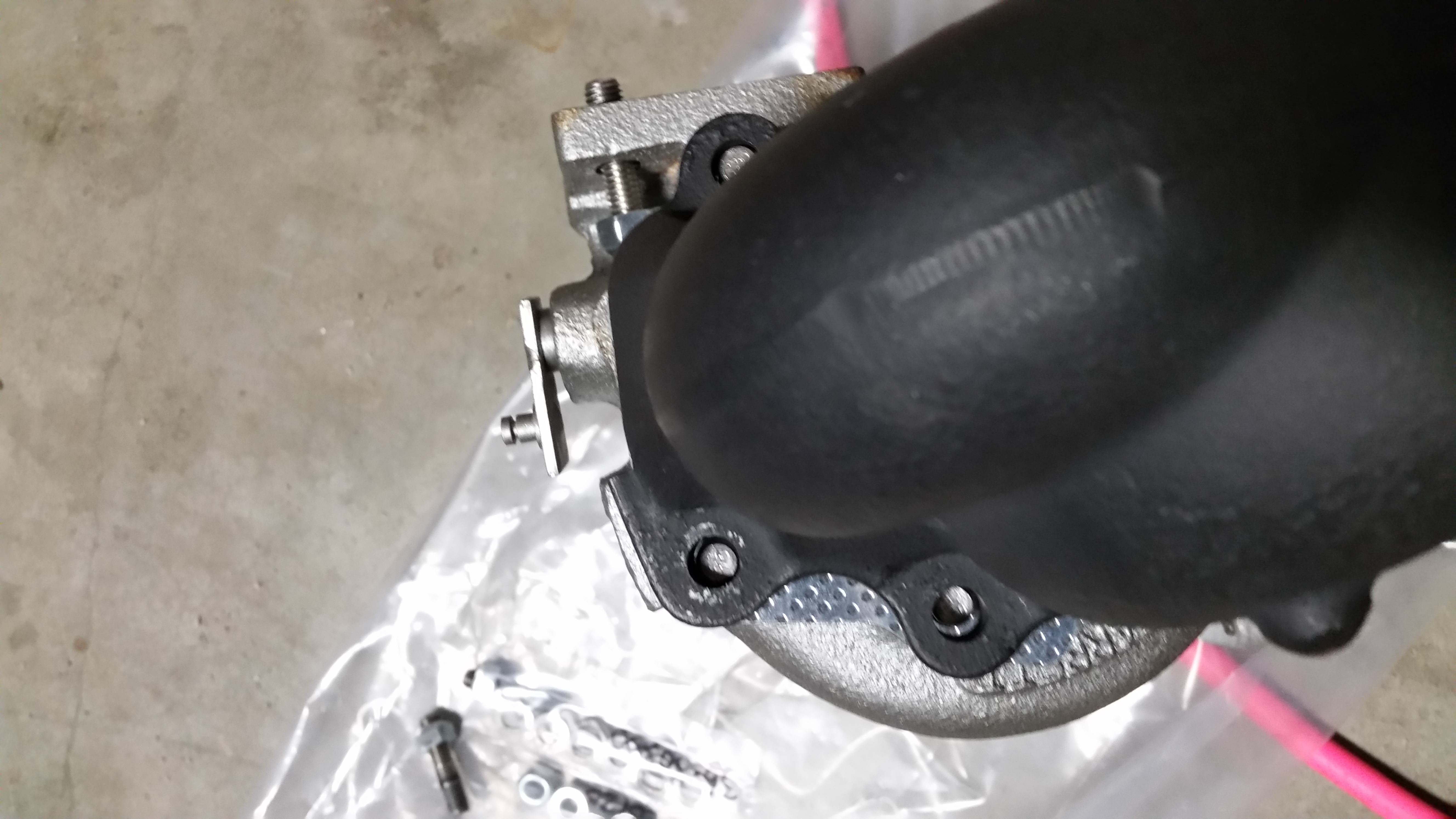

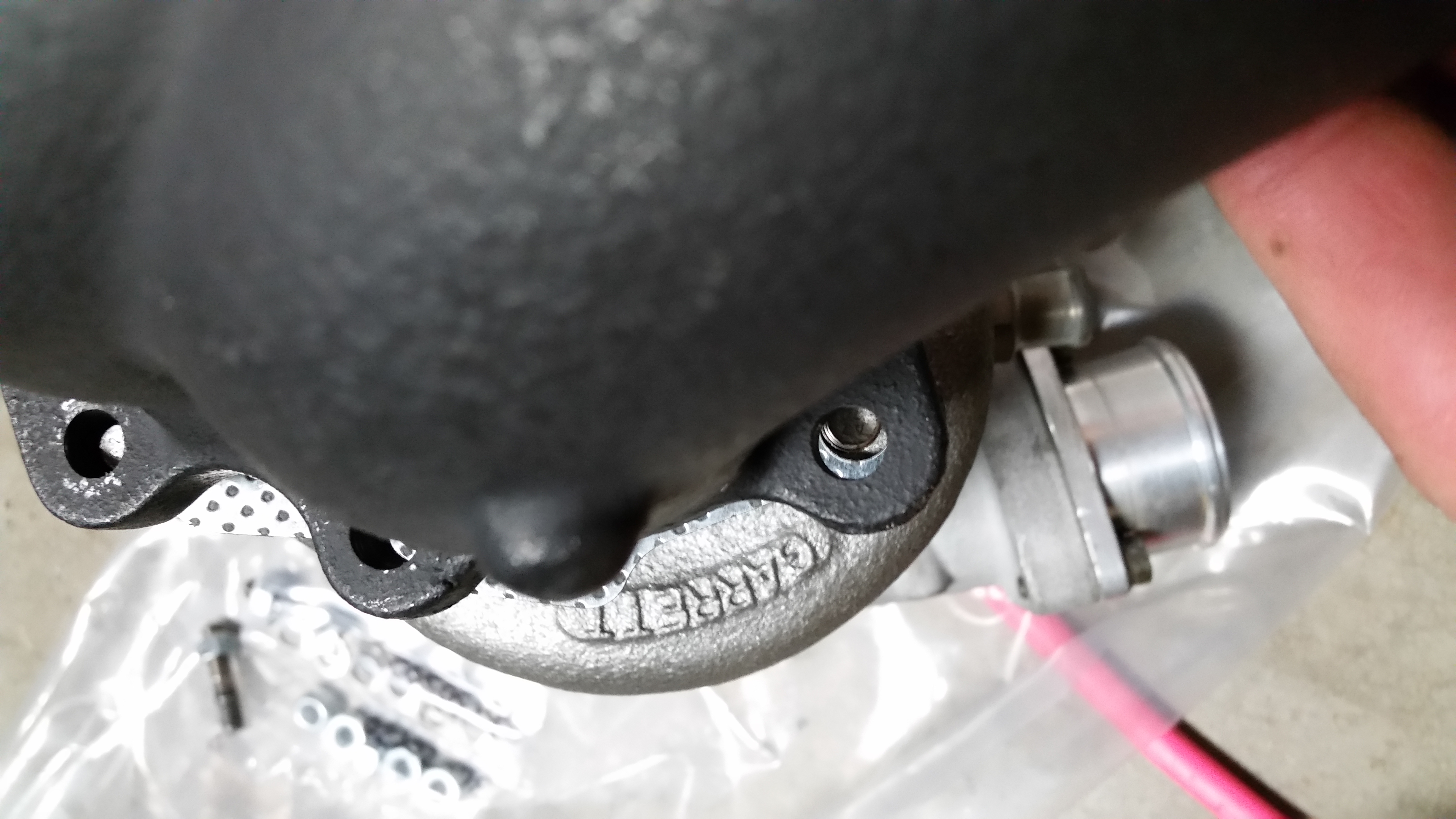

turbo outlet issues-20160504_203838.jpg   turbo outlet issues-20160504_203848.jpg   turbo outlet issues-20160504_203911.jpg
NicDrilling is offline   Reply With Quote
Old 05-05-2016, 03:33 AM   #2
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

can you separate the turbo from downpipe and take pictures of both bolt patterns?

the turbo is probably not a standard T25
borka is offline   Reply With Quote
Old 05-05-2016, 08:13 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

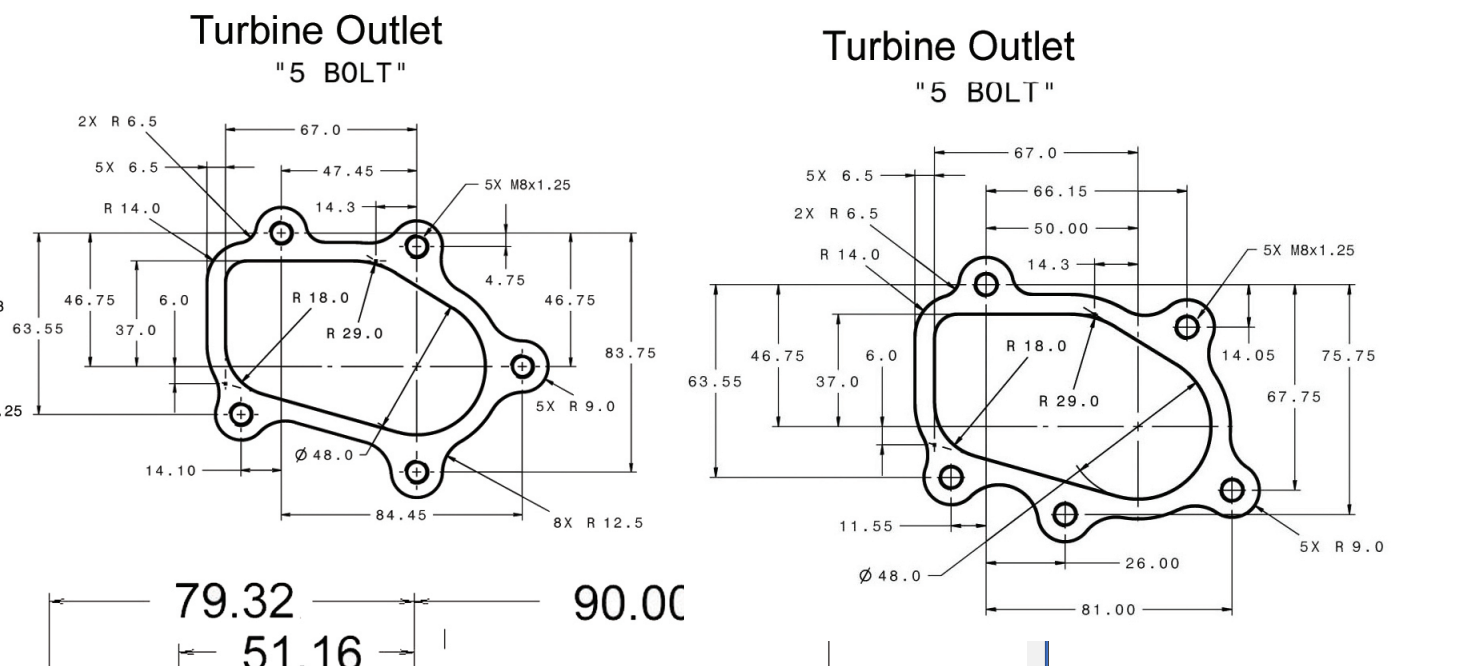

can we see a pic of just the turbo outlet? Could be that nissan turbo has a slightly different outlet. I know the GTR ones did.


Attached Thumbnails
turbo outlet issues-80-undefined_8413585eb9d4d0216aa435559ce964a7b1cbfe37.png
Braineack is offline   Reply With Quote
Old 05-05-2016, 11:02 AM   #4
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default


Last edited by NicDrilling; 05-05-2016 at 11:03 AM. Reason: Failed at photo life
NicDrilling is offline   Reply With Quote
Old 05-05-2016, 11:04 AM   #5
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

Attached Thumbnails

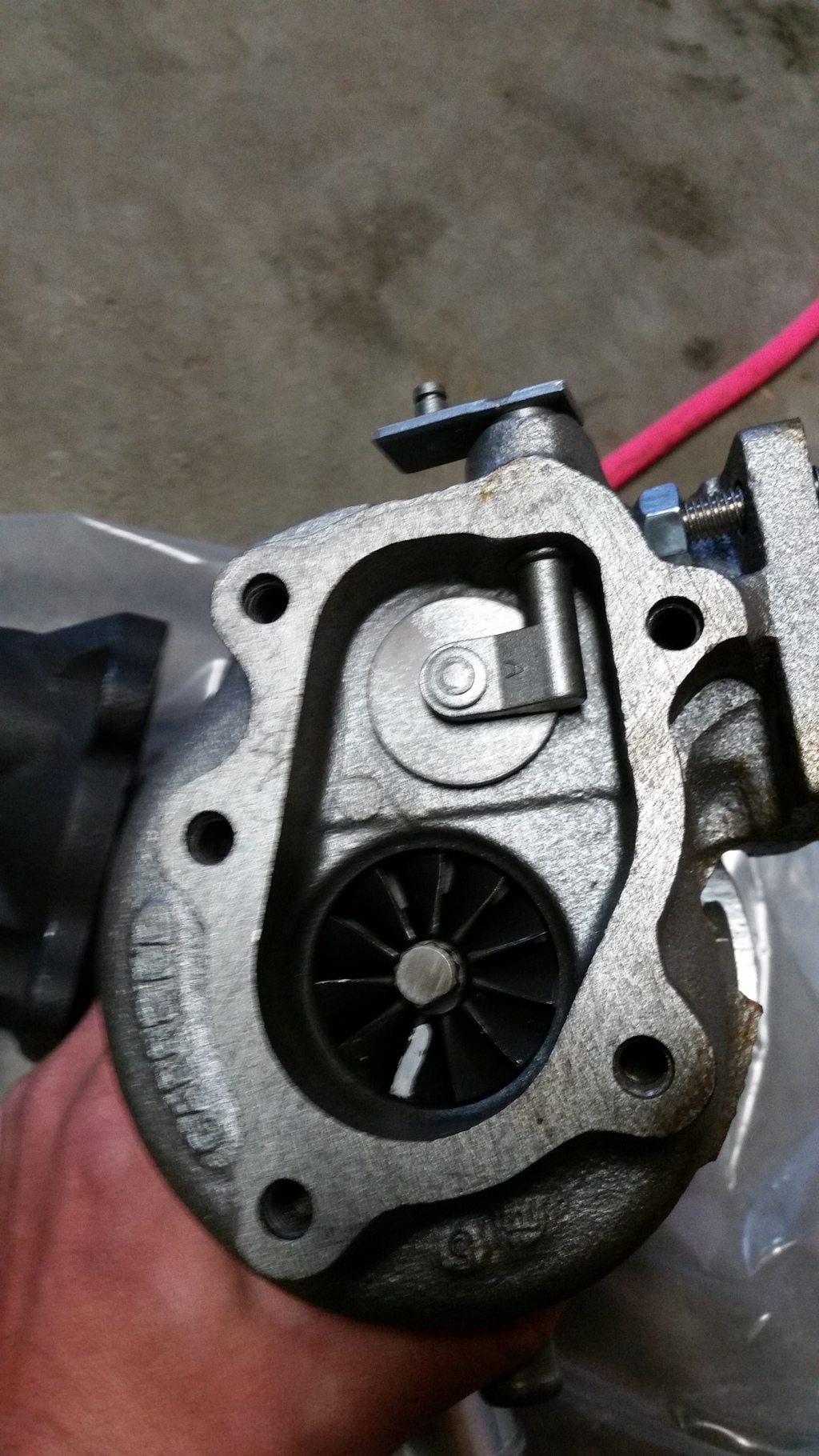

turbo outlet issues-20160505_065506_zpswgtt8jzr.jpg
NicDrilling is offline   Reply With Quote
Old 05-05-2016, 11:13 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

looks like the normal outlet...
Braineack is offline   Reply With Quote
Old 05-05-2016, 12:27 PM   #7
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

So just got off the phone with FM tech support (very polite individual) and apparently the FM outlet manifold only works with the ball bearing gerretts, unless you want to drill out the holes on your brand new cast manifold.
NicDrilling is offline   Reply With Quote
Old 05-05-2016, 12:34 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

didnt realize there was a difference in outlet between the journal and ball bearing T25s.

does your outlet not match the one i posted above?


almost postive theres plently of people on this site that have used the FM manifold and DP on the old SR20 t25 turbo.
Braineack is offline   Reply With Quote
Old 05-05-2016, 01:23 PM   #9
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

I have not measured the outlet yet. I will this evening. Per Eric over at FM, there is a miniscule difference between the jurnal bering and ball bering Gerretts. I'm a little confused that mine does not fit. I must have stumbled across a odd ball t25. I read through multiple threads on this site about guys here using the FM kits with the sr20 turbo, which led me to buy the FM kit.
NicDrilling is offline   Reply With Quote
Old 05-05-2016, 01:28 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Braineack is offline   Reply With Quote
Old 05-05-2016, 01:50 PM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

We get the cheap t25's off the 240's not the 180's. So that might explain the difference.
shuiend is offline   Reply With Quote
Old 05-05-2016, 02:50 PM   #12
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

I guess I'm ignorant on the difference between The 240s and 180s
NicDrilling is offline   Reply With Quote
Old 05-05-2016, 02:53 PM   #13
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by NicDrilling View Post
I guess I'm ignorant on the difference between The 240s and 180s
So am I, I know next to nothing about Nissans. I have purchased 5 t25's off sr20 240's over the past 9 years all right around $100-$125 and all have had proper flanges.
shuiend is offline   Reply With Quote
Old 05-06-2016, 11:11 PM   #14
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

OP, did you pick up the turbo from an older CA18 motor and not an SR20?
.one lane is online now   Reply With Quote
Old 05-06-2016, 11:22 PM   #15
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

I'm not totally sure. I found it on Craigslist and then researched the ID plate. It came back to a 180sx.
NicDrilling is offline   Reply With Quote
Old 05-06-2016, 11:30 PM   #16
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

.one lane is online now   Reply With Quote
