Default

Quote:
Originally Posted by 96rdstr View Post
I don't want to hear **** about the baby teeth. That being said, here are the pics.


PIC 1/2 shows the front radiator/bumper support thing was trimmed to make room for the the intercooler. I kept the stock mounting points for it, and trimmed off just enough of the sides to clear the pipes, but enough to keep the airflow guided through the radiator, not around it.

PIC 3 shows the bottom of the IC and the front shroud that was trimmed. The top of the pic is the front of the car.

PIC 4 is the front right of the engine under tray. The front part was left untouched. You can see the original mounting holes.

PIC 5/6 is the hot side and cold side pipes. The under tray was trimmed liberally in some spots to make clearance.
Thanks!

It sure looks like it's really low. You don't have any scraping issues?

Sorry to bother but; would you happen to have a pic from inside the engine bay?

I need to find a solution for mine now since I'm going to have to take the engine out.
Rafa is offline   Reply With Quote
Old 02-03-2009, 04:45 PM   #22
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

The car is lowered all the way around with Tokicos. The FMIC does not hang lower than the front bumper. The engine tray is secured to all the mounting points except the front. What do you want to see? How the IC was mounted?
96rdstr is offline   Reply With Quote
Old 02-03-2009, 05:12 PM   #23
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by 96rdstr View Post
What do you want to see? How the IC was mounted?
Yes. BTW, which radiator are you using? The stock one?
Rafa is offline   Reply With Quote
Old 02-03-2009, 05:42 PM   #24
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

Quote:
Originally Posted by Rafa View Post
Yes. BTW, which radiator are you using? The stock one?
Yes, original to the car.
Basically, the IC was mounted using a variation of the Stripes Pipes method. I will get you some more pics this evening. I will need to bundle up! It only got up to 56 in Tampa today! take that Yankee peeps.
96rdstr is offline   Reply With Quote
Old 02-03-2009, 05:59 PM   #25
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

I'm freezing my *** off. I'm wearing long johns tomorrow. This 50*F crap is for yankees.
sixshooter is online now   Reply With Quote
Old 02-03-2009, 06:15 PM   #26
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by sixshooter View Post
I'm freezing my *** off. I'm wearing long johns tomorrow. This 50*F crap is for yankees.
No ****; I still remember when I was there in 76. In January it went down to much lower than 40 degrees. And I was so smart that I had decided to shave my beard for the first time in more than 7 years just before going back to Tampa! Plus, I was going to school on a friend's borrowed bycicle almost every morning.

****; now that I remember, my only other mode of transportation was the Bug Eye that same friend had lent me. The soft top was a piece of rag!

Good times

I love Tampa

For the record; to all the Yankees: it's 85 degrees right now locally
Rafa is offline   Reply With Quote
Old 02-03-2009, 08:49 PM   #27
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

Here ya go.

Pics 1 and 2 show the location of the mounting bolts that mount the IC hangers to the body of the car. The hole in PIC 1 is an existing hole. The hole in PIC 2 was made with my drill.

PIC 3 shows the complete radiator cover. The is the factory unit.

Like I mentioned before I do not get any overheating at all. It may not be the best looking, but it works.

Work to do still. I need to clock the compressor and redo the hotside pipes and then move the intake. Although, my intake temps close to ambient, they can be lowered if I move the filter from that point. I fashioned that intake shield from metal I had laying around. I lined the exterior with DEI tape. That little deal there shaved off some temp degrees.

Last edited by 96rdstr; 02-17-2009 at 01:58 PM.
96rdstr is offline   Reply With Quote
Old 02-03-2009, 09:26 PM   #28
Junior Member
iTrader: (3)

Join Date: Dec 2007
Posts: 219
Total Cats: 0
Default

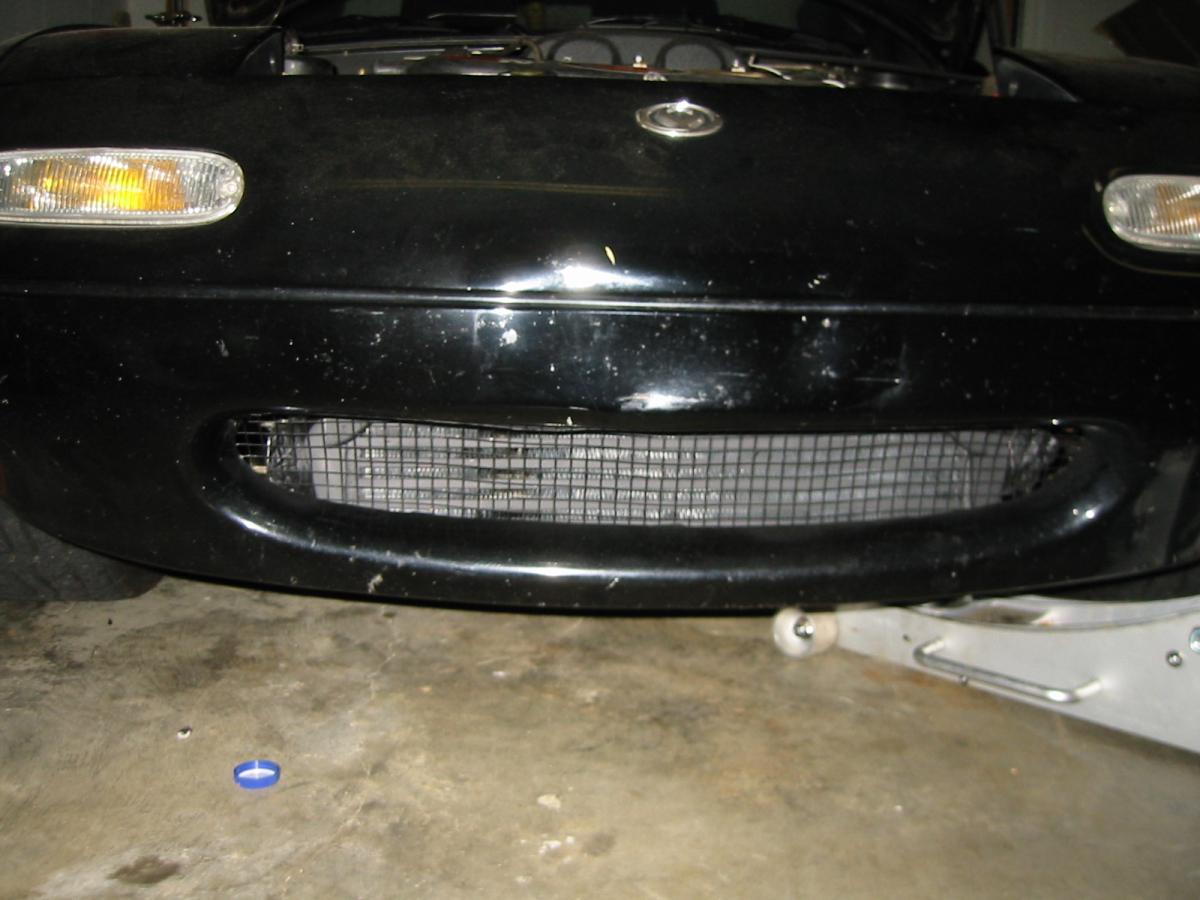

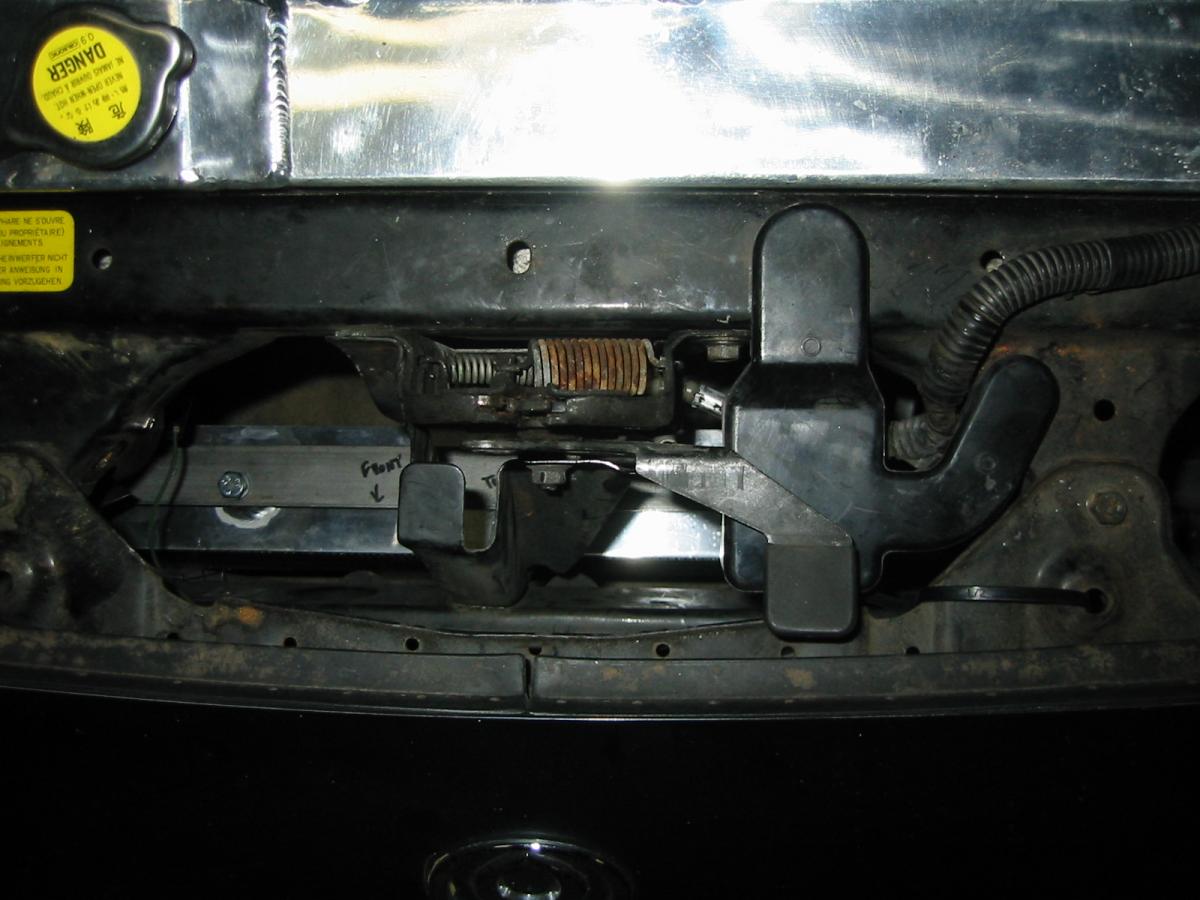

I have the second one...I mounted it as centered in the front "mouth" as I could-had to loosen the clamp for the AC drier and move it up-not too bad-the aluminum tubing is fairly flexible just don't over due it. I did do that when the weather was warm so that might have helped. Anyway, here are pics. It was fairly easy to mount-I just got a piece of flat stiff metal from Home Depot and mounted the IC to that using the bolt standoffs up top-then bolted the bar of metal into one of the baby teeth holes on each side. I then ran a smaller piece of flat metal from the bottom of the IC to a bolt standoff on my mishimoto radiator to stabalize it-it doesn't move around at all. I then got some $8 landscape fencing and made a mesh type covering to finish off the front and put a light coat of flat black on the IC and painted the fencing heavily with black off the car. I want a stealth look. It looks better in person-the flash of my camera makes it look like crap-my car is dirty too.

Also, I'm planning to drill and tap a 3/8" hole in the intercooler for my IAT sensor-where is the best place to put it? I was just going to put it in one of the side caps of course, but should I tap it where the sensor will be in the middle of where air flows out the outlet? Or just anywhere on the outlet side is fine? Thanks!
Attached Thumbnails
Which ebay Intercooler would you buy?-119-1938_img.jpg   Which ebay Intercooler would you buy?-119-1940_img.jpg
scottv is offline   Reply With Quote
Old 02-03-2009, 09:37 PM   #29
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by 96rdstr View Post
Here ya go.

Pics 1 and 2 show the location of the mounting bolts that mount the IC hangers to the body of the car. The hole in PIC 1 is an existing hole. The hole in PIC 2 was made with my drill.

PIC 3 shows the complete radiator cover. The is the factory unit.

Like I mentioned before I do not get any overheating at all. It may not be the best looking, but it works.

Work to do still. I need to clock the compressor and redo the hotside pipes and then move the intake. Although, my intake temps close to ambient, they can be lowered if I move the filter from that point. I fashioned that intake shield from metal I had laying around. I lined the exterior with DEI tape. That little deal there shaved off some temp degrees.
Many, many thanks.

Good work!
Rafa is offline   Reply With Quote
Old 02-03-2009, 10:24 PM   #30
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

Quote:
Originally Posted by Rafa View Post

For the record; to all the Yankees: it's 85 degrees right now locally
Well, then if business gets better, I'm coming down there next year for a vacation during the winter!
sixshooter is online now   Reply With Quote
Old 02-03-2009, 11:18 PM   #31
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by sixshooter View Post
Well, then if business gets better, I'm coming down there next year for a vacation during the winter!
You're welcome to come any time!

If you happen to be a golfer, you'll be pleasantly surprised
Rafa is offline   Reply With Quote
Old 02-04-2009, 12:17 AM   #32
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Quote:
Originally Posted by 18psi View Post
Id go with #2 simply because it looks better....call me an idiot, but I cannot STAND the way the tiny ones look. so gay
It looks like my poor car has a buck tooth. :(
miatamania is offline   Reply With Quote
