Default Ebay Mani

So, what do you think about this mani.....any good ?

http://cgi.ebay.com/Mazda-Miata-MX5-...QQcmdZViewItem
Fergus is offline   Reply With Quote
Old 08-29-2007, 12:53 AM   #2
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

J to the izunk. My buddy is getting ready to pulls his right now due to multiple cracks in under 3k miles.
Kelly is offline   Reply With Quote
Old 08-29-2007, 12:59 AM   #3
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Ireland
Posts: 534
Total Cats: 0
Default

Fergus is offline   Reply With Quote
Old 08-29-2007, 01:17 AM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Those are all junk.

bellengineering.com
flyinmiata.net
etdracing.com (google)
jgstools.com (google maybe)
cjernigan is offline   Reply With Quote
Old 08-29-2007, 03:04 AM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

I didn't even look at the link. It's ****. The 4 guys cjernigan posted are good, as well as HKS and AVO.
Savington is offline   Reply With Quote
Old 08-29-2007, 07:47 AM   #6
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Do the crappy manifolds all crack at the welds or are there other issues too?

Frank
fmowry is offline   Reply With Quote
Old 08-29-2007, 10:41 AM   #7
Senior Member

Join Date: Mar 2007
Location: Denver, CO
Posts: 564
Total Cats: 0
Default

Someone should start a thread called, "Ebay **** sucks" and it should be a sticky.
jwarriner is offline   Reply With Quote
Old 08-29-2007, 10:45 AM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

They all crack everywhere, welds and in the middle of the tubing because the tubing is ****.
cjernigan is offline   Reply With Quote
Old 08-29-2007, 11:58 AM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Still rockin' the SSA with over 1k boosted street miles. I know that's not long, but every time I'm out it's for tuning, which means nothing but boosted runs. I'd like to think that the flex pipe and brace from to the block help. I'm not gonna bitch for $60. I know it won't last forever, but by the time it does fail, I'll probably be ready for adding an external wg.

Markp's failed at the stoopid wg flange on the #4 runner- again a lot of cantilevered weight - wg and dump tube.

What's the tubing issue? thickness? quality of the metal?

Before I installed mine, I looked around and nearly all the SSA manifolds that I saw with reported failures were mounted on fwd cars, no bracing on the manifold/turbo/dp and no flex pipe. Most were cracked outside the weld too- a load failure from the cantilevered weight of the assembly off the thin wall tubing no doubt.
m2cupcar is offline   Reply With Quote
Old 08-29-2007, 12:02 PM   #10
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

How many times must we post this ****. Search Ebay and manifold. It cracks, sucks donkey dick, etc. There is one member on here who uses it, but he has to have made so many mods to support it that its almost beneficial to have just bought a good one to start.
Newbsauce is offline   Reply With Quote
Old 08-29-2007, 12:52 PM   #11
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

we need a stick about the ebay manifold, about the people that have cracks with photos to show the crack so it doesn't look like hear say. Also with info from people who are running it, like you and Magma(i believe)

This way maybe the question won't be asked every week..lol
wildfire0310 is offline   Reply With Quote
Old 08-29-2007, 02:11 PM   #12
I'm Miserable!

Join Date: Aug 2007
Posts: 4
Total Cats: 0
Default

I agree that manifold is JUNK! I wonder if anyone actually uses these things, whoever would pay even 100 for this thin walled easily crackable manifold is asking for it and hasnt done their homework. Spend 400 for a nice log manifold and be done with it, do it right.
CleanableBat is offline   Reply With Quote
Old 08-29-2007, 02:25 PM   #13
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Magna is using one, rmmcelwee did or still is. Rob at flipsyde installed one on his miata just to try it out. Magna had his coated i think, not sure if I cracked or not.
cjernigan is offline   Reply With Quote
Old 08-29-2007, 02:33 PM   #14
I'm Miserable!

Join Date: Aug 2007
Posts: 4
Total Cats: 0
Default

A good coating would cost as much as the manifold does. The coating will help it slightly but wont stop thin wall stainless from cracking.
CleanableBat is offline   Reply With Quote
Old 08-29-2007, 02:46 PM   #15
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

No ****.
cjernigan is offline   Reply With Quote
Old 08-29-2007, 08:23 PM   #16
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by CleanableBat View Post
A good coating would cost as much as the manifold does. The coating will help it slightly but wont stop thin wall stainless from cracking.
Nice try andy even i see this as you lame FWIW caoting on mine was 140$ and included ceramicing the turbine housing as well. I did have a failure but it was after my brace failed. With my brace intact, i doub the failure would have happened.

Last edited by magnamx-5; 08-30-2007 at 09:45 AM.
magnamx-5 is offline   Reply With Quote
Old 08-30-2007, 10:17 AM   #17
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

any pics of your brace? good info for those non-believers
m2cupcar is offline   Reply With Quote
Old 08-30-2007, 01:23 PM   #18
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
any pics of your brace? good info for those non-believers
+1 wouldn't use one without a brace, but thats expected when buying it, right?
mazda/nissan is offline   Reply With Quote
Old 08-30-2007, 01:36 PM   #19
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

I don't get why people without welding skills try to cheap out on basic stuff like this. The manifold is a pain in the *** to be redone because it locates the turbo and by extension, locates the downpipe and intercooler pipes. If you constantly have to redo this part, you will suffer a lot for it.

Either do it yourself and save money or pay the proper amount to have it done well. A JGS manifold is cheap and will last forever. Lance's welds are good quality and haven't fallen apart on me yet after over 4 years. Once you realize that good welding is worth money, the decision becomes a lot simpler- how good is your welding and how much money/time do you have?

Chinacharger manifolds can be decent if you are willing to take them apart and reweld them. At least that is what markp said.
beerslurpy is offline   Reply With Quote
Old 08-30-2007, 08:37 PM   #20
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

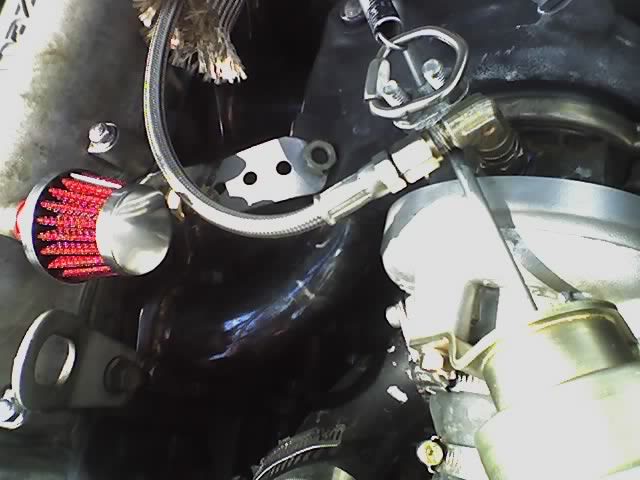

yeah i think so version 1.0 atlaest I made the steel to thin by the turbo area, and the heat and stress, made it give way.
Name:  04-12-06_1409.jpg
Views: 1
Size:  41.0 KB
Since then i made it abit beefier, i definatley notice a diference in how much exhaust sway i get with it on vs off.
