EFR 6758: Where the heck is my spool?

Old 07-09-2017, 03:27 AM
  #41
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 4,342
Total Cats: 509
Default

I'm siding with the people who are saying a boost leak. Probably not in the intercooler, it's more likely in the couplers and plumbing from turbo to IC and IC to throttle body. I had a case like this once.

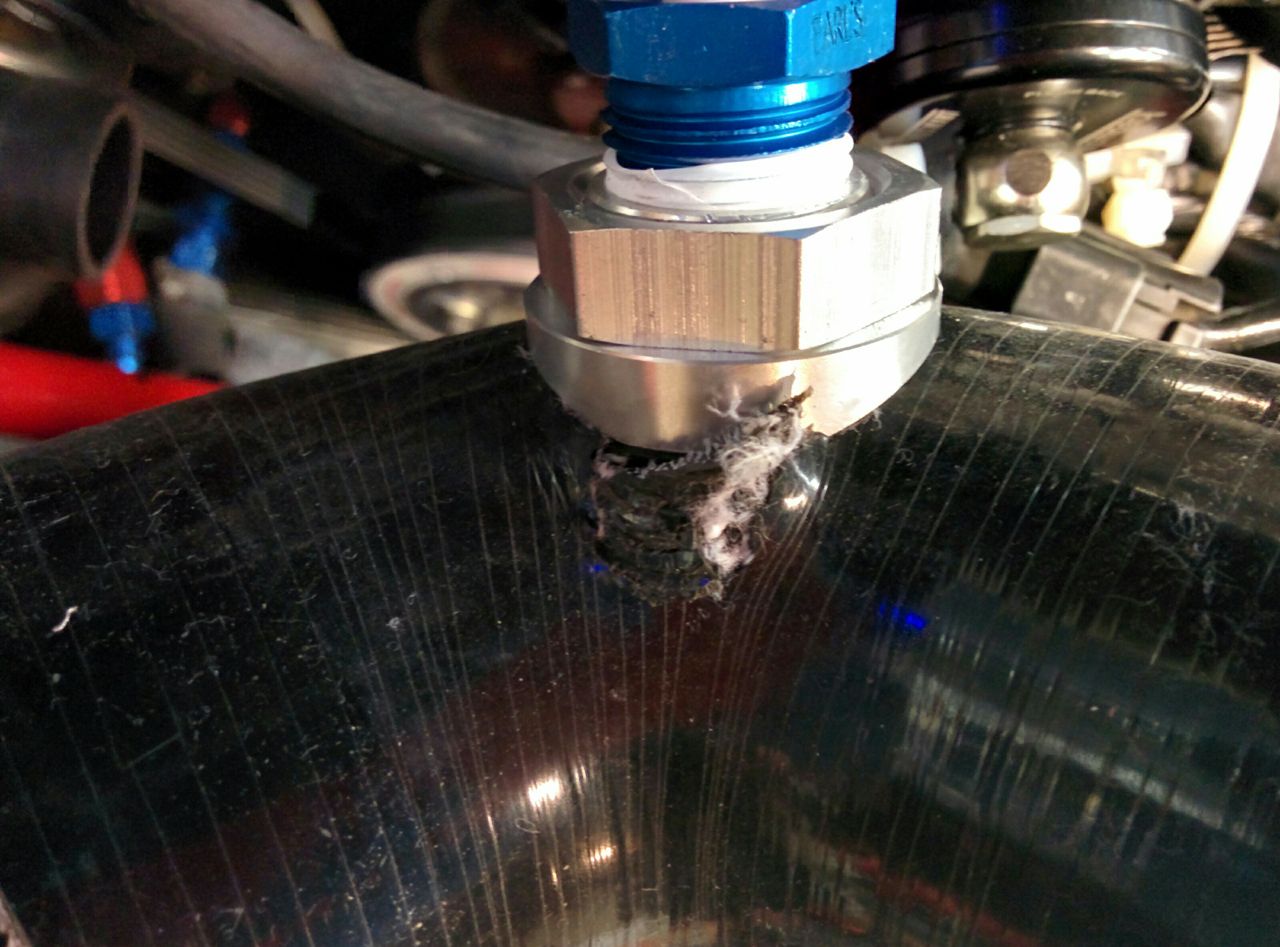

BIG boost leaks will give you no boost at all (or maybe 1 psi at 6000 or something like that). Teeny boost leaks are irrelevant. small-to-medium size leaks are rare, but can do this. In my case it looked like this:



--Ian
codrus is offline
Old 07-09-2017, 06:40 PM
  #42
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,894
Total Cats: 314
Default

Originally Posted by andyfloyd View Post
are you using the bypass valve on the EFR or a BOV? This seems like a potential issue.
What does this mean, and what are the issues? Learn me please.
ryansmoneypit is offline
Old 07-09-2017, 11:44 PM
  #43
Junior Member

Join Date: May 2017
Posts: 384
Total Cats: -37
Default

Originally Posted by ryansmoneypit View Post
What does this mean, and what are the issues? Learn me please.
its possible the bypass valve or the bov depending on which is being used is leaking and causing the slow spool. Just a thought. They can crack open early and youll lose boost through it.
andyfloyd is offline
Old 07-10-2017, 04:14 AM
  #44
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Brisbane
Posts: 222
Total Cats: -16
Default

Originally Posted by codrus View Post
Teeny boost leaks are irrelevant.
--Ian
Had a few pin / slightly larger size ones in my ic pipe.
Welded them up and went from 7psi to 11.8.

So they can build up. unless i also had a leak from my tubing but hey. no idea.
adryargument is offline
Old 07-11-2017, 03:26 AM
  #45
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Munich
Posts: 298
Total Cats: 42
Default

Quick update since I'm drowning in work: last night I did a test run with the intercooler bridged. Using brand new silicone coupler and a 2.5" alloy tube I ran the turbo directly to the throttle body. Spool was unchanged. In the process I also did another back to back testing of the internal BOV vs the GFB DV+ -again this had no influence. 200kpa at 3850 rpm, while it took an entirety to go from 100 kpa @ 2000 rpm to 140 @ 3350. Beyond that point the spool really kicks in.

due to work I won't be able to do much more testing before the weekend.
Eunos91 is offline
Old 07-11-2017, 04:43 AM
  #46
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Brisbane
Posts: 222
Total Cats: -16
Default

That wacky rpm line looks like my shitty logs of the junkyard motor i threw in my car.
Im around 20-30% leak on cyl 1/3/4, cyl 2 is 40-45%. Also misfiring at times on cyl 2.

Im not burning oil, but she vents out the crankcase like crazy....
I compared all my logs on my current motor to my previous one. All logs since i threw in the motor have the jagged rpm. Prev motor was perfect smooth.

I have a feeling its caused by cyl2 not providing enough power compared to the rest, also car starting to shudder like crazy, as motors no longer balanced.
adryargument is offline
Old 07-11-2017, 05:55 AM
  #47
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Munich
Posts: 298
Total Cats: 42
Default

What RPMs do you mean? That jagged line at the end of the screenshot is overboost protection engaging. The spool-up RPMs are linear.
Eunos91 is offline
Old 07-11-2017, 08:04 AM
  #48
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Brisbane
Posts: 222
Total Cats: -16
Default

my eyes are dud.

quick look made them seem up-down slightly. considering the starting rpm jumps - which my car does.
i.e. for everyt 100rpm my car jumps it then drops 10 on 1 frame, making a slightly jagged climb.
adryargument is offline
Old 07-11-2017, 08:10 AM
  #49
Newb

Join Date: Jul 2017
Posts: 2
Total Cats: 0
Default

If there are no bigger leaks in the pressure line I think it has something to do with the exhaust manifold.
I had a log type manifold at first to. Runs great with the small garrett turbo.
But with the change to the EFR 6258 it was not as good. (I have no logs and this is years ago)
Then I build a pulse-charging manifold and had 200 kPa at 3200 rpm.
But I had the air filter (open type) behind the radiator. So the intake air was very hot.
Changing this to a cold air intake pushes the spool. So I am now at 200 [email protected] rpm.

By the way: Your ignition is very late. Why do you run the engine with RON95 and not with RON98? I think my igintion with boost is 10 earlier... (But the later the ignition the better the spool. An earlier ignition angle will give you much more power but less spool and less exhaust temperature.)
Rennsusi is offline
Old 07-15-2017, 07:17 AM
  #50
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Munich
Posts: 298
Total Cats: 42
Default

So I checked the intercooler pipes for leaks - nothing. No visual damage, and held 1.5 bar positive pressure without any losses. So that rules out the IC system and BOV as possible causes.

Originally Posted by Rennsusi View Post
By the way: Your ignition is very late. Why do you run the engine with RON95 and not with RON98? I think my igintion with boost is 10 earlier... (But the later the ignition the better the spool. An earlier ignition angle will give you much more power but less spool and less exhaust temperature.)
two reasons: first, I completed the build 2 days before I went on a 1100 km trip hooning through the dolomites at 35 degrees. Down there they don't have any RON98 ANYWHERE. I therefore didn't want to take any chances and ran a safe map. Second, knowledgeable folks like Savington recommended to remove timing from my original map.
I built myself some det cans and will tune timing with those later on.
Eunos91 is offline
Old 10-08-2017, 09:48 PM
  #51
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,940
Total Cats: 38
Default

Did this ever get figured out?
Stealth97 is offline
Old 10-08-2017, 10:01 PM
  #52
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,052
Total Cats: 3,104
Default

yes. check his build thread
18psi is offline
Old 10-09-2017, 03:03 AM
  #53
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Munich
Posts: 298
Total Cats: 42
Default

Well, sort of. I'll still try another manifold though. The Kraken cast manifold seems to be better flowing, similar to TSE's manifold, while being affordable for us mere Europeans.
Eunos91 is offline
Old 06-12-2018, 08:04 PM
  #54
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Munich
Posts: 298
Total Cats: 42
Default

So I finally but the bullet and bought a Kraken manifold. Installed it 2hrs ago. **** me, this thing MOVES! It must have been the crappy log manifold as Tim said. The shorty tubular manifold offers a tremendous difference in response, spool-up and overall driveability. Since this is Miataturbo I'll soon provide catalogs to back up my subjective opinion, but this manifold is like night and day
Eunos91 is offline
Old 06-13-2018, 02:48 AM
  #55
Senior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 956
Total Cats: 81
Default

Originally Posted by Eunos91 View Post
So I finally but the bullet and bought a Kraken manifold. Installed it 2hrs ago. **** me, this thing MOVES! It must have been the crappy log manifold as Tim said. The shorty tubular manifold offers a tremendous difference in response, spool-up and overall driveability. Since this is Miataturbo I'll soon provide catalogs to back up my subjective opinion, but this manifold is like night and day
I just installed a Kraken manifold and efr6258 and with open loop boost control set to 200-210kpa here is my spool:

4th gear pull, starting at 2700rpm

3000rpm - 8.3psi
3200rpm - 10.8 psi
3400rpm - 13.1 psi
3573rpm - hit target of 14.5 psi 201 kpa.

looks reasonable? how does yours compare now that we have the same setups?
borka is offline
Old 06-29-2018, 03:47 PM
  #56
Supporting Vendor

Join Date: Oct 2016
Posts: 188
Total Cats: 52
Default

Your welcome
Kraken is offline
Old 06-29-2018, 05:07 PM
  #57
Elite Member
iTrader: (2)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 3,727
Total Cats: 101
Default

Originally Posted by borka View Post
I just installed a Kraken manifold and efr6258 and with open loop boost control set to 200-210kpa here is my spool:

4th gear pull, starting at 2700rpm

3000rpm - 8.3psi
3200rpm - 10.8 psi
3400rpm - 13.1 psi
3573rpm - hit target of 14.5 psi 201 kpa.

looks reasonable? how does yours compare now that we have the same setups?
Most of the data on the spool thread has runs that start at 2k. Can you do a run there for direct comparison?
