Default ETD shorty turbo manifold crack *&^%$#

Would this be fixable or not?

When I got it I wanted to slot the flange. Some people said all those who slotted it got a crack. Well I guess it cracks whether or not you slot it.
JasonC SBB is offline   Reply With Quote
Old 09-20-2014, 09:38 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

pic
18psi is offline   Reply With Quote
Old 09-20-2014, 09:38 PM   #3
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Attached Thumbnails

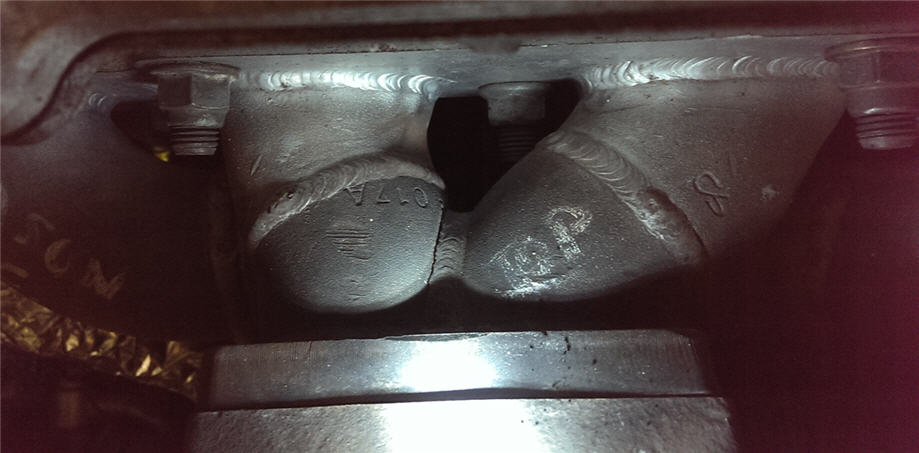

ETD shorty turbo manifold crack  *&^%$#-etd-crack.jpg
JasonC SBB is offline   Reply With Quote
Old 09-20-2014, 09:54 PM   #4
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,192
Total Cats: 260
Default

Welds never break, just the heat affected zone.

Sure it can be fixed. Clean it out, bevel it out / grind out the crack. Weld it back up.
Erat is offline   Reply With Quote
Old 09-22-2014, 12:47 PM   #5
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Nobody else chiming in?
JasonC SBB is offline   Reply With Quote
Old 09-22-2014, 12:50 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

yes, it can be fixed. take to competent tig welder and it shouldn't take more than 30 min
18psi is offline   Reply With Quote
Old 09-22-2014, 01:07 PM   #7
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

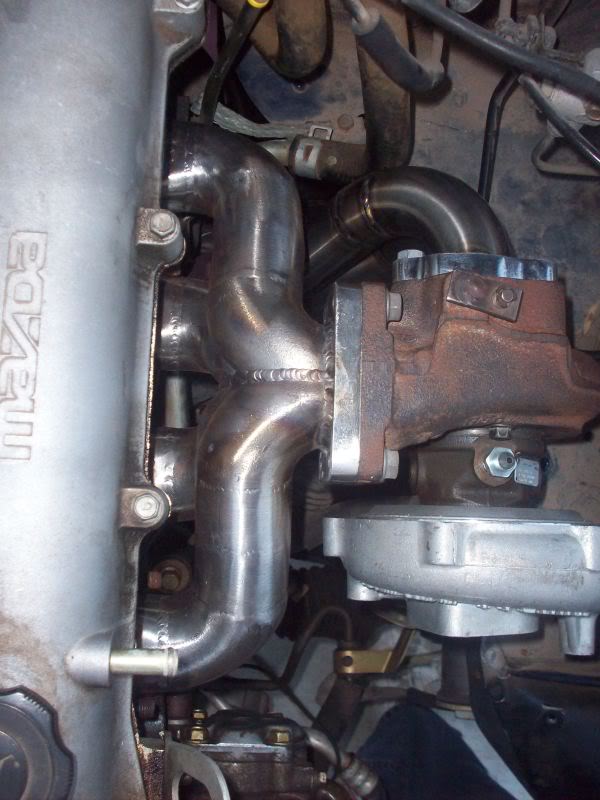

So why would the ETD using schedule 40 weld-els crack, and this ARTech mani not?:


Or this ABSURDflow one?:
Attached Thumbnails
ETD shorty turbo manifold crack  *&^%$#-107_0899.jpg
JasonC SBB is offline   Reply With Quote
Old 09-22-2014, 01:13 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

artech mani's have cracked before
so have ABSURDflows
and a wittyworks manifold
All got repaired/re-welded and went on their merry way.

its just how it goes with an un-braced/supported tubular on a BP. how many miles is on yours? I'm pretty sure it's lasted you quite some time now
18psi is offline   Reply With Quote
Old 09-22-2014, 02:41 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

how's your exhaust mounting? do you have a flex pipe? is it attached to the tranny?
Braineack is offline   Reply With Quote
Old 09-22-2014, 04:02 PM   #10
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I have the FM exhaust brace which braces exhaust next to the cat, to the PPF.

Downpipe has flex joint (BEGI dual pipe, custom for ETD mani)

About 20k - 25k miles on it, and only a few track days, first one at 15 psi (was 10 psi).
JasonC SBB is offline   Reply With Quote
Old 09-22-2014, 04:44 PM   #11
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Curious: stainless or mild?
y8s is offline   Reply With Quote
Old 09-22-2014, 05:47 PM   #12
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Mild
