Default Exhaust hangers

Are there any good, cheap options for hanging the exhaust under the car besides the stock rubber pieces?

My 2.5" exhaust seems to swing quite a bit and around sharp corners actually hits on things so I'm looking for something a little stiffer I think that will serve the same purpose. Any ideas?
skidude is offline   Reply With Quote
Old 04-27-2009, 12:45 PM   #2
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I just added a universal rubber strap type hanger with the holes in it. It has a lip riveted on to accept a muffler clamp. I got it from Advance Auto for a couple bucks. I bolted it sideways to one of the holes in the rear sbuframe right above the rear lower control arm and muffler clamped it to the midpipe. Eliminated the side to side movement as it can't stretch or compress the rubber strip while still letting the exhaust hang on the stock hangers. Worked great. I have 2 1/2" as well. If you can't figure it out I can snap a pic.
Stein is offline   Reply With Quote
Old 04-27-2009, 12:54 PM   #3
Junior Member
iTrader: (1)

Join Date: Dec 2007
Location: Orlando,Fl
Posts: 402
Total Cats: 0
Default

hey i got some southern hangers that are made just for that purpose...you can bolt the hanger anywere you want
mx03tb is offline   Reply With Quote
Old 04-27-2009, 01:51 PM   #4
Hear me Meow
Thread Starter
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

This sounds perfect, but I am having trouble picturing it so if you get a chance a couple snapshots would be great.
skidude is offline   Reply With Quote
Old 04-27-2009, 02:22 PM   #5
Junior Member
iTrader: (1)

Join Date: Dec 2007
Location: Orlando,Fl
Posts: 402
Total Cats: 0
Default

ok no problem
Name:  IMG_0056.jpg
Views: 3
Size:  157.3 KB
mx03tb is offline   Reply With Quote
Old 04-27-2009, 02:43 PM   #6
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by skidude108 View Post
This sounds perfect, but I am having trouble picturing it so if you get a chance a couple snapshots would be great.
Will do, hopefully tonight. They don't look anything like those above.
Stein is offline   Reply With Quote
Old 04-27-2009, 04:48 PM   #7
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

+1 need pics
Laur3ns is offline   Reply With Quote
Old 04-27-2009, 05:22 PM   #8
Junior Member
iTrader: (1)

Join Date: Dec 2007
Location: Orlando,Fl
Posts: 402
Total Cats: 0
Default

yeah these you can bolt them any were and then have them welded onto the pipe or what ever... there very helpful
mx03tb is offline   Reply With Quote
Old 04-27-2009, 06:00 PM   #9
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

mx03tb, can you post a link to buy them?
zoomin is offline   Reply With Quote
Old 04-27-2009, 10:07 PM   #10
Junior Member

Join Date: Aug 2007
Location: Burlington, VT
Posts: 419
Total Cats: 0
Default

I like the poly hangers you can pick up at RavenWing for about $8 each.
They don't sag with a stainless muffler, but fit the stock mounts.

ES07. POWERFLEX EXHAUST HANGERS
jbresee is offline   Reply With Quote
Old 04-28-2009, 12:53 AM   #11
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

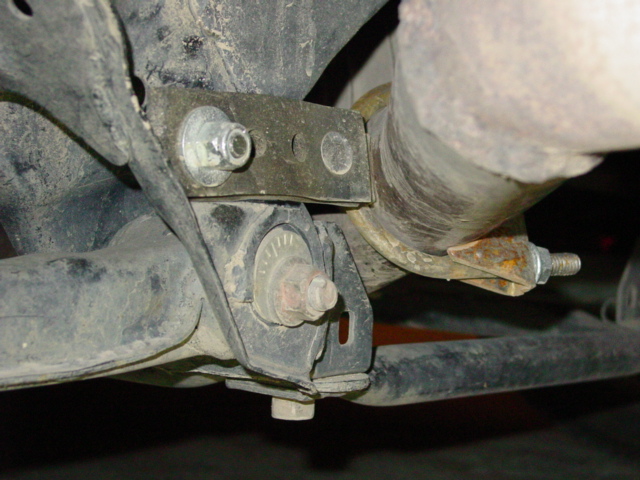

Here is a pic of the hanger that I used. You can see the rubber strap with holes and where I bolted it to the subframe. The hole in the subrame is already there. I cut off the excess strap. The strap is about 6" long originally. The bent metal tab that is riveted to the strap is captured by the muffler clamp. It is curved to capture the radius of the pipe. Sorry, but I live on a gravel road and the underside of my car is a mess from the mud.
Attached Thumbnails
Exhaust hangers-dsc01377.jpg
Stein is offline   Reply With Quote
Old 04-28-2009, 03:41 AM   #12
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Quote:
Originally Posted by jbresee View Post
I like the poly hangers you can pick up at RavenWing for about $8 each.
They don't sag with a stainless muffler, but fit the stock mounts.

ES07. POWERFLEX EXHAUST HANGERS
This part had me rolling "Or have your old hangers become flexi-flyers and now your Miata's exhaust system flops around like a Yo-Yo on acid?"
zoomin is offline   Reply With Quote
Old 04-28-2009, 04:11 AM   #13
Senior Member

Join Date: Nov 2005
Location: Baltimore Maryland
Posts: 1,010
Total Cats: 8
Default

I use a worm clamp arount one of my rear hangers to pull the exhaust away from the car... Works like a charm to stiffen things up< and I'm sure you have one layin around!
airbrush1 is offline   Reply With Quote
