So, lets say someone only wanted to make 6-8PSI and wanted it to spool as fast as humanly possible. What would be the best turbo and how fast could one expect it to spool on a built 1.6L with cams/ headwork etc.

I'm thinking GT2550 ish? Or go smaller?
falcon is offline   Reply With Quote
Old 07-29-2011, 04:08 AM   #2
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

2554. They can be had for cheap and will spool like it is telepathic.

Super fun for low end torque, around town driving.
viperormiata is offline   Reply With Quote
Old 07-29-2011, 04:26 AM   #3
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

Dibs on the Rotrex.
dstn2bdoa is offline   Reply With Quote
Old 07-29-2011, 04:31 AM   #4
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

Seriously though. Is the rotrex not doing it for ya? You have a built 1.6 with head work. Are you thinking of changing it up? Disappointed with the power? Don't like the torque curve, or the lack there of? Whats going on here?
dstn2bdoa is offline   Reply With Quote
Old 07-29-2011, 05:24 AM   #5
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Who says I am getting rid of the rotrex?

It's all a game for me. I love working on my car and now that it's basically done I need to figure something else out to do.

The Rotrex pumps a 2.0PR at 8k RPM on my motor. 4PSI = 1.272PR. So that times that = 2.544 = 22PSI. I could also put my old pulley on which would equate to about 12PSI at redline with the rotrex or about 21PSI compounded with 4PSI on a turbo. I know my motor will take more than the 15PSI it's getting right now. I'm just just brainstorming on how to do it without stepping up to a C38. Power Enterprise has done a twincharged S15 240SX as well as the R35.
falcon is offline   Reply With Quote
Old 07-29-2011, 06:54 AM   #6
Junior Member

Join Date: Jul 2010
Posts: 89
Total Cats: 0
Default

I assume you'll have it like this?:

Supercharger -> Turbo -> Engine

How do you read a compressor map for a compound supercharging situation? Some maps are in units of volume and some are in units of mass and feeding compressed air into the compressor will alter the relationship between mass and volume.
giblets is offline   Reply With Quote
Old 07-29-2011, 08:34 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

a turbo to spool a SCer....who would of thought.
Braineack is offline   Reply With Quote
Old 07-29-2011, 10:23 AM   #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,805
Total Cats: 183
Default

I bought a turbo one time that the guy told me was from an SR20. It wasn't. It actually was from a 80's Sunbird turbo coupe, I think. It was a garrett with a .48 turbine/ .49 compressor. It spooled stupid fast and made decent power and torque, but anything over 8 psi and it would fall on it's face after 6,000 RPM. Might be what you're looking for.
thirdgen is offline   Reply With Quote
Old 07-29-2011, 11:22 AM   #9
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Auburn Maine
Posts: 185
Total Cats: 0
Default

Thinking out loud here. Wouldn't the small turbine choke off the flow of the supercharger?
vw_nut is offline   Reply With Quote
Old 07-29-2011, 11:24 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

they are talking about a no-torque-rex.
Braineack is offline   Reply With Quote
Old 07-29-2011, 11:27 AM   #11
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Auburn Maine
Posts: 185
Total Cats: 0
Default

I am still confused. But even at high rpm when the Rotrex is on boil, the 2554 turbine is going to be maxed out and chocking off power. Unless of course there is a huge wastegate allowing a lot of air to bypass the turbine housing.
vw_nut is offline   Reply With Quote
Old 07-29-2011, 11:42 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

yeah, you'd need some sort of complete turbo bypass.
Braineack is offline   Reply With Quote
Old 07-29-2011, 11:48 AM   #13
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Auburn Maine
Posts: 185
Total Cats: 0
Default

Ok, that makes more sence. I wast trying to figure out how to get 22 psi out of a 2554 turbine at high revs.
vw_nut is offline   Reply With Quote
Old 07-29-2011, 11:58 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

Oh lawdy, compound boost sounds like a good idea. Judging by your build thread you'll do it right too, I'll be exited to see results
18psi is offline   Reply With Quote
Old 07-29-2011, 12:28 PM   #15
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by vw_nut View Post
I am still confused. But even at high rpm when the Rotrex is on boil, the 2554 turbine is going to be maxed out and chocking off power. Unless of course there is a huge wastegate allowing a lot of air to bypass the turbine housing.
*and a bypass around the compressor, which will also be maxed out at 240 hp.

The turbine won't choke til past 260 hp, and even then the wastegate will flow some % more.
JasonC SBB is offline   Reply With Quote
Old 07-29-2011, 12:42 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

does the compressor need to be bypassed? if it's only compressing 6psi until the wastegate/bypass opens and the rotrex takes over, the compressor wheel wouldn't be overloaded.


I'm imagining a Begi S6 style manifold with an IWG turbo. There's a HUGE EWG on the collector back to the DP. The turbo boosts into the Rotrex inlet.

turbo runs on IWG, when you want to turn it off, open the EWG dump straight to exhaust.

Last edited by Braineack; 07-29-2011 at 01:09 PM.
Braineack is offline   Reply With Quote
Old 07-29-2011, 01:14 PM   #17
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

More cubes helps all….
sjmarcy is offline   Reply With Quote
Old 07-29-2011, 01:17 PM   #18
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

These are the problems with compound supercharging. The logistics of getting everybody to work together is a huge pain in the ***.

To answer the original question, a Garret GT15V would likely be the smallest turbo that would make any sort of reasonable compression ratio at your peak flow rate, but you're going to over run any small compressor like that at high rpm. You can get them for stupid cheap on ebay pretty regularly, though, as Garret used to give one to every FSAE team who asked for one each year. The VNT will likely be problematic as you put miles on it, as they don't like gasoline EGTs very much.

Further, you're really going about this backward using a micro turbo to fill in the torque lacking with the stupid centrifugal supercharger. Traditionally 'twincharging' is used to add to the top end of a restrictive roots or twin screw blower that will be peachy at low rpm, but doesn't make a peak power target. You're going to have to figure out some sort of boost activated compressor bypass that won't make the turbo freewheel over it's rated speed.
vehicular is offline   Reply With Quote
Old 07-29-2011, 01:38 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

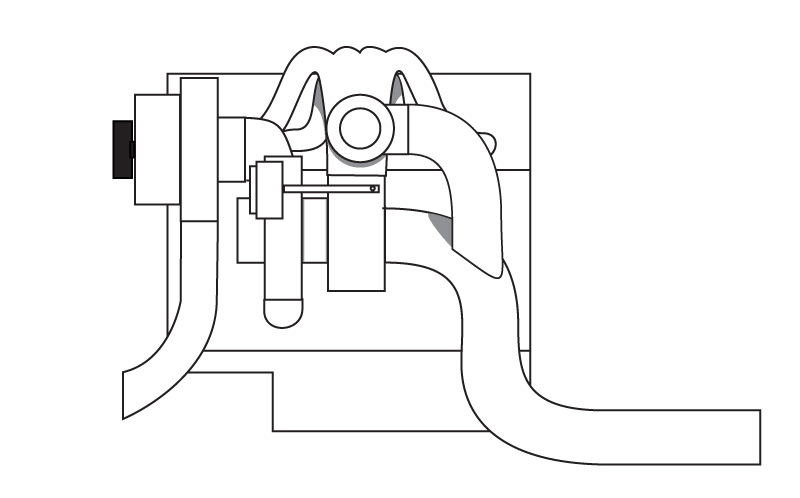

here:




now time for Chipotle.
Attached Thumbnails
Fastest spooling 6PSI ish turbo-compound_rotrex.jpg
Braineack is offline   Reply With Quote
Old 07-29-2011, 02:16 PM   #20
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
a turbo to spool a SCer....who would of thought.
Not to say I don't like the power the Rotrex is putting down, I do. The car is 4 seconds faster than last year at our track without the wilwoods I had last year. With some aero and brakes (and driving skill) the car is capible of 1:15's which if you knew our track that's very fast. I just want a new project and the whole reason I did a 1.6L Rotrex was to do something different. This would be an addition to that idea.

Quote:
Originally Posted by giblets View Post
I assume you'll have it like this?:

Supercharger -> Turbo -> Engine

How do you read a compressor map for a compound supercharging situation? Some maps are in units of volume and some are in units of mass and feeding compressed air into the compressor will alter the relationship between mass and volume.
No... Intake -> Turbo -> Super -> Engine

At this point I'm ball parking based on what kind of boost my motor makes. It makes 15PSI at redline which is just over a 2.0PR. 5PSI is 1.34. You take the 1.34 and multiply it by 2.0 which is 2.68. Then remove atmospheric pressure (14.7) and you get 24.6PSI of boost at redline. It would be less in the lower RPMS and work off the same idea that the rotrex already does. Since boost rises with RPM, you will only be hitting 14-15PSI at peak VE. I'm running 26* of timing on 91octane right now with zero hint of detonation... going with this theory since 6PSI is fairly low and won't be too hot... the rotrex dosen't heat air up as much as a turbo it should still run pretty cool.

Just need to think if I need v-bands even for 6PSI. I doubt it. Some inconel hardware should be enough I think...? I do track the car so...


Quote:
Originally Posted by Braineack View Post
yeah, you'd need some sort of complete turbo bypass.
Would I really though? I'm trying to understand the concept here, but I guess I have it a bit off. I figured that the turbo would be run on an electronic boost control system with it's feed taken from the compressor housing. That way when the Rotrex starts pulling enough air to bring what is essentially 6PSI down to 2-3PSI and eventually start choking, the boost control would adapt, and hold the boost steady at 5-6PSI in relation to whatever vacuum the Rotrex is pulling.



Quote:
Originally Posted by Braineack View Post
does the compressor need to be bypassed? if it's only compressing 6psi until the wastegate/bypass opens and the rotrex takes over, the compressor wheel wouldn't be overloaded.


I'm imagining a Begi S6 style manifold with an IWG turbo. There's a HUGE EWG on the collector back to the DP. The turbo boosts into the Rotrex inlet.

turbo runs on IWG, when you want to turn it off, open the EWG dump straight to exhaust.
That's another way to do it, however this way you are not getting any benefit from the turbo in the upper RPMS through the pressure ratio multiplication of the Rotrex.
falcon is offline   Reply With Quote
