FM Boost Controller vs Ebay Ones - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 12-17-2010, 08:54 PM   #1
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default FM Boost Controller vs Ebay Ones

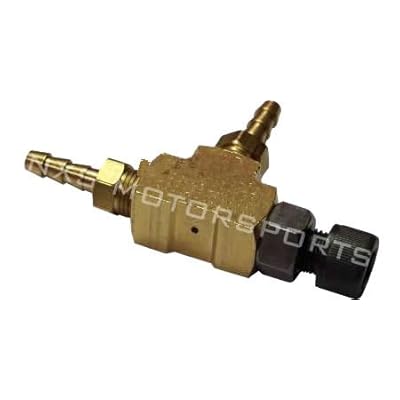

VS



Are these all the same? If not, what makes one better than the other?
kenzo42 is offline   Reply With Quote
Old 12-17-2010, 08:58 PM   #2
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

I don't think it makes that much of difference (1 is from Flyin Miata the other is from Ebay). The two are very simple to make and you could make them cheaper from you local hardware store then buying one and paying for shipping.
seraph is offline   Reply With Quote
Old 12-17-2010, 09:32 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I have the one on the bottom. Paid 15 shipped and it works great. I laugh at people that pay more than 20 bux for an mbc
18psi is offline   Reply With Quote
Old 12-18-2010, 12:03 AM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

They all suck. Lemme know if someone makes one with big ports.
hustler is offline   Reply With Quote
Old 12-18-2010, 12:30 AM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I have the FM one which I bought used. Works great, although I'd rather have the ebay one. Why? Because I wouldn't have to disconnect it to change the setting.
curly is offline   Reply With Quote
Old 12-18-2010, 01:33 AM   #6
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Controllers with hex socket heads aren't as practical as the '****' styled ones.
turotufas is offline   Reply With Quote
Old 12-18-2010, 05:17 AM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Anybody have experience with the in cabin models? Searching reveals only one, unless I'm using the wrong search terms.
curly is offline   Reply With Quote
Old 12-18-2010, 05:23 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by turotufas View Post
Controllers with hex socket heads aren't as practical as the '****' styled ones.
I have not a single time used a hex socket on mine. There is no difference at all: I had both styles. They work the same and you can turn either with your fingers and both tighten down with a wrench (the nut).
Quote:
Originally Posted by curly View Post
Anybody have experience with the in cabin models? Searching reveals only one, unless I'm using the wrong search terms.
I've heard its not good to have it that far from the source.
But I've seen it done and it works.

If you're looking for in-cabin to be able to run different settings its kinda bad/not precise: you'll never be able to adjust it perfectly from one setting to another.
Just get an ebc or bcs in that case.
18psi is offline   Reply With Quote
Old 12-18-2010, 05:32 AM   #9
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Or he is talking about a remote mounted adjustment ****, boost controller still stays in engine bay.


Hallman MBC with remote adjustment
crashnscar is offline   Reply With Quote
Old 12-18-2010, 05:40 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

No I understood what he was saying.
My thing is: how many times are you really going to need to adjust it?
The pro rx is like 120+ or so (probably more now).
18psi is offline   Reply With Quote
Old 12-18-2010, 05:47 AM   #11
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

For reasons of safety, I would suggest "no" to the in cabin controller. Unless there was some way to ensure it wouldn't get bumped or accidentally turned. Buddy had one in his Beemer and had that happen. He said car was really fast and looked down and saw 20psi instead of 15psi.
seraph is offline   Reply With Quote
Old 12-18-2010, 06:16 AM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I dunno why I want one. The 5 feet of vacuum line or whatever it'd be doesnt sound good though. I wasn't talking about a remote adjustment, although I like the sound. Is there a way with a in cabin adjustment like the one I linked to be disconnected when you're not tuning? I just get annoyed when I'm within 1psi of my goal but I don't want to stop, lift the hood, adjust, and repeat. I'd like to hook up a **** for tuning purposes and then take it off.
curly is offline   Reply With Quote
Old 12-18-2010, 12:04 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

FM doesnt sell that one anymore do they? FWIW you can build it for under $20 yourself.
Braineack is offline   Reply With Quote
Old 12-18-2010, 12:14 PM   #14
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by curly View Post
I dunno why I want one. The 5 feet of vacuum line or whatever it'd be doesnt sound good though. I wasn't talking about a remote adjustment, although I like the sound. Is there a way with a in cabin adjustment like the one I linked to be disconnected when you're not tuning? I just get annoyed when I'm within 1psi of my goal but I don't want to stop, lift the hood, adjust, and repeat. I'd like to hook up a **** for tuning purposes and then take it off.
you have MS just do the ebc mod and be done with it.
magnamx-5 is offline   Reply With Quote
Old 12-18-2010, 12:47 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

he has ms-i and the EBC with ms-i is not that great.
Braineack is offline   Reply With Quote
Old 12-18-2010, 01:26 PM   #16
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by 18psi View Post
I laugh at people that pay more than 20 bux for an mbc
I laugh at people who buy them. Ordered enough parts to build 5, kept mine, sold the rest and made a profit.
FRT_Fun is offline   Reply With Quote
Old 12-18-2010, 01:48 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

EBC in general is more hassle than it's worth. People who claim otherwise are gay communists.

Just get a good ball-n-spring MBC, take the reference from a point after the intercooler but before the TB, set it and forget it.

I wish I still had the little eBay-sourced unit I had which was similar to the one in the second picture of the first post. I ripped it out and replaced it with an expensive TurboXS MBC when I was fighting a boost sag problem, which was before I had my "Eureka!" moment and realized that the problem wasn't the boost controller but rather the location of the reference signal. (I was still trying to use the little nipple on the compressor outlet at the time.)

I'd have liked to have had the opportunity to do an A-B comparison between them.
Joe Perez is offline   Reply With Quote
Old 12-18-2010, 02:13 PM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Joe Perez View Post
EBC in general is more hassle than it's worth. People who claim otherwise are gay communists.
I will again bring up the topic of TPS CONTROLLED BOOST. Getting 12 psi of boost at 30% throttle doesn't a finely driveable car make.

And a properly implemented EBC will work very well at preventing overshoot:

JasonC SBB is offline   Reply With Quote
Old 12-18-2010, 02:47 PM   #19
Senior Member

Join Date: Aug 2010
Location: San Luis Obispo, CA
Posts: 505
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
I have the one on the bottom. Paid 15 shipped and it works great. I laugh at people that pay more than 20 bux for an mbc
This. Works great.
scottyd is offline   Reply With Quote
