Default FM mani EGR bull

hey,

just sitting in my dorm room up at college thinkin about all the stupid details before i install the turbo over spring break.

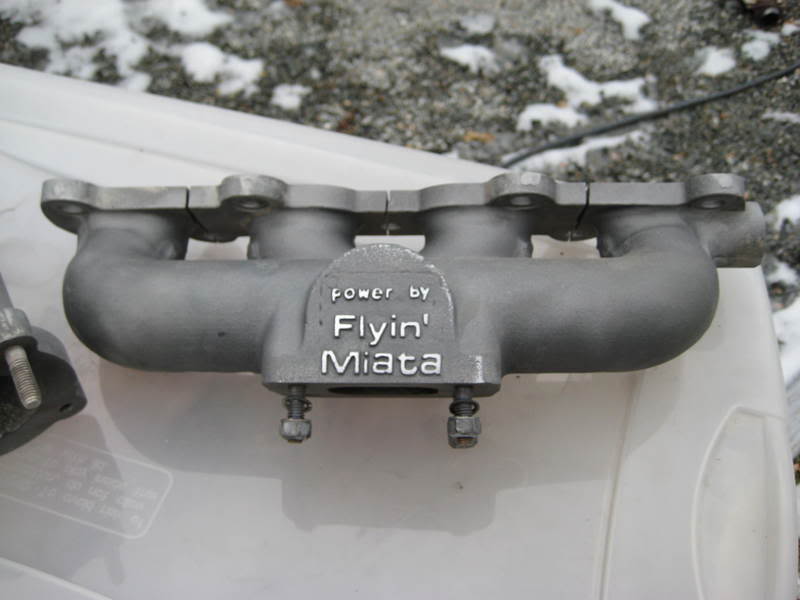

Is my manifold for a 99-00. It has the EGR off of cyl 4. From the BEGI site it looks like this is for 99-00. i do have a plug for it but i would prefer to keep the egr system

My car is a 1996 with the stock 1.8. If it is for the 99-00 what do i have to do to get it to work.

Name:  sandblast005.jpg
Views: 0
Size:  41.1 KB
240_to_miata is offline   Reply With Quote
Old 02-21-2009, 01:15 AM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

I've seen a 94-95 FM manifold with the EGR in the same place. FM makes a full-replacement EGR tube; buy it and save yourself a shitload of hassle.
Savington is offline   Reply With Quote
Old 02-21-2009, 01:23 AM   #3
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

yeah reading thru FMs instructions it seems i need to either block it off or buy the new line


uhg i ******* hate buying more ****
240_to_miata is offline   Reply With Quote
Old 02-21-2009, 01:48 AM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

It fits perfectly, if that's any consolation.
Savington is offline   Reply With Quote
Old 02-21-2009, 01:56 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

why do you want to retain your egr? I'm just curious
18psi is offline   Reply With Quote
Old 02-21-2009, 01:58 AM   #6
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by 240_to_miata_OWNER View Post
hey,

just sitting in my dorm room up at college thinkin about all the stupid details before i install the turbo over spring break.
Good luck with that. I hope you're planning on doing the turbo stuff in a day so when it takes 5 times longer than your maximum initial estimate you have time to finish. I'm telling yah, I had it ALLLLL figured out. Had everything pretty much ready to turbo. Figured I'd pull the motor friday, tap the pan and install turbo **** sat. Get the motor back in and be tuning by sunday night. 10 days later I was tuning. Never thought it could possibly take that long.

As for the EGR stuff, dunno. I drilled and tapped my FM mani's EGR outlet and put a 3/8 NPT pipe plug in it. Fit the first time too. Oh yeah, and probably cheaper than whatever FM sells.

Last edited by patsmx5; 02-21-2009 at 02:17 AM.
patsmx5 is offline   Reply With Quote
Old 02-21-2009, 02:07 AM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

My car was down for a month while I turboed it.
Savington is offline   Reply With Quote
Old 02-21-2009, 03:12 AM   #8
Junior Member

Join Date: May 2007
Location: San Diego
Posts: 383
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
My car was down for a month while I turboed it.
My car was down for about 1.5 weeks. Took half the week off before i went out to buy the correct fittings. Just make sure you have EVERYTHING.
I prebuilt the full system off the car as i was collecting parts.
jobambo is offline   Reply With Quote
Old 02-21-2009, 03:43 AM   #9
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Ive been working on my setup since October. I have built (where necessary) and test fit the turbo, intercooler / pipes, and downpipe already. My plan is to tap the pan and do final install in a day. I have all the fittings and little things like the crankcase lines, vac lines, couplers, nuts n bolts.

Im not going to hold my breath, but i think I may be able to do it ... my 1.6 begi kit took 2 days, and that was my first time. I will see.
akaryrye is offline   Reply With Quote
Old 02-21-2009, 11:35 AM   #10
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by 18psi View Post
why do you want to retain your egr? I'm just curious
I'm obd2... not to mention there is no real performance benifit of removing it.


Pat: this is by far not my first turbo project. I do see a posibility that i will be done within that week because i have planned out every little detail, but ik **** always takes longer. My goal is to get the clutch in, Hi-res flashed, injectors installed, and IC pipes atleast fabbed up. Final install will probably happen later on.
240_to_miata is offline   Reply With Quote
Old 02-21-2009, 01:18 PM   #11
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I would highly recommend upgrading the studs on that manifold to M10 before using it.
