How good is a 1.6 Fuel Pump? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 02-20-2009, 03:43 PM   #1
Junior Member
Thread Starter

Join Date: Aug 2008
Location: BC, Canada
Posts: 58
Total Cats: 0
Default How good is a 1.6 Fuel Pump?

Will it flow enough for 250 wheel hp @ ~12ish psi? Or should I just grab a 255 Walbro HP?
boosted7 is offline   Reply With Quote
Old 02-20-2009, 03:51 PM   #2
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Yes. Not needed at that power level.
BenR is offline   Reply With Quote
Old 02-20-2009, 03:52 PM   #3
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

No.
patsmx5 is offline   Reply With Quote
Old 02-20-2009, 03:53 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,909
Total Cats: 1,793
Default

Clearing confusion: yes. no.
Braineack is online now   Reply With Quote
Old 02-20-2009, 03:53 PM   #5
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Wait, depends.

Seriously, it depends on the setup. If it's the original pump, I'd recommend changing it anyways as it's surely weak. Since you should change it, get a Walbro 190HP. Also, check out the search function and you'll find that fuel pumps have been discussed more than once in the past.
patsmx5 is offline   Reply With Quote
Old 02-20-2009, 04:07 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,909
Total Cats: 1,793
Default

most of us 1.6L guys don't bother with the pump until we hit 300rwhp....
Braineack is online now   Reply With Quote
Old 02-20-2009, 04:09 PM   #7
Junior Member

Join Date: Mar 2008
Location: GJ, CO
Posts: 224
Total Cats: 0
Default

Don't follow my example, but I still have the stock fuel pump (220k miles) and it went through 12psi (~200whp) on my voodoo setup for over a year with no hiccups.

With my new 2560 setup however, I will be using a Walboro 190.

Edit: only to replace an old pump. Or I may just put a lower mileage stocker in.
GT3man2001 is offline   Reply With Quote
Old 02-21-2009, 03:10 PM   #8
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Here's the long answer.

It depends on how you want to make that power.

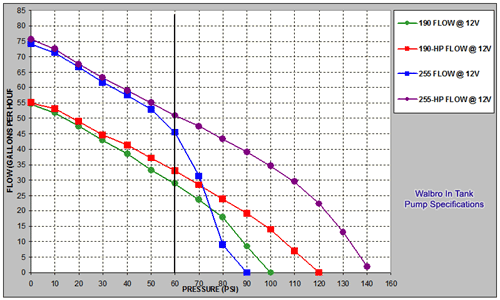

Here's how a fuel pump is characterized:

How good is a 1.6 Fuel Pump?-82132d1207799424-super-lean-i-need-advice-walbro-flow-specs.gif

250 hp would require X amount of GPH which you can easily calculate from the injector flow equation in the FAQ.

From the chart above its quite clear that you will run out of flow much sooner if you are using a higher base fuel pressure (via an AFPR or rising rate FPR).

If you're using larger injectors and the stock base fuel pressure, you have much more headroom. This usually requires an aftermarket ECU.
The_Pipefather is offline   Reply With Quote
Old 02-21-2009, 04:58 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Get a 190lph hp and never worry about it again.
Ben is offline   Reply With Quote
Old 02-21-2009, 10:23 PM   #10
Junior Member
Thread Starter

Join Date: Aug 2008
Location: BC, Canada
Posts: 58
Total Cats: 0
Default

I'll stay with the stock for a little bit. Will be running stock base pressure. I'll go 255 eventually.
boosted7 is offline   Reply With Quote
