Default Front Shroud and Bellypan Coolant Temp Results

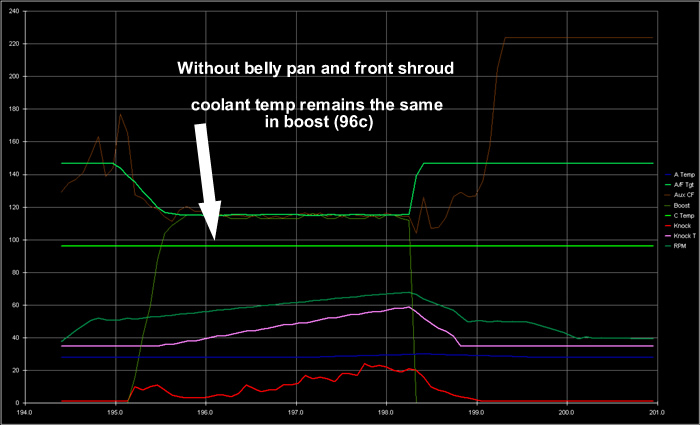

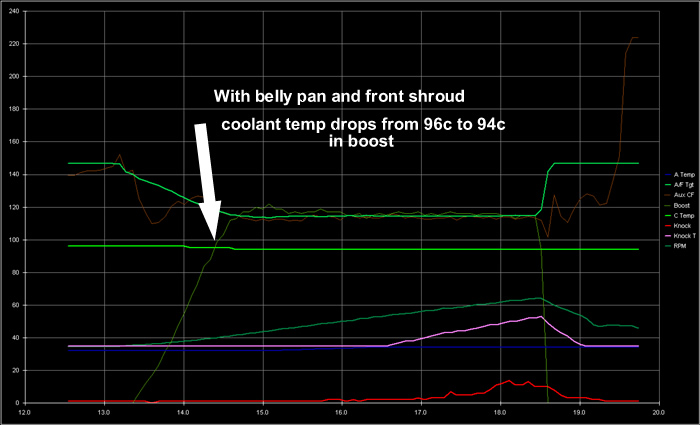

Here's some proof a belly pan and front shroud are worth having on a turbo miata. Both of these runs were logged when the car was driven for at least 30 minutes on an 80 degree day. You'll notice the coolant temp actually drops 2 degrees when the belly pan and front shroud are installed. Two degrees probably sounds minor, but I'm sure you would see better results on the track.
Attached Thumbnails
Front Shroud and Bellypan Coolant Temp Results-pan.jpg   Front Shroud and Bellypan Coolant Temp Results-without-pan.jpg   Front Shroud and Bellypan Coolant Temp Results-pan1.jpg   Front Shroud and Bellypan Coolant Temp Results-pan3.jpg   Front Shroud and Bellypan Coolant Temp Results-pan4.jpg

Stripes is offline   Reply With Quote
Old 06-19-2007, 10:53 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

looking back on a 25min datalog:

highway driving, 160*F in and out of boost. Only starts rising as I idle, then hits 185* and the fans kick on and it quickly drops back to 160* as soon as it gets a tiny bit of airflow.
Braineack is online now   Reply With Quote
Old 06-19-2007, 11:04 PM   #3
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

****...I wonder why my coolant temps are so much higher than yours. I've never had a problem with overheating. I thought I was on the right track when I saw the temp go down while accelerating. What's an acceptable temperature range?

Quote:
Originally Posted by Braineack View Post
looking back on a 25min datalog:

highway driving, 160*F in and out of boost. Only starts rising as I idle, then hits 185* and the fans kick on and it quickly drops back to 160* as soon as it gets a tiny bit of airflow.
Stripes is offline   Reply With Quote
Old 06-19-2007, 11:16 PM   #4
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

Nevermind, I found one of your posts that answered my question.

https://www.miataturbo.net/forums/sh...=coolant+temps

Looks like my temperature readings are normal.
Stripes is offline   Reply With Quote
Old 06-20-2007, 02:28 AM   #5
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Yup as I was suggesting in that thread there isn't something right with the way some of the MS setups are reporting coolant temp.

Stripes, I don't think there is anything wrong with your temps.
jayc72 is offline   Reply With Quote
