Good morning guys,

I've been reading for a long time and I'm currently collecting all the stuff necessary to make the conversion from NA to FI.

Here it comes the turbo, from the begining I understood that the GT2560R was the one that could do the best job in order to accomplish my targets.

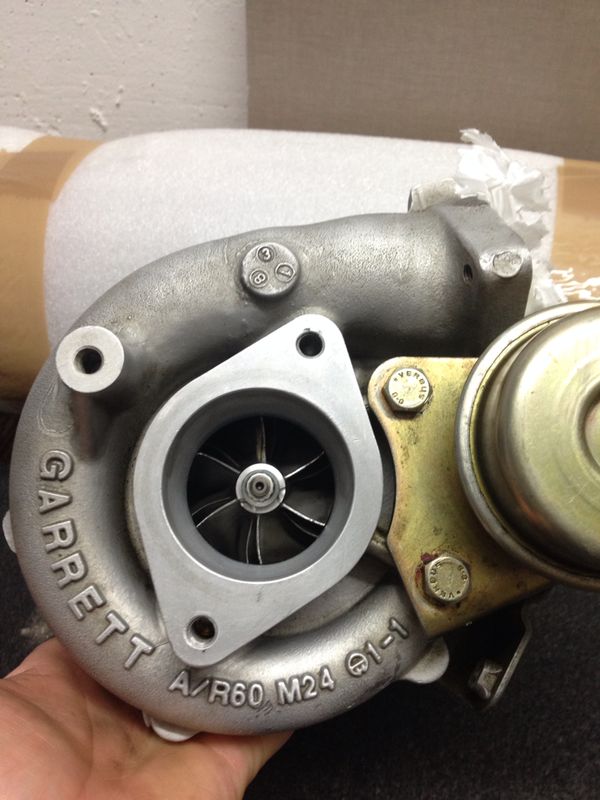

Right now, I've an offer from a guy that doesn't know exactly which T28 it is, The only difference I've been able to notice is that the compressor says: GARRETT A/R60 M24 O1-1. That last reference is what I don't know exactly what they mean, I've seen others which say O1-2. Does someone know what is the difference? Is that the difference between the journal and ball bearing?
I haven't find the difference, even looking at 240sxforums link (Stock T25/28 Turbo Specs - Nissan 240SX Forums). I've asked and there isn't any metal sheet in the turbo to see the reference.

Thank you very much, if you could see something in the pictures which isn't in good shape let me know, I would be very appreciated.


Marc
Attached Thumbnails

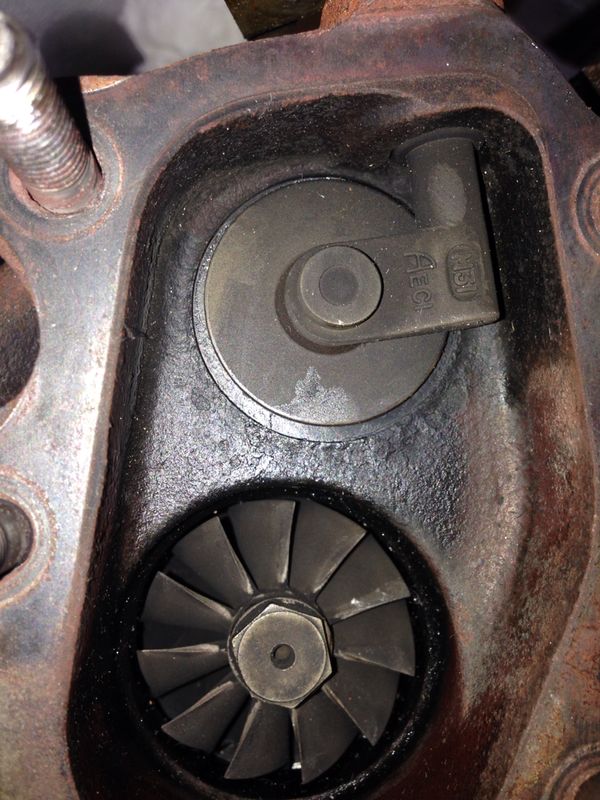

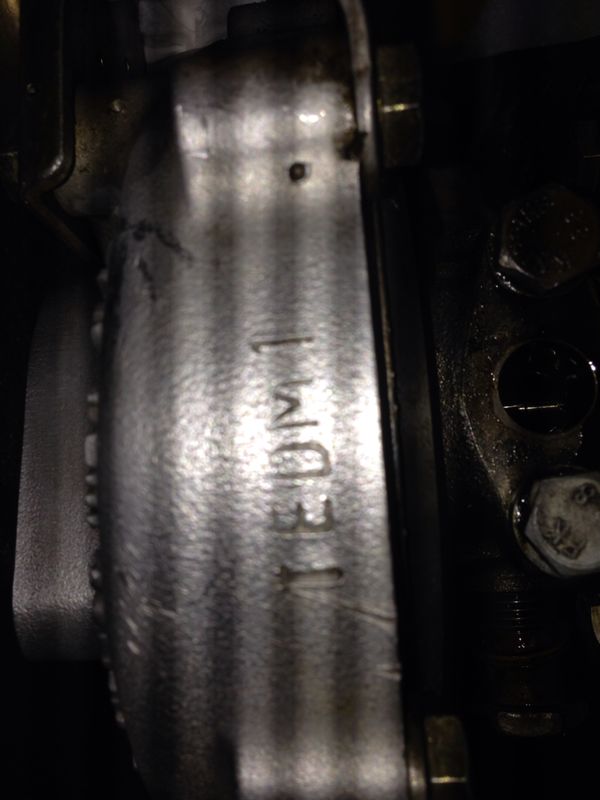

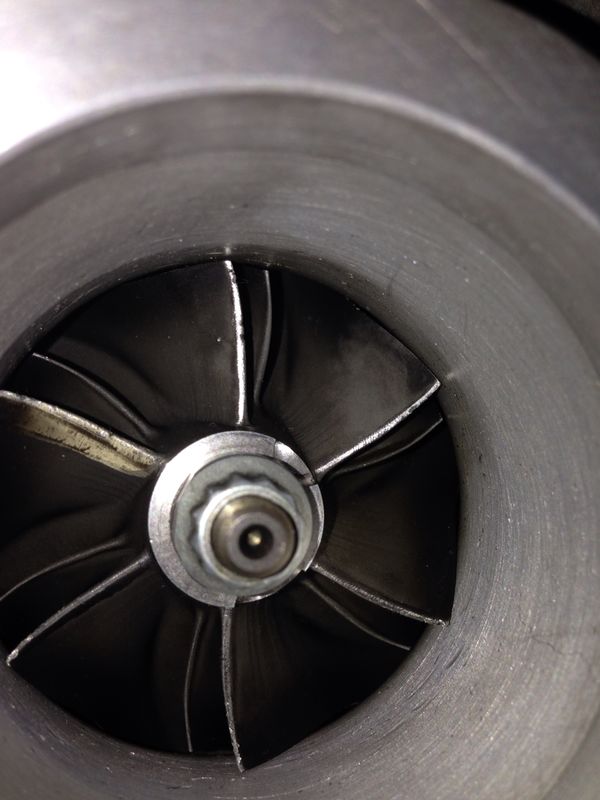

Garrett GT2560R small difference (1-1 vs 1-2)-img-20140717-wa0001%5B1%5D.jpg   Garrett GT2560R small difference (1-1 vs 1-2)-img-20140716-wa0007%5B1%5D.jpg   Garrett GT2560R small difference (1-1 vs 1-2)-img-20140716-wa0008%5B1%5D.jpg   Garrett GT2560R small difference (1-1 vs 1-2)-img-20140717-wa0000%5B1%5D.jpg
Kramer is offline   Reply With Quote
Old 07-17-2014, 08:13 AM   #2
Junior Member

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

It looks like a 2560 of some description

It's not a T28 turbine it's the quicker spooling T25 11 blade version

Can you take a picture of the turbine shaft through the oil drain

It definitely a Nissan fitted turbo so you'll need the adaptors for compressor inlet and outlet
Lloyd_D is offline   Reply With Quote
Old 07-17-2014, 09:04 AM   #3
Newb
Thread Starter

Join Date: Jan 2014
Location: Barcelona, Spain
Posts: 29
Total Cats: -54
Default

Thank you very much, I've found this link, but I'm not able to notice the difference due to my poor english language skills: http://turbochargerspecs.blogspot.co...im-330-hp.html.

It will be a pain in the *** to find the adaptors or is something usual that many miata turboed owners do?

I'll try to upload a picture ASAP the owner sends it to me.
Kramer is offline   Reply With Quote
Old 07-17-2014, 09:07 AM   #4
Junior Member

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

Adaptor example
http://www.ebay.co.uk/itm/121367659470
Lloyd_D is offline   Reply With Quote
Old 07-17-2014, 09:11 AM   #5
Junior Member

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

It looks like the GT2560 BBfrom the last S15 Nissan. A pic of the shaft through the oil drain should confirm

If so this is a good Miata turbo

Get it
Lloyd_D is offline   Reply With Quote
Old 07-17-2014, 09:15 AM   #6
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,647
Total Cats: 1,559
Default

How about a pic of the data tag on the CHRA?
sixshooter is online now   Reply With Quote
Old 07-17-2014, 09:17 AM   #7
Newb
Thread Starter

Join Date: Jan 2014
Location: Barcelona, Spain
Posts: 29
Total Cats: -54
Default

I've found a few adapters as well, do you recommend me this seller?

Waiting for the picture, then I will close the deal.
Kramer is offline   Reply With Quote
Old 07-17-2014, 09:20 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

Quote:
Originally Posted by sixshooter View Post
How about a pic of the data tag on the CHRA?
this.


but pretty sure it's the S15 GT2560 with the Ti wheel.
Braineack is online now   Reply With Quote
Old 07-17-2014, 09:33 AM   #9
Newb
Thread Starter

Join Date: Jan 2014
Location: Barcelona, Spain
Posts: 29
Total Cats: -54
Default

Quote:
Originally Posted by sixshooter View Post
How about a pic of the data tag on the CHRA?
The seller said that there was no data tag, but he told me that is Garrett. Waiting to get the pic.
Kramer is offline   Reply With Quote
Old 07-17-2014, 09:42 AM   #10
Newb
Thread Starter

Join Date: Jan 2014
Location: Barcelona, Spain
Posts: 29
Total Cats: -54
Default

Fine guys, so I think I'll shoot for it, considering it's Ball Bearing and it's the one I've always wanted since I started learning about turbos.

Thank you so much! I'll post the pic later!
Kramer is offline   Reply With Quote
Old 07-17-2014, 10:55 AM   #11
Junior Member
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Quote:
Originally Posted by Braineack View Post

this.

but pretty sure it's the S15 GT2560 with the Ti wheel.
The S15 GT2560 has an inconel turbine wheel I believe. It also has a divider wall between the turbine outlet and wastegate outlet.

I purchased one brand new from a Nissan dealer less than 2 years ago
Gt2560rMiata is offline   Reply With Quote
Old 07-17-2014, 11:15 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

i meant Ni, not Ti.

the divider on the outlet is only on the 2860 GTR turbos for the RB26DETT, iirc. Part number 707160-5

not this 2560, and not for the SR20.
Braineack is online now   Reply With Quote
Old 07-17-2014, 12:34 PM   #13
Junior Member
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Quote:
Originally Posted by Braineack View Post
i meant Ni, not Ti.

the divider on the outlet is only on the 2860 GTR turbos for the RB26DETT, iirc. Part number 707160-5

not this 2560, and not for the SR20.
If you go to Garretts website and look up the GT2560r it lists a version of it used on the Nissan S15 specR that has an Iconel wheel and divider.
Gt2560rMiata is offline   Reply With Quote
Old 07-17-2014, 01:13 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

ah so it seems.
Braineack is online now   Reply With Quote
Old 07-17-2014, 02:09 PM   #15
Newb

Join Date: Jan 2014
Posts: 42
Total Cats: 10
Default

It's hilarious I had to argue with somebody over PM on this topic.

On a more related note, OP that's an S14 T28. Same size as a 2560 and the S15 T28, but single ball bearing, lacks the divider between the wastegate and turbine, and no fancy materials.
BrilloHeadBen is offline   Reply With Quote
Old 07-17-2014, 02:24 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

Why do nissan guys call them t28s and not GT28Rs? that's a little misleading and probably where some confusion lies.

a GT28R = a GT2560R, just the early naming convention. I think that would more accurately describe it.

The GT28RS having the dual ball bearings at the time.

a T28 is typically non-ball bearing, Non GT series. A T28 T28 is typically a T25 turbo upgraded to a T3 compressor wheel/housing.

A T28 would convert over to a GT2860.
A T25 would convert over to a GT2560.

the difference mainly being the size of the turbine wheel, both using 60 compressor wheels.

tl;dr. Kramer, it's a 2560. ive seriously forgotten too much of this stuff to really care anymore
Braineack is online now   Reply With Quote
Old 07-17-2014, 02:31 PM   #17
Newb

Join Date: Jan 2014
Posts: 42
Total Cats: 10
Default

Quote:
Originally Posted by Braineack View Post
Why do nissan guys call them t28s and not GT28Rs? that's a little misleading and probably where some confusion lies.
They're all drift guys who don't know any better. I try to cut them a little slack.
BrilloHeadBen is offline   Reply With Quote
Old 07-17-2014, 02:32 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

Quote:
Originally Posted by BrilloHeadBen View Post
They're all drift guys who don't know any better. I try to cut them a little slack.
+10 props.
Braineack is online now   Reply With Quote
Old 07-17-2014, 08:10 PM   #19
Newb
Thread Starter

Join Date: Jan 2014
Location: Barcelona, Spain
Posts: 29
Total Cats: -54
Default

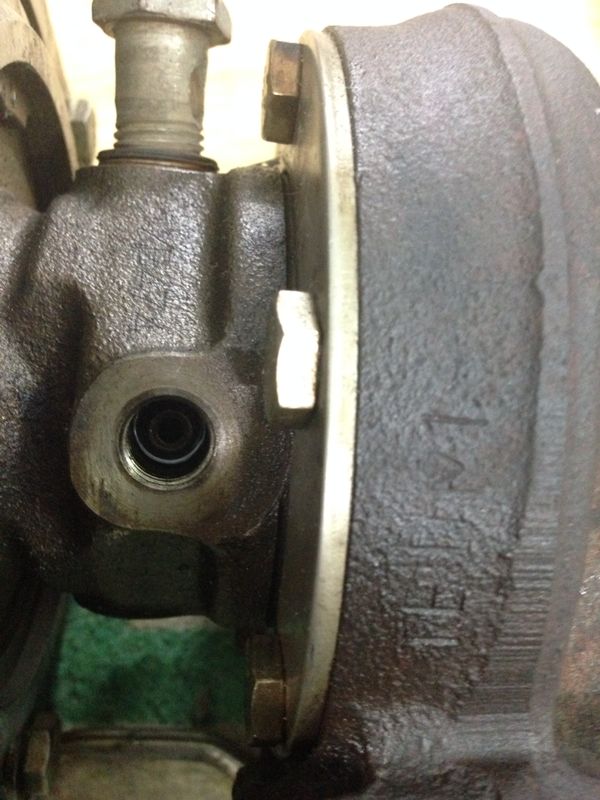

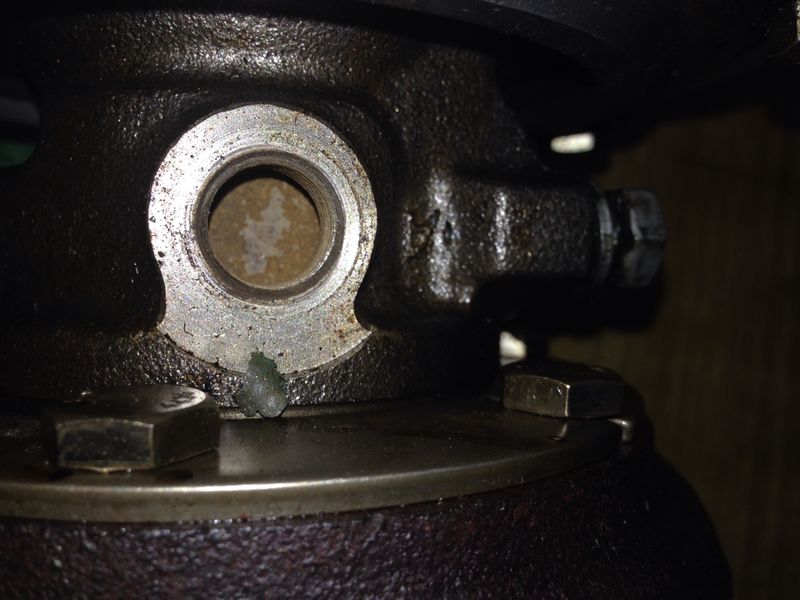

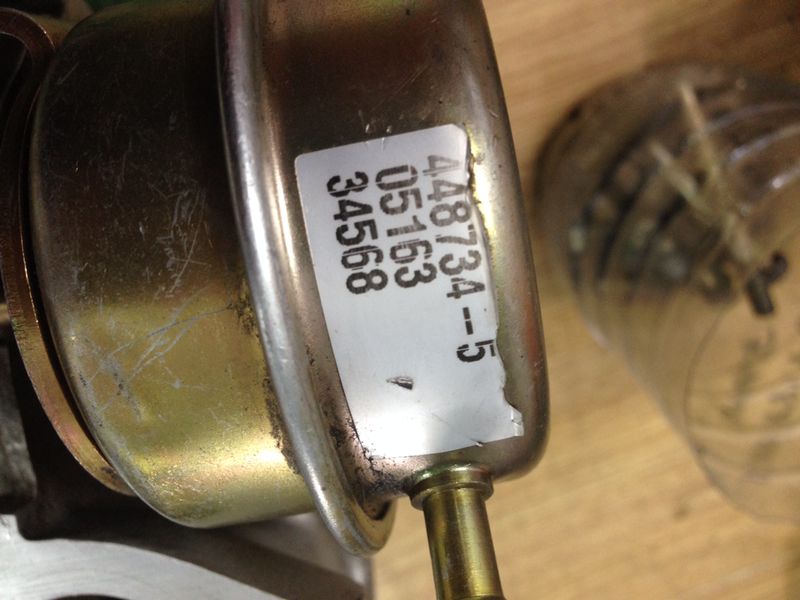

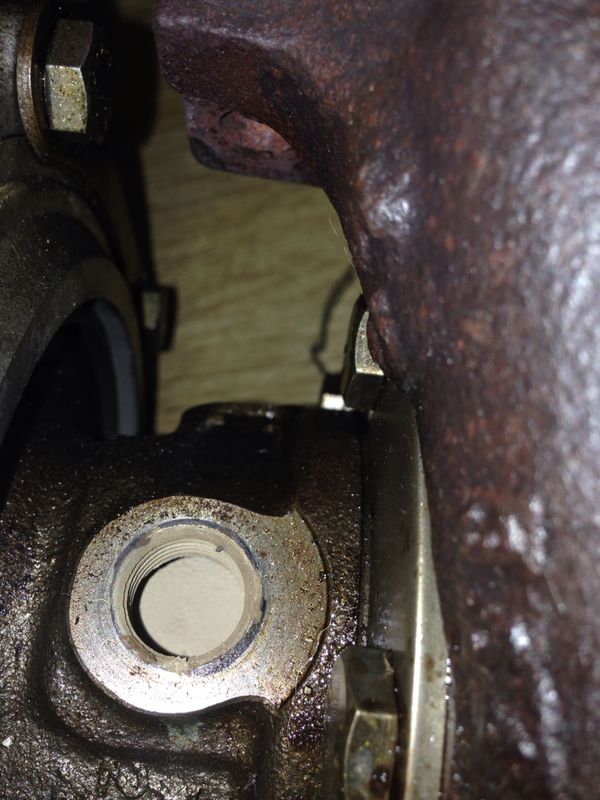

Thank you very much guys, below you have the extra pictures that the owner sent to me.

I don't know which ones are from the oil & water lines. Hope them help.

So I've to assume that it's a GT2560R Journal Bearing from an S14?

PD: I guess that BrilloHeadBen had reason, I actually drift my miata!
Attached Thumbnails
Garrett GT2560R small difference (1-1 vs 1-2)-img-20140717-wa0010%5B1%5D.jpg   Garrett GT2560R small difference (1-1 vs 1-2)-img-20140717-wa0013%5B1%5D.jpg   Garrett GT2560R small difference (1-1 vs 1-2)-img-20140717-wa0014%5B1%5D.jpg   Garrett GT2560R small difference (1-1 vs 1-2)-img-20140717-wa0017%5B1%5D.jpg   Garrett GT2560R small difference (1-1 vs 1-2)-img-20140717-wa0018%5B1%5D.jpg

Kramer is offline   Reply With Quote
Old 07-17-2014, 08:58 PM   #20
Newb

Join Date: Jan 2014
Posts: 42
Total Cats: 10
Default

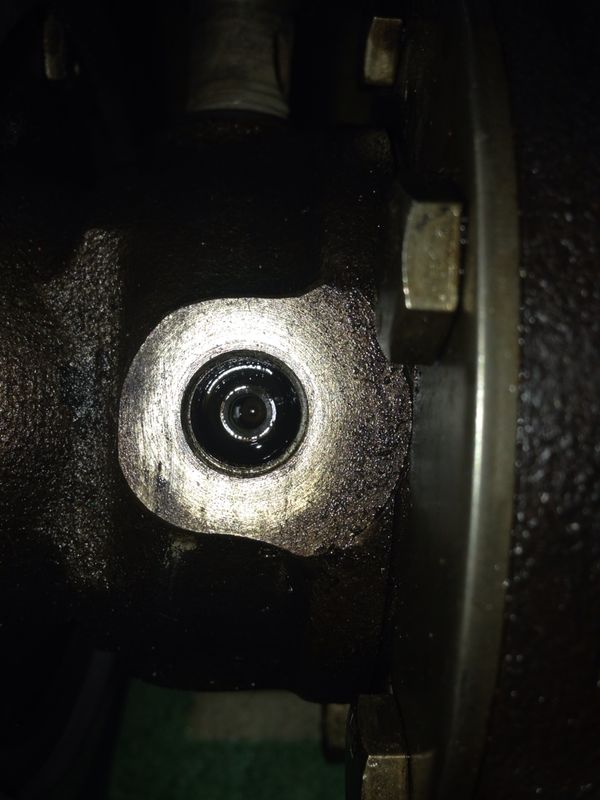

Nope, it's a single ball bearing. See that little restrictor in the oil inlet? Ball bearing CHRA's don't like high oil pressure, and will leak.

Does my turbo require an oil restrictor | Turbobygarrett

*edit*
Since you didn't know, that inlet is the top oil inlet, with the outlet being on the other side of the CHRA. Your water inlet and outlet are 90* from the oil.
BrilloHeadBen is offline   Reply With Quote
