Old 09-26-2014, 07:06 PM   #141
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Leafy, Of course it is possible. First dyno in the spring was with same 99 intake manifold as with Garrett. Reason for trying this one was desire to reduce max torque at 4000 rpm to save transmission and increase above 6000.

Not much difference between the two dynos.

Vlad, yes it is JayL:s old setup.

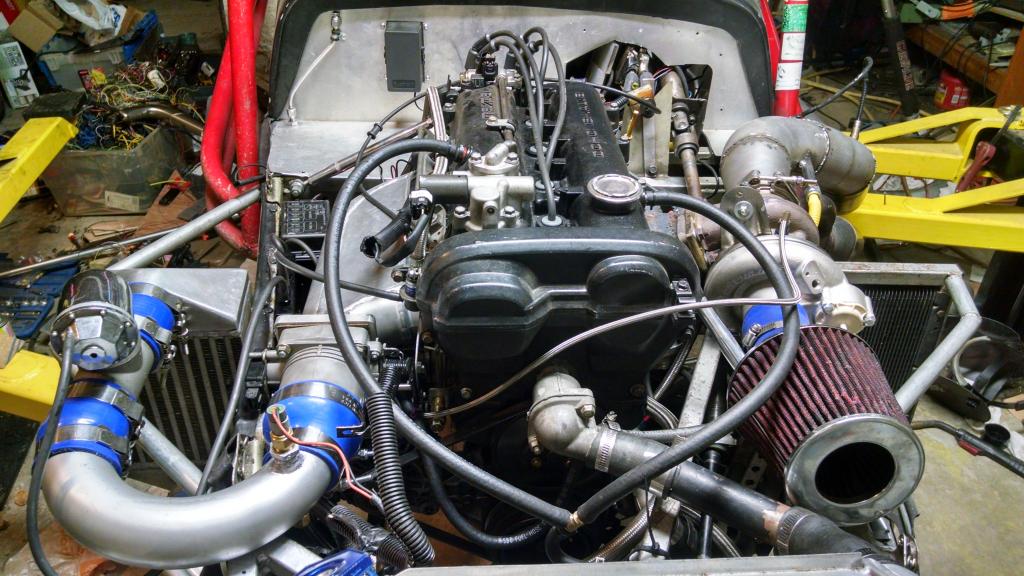

Intake before dyno. The Blow off valve got it's seal kinked and was replaced by straight pipe and EFR:s own valve was used in dyno and race.

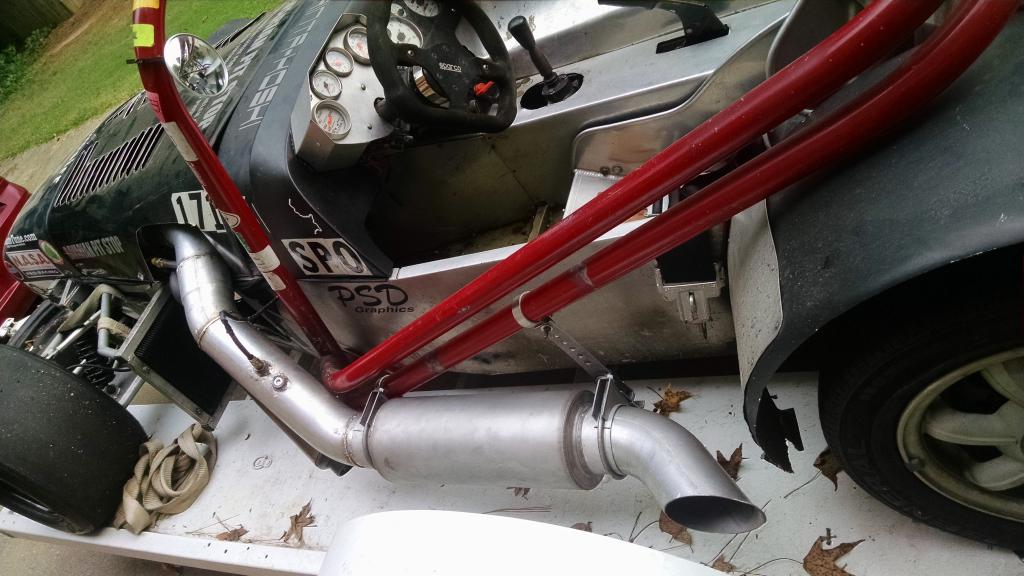

Exhaust, for grins and giggles.
Attached Thumbnails
Garrett vs EFR at DIYAutotune discussion-img_20140831_203730054_hdr1_zps126206b4.jpg   Garrett vs EFR at DIYAutotune discussion-img_20140901_1714239691_zps16b00968.jpg

Last edited by hrk; 09-26-2014 at 07:32 PM.
hrk is offline   Reply With Quote
Old 09-27-2014, 04:02 PM   #142
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by EO2K View Post
Ari did 315 on a 6258 @ 12psi in New Mexico around 4,000 feet.
Corrected hp?

12 psi gauge in the mani? Or 180 kPa MAP?
JasonC SBB is offline   Reply With Quote
Old 09-27-2014, 05:12 PM   #143
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

I'd really like to buy HRK's car but I don't have quite enough kidneys to sell. Not that he's selling it or anything, but that I want one like it so badly.
sixshooter is online now   Reply With Quote
Old 10-06-2014, 03:35 PM   #144
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Thread deserves an update, it looks like the compromised power from EFR is due to rings leaking.

I pulled the can cover and measured valve clearances.
All close, there were two of exhaust valves with 0.015 gap while spec is 0.012. Not ideal, but I don't think it would be a real problem.

Measured cold leakdown with modified Harbor Freight gauge. It has two identical pressure gauges so it can be run at any feed psi.
Cold at 100 psi going in.
1. 20% (80 psi on second gauge, while feed one shows 100 psi)
2. 10%
3. 25%
4. 15%
All leak from rings (or into oil pan)

Hot
1. 14%
2. 12%
3. 25%
4. 24%

Compression hot
1. 169 psi
2. 165 psi
3. 162 psi
4. 163 psi.

Design compression ratio 8.6 per measured volumes.

Borescope shows few slight vertical scrapes on crosshatch in the cylinder walls. Does not look too bad through the display.

Motor has four hillclimbs three track weekends, three dyno sessions. Three to four hours of real usage.

A bit short life for rings as proven this time. Knowing the car fouled plugs few times, and having the target at 11.7, would there be a chance of fuel washing oil down the cylinder walls? How about leaning it to 12.5 range? I understand that there is higher risk of detonation, but I don't like to refresh the motor with new rings quite this often.
The other thing to shorten the life of those rings would be detonation.
We have the knock sensor installed, but not activated.
hrk is offline   Reply With Quote
Old 10-06-2014, 03:41 PM   #145
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

11.7:1 is not near enough to have a problem with cylinder wall washing.
concealer404 is offline   Reply With Quote
Old 10-06-2014, 03:42 PM   #146
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

At your power levels I would not consider going that lean, 11.7 is already leaner than a lot of people run at your power levels and no one would ever consider that super rich. You need to follow the power though. If you can stay that lean without dropping boost or reducing spark advance it will make more power. And even then, the motor might even more power power leaner at less boost and/or advance but I dont think anyone has ever seen that result on a miata engine.
Leafy is offline   Reply With Quote
Old 10-06-2014, 06:52 PM   #147
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Thank you, AFR well below 12 seems to be the consensus here.
The 750 cc injectors are at 80% duty cycle at these power levels.
With various calculator found on injector sites, that duty cycle should come at bit higher hp, say 370-400 range.
If there would be tramp or unburnt air entering the exhaust and the lambda sensors after the turbine, that would show as lean condition and would cause the tuner to add fuel to get to that lower AFR number, while the motor sees very rich mixture.

In any case, the motor was most likely hurt before EFR was installed, and in prime condition with Garrett installed. The rings were Wiseco 8450xx and should be ok, they were gapped and did seal well in the beginning. Now I am interested to find out why the wore down so quick.
Anything I need to check while the engine is still in the car?
Send an oil sample to Blackstone maybe?
hrk is offline   Reply With Quote
Old 10-06-2014, 07:10 PM   #148
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Just curious what oil were you using and how often was it changed? Any kind of oil cooler used?

My tuner tuned me for around 11.3-11.5 AFR and said that's perfectly fine.
Mazdaspeeder is offline   Reply With Quote
Old 10-06-2014, 07:41 PM   #149
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

IIRC
Straight Castrol W30 dino oil for initial assembly and start, changed after checking that everything worked.
Castrol dino oil 10-30 for first dyno, 332 hp and first Hillclimb.
Shell Rotella T6 after that, Changed twice, every time the transmission gave up.
Last two hillclimbs on this same oil.
Oil cooler shown in front of exhaust few posts back.
hrk is offline   Reply With Quote
Old 10-06-2014, 08:13 PM   #150
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Quote:
Originally Posted by JasonC SBB View Post
Corrected hp?

12 psi gauge in the mani? Or 180 kPa MAP?
Here is the log file from the last dyno I sent to Scott. It was around 14ish PSI at the top end and had a bad MBC spring. I swapped it out for EBC and am now around 24 PSI (No dyno yet). This run was on a Mustang dyno in El Paso, TX.

Scott plotted the data from the log file: https://www.miataturbo.net/build-thr...19/#post989087
Attached Files
File Type: zip 99mx5 EFR dyno log.zip (147.1 KB, 14 views)
99mx5 is offline   Reply With Quote
Old 10-06-2014, 08:20 PM   #151
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by 99mx5 View Post
...am now around 24 PSI...
Good lord... go update your build thread and get that thing on a set of rollers

Quote:
Originally Posted by turbofan View Post
14 psi? Paul did it at 14 PSI? Now that doesn't make sense either. Seems you'd need a LOT more than 14 PSI on a 2560 to get over 300 whp.

This is very confusing. Can't really just ignore it though, right?

I've just realized that my post contributes exactly nothing to this thread. feel free to ignore it.
Meh. Paul's setup was pretty heavily optimized IIRC. Timmeh did quite a bit of work on the manifold and exhaust, and I believe there was a bunch of headwork as well as a custom intake manifold? Its been a while since I looked it all up. Sufficed to say, its not just an FM or BEGi 2560 kit running 14psi.

99mx5: Are you still on a stock BP4W head?
EO2K is offline   Reply With Quote
Old 10-07-2014, 12:01 AM   #152
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Smoothed intake and exhaust runners with ports smoothed and blended up to the valves and polished combustion chambers with de-shrouded valves and stock valve springs. Pics in my build thread.
99mx5 is offline   Reply With Quote
Old 12-24-2014, 10:40 PM   #153
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

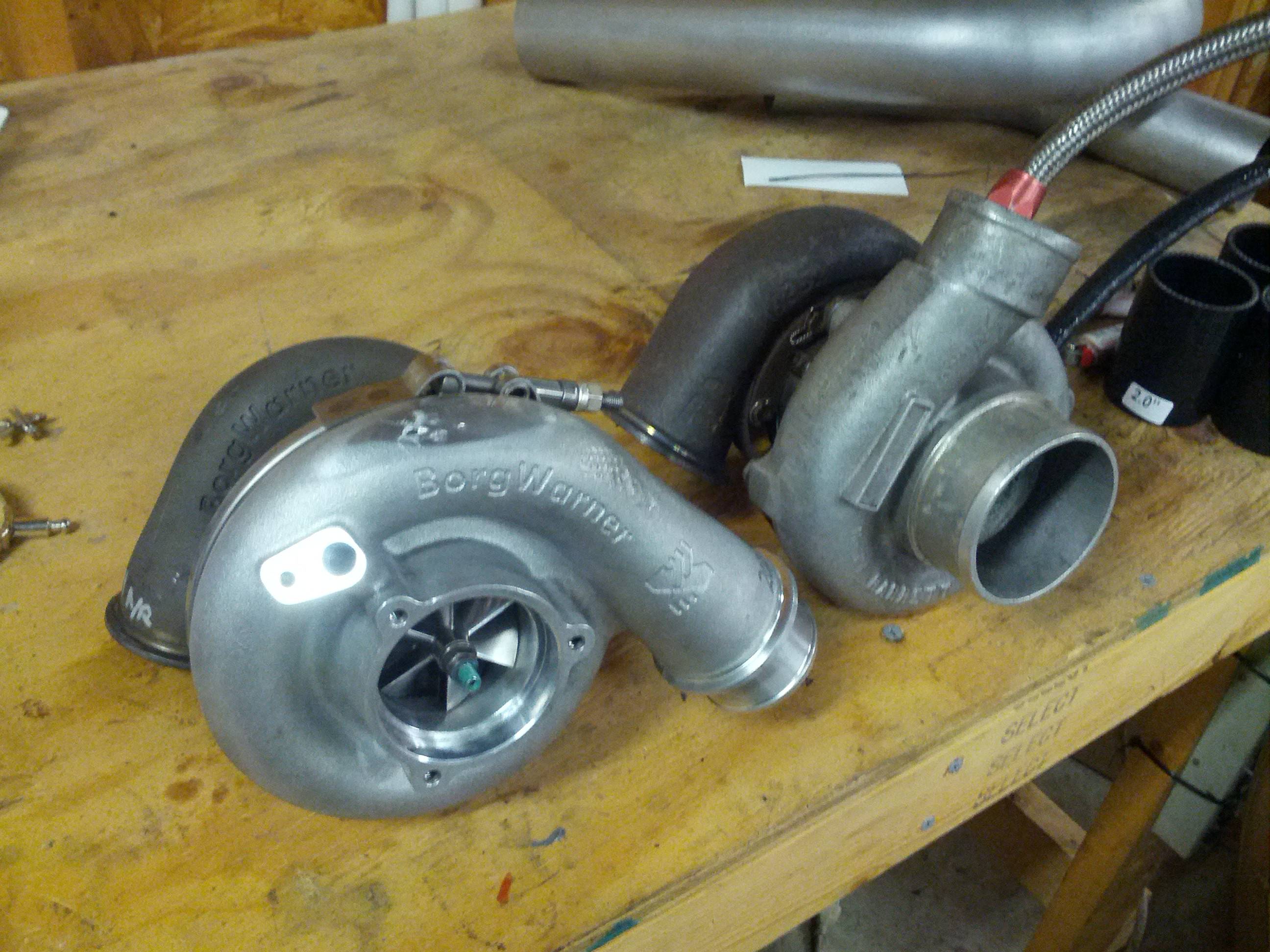

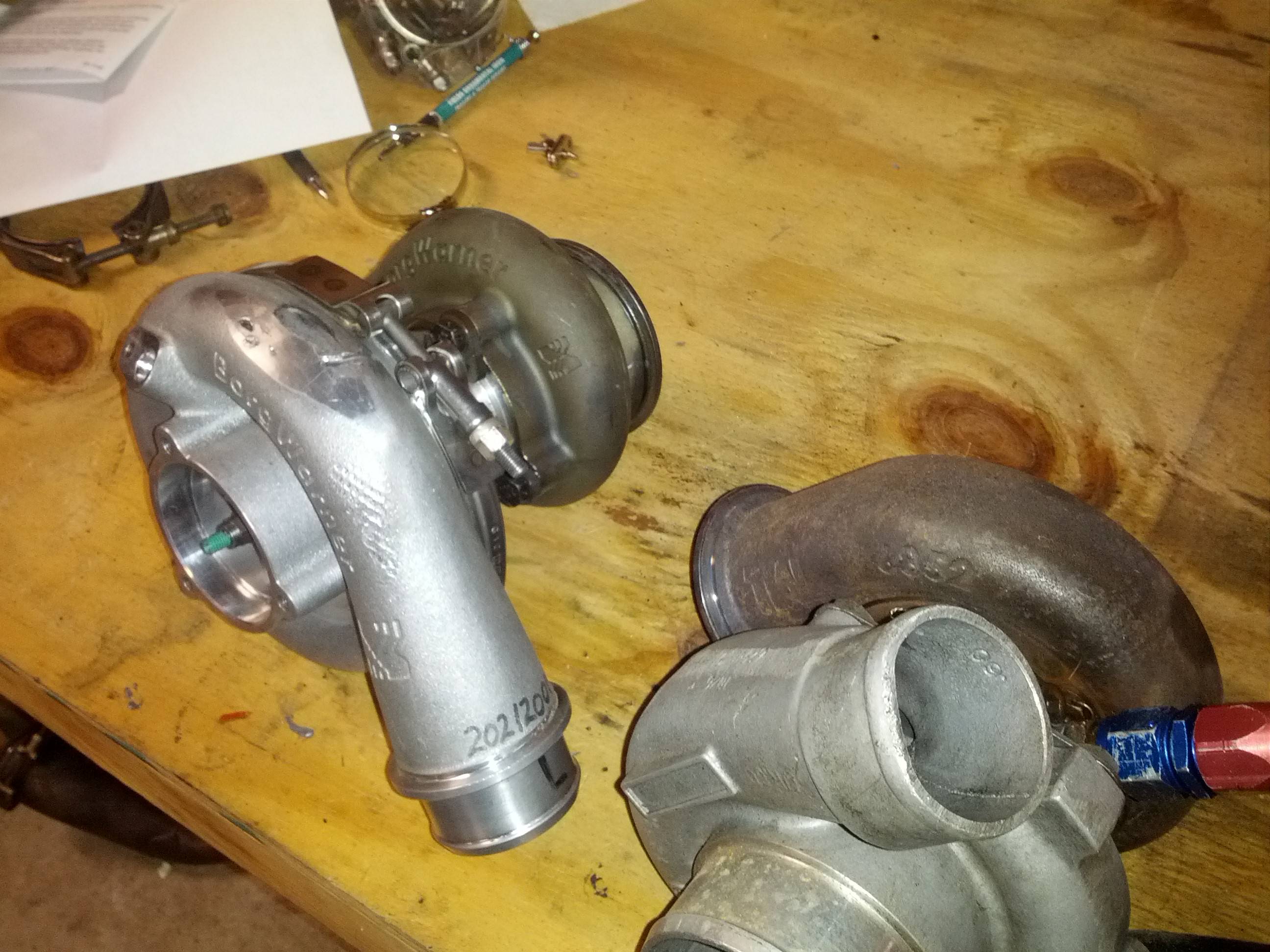

EFR 6758 and my GT2871



I need to build a manifold for the EFR, then get on a dyno.
shuiend is offline   Reply With Quote
Old 12-24-2014, 10:50 PM   #154
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

What hotside is on that 6758?
Savington is offline   Reply With Quote
Old 12-24-2014, 11:42 PM   #155
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by Savington View Post
What hotside is on that 6758?
Should be .64AR on the hotside I believe. I picked the turbo up from here.
shuiend is offline   Reply With Quote
Old 12-29-2014, 04:33 PM   #156
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

Shuiend that is awesome!

I am very interested in seeing the results of that comparison... Will you be trying out both the .64 and the .85 housings on the borg? or did you only get the .64 from Micah?

Why will the EFR not fit your current manifold?
swimming108 is offline   Reply With Quote
Old 12-29-2014, 04:48 PM   #157
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Quote:
Originally Posted by swimming108 View Post
Why will the EFR not fit your current manifold?
Last I heard the EFR is longer than the Garrett Turbos and thus the turbo must be moved farther forward to fit. It will not fit on a standard BEGI/FM location manifold.
Chiburbian is offline   Reply With Quote
Old 12-29-2014, 04:54 PM   #158
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

Quote:
Originally Posted by Chiburbian View Post
Last I heard the EFR is longer than the Garrett Turbos and thus the turbo must be moved farther forward to fit. It will not fit on a standard BEGI/FM location manifold.
that is true of the IWG EFR. The non-wg Vband EFR looks shockingly similar to the garett vband exhaust housing.
swimming108 is offline   Reply With Quote
Old 12-29-2014, 05:02 PM   #159
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Lars has a low mount. I'd assssume the EFR and TiAL vband flanges are different.

I thought EFR's had integral BOV's.
TurboTim is offline   Reply With Quote
Old 12-29-2014, 05:03 PM   #160
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by swimming108 View Post
that is true of the IWG EFR. The non-wg Vband EFR looks shockingly similar to the garett vband exhaust housing.

I was just thinking that, myself....
concealer404 is offline   Reply With Quote
