Question Got e-bay turbo apart, lots of cracks, saveable?

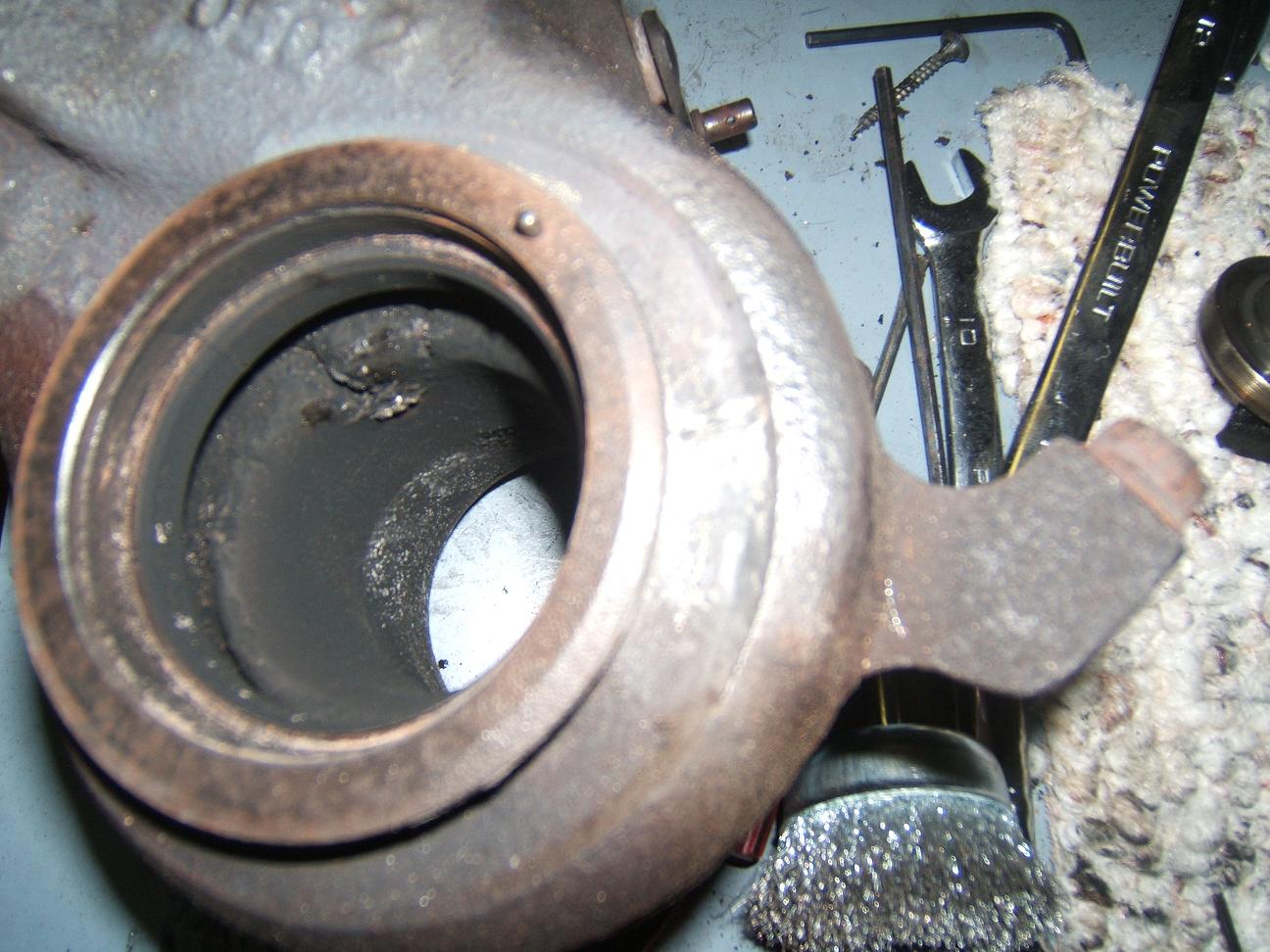

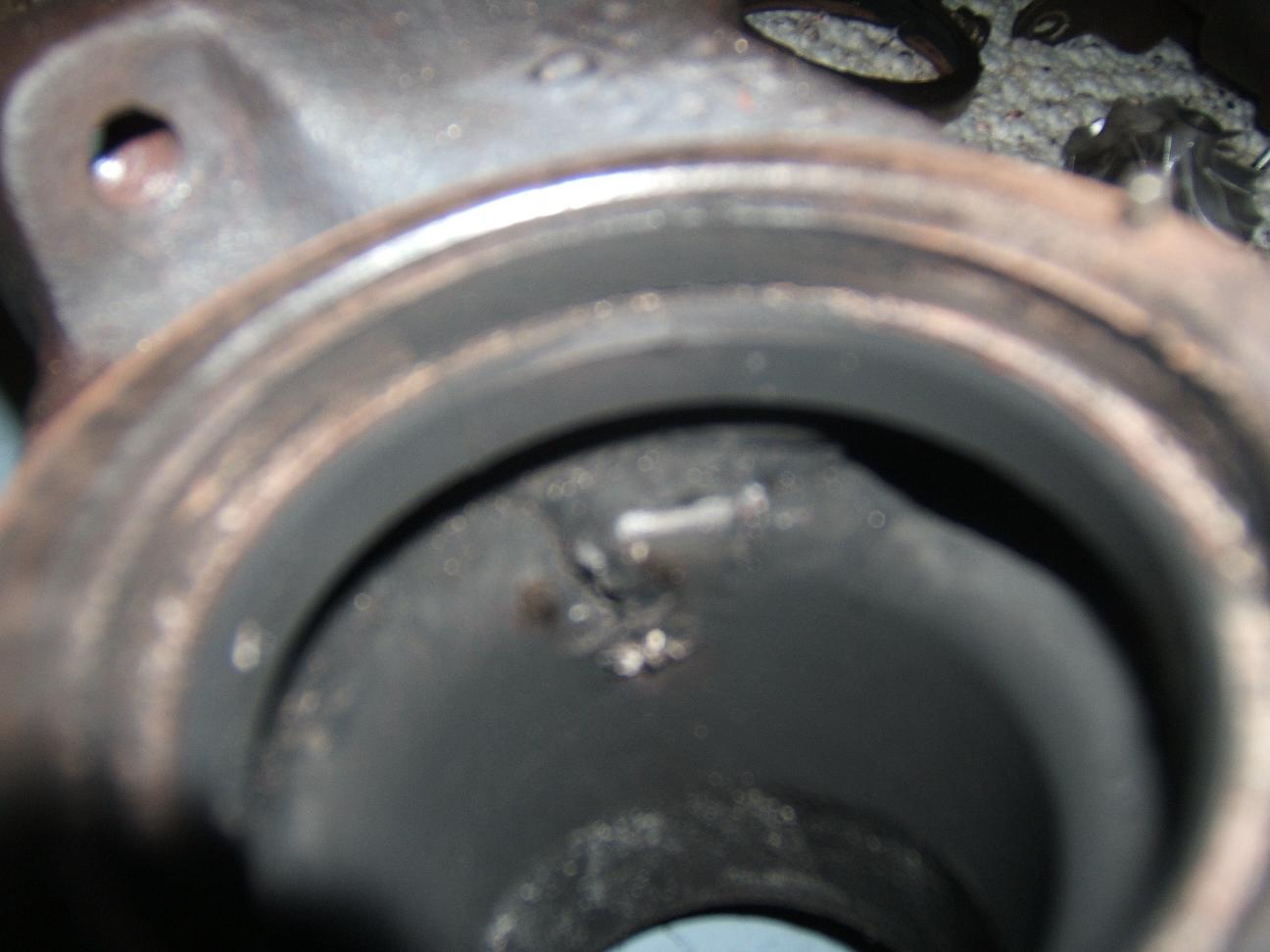

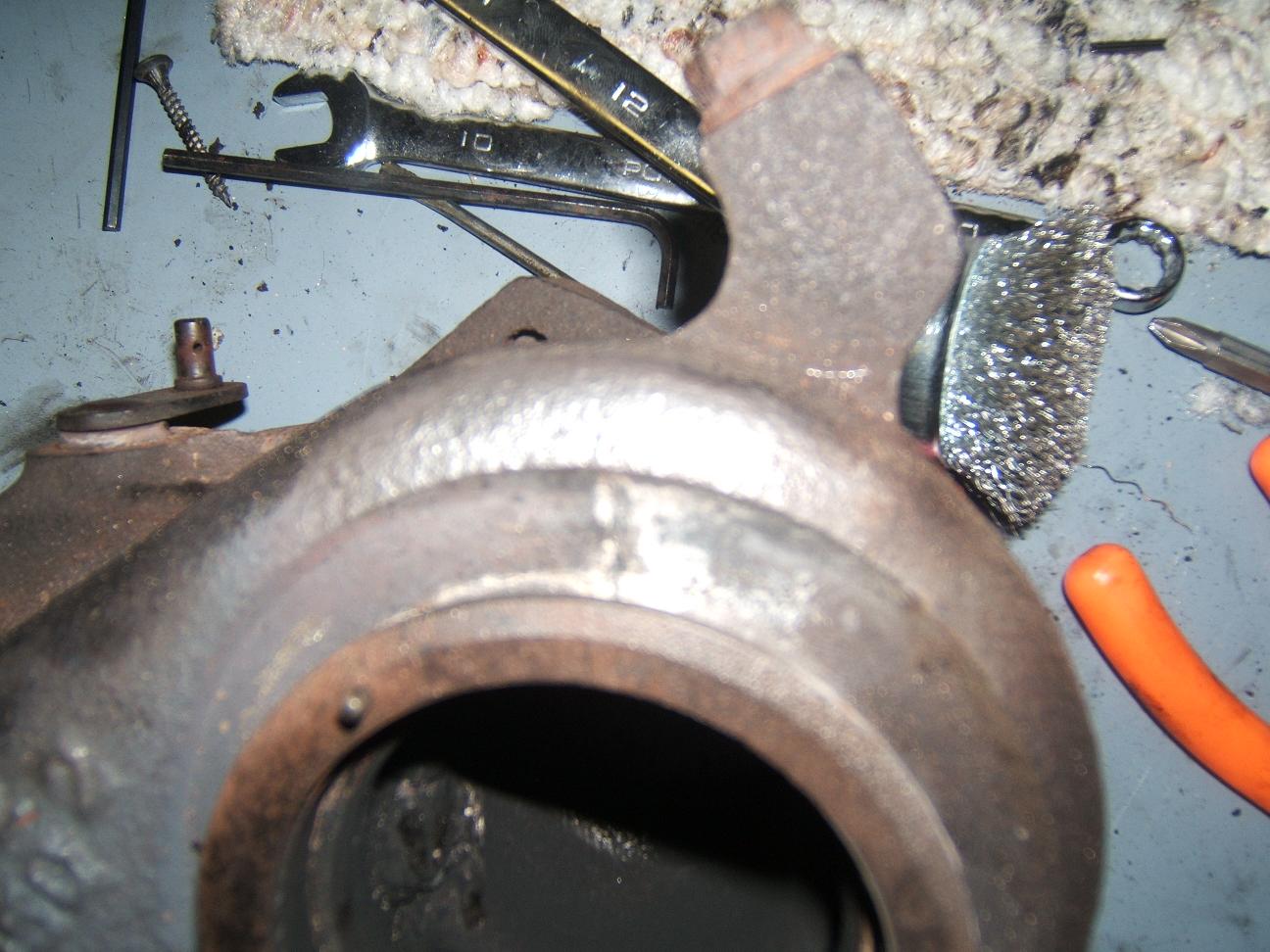

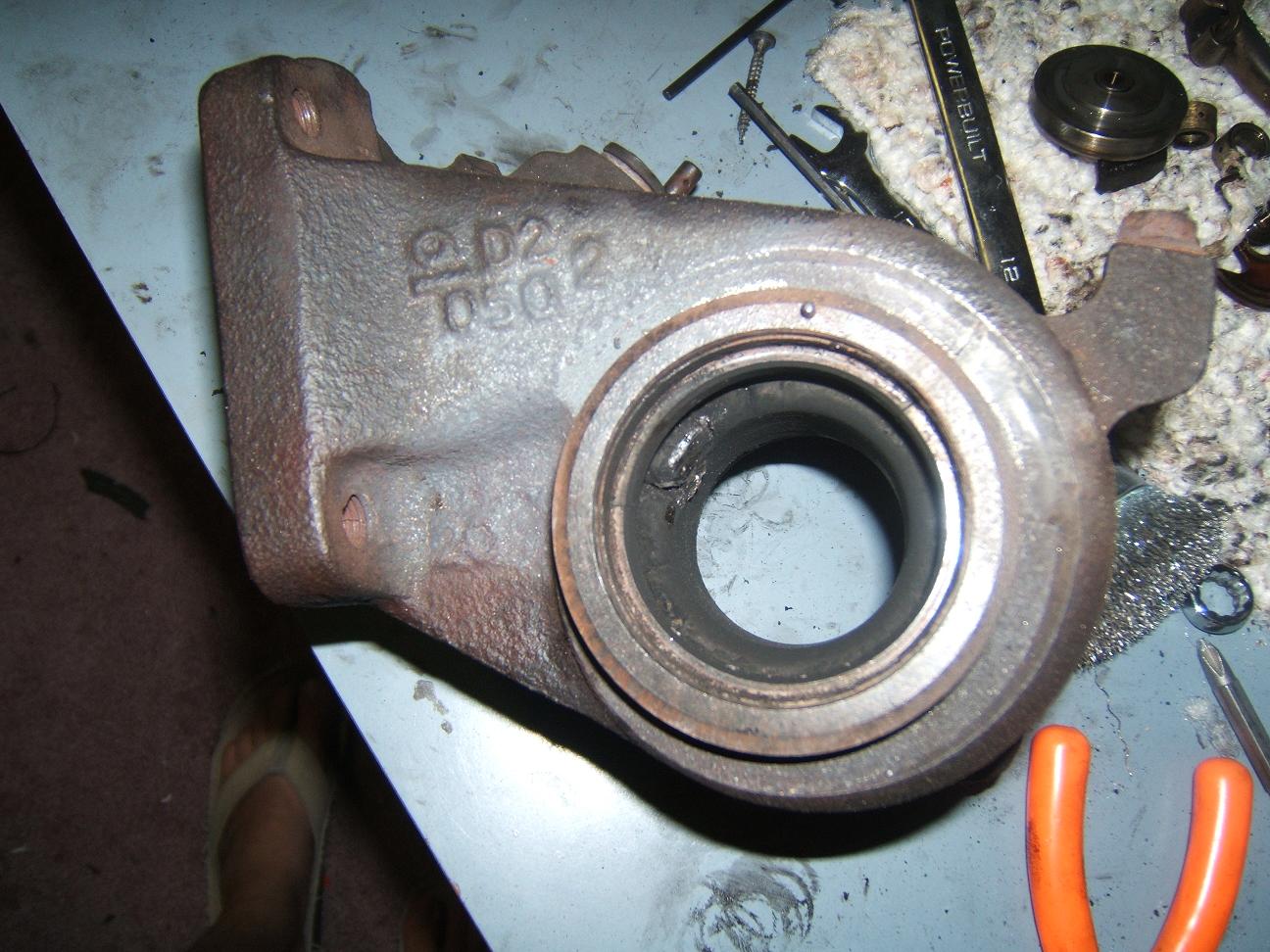

Here are pics of the turbine housing from a mitsubishi 13g turbo. I got it apart tonite and this is what i found. Lots and Lots of cracks. The cracks inside the outlet bore look more like some kind of melt down. I dont see how this happened without damaging the turbine wheel bit it looked ok. My question is, is this housing worth using, can it possibly be welded and machined and still work? (im a machinist so that would be free to do) Or am i going to have to spend the 200$ and buy a new turbine housing?
Attached Thumbnails
Got e-bay turbo apart, lots of cracks, saveable?-dscf3758.jpg   Got e-bay turbo apart, lots of cracks, saveable?-dscf3761.jpg   Got e-bay turbo apart, lots of cracks, saveable?-dscf3771.jpg   Got e-bay turbo apart, lots of cracks, saveable?-dscf3768.jpg
adbradley is offline   Reply With Quote
Old 07-26-2006, 01:34 AM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i would sand on it abit and see if it goes very deep you might get lucky and it is just in the way the tubrine was cast slopily.
magnamx-5 is offline   Reply With Quote
Old 07-26-2006, 01:41 AM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

oh its pretty deep, i did goube it with a big screw driver and nothing jared loose. there are some cracks that go all the way from the inside to the outside near the ring where the center cartridge connects.. Has anyone ever welded a turbine housing?
adbradley is offline   Reply With Quote
Old 07-26-2006, 01:48 AM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

I would chuck it then it would probably be a pita to get it all sealed back up maybe if it was the last turbine housing in the world but otherwise not.
magnamx-5 is offline   Reply With Quote
Old 07-26-2006, 01:52 AM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

damn e-bay
adbradley is offline   Reply With Quote
Old 07-26-2006, 10:19 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I'd ditch it. Keep an eye out for another housing from an upgrade, or another turbo that needs a rebuild with a good turbine housing. Those turbos are popular enough that one should show up.
m2cupcar is offline   Reply With Quote
