Default Greddy TD04H V-band leak

Oh hai,

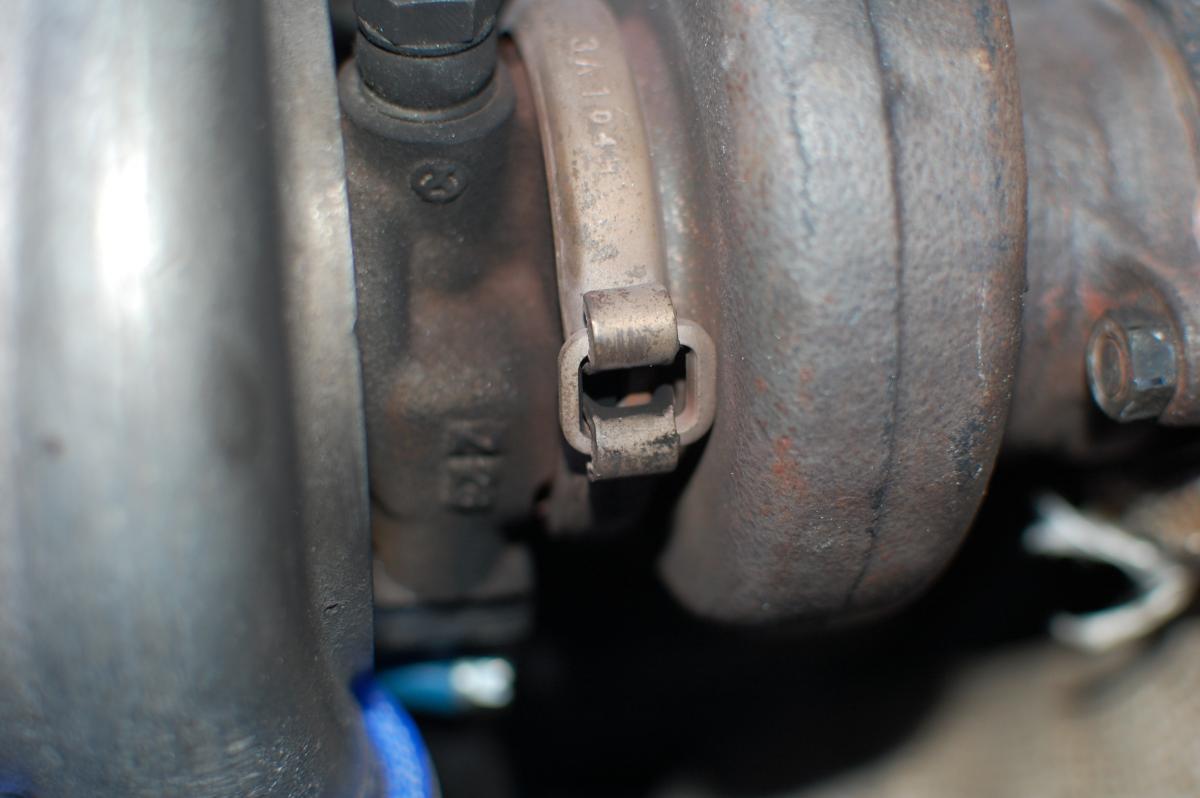

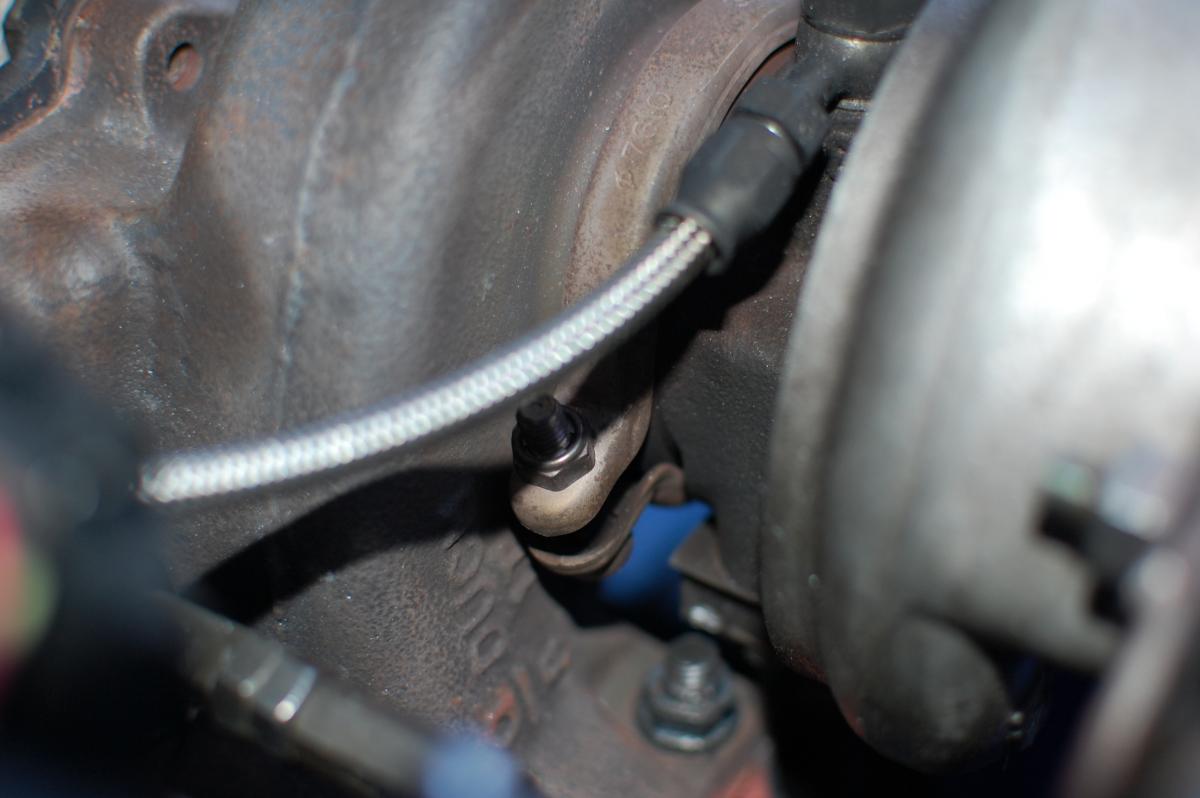

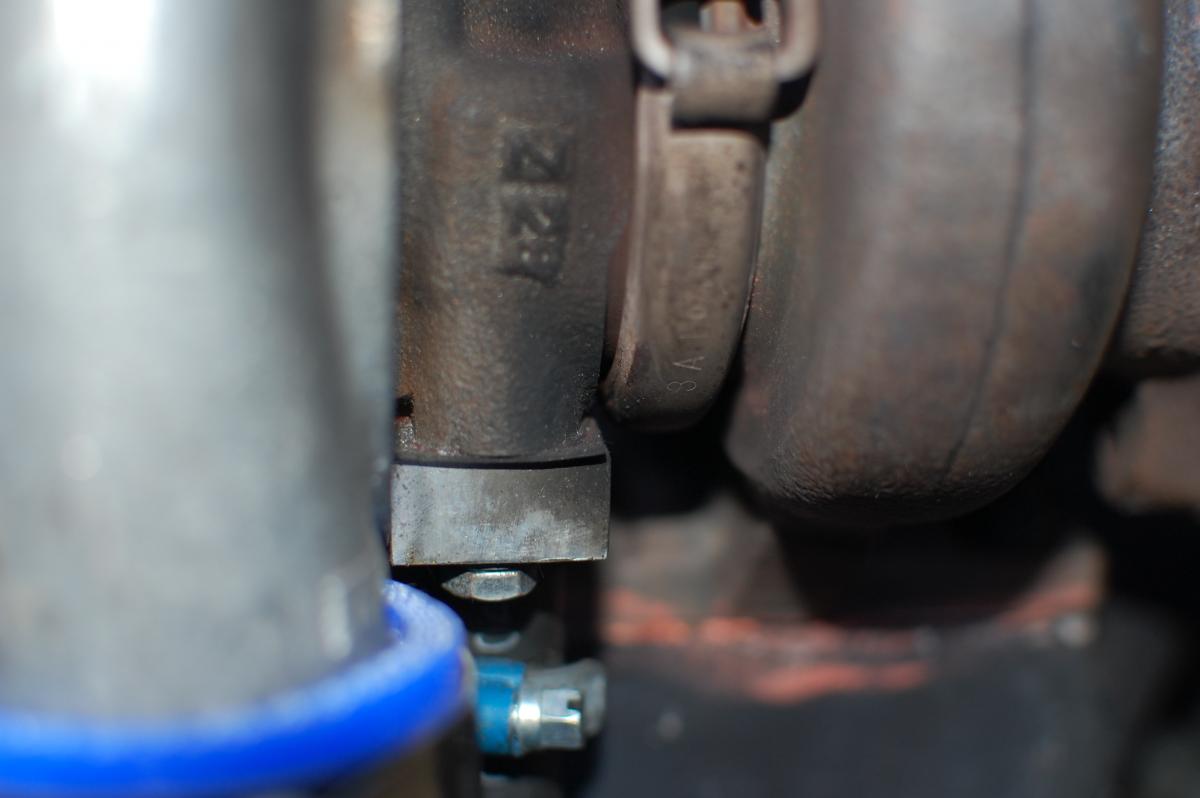

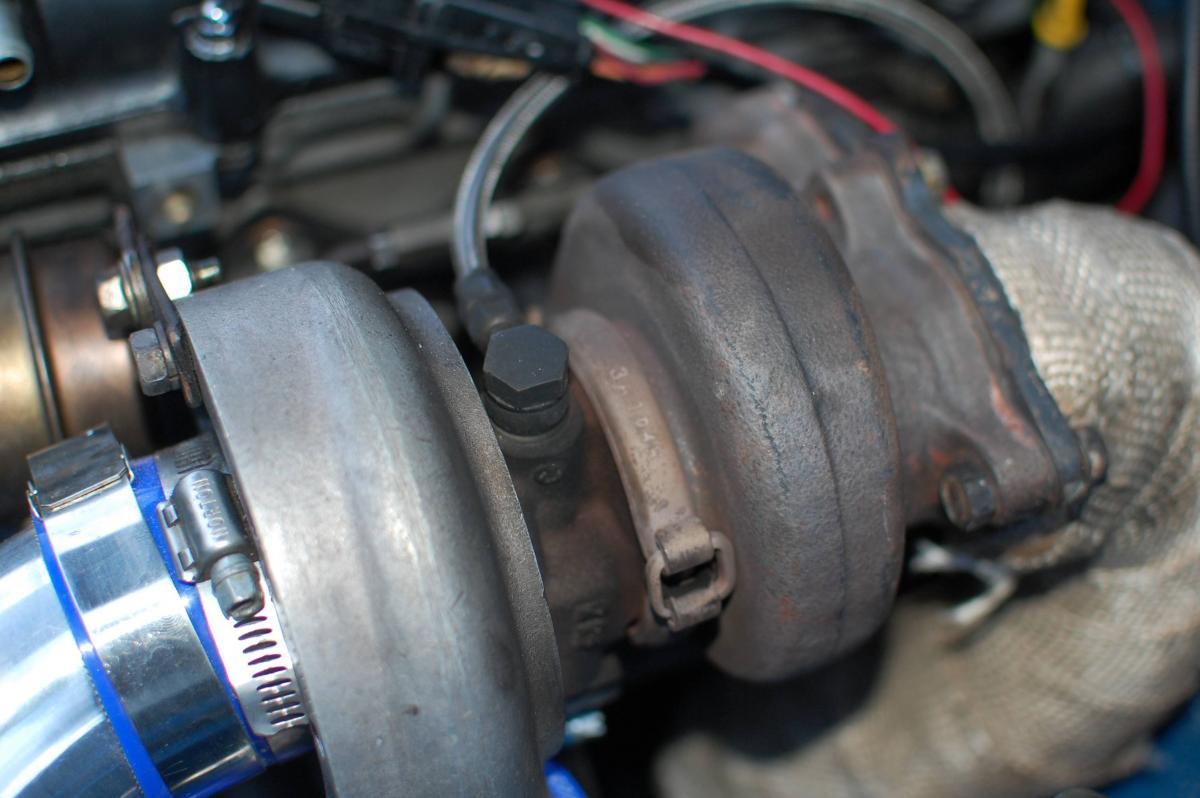

While tearing the car apart for a leaking transmission input shaft seal I encounter what looks like a v-band exhaust leak on the turbo itself. You can see the stain from the exhaust fume all aroud the v-brand clamp.









After a quick search I couldn't find any information about it.

The turbo is a TD04H with a 19T upgrade. I usually have a turbo blanket installed but it's off.

I never took apart a turbo assembly so I'm wondering if it's okay just to remove the clamp and see what's going there.

Any of you seen this before? A new v-band clamp would fix the issue? Or should I be looking for something else?

Thank you!
Attached Thumbnails
Greddy TD04H V-band leak-beseaty.jpg   Greddy TD04H V-band leak-oqom88x.jpg   Greddy TD04H V-band leak-ofjm1nt.jpg   Greddy TD04H V-band leak-gv3mpg6.jpg
PaCHeKo! is offline   Reply With Quote
Old 07-04-2013, 11:21 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Looks fine to me, I know after I disassembled mine, it took a lot of fiddling for it to seat perfectly flat, and I kept being able to tightening for a couple days. Is it loose at all?
curly is offline   Reply With Quote
Old 07-05-2013, 01:25 AM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

+1. Has discoloration and a slight bit of corrosion from living in a blanket. Doesn't look like an exhaust leak to me.

The clamp only provides a joining force -- it's not a seal. If you take off the clamp, you'll see that the turbine housing has a machined lip that fits tightly into the CHRA and provides the actual exhaust seal.

Don't be afraid to take off the clamp if you want to poke around. Easy to put back on.
hornetball is offline   Reply With Quote
Old 07-05-2013, 09:16 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

if it was leaking, you're hear it.

if it was leaking, the discoloration would be black and sooty.
Braineack is offline   Reply With Quote
Old 07-05-2013, 09:45 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

If you need a replacement clamp let me know I have 2 from td04's I can ship you super cheap
18psi is offline   Reply With Quote
Old 07-05-2013, 11:25 AM   #6
Junior Member
Thread Starter

Join Date: Oct 2010
Location: Montréal, Qc
Posts: 62
Total Cats: 8
Default

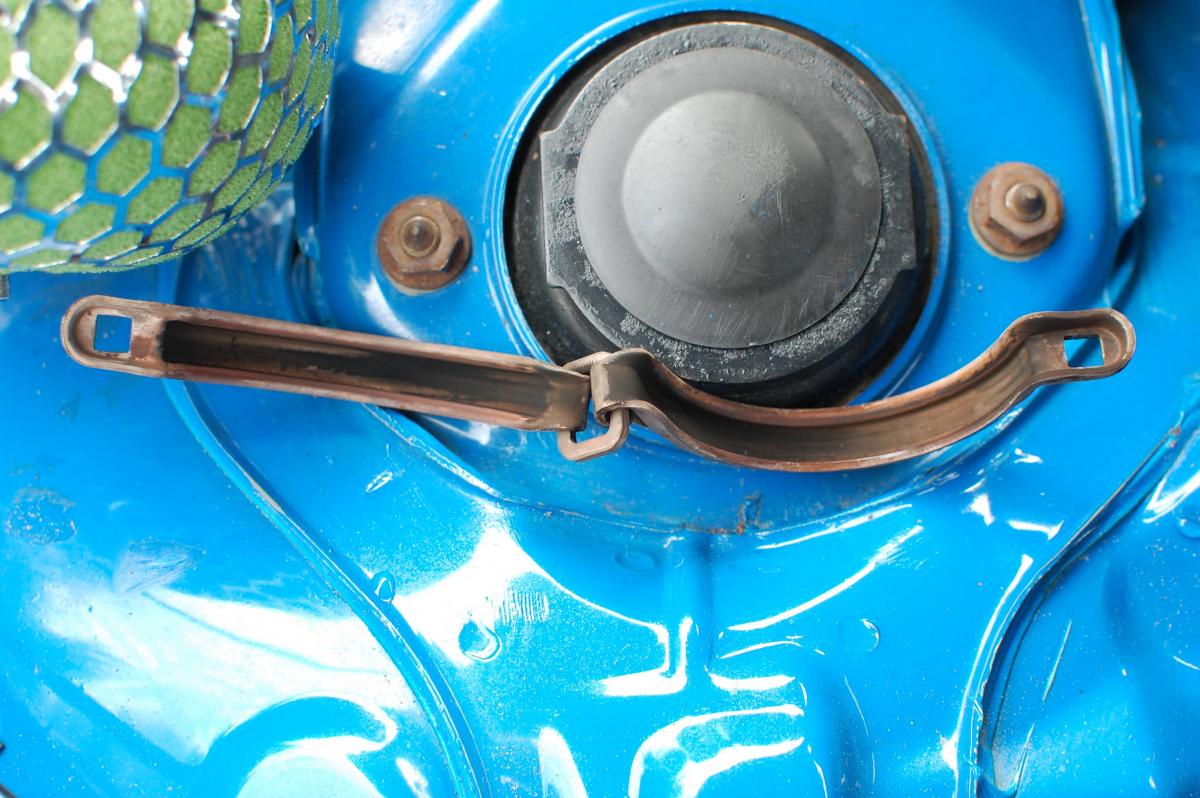

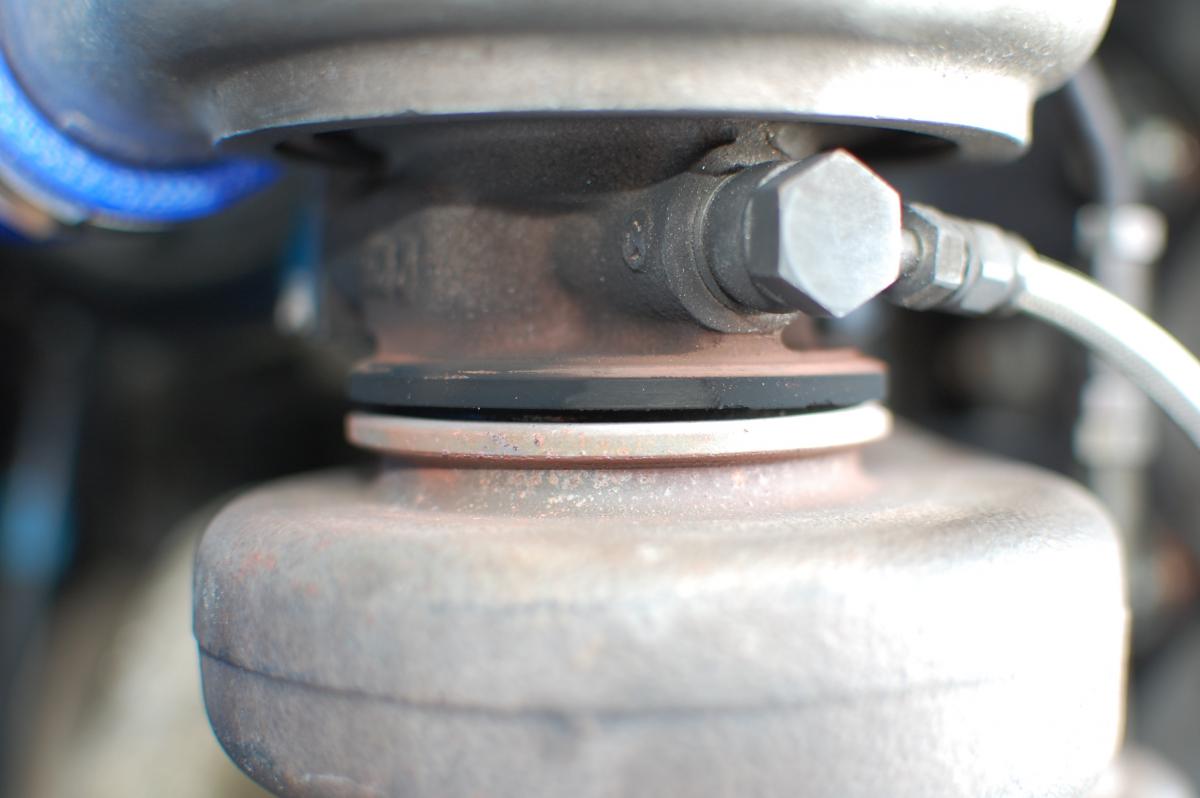

It looks like the clamp was not properly tighten. The clamp itself was not loose but the nut was not tight enough.

Here's some pictures





So I removed the clamp, cleaned everything and put everything back together.

I'll let you know guys how it turns out

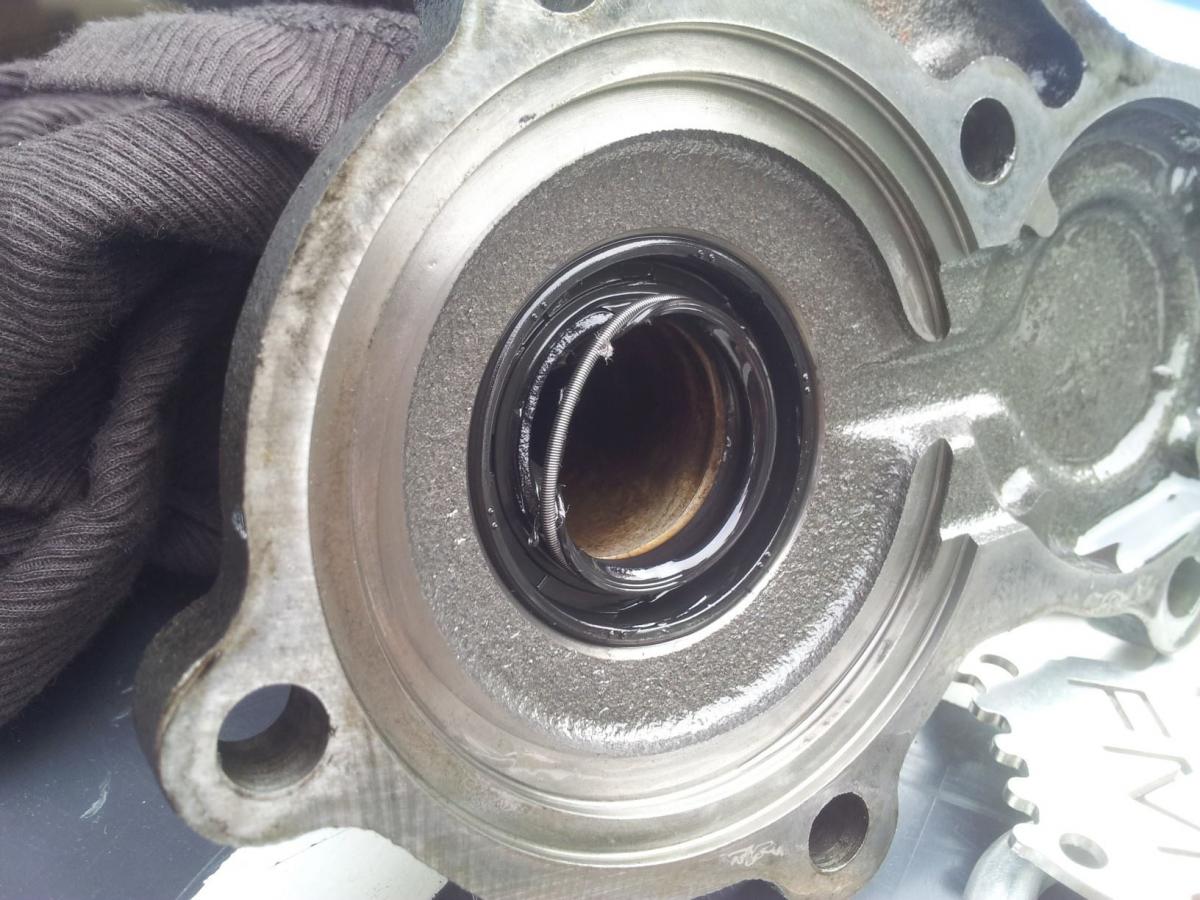

Meanwhile...

Attached Thumbnails
Greddy TD04H V-band leak-6atlbhg.jpg   Greddy TD04H V-band leak-icxqybm.jpg   Greddy TD04H V-band leak-am0dvrp.jpg
PaCHeKo! is offline   Reply With Quote
Old 07-05-2013, 11:28 AM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

well its definitely leaking
big time
18psi is offline   Reply With Quote
