Default gt2560r Wastegate porting for 3" exhaust ???

Curious if anyone can tell me how wildly you need to port the wastegate on a gt2560r to keep a boost level of around 10-12psi Im just looking for 220whp and would like decreased spool time with the 3" exhaust but dont want to run into alot of creep issues. so im asking this question before I order my exhaust

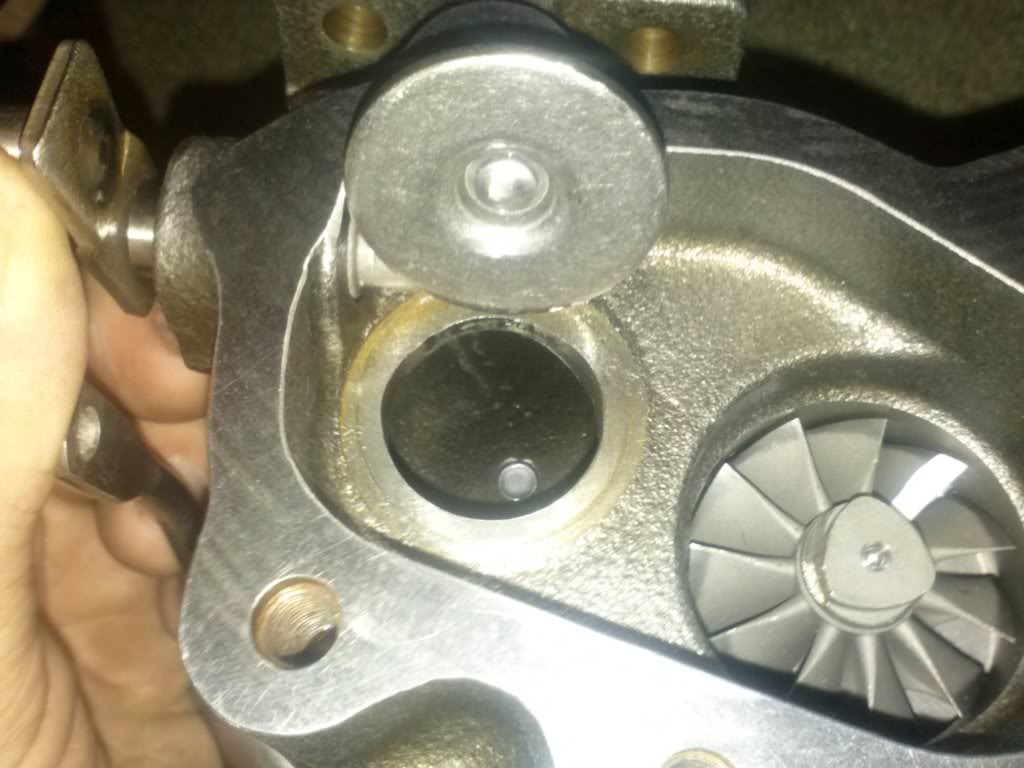

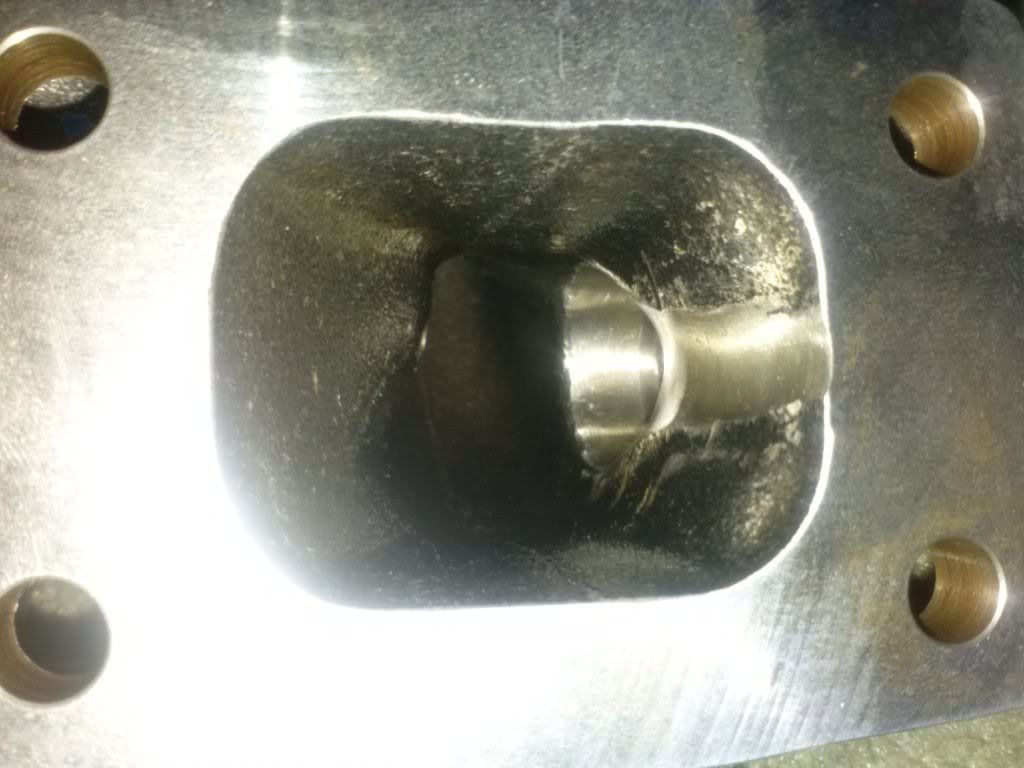

is this enough porting to run 10-12psi with 3" exhaust ?



Attached Thumbnails
gt2560r Wastegate porting for 3" exhaust ???-0929122032a-1.jpg   gt2560r Wastegate porting for 3" exhaust ???-0929122031a-1.jpg
Gt2560rMiata is offline   Reply With Quote
Old 07-25-2014, 10:43 PM   #2
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

I'd widen the valley up to the width of the hole if I still had the housing off. If not, run it and see what happens.
williams805 is offline   Reply With Quote
Old 07-27-2014, 04:54 AM   #3
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

anyone else wanna chime in ? gotta be a couple thousand members on this site with a 2560 and 3" exhaust
Gt2560rMiata is offline   Reply With Quote
Old 07-27-2014, 12:08 PM   #4
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

I just made this thread last week

https://www.miataturbo.net/general-m...aterial-80058/

tl;dr remove more material then I did, I still have creep.

Look at Kenzo and Erats pictures.
Onyxyth is offline   Reply With Quote
Old 07-27-2014, 12:57 PM   #5
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

your down pipe design could have something to do with creep. I have a 2560r only the inside being ported and it's fine. I have 3" exhaust too. 0 creep for me. by the way there are like 10 old threads wth multiple pages on this junk. search harder.
krissetsfire is offline   Reply With Quote
Old 07-27-2014, 04:32 PM   #6
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Quote:
Originally Posted by Onyxyth View Post
I just made this thread last week

https://www.miataturbo.net/general-m...aterial-80058/

tl;dr remove more material then I did, I still have creep.

Look at Kenzo and Erats pictures.
You didnt touch the port under the flapper did you? Its hard to tell from my pics but i opened that area up a decent amount on mine
Gt2560rMiata is offline   Reply With Quote
Old 07-27-2014, 05:58 PM   #7
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

I did not. I probably should have.
Onyxyth is offline   Reply With Quote
Old 07-27-2014, 07:23 PM   #8
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

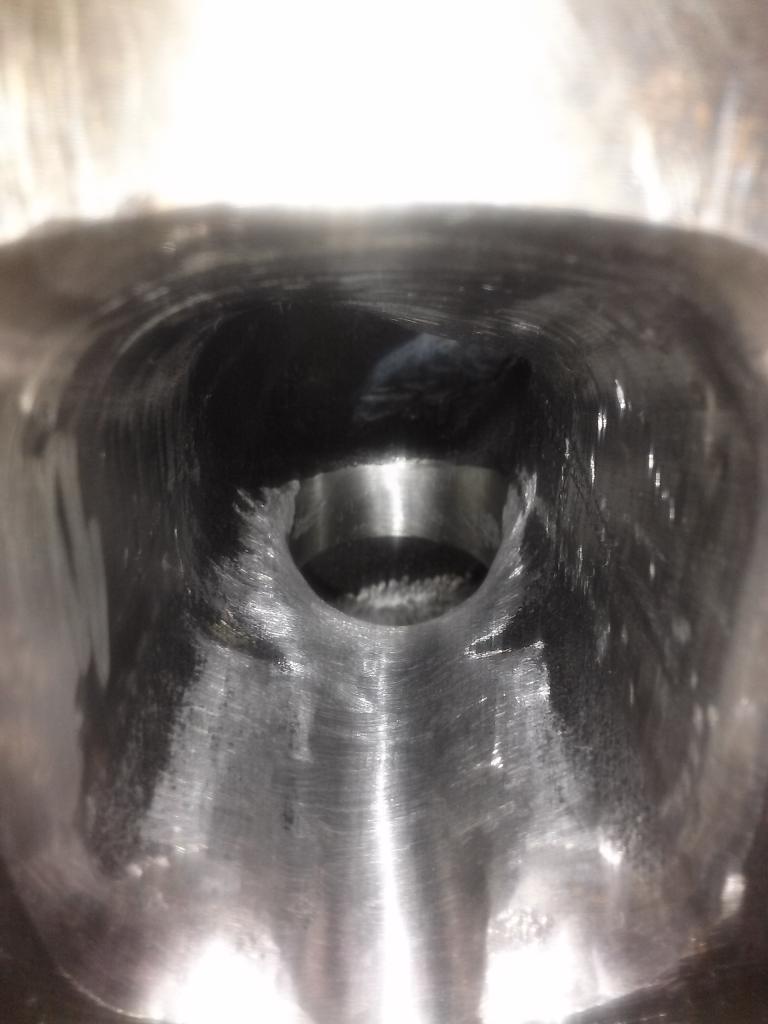

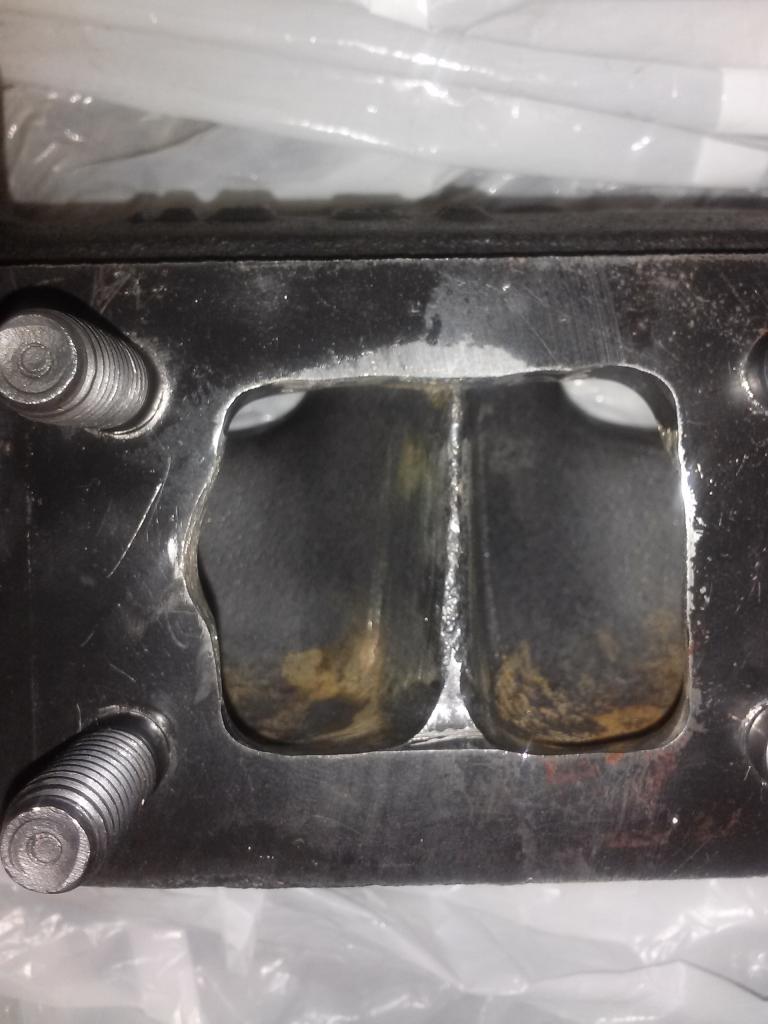

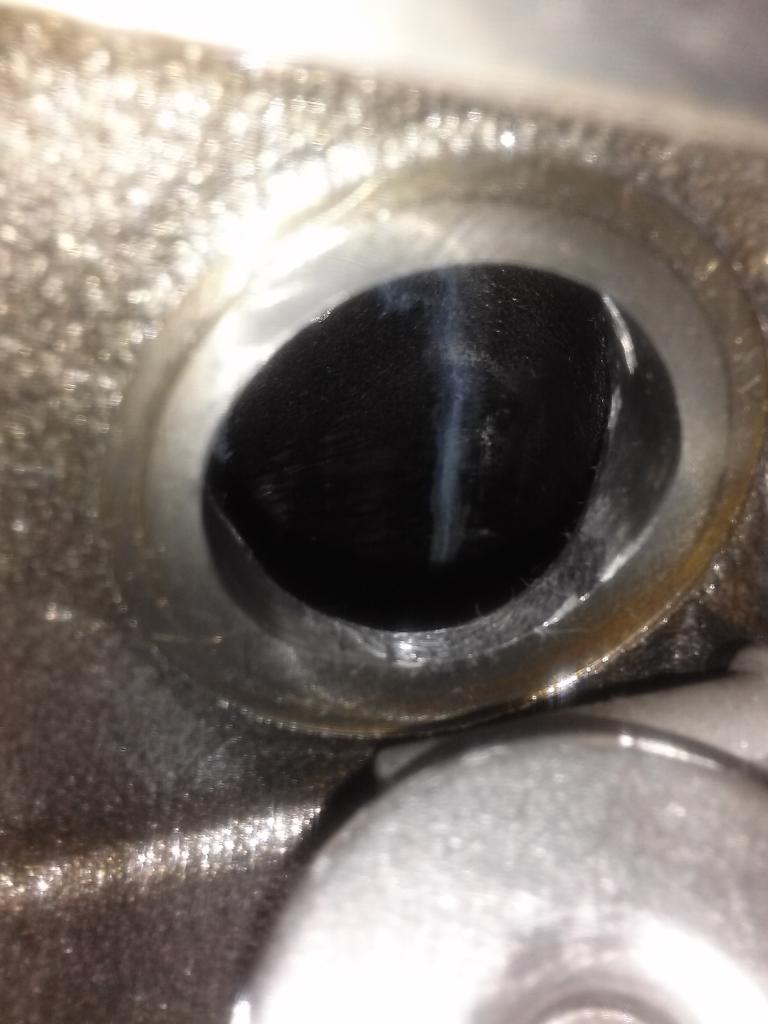

Did some more porting on it today. Also added a little channel in my begi manifold to help the exhaust find its way to the wastegate port
Attached Thumbnails
gt2560r Wastegate porting for 3" exhaust ???-cam00057_zpsgupckjta.jpg   gt2560r Wastegate porting for 3" exhaust ???-cam00062_zps7bmikd5v.jpg   gt2560r Wastegate porting for 3" exhaust ???-cam00063_zpsfpaoghfc.jpg
Gt2560rMiata is offline   Reply With Quote
Old 08-15-2014, 02:32 PM   #9
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Did you buy this turbo form BEGi? they should have ported it then
ScottyP3821 is offline   Reply With Quote
