Default Help/Input: Custom Intake manifold, what Throttle Body??

Hello,

I am having a custom intake manifold made up for my FE3. I will be running MS and it will be turbo'd. I am curious what people choose to run as a TB when going custom.

I have 4 diff TB's currently to choose from but looking for ideas.

Info:
Wanting to run 280+Whp
IC piping is 2.5"
Turbo is T3/4 50 Trim

Current TB's are:
90 1.6
05 MSM 1.8
90 MX6 2.2T (F2T) TB
95? Q45 90MM TB (3.5")

Thanks,

Brandon
fe3tmx5? is offline   Reply With Quote
Old 03-23-2014, 10:22 PM   #2
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Out of those, I guess the MSM.

The F2T has two butterflies and is annoying. Q45 is probably a bit big.

Why not a Mustang 70mm or something? Custom manifold means you can use a nice throttle body.
concealer404 is offline   Reply With Quote
Old 03-23-2014, 10:45 PM   #3
Junior Member
Thread Starter

Join Date: May 2009
Posts: 72
Total Cats: 0
Default

Quote:
Originally Posted by concealer404 View Post
Why not a Mustang 70mm or something? Custom manifold means you can use a nice throttle body.
Yes that is what I am wondering, what are the "nice" TB's.
fe3tmx5? is offline   Reply With Quote
Old 03-23-2014, 11:08 PM   #4
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

what about Mustang TB's ?
2manyhobyz is offline   Reply With Quote
Old 03-24-2014, 09:49 AM   #5
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Maybe some throttle body in the 65mm range that doesnt have throttle shaft breakage issues.
Leafy is offline   Reply With Quote
Old 03-24-2014, 10:25 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by concealer404 View Post
Why not a Mustang 70mm or something?
because most aren't designed to be used with a throttle cable and there's no preload in the clockspring and you're left with an incredible sensesitve limp dick throttle that can stick open if you don't add addtional pre-load to it?
Braineack is offline   Reply With Quote
Old 03-24-2014, 10:44 AM   #7
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

why not go with a honda style throttle body. They are relatively cheap can be had in sizes up to around 90mm and you can have a IAC on the bottom of the throttle body if you have a way to control it. I personally have an ebay 90mm I would not suggest using one of these. lol
Sean is offline   Reply With Quote
Old 03-24-2014, 10:52 AM   #8
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by Braineack View Post
because most aren't designed to be used with a throttle cable and there's no preload in the clockspring and you're left with an incredible sensesitve limp dick throttle that can stick open if you don't add addtional pre-load to it?

Hrm i wasn't aware.... I know of at least one MX6 guy that used an aftermarket Trickflow Mustang TB without issues, but never really paid attention to the linkage.

Something i should research it seems... i was planning on using one on my 93.
concealer404 is offline   Reply With Quote
Old 03-24-2014, 10:55 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Sean View Post
why not go with a honda style throttle body. They are relatively cheap can be had in sizes up to around 90mm and you can have a IAC on the bottom of the throttle body if you have a way to control it. I personally have an ebay 90mm I would not suggest using one of these. lol
what size is the MSM TB?

an ITR TB would be a good one.


You also need to factor in the ease of adding a TPS and Idle Valve to the mix.
Braineack is offline   Reply With Quote
Old 03-24-2014, 11:23 AM   #10
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Oscar is offline   Reply With Quote
Old 03-24-2014, 11:30 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

hey look at that.

I'd go for the 99+ verison so your idle valve doesn't need it's own air source off the charge pipes to make for easier installation.
Braineack is offline   Reply With Quote
Old 03-27-2014, 05:59 AM   #12
Junior Member
Thread Starter

Join Date: May 2009
Posts: 72
Total Cats: 0
Default

Which TB are you referring to?
fe3tmx5? is offline   Reply With Quote
Old 03-27-2014, 05:59 AM   #13
Junior Member
Thread Starter

Join Date: May 2009
Posts: 72
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
hey look at that.

I'd go for the 99+ verison so your idle valve doesn't need it's own air source off the charge pipes to make for easier installation.
Are 99+ and an 05 msm TB the same?
fe3tmx5? is offline   Reply With Quote
Old 03-27-2014, 06:12 AM   #14
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by fe3tmx5? View Post
Which TB are you referring to?
My whole post was in fact a link to the exact TB I was referring to. That's why it was underlined and clickable and all
Oscar is offline   Reply With Quote
Old 03-28-2014, 09:17 AM   #15
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Braineack View Post
I'd go for the 99+ verison so your idle valve doesn't need it's own air source off the charge pipes to make for easier installation.

Do this @FE3tmx5

Cant wait to finish it so you can get it running again and bring it down for me to hear.
shlammed is offline   Reply With Quote
Old 03-28-2014, 09:19 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Braineack View Post
hey look at that.

I'd go for the 99+ verison so your idle valve doesn't need it's own air source off the charge pipes to make for easier installation.

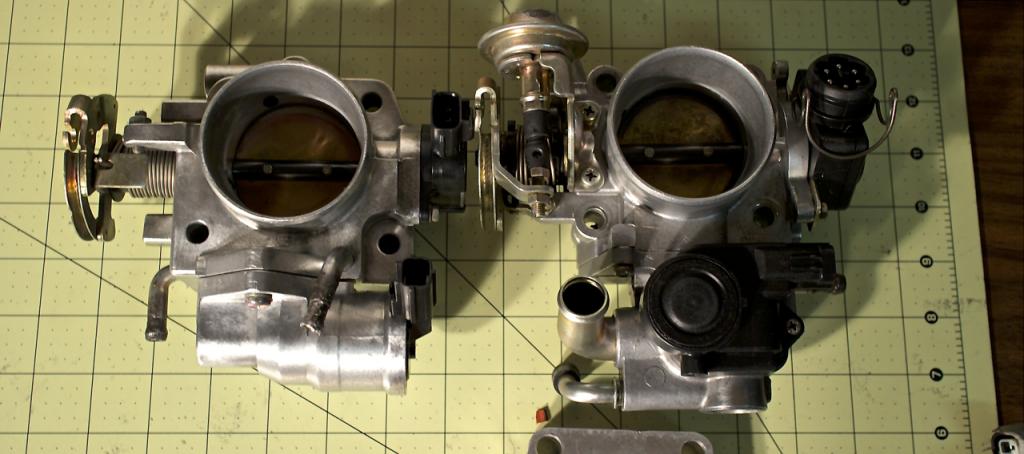

a picture comparing the two was posted recently:

Braineack is offline   Reply With Quote
Old 03-29-2014, 01:32 PM   #17
Junior Member
Thread Starter

Join Date: May 2009
Posts: 72
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
a picture comparing the two was posted recently:

Would any issues arrise if I didn't run coolant lines to the TB?

Thanks for the pic.
fe3tmx5? is offline   Reply With Quote
Old 03-29-2014, 07:53 PM   #18
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Your throttle body could freeze if you decide to drive in Northern Canada in -40* weather.
soviet is offline   Reply With Quote
