Default I'm confused about how these manifold to turbo studs are supposed to work.

I'm a dumbass and I'm also wary of messing something up so here we go.

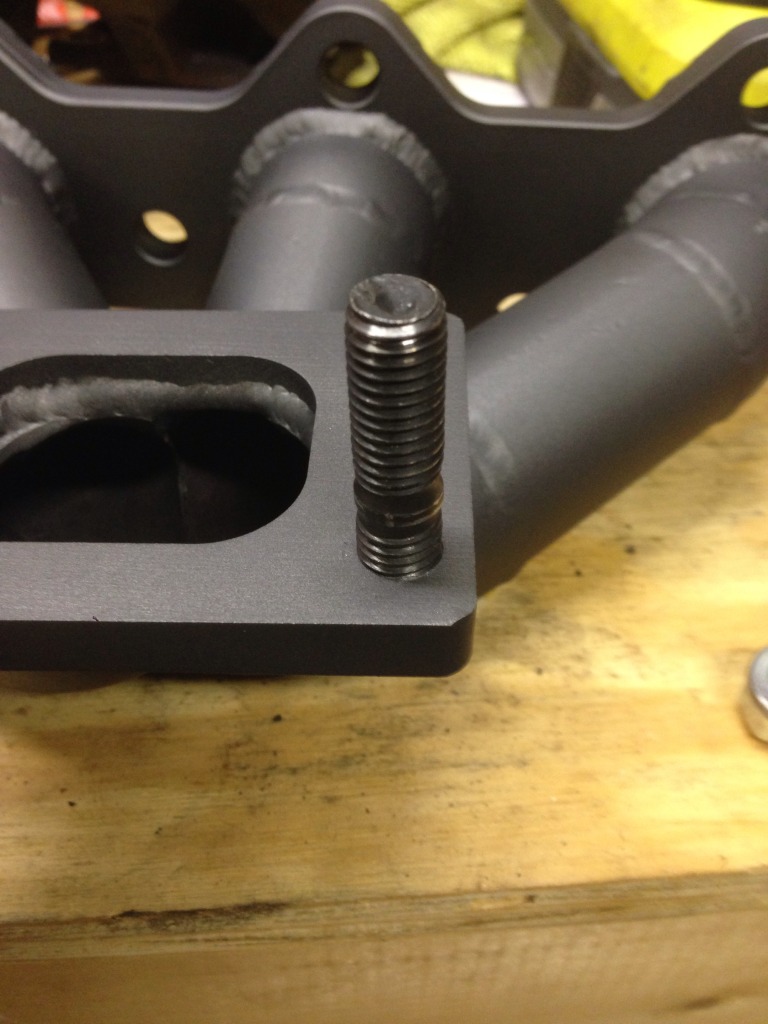

For one thing, I'm assuming the things go into the manifold like this, with the short end down.



Whenever I've tightened down a stud usually you throw one nut on top of another and ratchet them both down to tighten the thing.

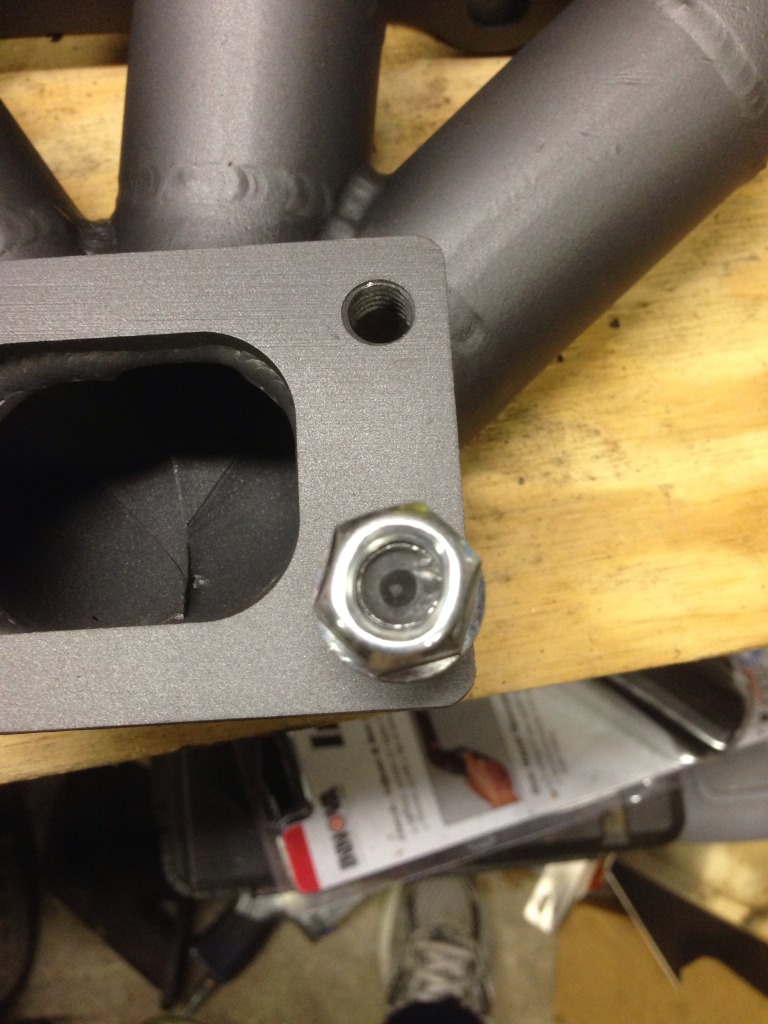

Well, I have the nuts, but it seems like they have a distinct oval shape at the top which makes tightening them over the studs a bit difficult to the point where I'm a little wary of doing so since it is very difficult to get them over the stud.



Am I doing something wrong here? Should I get some different nuts? Am I messing up which direction the studs go in?
Attached Thumbnails
I'm confused about how these manifold to turbo studs are supposed to work.-b9bbbeef-161d-4cce-9ab9-5143beaf21fe-1603-00000299002cdeb9_zps97d6c7ee.jpg   I'm confused about how these manifold to turbo studs are supposed to work.-302b0e24-39ba-4f0f-807f-1bbc67ab72ee-1603-000002990cea448c_zps6be54318.jpg
Harv is offline   Reply With Quote
Old 11-06-2013, 06:52 PM   #2
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Use regular nut to drive them in.

The oval shape is to help "lock it in place."
Miater is offline   Reply With Quote
Old 11-06-2013, 06:59 PM   #3
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Hm, the regular nut makes sense and is what I was thinking I'd need to do.

Also, I'm assuming I'm putting the stud in the manifold the right way. Once the stud is in the manifold do I just throw the turbo on and crank the locking nut down over it? There is a fair amount of thread sticking up even after putting the turbo over it.

I swear I realize this sounds dumb as hell and it should be obvious, but the manifold and turbo were connected when I got them the first time around so I never needed to deal with this.
Harv is offline   Reply With Quote
Old 11-06-2013, 07:07 PM   #4
Junior Member
iTrader: (2)

albertogti117's Avatar

Join Date: Jul 2011
Location: Houston, Tx
Posts: 167
Total Cats: 4
Default

Yes just put the turbo on and put the nut on. The nut in the picture looks like a nylon nut. Just use two regular nuts.
albertogti117 is offline   Reply With Quote
Old 11-06-2013, 07:09 PM   #5
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Alright. I guess I was mostly just worried since there is so much torque that needs to be applied to the locking nuts, but now that I'm thinking about it more that makes perfecct sense.
Harv is offline   Reply With Quote
Old 11-06-2013, 07:14 PM   #6
Junior Member
iTrader: (2)

albertogti117's Avatar

Join Date: Jul 2011
Location: Houston, Tx
Posts: 167
Total Cats: 4
Default

I'd be more worried about the studs sticking out too far and contacting the turbo somewhere. That is, if the stud in the first picture is far down as it will go.
albertogti117 is offline   Reply With Quote
Old 11-06-2013, 07:28 PM   #7
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

That's not cranked down at all, just threaded in a little to show the stud. The studs will fit fine I think once I get some normal 10-1.5 nuts to put them in with.
Harv is offline   Reply With Quote
Old 11-07-2013, 01:09 AM   #8
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

the nut in the picture is just a regular lock nut, not nylon. The oval shape keeps it locked in place.
motormechanic is offline   Reply With Quote
Old 11-07-2013, 10:31 AM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Attached Thumbnails

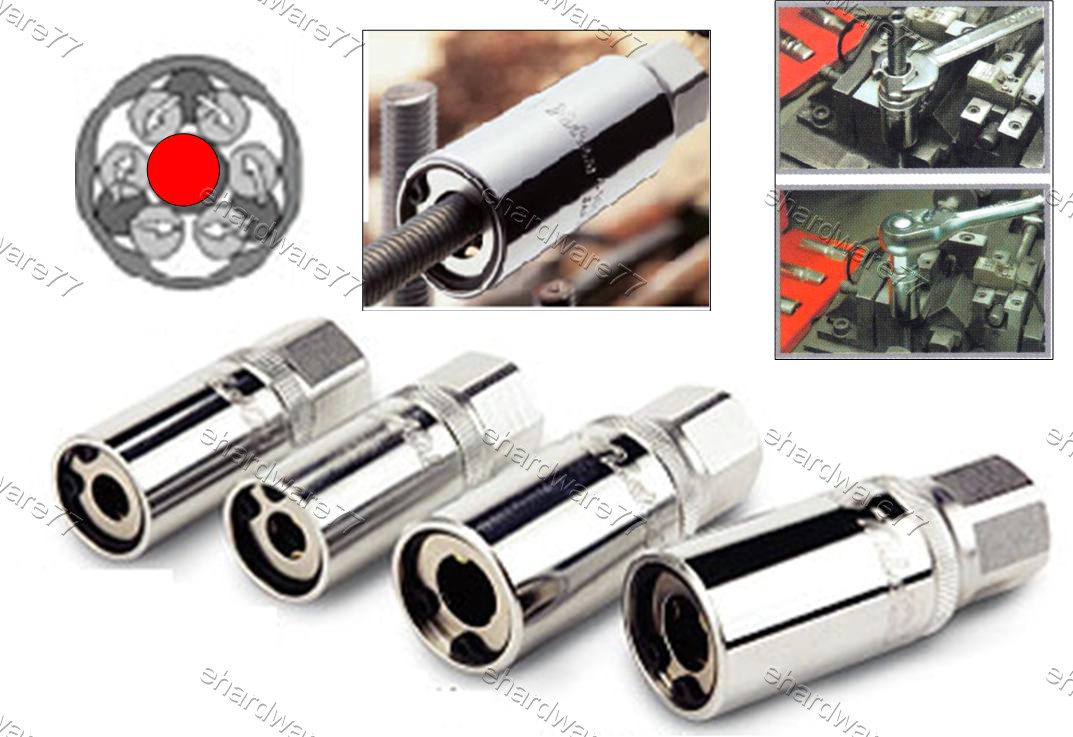

I'm confused about how these manifold to turbo studs are supposed to work.-4pcs-1-2-dr-stud-extractor-socket-set-3119-aaronngu77-1010-30-aaronngu77%4011.jpg
y8s is offline   Reply With Quote
Old 11-07-2013, 10:35 AM   #10
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Quote:
Originally Posted by y8s View Post
I saw that sort of thing the other day on an episode of Wheeler Dealers. I think I might get a set. Are these only good for removing studs? I was reading something that indicated it will mess up the threads if it has to grip on them.
Harv is offline   Reply With Quote
Old 11-07-2013, 10:49 AM   #11
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

My engine builder had a set of something like that to install various sorts of studs... Couldn't tell you exactly, but whatever it was he was using it to put studs on.

Also, not a nylon nut.lol It would be pretty pointless because it's going to get very hot.
Erat is offline   Reply With Quote
Old 11-07-2013, 10:51 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

they catch on fire; it's a fun sight.
Braineack is online now   Reply With Quote
Old 11-07-2013, 10:55 AM   #13
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Well, I have the studs in the manifold and I realized I didn't have a 15mm open ended wrench for some reason. Everything from 14mm down and 16mm up, but for some reason 15 is missing so I couldn't really fully tighten down the nuts. Gonna hit the store to get something and then get the manifold and turbo on the car tonight.
Harv is offline   Reply With Quote
Old 11-07-2013, 01:14 PM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Stud should never be more than hand tight into the piece. Only the nut should be torqued. Otherwise you should have just used a bolt since you're loosing the mechanical advantages of a stud.
Leafy is offline   Reply With Quote
Old 11-07-2013, 01:18 PM   #15
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

That's interesting. Hand tight doesn't get them very far into the manifold. I mean, far enough I suppose. It goes a lot farther in than in that picture, that's just slightly screwed in to show it.
Harv is offline   Reply With Quote
Old 11-07-2013, 01:20 PM   #16
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

The threads need to be cleaned up then. You should be able to bottom them out by hand.
Leafy is offline   Reply With Quote
Old 11-07-2013, 01:23 PM   #17
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

If I have already torqued them into the thing should I just take em out and redo? Or am I screwed?

At certain points in this process I feel like I can't do much right.
Harv is offline   Reply With Quote
Old 11-07-2013, 02:12 PM   #18
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Now that I think about it, yes there is no reason to torque a stud into anything. I feel more dumb and yet smarter now.
Harv is offline   Reply With Quote
Old 11-07-2013, 04:04 PM   #19
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Harv View Post
If I have already torqued them into the thing should I just take em out and redo? Or am I screwed?

At certain points in this process I feel like I can't do much right.
you are fine.

dont worry about it. just get them far enough in that they have all of the threads engaged.
shlammed is offline   Reply With Quote
Old 11-10-2013, 02:23 AM   #20
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by shlammed View Post
you are fine.

dont worry about it. just get them far enough in that they have all of the threads engaged.
+1. Studs don't always thread in by hand easily... (definitely don't need to torque them though).
Seefo is offline   Reply With Quote
