Default Injectors?

Are these the 550 Rx7 injectors?
1989-1991 Mazda RX-7 - CVU Fuel Injector
-Jared-
swimming108 is offline   Reply With Quote
Old 11-09-2008, 02:40 PM   #2
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

They might be, but they aren't PnP with a Miata.
Check the FAQ for a picture of the connector type you want to use so you don't have to **** with wiring in extensions.
samnavy is offline   Reply With Quote
Old 11-09-2008, 04:22 PM   #3
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Those aren't even close.
zoom2zoom is offline   Reply With Quote
Old 11-09-2008, 07:06 PM   #4
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Just put up a WTB ad on that rx7 bbs I cannot remember the name of, or watch ebay, then send them off to Witch Hunter or the like for rebuilding and testing. It worked well for me and for others.
ZX-Tex is offline   Reply With Quote
Old 11-09-2008, 10:20 PM   #5
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Are those rx7 low impedance?
TURNS101 is offline   Reply With Quote
Old 11-09-2008, 10:28 PM   #6
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

No, at least the ones I have are not. If you want low impedance they won't work.
ZX-Tex is offline   Reply With Quote
Old 11-09-2008, 11:05 PM   #7
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

rx7club.com, injectors I have and what you are probably looking for 1989-91 RX-7 denso part #195500-2020 Saturated 550cc Purple Top
turbobluemiata is offline   Reply With Quote
Old 11-10-2008, 10:12 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

wouldn't it be cool if someone put a list out there of all the good plug and play injectors we could use?
Braineack is offline   Reply With Quote
Old 11-10-2008, 11:09 AM   #9
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

You could cut that sarcasm with a knife
ZX-Tex is offline   Reply With Quote
Old 11-11-2008, 11:42 PM   #10
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
wouldn't it be cool if someone put a list out there of all the good plug and play injectors we could use?
Thanks again for that list btw. Using your super awesome handy list I bought these RX7 550s from an ebay seller on the cheap!

Reference pictures for the OP (sorry they are filthy, haven't sent them off to be cleaned yet)

Washed out by the flash:

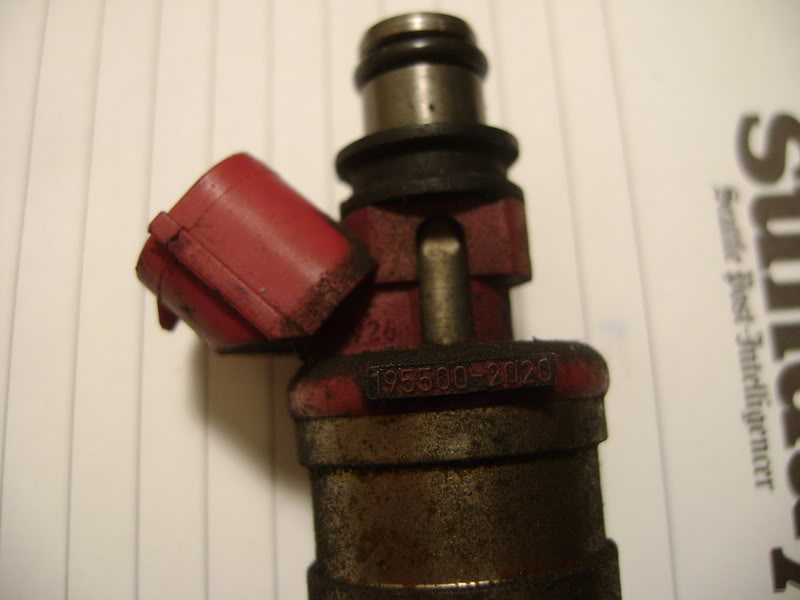

Macro so you can see the part number:
Name:  DSC00630.jpg
Views: 1
Size:  53.0 KB
wayne_curr is offline   Reply With Quote
Old 11-12-2008, 10:06 AM   #11
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

wow, sometimes i just feel like a reel dumb ***!
thanks for clarifying things guys, i will search using the part number from now on.

Double thanks to you Wayne, the pics are definitely a bonus
cheers,
-Jared-
swimming108 is offline   Reply With Quote
Old 11-12-2008, 08:02 PM   #12
Former Vendor

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

86-88 Rx7 are low impedence
89-91 are High impedence
Deatschwerks is offline   Reply With Quote
