Old 05-30-2009, 08:27 PM   #101
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

figured i would just keep updating my build of this manifold in this thread.. hope its ok..

got the finished product ready today, and bolted it up to the engine for good( i hope )

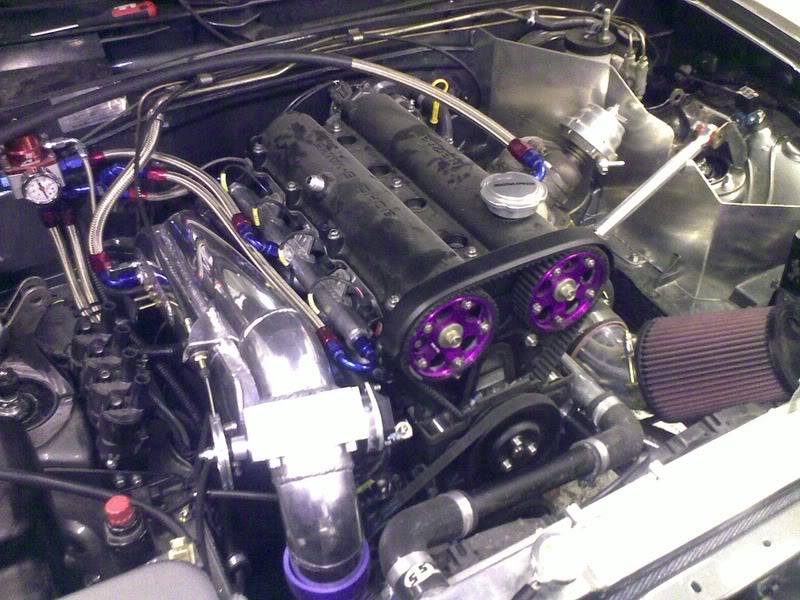

Name:  30052009178.jpg
Views: 58
Size:  127.7 KB

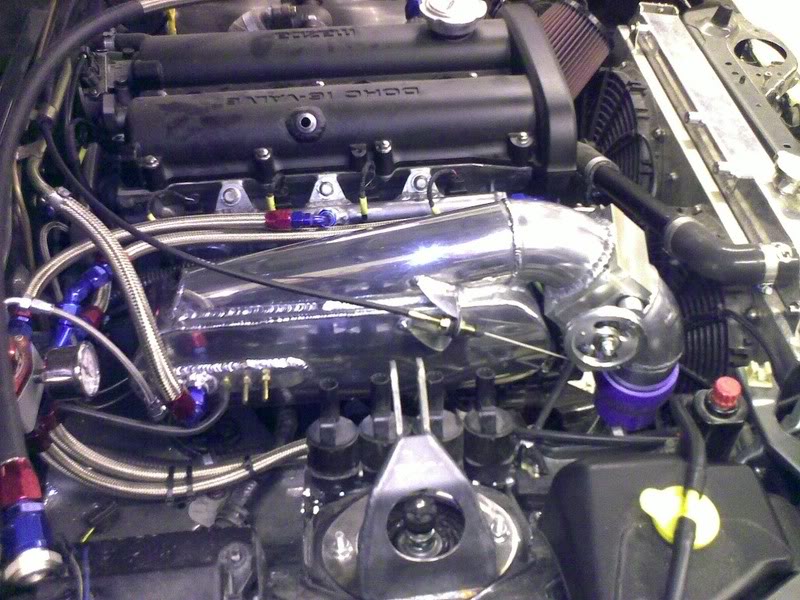

Name:  30052009179.jpg
Views: 56
Size:  124.6 KB

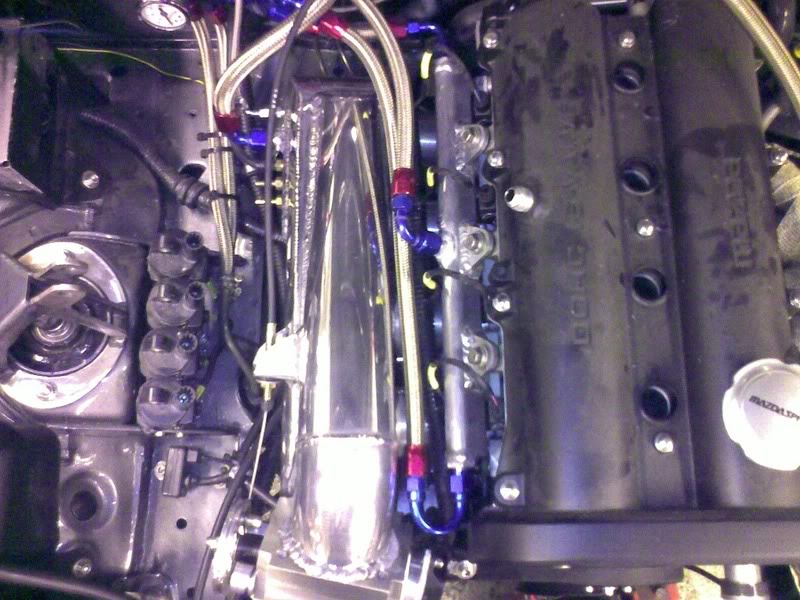

Name:  30052009182.jpg
Views: 54
Size:  115.4 KB


some final checks on all oil lines etc on the engine, pluss all the small things needed.. and its ready to drive again.. perhaps staring the engine tomorrow..
hf-mx5t is offline   Reply With Quote
Old 05-31-2009, 07:35 PM   #102
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

and today.. the car runs..






have to adjust the idle.
hf-mx5t is offline   Reply With Quote
Old 06-02-2009, 09:33 AM   #103
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

I like that intake. Very interesting. Makes a whole lotta sense to me.
TurboTim is offline   Reply With Quote
Old 06-02-2009, 11:42 AM   #104
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

Turbo ITB throttle system for 4g63 - DSM Forums

i found this on a dsm forum. i'm not really impressed with the design, but it doesn't look to difficult to do an ITB/manifold.
94blackmx5 is offline   Reply With Quote
