I can't believe this thread is dying... :(

Found this: Inlet Runner and Peak Torque Calculator
Should come in handy setting up runners (length & area)...

http://www.grapeaperacing.com/tech/inductionsystems.pdf
Just a general descriptive article with some calculations at the end of the article...

Last edited by thagr81 us; 05-21-2009 at 10:34 AM.
thagr81 us is offline   Reply With Quote
Old 05-21-2009, 06:02 PM   #82
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Quote:
Originally Posted by thagr81 us View Post
I can't believe this thread is dying... :(

Found this: Inlet Runner and Peak Torque Calculator
Should come in handy setting up runners (length & area)...

http://www.grapeaperacing.com/tech/inductionsystems.pdf
Just a general descriptive article with some calculations at the end of the article...
Awesome! That should entertain me for an hour or two..
Orion ZyGarian is offline   Reply With Quote
Old 05-21-2009, 07:15 PM   #83
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by thagr81 us View Post
I can't believe this thread is dying... :(

Found this: Inlet Runner and Peak Torque Calculator
Should come in handy setting up runners (length & area)...

http://www.grapeaperacing.com/tech/inductionsystems.pdf
Just a general descriptive article with some calculations at the end of the article...
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

Iam starting My Manifold this week and this is friggin' nice.Should help alot.
thank you
-G-
Reverend Greg is offline   Reply With Quote
Old 05-21-2009, 08:48 PM   #84
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Not a problem at all... I'm just gathering information for myself and figured I would share with the community.
thagr81 us is offline   Reply With Quote
Old 05-21-2009, 09:20 PM   #85
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

I have been using my Machinerys Handbook for design Inspiration, as well as a local forum members idea.Now this ...1500 hp here I come
Reverend Greg is offline   Reply With Quote
Old 05-21-2009, 09:24 PM   #86
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Make sure you post pics of your build... Would love to see how it turns out.
thagr81 us is offline   Reply With Quote
Old 05-22-2009, 07:07 PM   #87
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

I dont have a camera
Reverend Greg is offline   Reply With Quote
Old 05-23-2009, 05:17 AM   #88
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

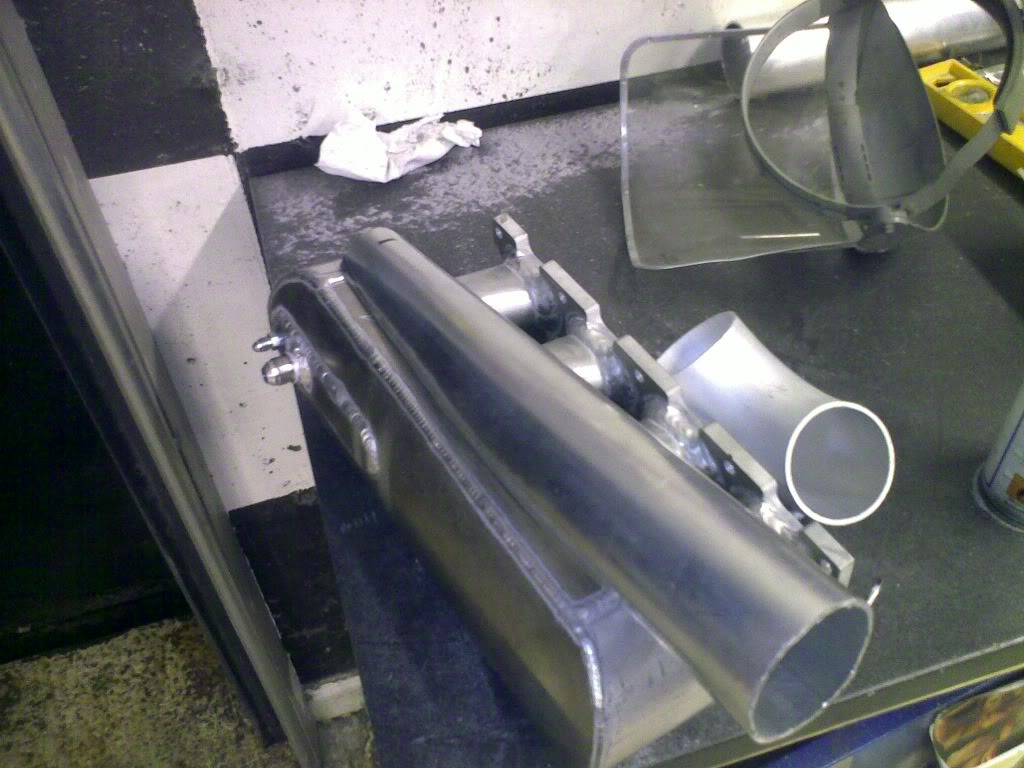

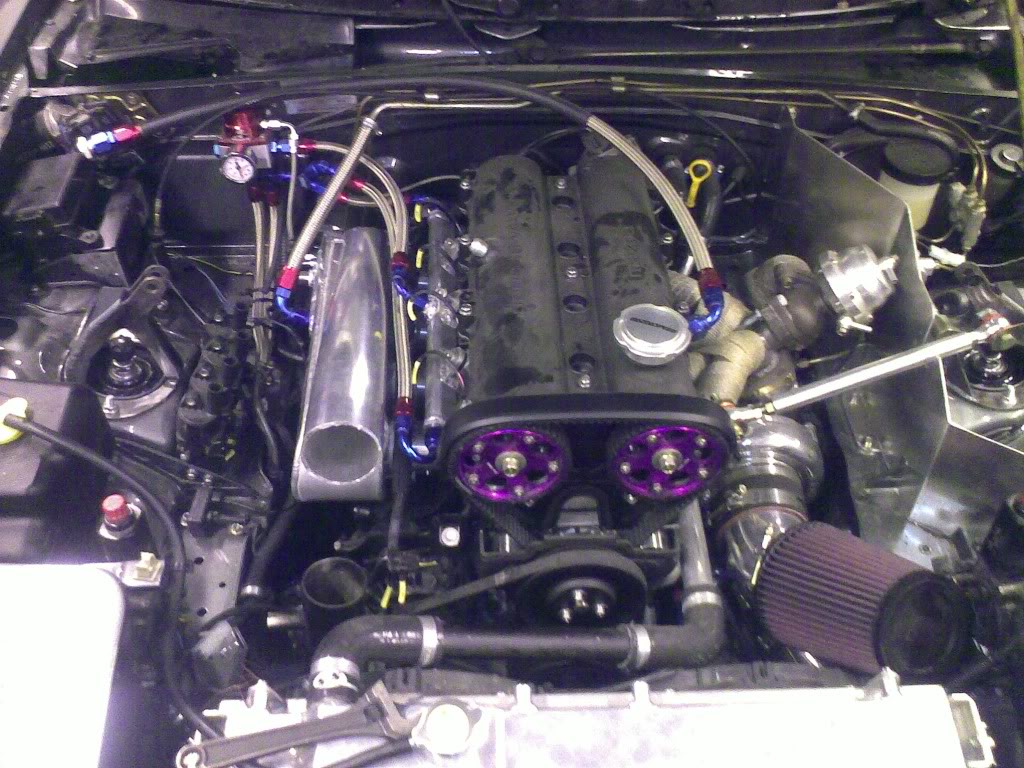

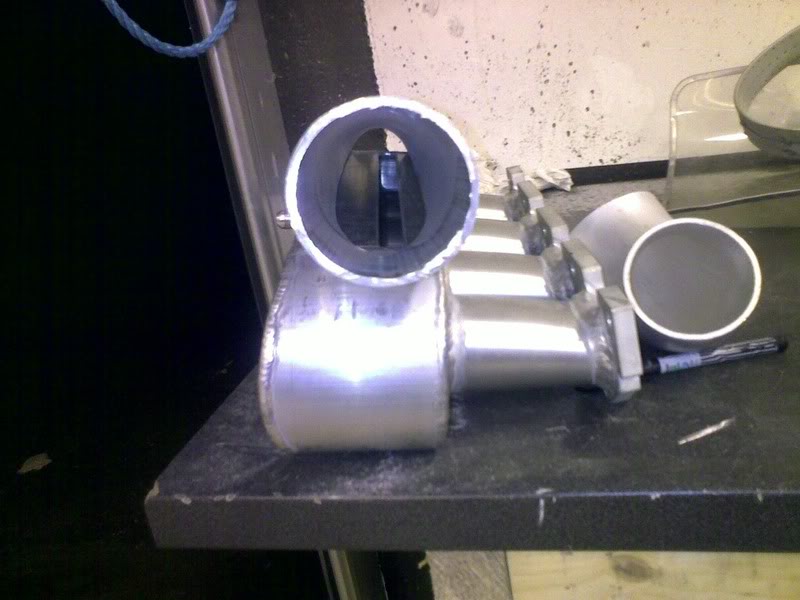

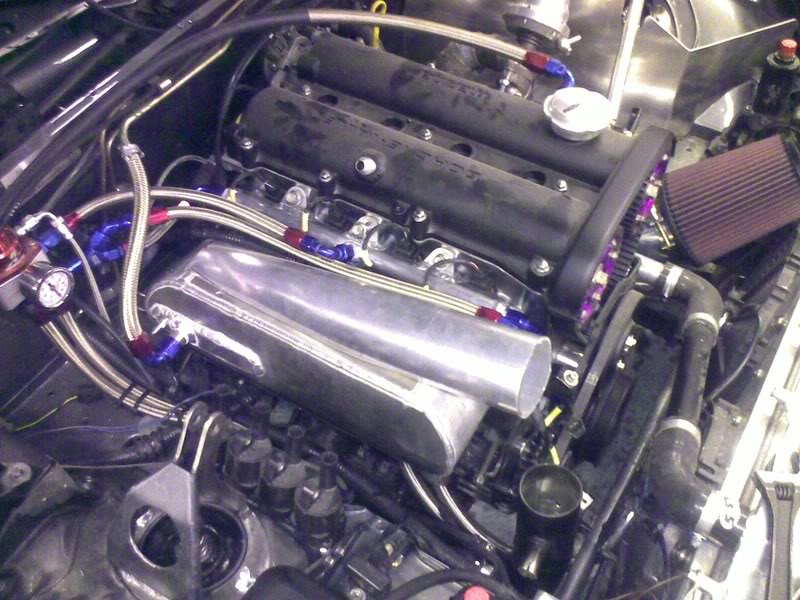

hey guys.. additional pics of the manifold build..

Name:  22052009163.jpg
Views: 90
Size:  128.1 KB

Name:  22052009162.jpg
Views: 94
Size:  62.1 KB

Name:  22052009166.jpg
Views: 88
Size:  122.8 KB

Name:  22052009165.jpg
Views: 87
Size:  185.6 KB

not finished yet, but in a couple of days, it might be..
enjoy
hf-mx5t is offline   Reply With Quote
Old 05-23-2009, 05:30 AM   #89
I'm Miserable!
iTrader: (2)

Join Date: Apr 2008
Location: monroe CT
Posts: 463
Total Cats: 0
Default

holy bats batman would you look at that lol here is what and friend and me are working on for my miata

1990miata1.6 is offline   Reply With Quote
Old 05-23-2009, 10:48 AM   #90
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

were are you going to get those velocity stacks?
Reverend Greg is offline   Reply With Quote
Old 05-23-2009, 10:51 AM   #91
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by hf-mx5t View Post
hey guys.. additional pics of the manifold build..









not finished yet, but in a couple of days, it might be..
enjoy
That thing is wild looking ,I hope it works how you want.
Reverend Greg is offline   Reply With Quote
Old 05-23-2009, 02:42 PM   #92
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Quote:
Originally Posted by Reverend Greg View Post
were are you going to get those velocity stacks?
They look familiar, don't they .



These were designed by me and made by 'Reverend Greg' on a cnc lathe.

Here is what they look like inside the manifold I've been working on for my Protege.



--Ferdi
ftjandra is offline   Reply With Quote
Old 05-23-2009, 02:45 PM   #93
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Helll yas they do
Reverend Greg is offline   Reply With Quote
Old 05-23-2009, 03:09 PM   #94
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Very nice! Glad to see some people undertaking this project!
thagr81 us is offline   Reply With Quote
Old 05-23-2009, 04:11 PM   #95
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

And you guys Thought we were just a bunch of 10 yr. Olds on their daddys computer.But seriously I hope all of these builds work out for their respective fabricators.
Iam working on my entire Intake and exhaust tract as one unit at the same time.Not the most efficient way to get it done,but hopefully it will pay off when I stomp on the Long pedal.Thanx Everyone.
-G-

Last edited by Reverend Greg; 05-24-2009 at 12:42 AM. Reason: Spelling
Reverend Greg is offline   Reply With Quote
Old 05-23-2009, 04:43 PM   #96
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

We should totally start an exhaust manifold fabrication thread... As stated, best of luck to everyone with their builds. I will post results of my build when I find time to build it as work has me TOTALLY bogged down right now. Plus most of my 'free-time' goes into parting out my Miata in prep for track duty.
thagr81 us is offline   Reply With Quote
Old 05-23-2009, 05:19 PM   #97
I'm Miserable!
iTrader: (2)

Join Date: Apr 2008
Location: monroe CT
Posts: 463
Total Cats: 0
Default

Quote:
Originally Posted by ftjandra View Post
They look familiar, don't they .



These were designed by me and made by 'Reverend Greg' on a cnc lathe.

Here is what they look like inside the manifold I've been working on for my Protege.



--Ferdi
hmm those velocity stacks i have seen them some were before lol
1990miata1.6 is offline   Reply With Quote
Old 05-23-2009, 09:01 PM   #98
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

nice ftjandra any custom parts are always fun seeing in this world of bolt on parts

reverend greg.. yeah, hope it works ok.. but im pretty sure it will. we have buildt several of these manifolds(same design) for high power (520whp etc) saab engines etc.. And my old manifold was almost the same design.

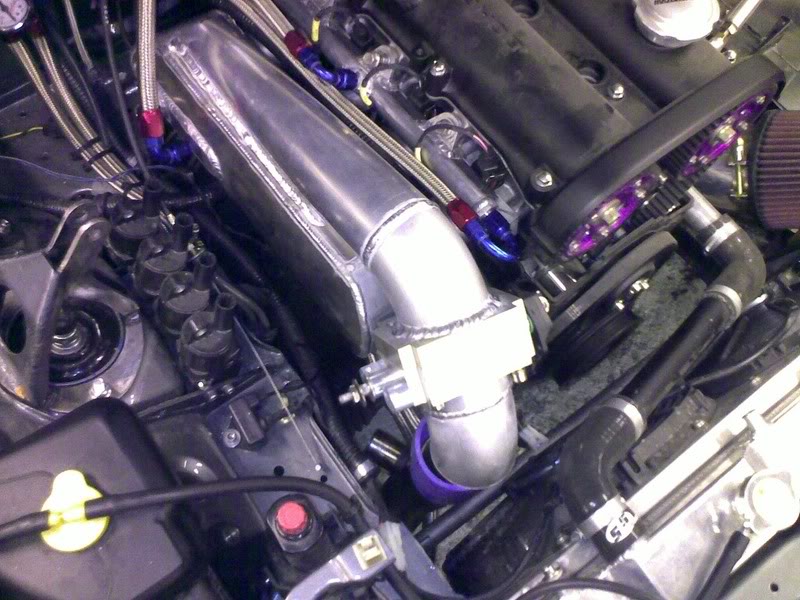

did some more work today..

Name:  23052009170.jpg
Views: 87
Size:  113.4 KB
hf-mx5t is offline   Reply With Quote
Old 05-23-2009, 09:25 PM   #99
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Looks great! I need a manifold so bad....
jtothawhat is offline   Reply With Quote
Old 05-24-2009, 12:50 AM   #100
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

hf-mx5t: ftjandra and I were having a conversation last night,on how I can often be misunderstood.I think what I intended to say was:I'm very interested in The concept by which you have fabricated your IM and hope that its performance exceds your expectations.Introducing the boost charge in the manner you are is, upon first glance,going to insure even and smooth air flow into the runners.Sorry,I'am commonly misunderstood.
-G-
Reverend Greg is offline   Reply With Quote
