Old 05-14-2009, 10:39 AM   #61
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Just go weld a tennis ball can to the factory runners and you have a new manifold.
Saml01 is offline   Reply With Quote
Old 05-14-2009, 11:54 AM   #62
Newb

Join Date: Aug 2008
Posts: 11
Total Cats: 0
Default

Finally found pic of almoust finished product. Its quite rare but far as i know it works
Attached Thumbnails
Intake Manifold Design Question-evowrc4.jpg
Junez is offline   Reply With Quote
Old 05-14-2009, 12:28 PM   #63
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Quote:
Originally Posted by Junez View Post
Finally found pic of almoust finished product. Its quite rare but far as i know it works
So this is a dual-plenum plenum?
TurboTim is offline   Reply With Quote
Old 05-14-2009, 01:24 PM   #64
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by TurboTim View Post
So this is a dual-plenum plenum?
Looks that way with a slot down the whole length. I guess in theory it would be like an air curtain flowing downwards more evenly than blowing past #1
Stein is offline   Reply With Quote
Old 05-14-2009, 01:32 PM   #65
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Hmm. That's interesting.
TurboTim is offline   Reply With Quote
Old 05-14-2009, 01:48 PM   #66
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Never seen that before... Thanks for sharing your find. Looks like it would take up quite a bit of space, but should distribute air more evenly across all cylinders.
thagr81 us is offline   Reply With Quote
Old 05-14-2009, 02:20 PM   #67
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

That thing looks massive... But I like it! I really would like to change the stock manifold on my car eventually.
FRT_Fun is offline   Reply With Quote
Old 05-14-2009, 02:29 PM   #68
Newb

Join Date: Aug 2008
Posts: 11
Total Cats: 0
Default

I know one miata running whit that kinda plenum. I told him to come and tell his opinion about it
Junez is offline   Reply With Quote
Old 05-14-2009, 02:32 PM   #69
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

That would be cool to have an opinion with real-world experience on that design instead of guessing how it works.
thagr81 us is offline   Reply With Quote
Old 05-14-2009, 02:37 PM   #70
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

thats my inlet.. its the second one we build for the miata using that layout..
the design originates from grB rally etc.. very nice flow, very even distrubution of air.. and quite compact..

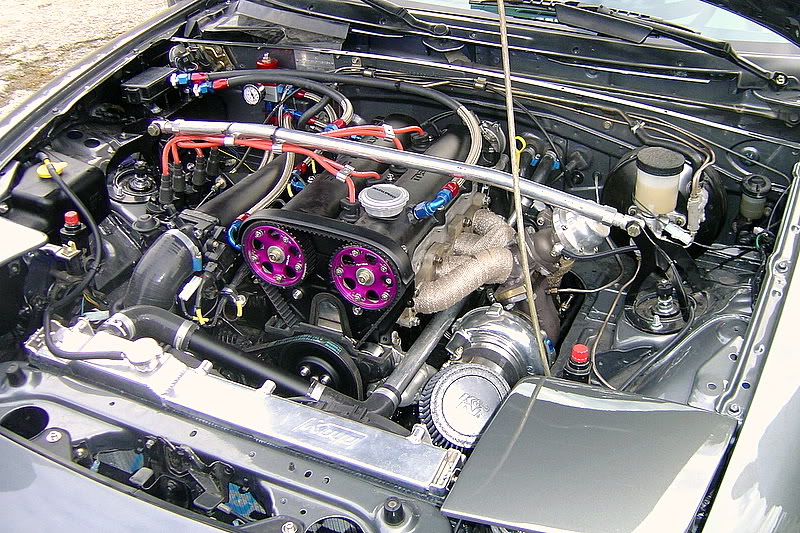

here's a pic of the setup with the old manifold.. same idea, just not as nice finish, and a smaller stock throttlebody instead of the 70mm ..

Name:  DSC05815.jpg
Views: 143
Size:  192.1 KB

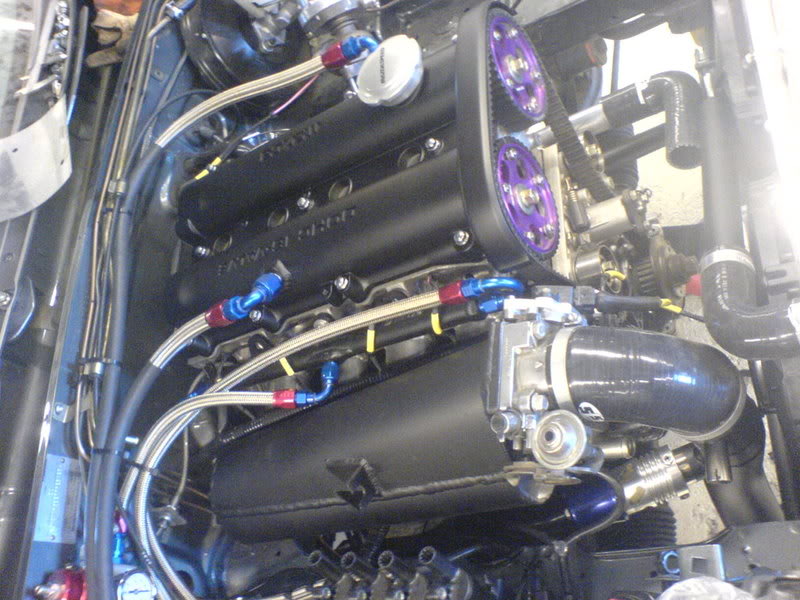

Name:  DSC00961.jpg
Views: 131
Size:  97.9 KB

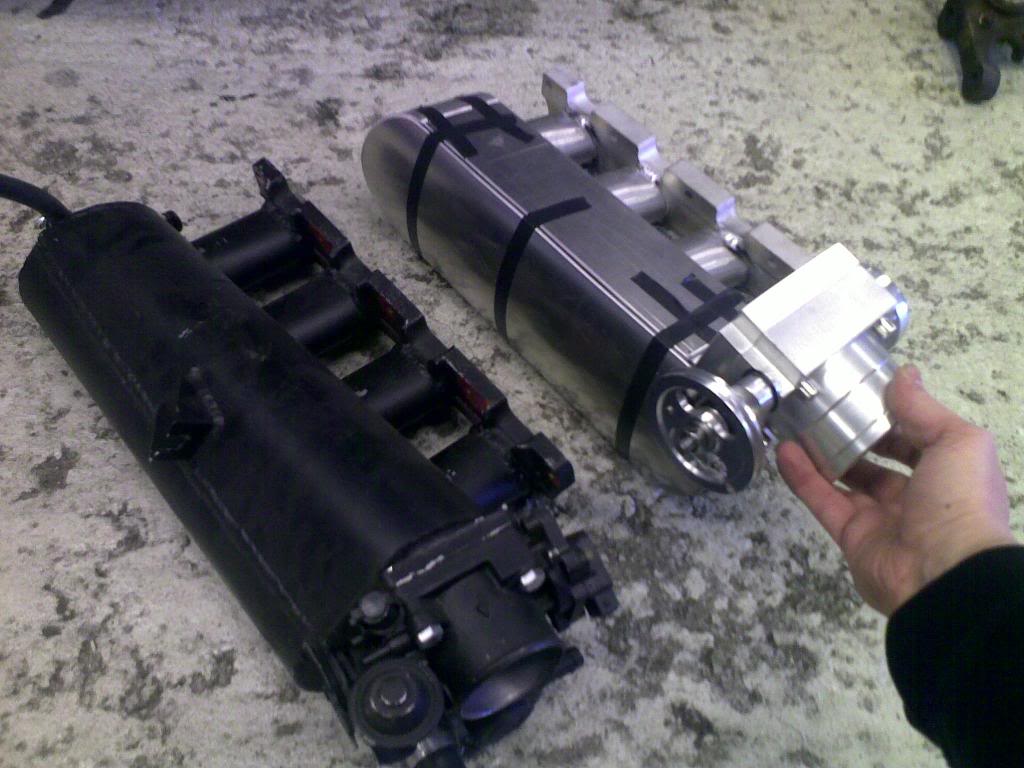

comparison of new/old

Name:  25042009113.jpg
Views: 255
Size:  96.9 KB

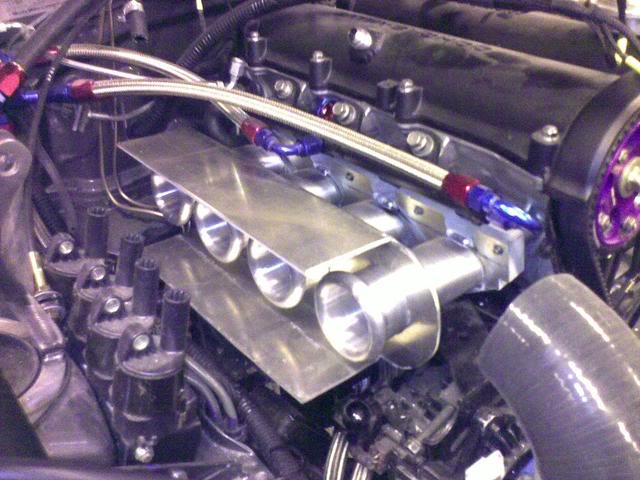

inside of the new manifold..

Name:  09042009087.jpg
Views: 134
Size:  54.8 KB



lenghts , volume etc etc, have been calculated for my setup, turbosize, cams +++ .. ive had help dooing this.. worked great on the last one.. should work this time too..
hf-mx5t is offline   Reply With Quote
Old 05-14-2009, 02:45 PM   #71
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

hf - Do you happen to have any more pics of your setup? I'm going to be converting to a bottom mount manifold similar to yours and trying to lay it all out in my head. I'm also running a T3/T4 with a Tial. A few pics would certainly help me. You can pm me if you would rather just send them to an email addy.

Looking damn good btw!

-Michael
TheBandit is offline   Reply With Quote
Old 05-14-2009, 02:49 PM   #72
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Oh wow!!! Any additional pics of the new intake manifold? That is sex!!! Also, what did you use to calculate the needed volume and such? Thanks for joining in the discussion!
thagr81 us is offline   Reply With Quote
Old 05-14-2009, 02:55 PM   #73
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

short speclist.. (added a few more pics in the previous post)

1883cc , miataroadster billet oilpump, fully balanced lower end, carrillo rods, wiseco pistons, fully ported++ head, maruha motors cams, HF design coolant reroute, homemade 321 ss exhaust manifold, 3" exhaust, gt3076r turbo, twin 25row oil coolers and the custom inlet..
all controlled by a autronic sm4 ecu, running chevy LS2 coils for spark. car is buildt as a trackday monster, but is still streetable, kinda..

lots and lots of other mods on the car.

Name:  e0c49a68.jpg
Views: 132
Size:  45.7 KB

Name:  Autoslalom181008171.jpg
Views: 131
Size:  67.4 KB



hope you guys like it
hf-mx5t is offline   Reply With Quote
Old 05-14-2009, 03:39 PM   #74
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Do you happen to have more of the exhaust manifold side of things?

Thanks

Michael
TheBandit is offline   Reply With Quote
Old 05-14-2009, 03:42 PM   #75
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Wow... freaking wow. That looks great!
FRT_Fun is offline   Reply With Quote
Old 05-14-2009, 03:44 PM   #76
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by hf-mx5t View Post





hope you guys like it
Sorry for off topic, but where did you get that trunk lip spoiler??
elesjuan is offline   Reply With Quote
Old 05-14-2009, 03:55 PM   #77
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Looks nice... Any additional pics of the intake mani? Also another off topic, what kinda power are you laying down with the GT3076R?
thagr81 us is offline   Reply With Quote
Old 05-14-2009, 04:24 PM   #78
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

That is one NICE Miata.

If you care to stick around here the expertise put into your build would be appreciated.
gospeed81 is offline   Reply With Quote
Old 05-14-2009, 08:14 PM   #79
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Quote:
Originally Posted by hf-mx5t View Post
short speclist.. (added a few more pics in the previous post)

1883cc , miataroadster billet oilpump, fully balanced lower end, carrillo rods, wiseco pistons, fully ported++ head, maruha motors cams, HF design coolant reroute, homemade 321 ss exhaust manifold, 3" exhaust, gt3076r turbo, twin 25row oil coolers and the custom inlet..
all controlled by a autronic sm4 ecu, running chevy LS2 coils for spark. car is buildt as a trackday monster, but is still streetable, kinda..

lots and lots of other mods on the car.







hope you guys like it



very nice manifold, i like the design, my next one may be similar, your engine setup is not far off from mine, i think i have more head work, im running a gt3071r, integral cams R3 in and R1 ex,
ctdrftna is offline   Reply With Quote
Old 05-14-2009, 08:23 PM   #80
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by hf-mx5t View Post
thats my inlet.. its the second one we build for the miata using that layout..
the design originates from grB rally etc.. very nice flow, very even distrubution of air.. and quite compact..

here's a pic of the setup with the old manifold.. same idea, just not as nice finish, and a smaller stock throttlebody instead of the 70mm ..




NICE!! Along with everyone else I would love to hear as much as possible about your set-up!
Cspence is offline   Reply With Quote
