DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 07-06-2009, 01:47 AM   #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default intake manifold installed

Name:  miata_turbo_.jpg
Views: 1
Size:  53.8 KB
HKSturboMiata is offline   Reply With Quote
Old 07-06-2009, 02:13 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

looks nice. any more pics of it?
18psi is offline   Reply With Quote
Old 07-06-2009, 02:35 AM   #3
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Which IM is that? And is that a chinacharger t28?
zoomin is offline   Reply With Quote
Old 07-06-2009, 02:42 AM   #4
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Looks good, did you make it?

You'll want to protect the surrounding hoses and whatnot from your stainless feed line.
kotomile is offline   Reply With Quote
Old 07-06-2009, 03:23 AM   #5
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Come on man, more info.
Is that the new BEGi piece?
Where did you get it, how much, driving impressions, ease of install... tell us something!
samnavy is offline   Reply With Quote
Old 07-06-2009, 06:20 AM   #6
Junior Member
iTrader: (7)

Join Date: Nov 2006
Location: Makakilo
Posts: 444
Total Cats: 0
Default

I thought intake manifolds are only useful in the 275+ hp range.
r808 is offline   Reply With Quote
Old 07-06-2009, 10:05 AM   #7
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

This thread fails.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 07-06-2009, 10:05 AM   #8
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Judging by the welds and pieces, its the BEGI one. Did they fix the fuel rail issue on yours? Are your injectors sealing okay?

Can you take a closer shot of your fuel rail mounts on the IM?
Newbsauce is offline   Reply With Quote
Old 07-06-2009, 11:03 AM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

HAHAH, ok. It is the BEGI one but we had to get alot of work done to it before we could install it, as it was a test manifold from BEGI and needed additional finishing work. We also installed Pistons, and Rods and were just shy of 300hp to the wheels at 21psi. From the previous dyno sheet I posted, we only changed manifold, pistons and rods. HA only...
HKSturboMiata is offline   Reply With Quote
Old 07-06-2009, 11:13 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

he posts plots or it didn't happen.
Braineack is offline   Reply With Quote
Old 07-06-2009, 11:19 AM   #11
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Quote:
Originally Posted by HKSturboMiata View Post
HAHAH, ok. It is the BEGI one but we had to get alot of work done to it before we could install it, as it was a test manifold from BEGI and needed additional finishing work. We also installed Pistons, and Rods and were just shy of 300hp to the wheels at 21psi. From the previous dyno sheet I posted, we only changed manifold, pistons and rods. HA only...

Could you possibly elaborate on the work done to it before installing it? Are you experiencing vacuum leaks in the fuel bungs? were the fuel rail mounting points spaced improperly?
Newbsauce is offline   Reply With Quote
Old 07-06-2009, 01:50 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

1. Both the throttle body and the intake manifold runner plate had to be milled flat, eighth of an inch.

2. Epoxy filler had to be used in order to raise the runners to match the head ports.

3. Throttle body and Intake runners needed to be ported and matched.

At a cost of $260
But you have to understand this product was shipped to me as a prototype and I believe BEGi intend to make their finished product of much higher quality. So far the car is running strong.
HKSturboMiata is offline   Reply With Quote
Old 07-06-2009, 01:55 PM   #13
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Quote:
Originally Posted by HKSturboMiata View Post
1. Both the throttle body and the intake manifold runner plate had to be milled flat, eighth of an inch.

2. Epoxy filler had to be used in order to raise the runners to match the head ports.

3. Throttle body and Intake runners needed to be ported and matched.

At a cost of $260
But you have to understand this product was shipped to me as a prototype and I believe BEGi intend to make their finished product of much higher quality. So far the car is running strong.
Yes, I'm aware its a prototype, as I have the same one installed on my car. I am just curious if you are running into the same issues I did, and if they actually corrected them.



I had fitment issues with the fuel rail, as well as the injector bungs. What was your reasoning for retaining the 55mm TB?
Newbsauce is offline   Reply With Quote
Old 07-06-2009, 02:09 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

No fuel rail or injector bung problems so far. I have the TT fuel rail and had problems with this rail before I installed the manifold but none since installing new manifold. As far as the throttle body goes I did not want to spend any additional money on it right now. I am ordering larger Injectors so I will prob swap it out then.
HKSturboMiata is offline   Reply With Quote
Old 07-07-2009, 10:28 PM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

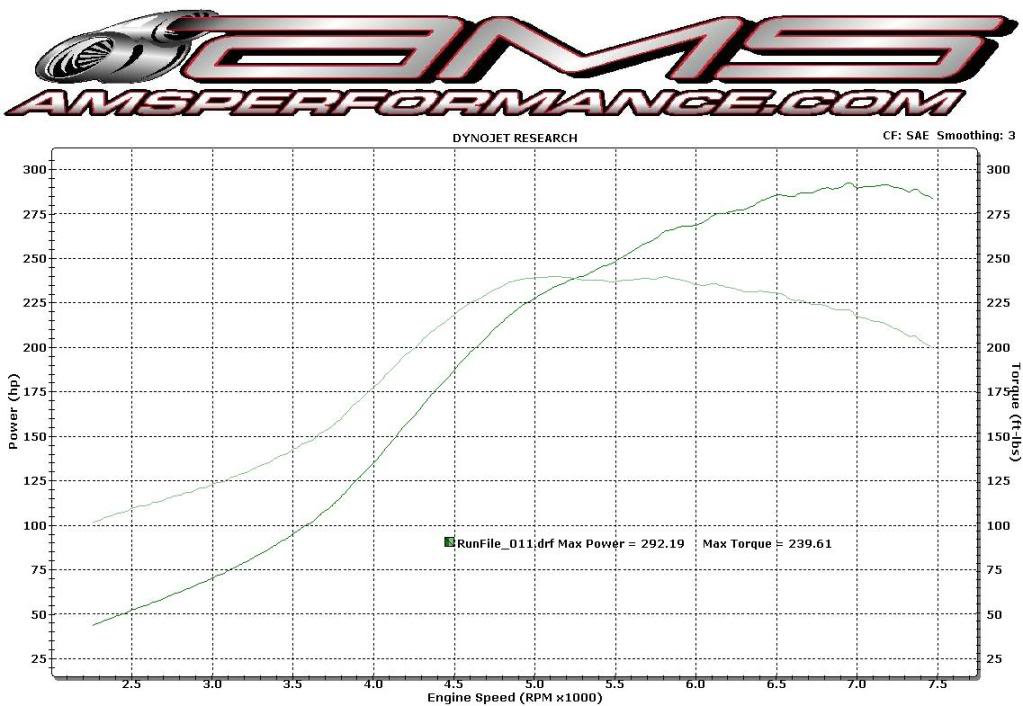

Dyno sheet.

Name:  Miata-dynochart.jpg
Views: 1
Size:  112.8 KB
HKSturboMiata is offline   Reply With Quote
Old 07-07-2009, 10:45 PM   #16
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Whoa brother you're near St Charles?! We deff should go for a cruse, two 300+ whp (well your close enough) Miata's can cause some trouble...


Did you have to re-tune much for the intake manifold swap?

Jason
jtothawhat is offline   Reply With Quote
Old 07-08-2009, 02:58 PM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

Quote:
Originally Posted by zoomin View Post
Which IM is that? And is that a chinacharger t28?
No.
HKSturboMiata is offline   Reply With Quote
Old 07-09-2009, 12:24 AM   #18
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Awesome power!
dustinb is offline   Reply With Quote
