Default Intercooler ?

hey guys , Out of curiosity I stumbled across this ic for 140 bucks....looks alot like a evo intercooler...do you think I could work it...lol maybe !

http://www.orlandoforums.com/forum/s...ad.php?t=49853

RicanmiataRacer is offline   Reply With Quote
Old 12-31-2006, 07:25 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

go with an intercooler off ebay...that's pretty larger and more expensive than ones off there.
Braineack is offline   Reply With Quote
Old 12-31-2006, 07:28 PM   #3
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

lol probly be a waste for 8 psi pf boost
RicanmiataRacer is offline   Reply With Quote
Old 12-31-2006, 07:30 PM   #4
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Quote:
Originally Posted by braineack View Post
go with an intercooler off ebay...that's pretty larger and more expensive than ones off there.
lol I still have the original saab ic.

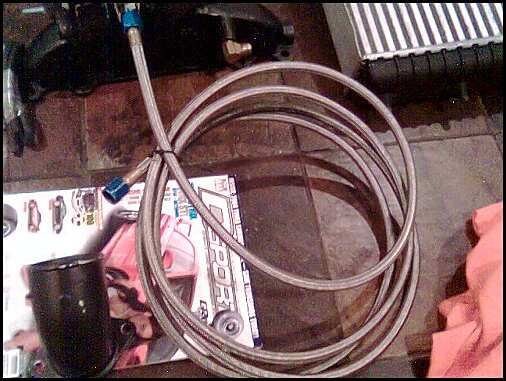

I believe my oil drain is a lil too long lol....Have all these parts , no tools to do the work

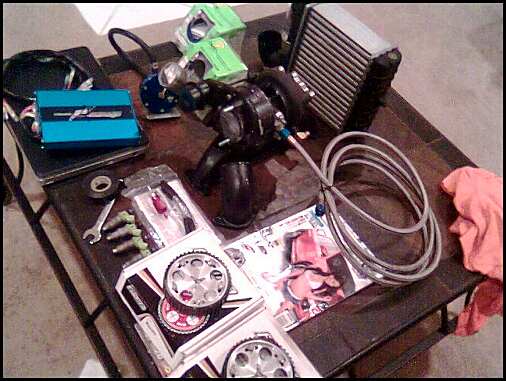

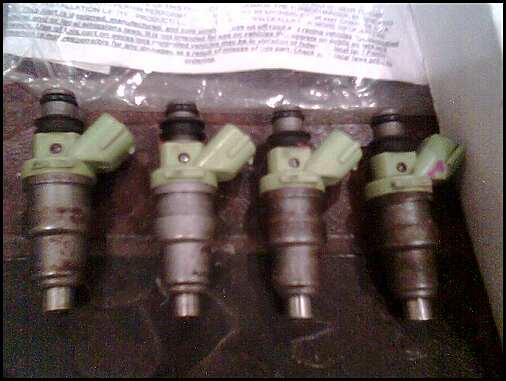

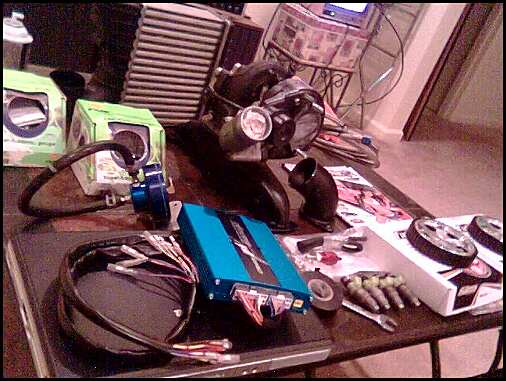

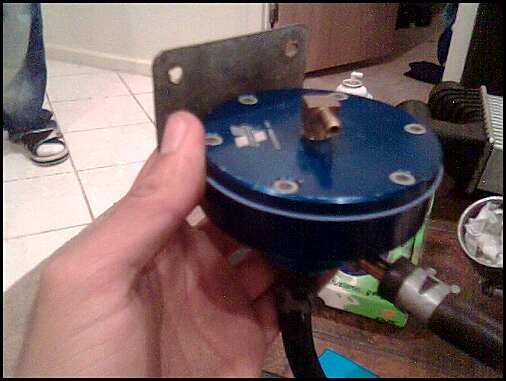

Attached Thumbnails
Intercooler ?-12-1-fmu.jpg   Intercooler ?-injecters.jpg   Intercooler ?-oil-return.jpg   Intercooler ?-parts-1.jpg   Intercooler ?-parts-2.jpg

RicanmiataRacer is offline   Reply With Quote
Old 12-31-2006, 07:33 PM   #5
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Jeese depressing

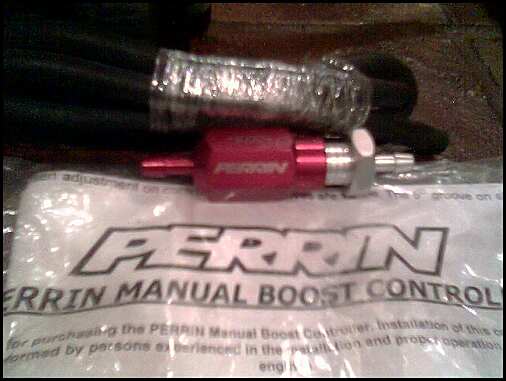

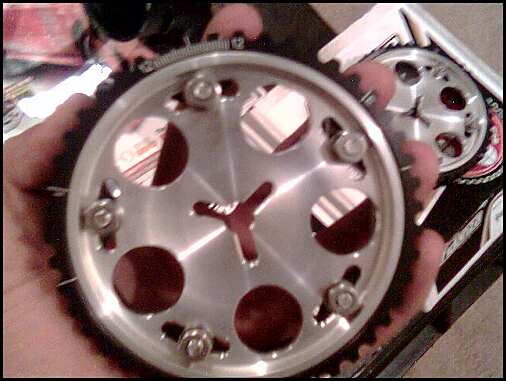

Attached Thumbnails
Intercooler ?-parts-3.jpg   Intercooler ?-parts-4.jpg
RicanmiataRacer is offline   Reply With Quote
Old 12-31-2006, 07:38 PM   #6
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

I still need to take the exhaust housing to a machine shop to have 3 studs removed ....bUt **** keeps poping up that involves money so its hard to get anything done for now
RicanmiataRacer is offline   Reply With Quote
Old 12-31-2006, 08:13 PM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You could take the studs out yourself using two nuts and the jam nut method if you wanted. Clamp the housing in a vise, thread a nut about half way on the stud, then tighten another stud onto the stud upagainst that nut then a wrench on the lower nut and break that stud free. Use some PB blaster on that stud though for a little while before hand and possibly while.
cjernigan is offline   Reply With Quote
Old 01-01-2007, 06:09 PM   #8
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

**** I wish I knew what that was.....any visual I could go off of by chance...lol
RicanmiataRacer is offline   Reply With Quote
Old 01-01-2007, 06:46 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default


just like that, except without the crazy crescent wrench
cjernigan is offline   Reply With Quote
Old 01-01-2007, 07:09 PM   #10
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

^^word, just soak that **** in wd or pb for awhile first.
dc2696 is offline   Reply With Quote
Old 01-01-2007, 07:56 PM   #11
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

thanks guys , I will put that to work when I get home, A hammer should help get loose the studs after hitting with wd40....should be intreasting considering i DOnt have a vice :(
RicanmiataRacer is offline   Reply With Quote
Old 01-01-2007, 08:37 PM   #12
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

try using PB blaster its 100X better than wd40 for getting into things.
miatamania is offline   Reply With Quote
Old 01-01-2007, 09:17 PM   #13
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by miatamania View Post
try using PB blaster its 100X better than wd40 for getting into things.
BAH!
dc2696 is offline   Reply With Quote
Old 01-01-2007, 09:37 PM   #14
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

WD 40 is ******* worthless for trying to free something that is rusted.

PB Blast that bitch.
Kelly is offline   Reply With Quote
Old 01-01-2007, 10:19 PM   #15
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

you need heat... I soaked mine in pb blaster for several days and still broke a few studs off using that method. Add heat (map gas torch) and they'll come right out.
Arkmage is offline   Reply With Quote
Old 01-01-2007, 11:44 PM   #16
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Dude you shouldn't need a hammer. Take you time and don't force anything. If you shear off any of the studs flush with the manifold you'll be focked.

Jay
jayc72 is offline   Reply With Quote
Old 01-01-2007, 11:52 PM   #17
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

If you don't have a torch, you can put it in the freezer. It's not the heat (or cold) that will bust the stud loose, it's the fact that different materials expand (or contract) at different rates.
Ben is offline   Reply With Quote
Old 01-02-2007, 12:03 AM   #18
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by Ben View Post
If you don't have a torch, you can put it in the freezer. It's not the heat (or cold) that will bust the stud loose, it's the fact that different materials expand (or contract) at different rates.
hmm so it IS the heat(cold) that does it.:gay:
dc2696 is offline   Reply With Quote
Old 01-02-2007, 06:03 PM   #19
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

well I managed to free one stud using the nut jam technique....I tried it on the second stud that was pertruding from the exaust housing but no luck with that.....the stud was stripped of its threading....well I guess im going to a machine shop for the two remaining studs
RicanmiataRacer is offline   Reply With Quote
Old 01-02-2007, 08:18 PM   #20
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

still try the pb blaster, even if it doesnt work its great to have handy.

made short work of my exhaust, and rusted cat bolts.
VRTSid is offline   Reply With Quote
