Default Intercooler help

I am trying to mount the intercooler on my 2001 miata. I have a bunch of A/C crap right against the radiator on the right side so mounting the intercooler flush or close to the radiator isnt an option (unless i want to pull the a/c). My intercooler is also on the big side at 26x6x3. What have other nb owners done to mount intercoolers ? I am thinking of pulling the tow hook things out and mounting something between them but it seems like a pain.
Any help would be great, i would like to get this stage of the project done with and get on to stuff thats a little more fun.
SUPERAnimal is offline   Reply With Quote
Old 01-28-2007, 10:00 PM   #2
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Those towhooks are affectionately known as "baby teeth". No respectable Miata owner keeps them. Take them off and toss them.

There's there's really no reason to insist upon mounting the intercooler flush against the radiator. A couple inches in front won't affect performance in the least. You should have no problem finding room in there.

Mine is a '93, but yours can't be that much different. I fabricated a mount with a piece of aluminum stock and some threaded rods. The rods go through two holes I drilled in the brace on either side of the hood latch, and the ends of the stock attach where the short rods that stabilize the end of the bumper lip go.
https://www.miataturbo.net/forums/sh...&postcount=185
samnavy is offline   Reply With Quote
Old 01-28-2007, 10:28 PM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

wow I totally have intercooler envy. very nice Sam!
Ben is offline   Reply With Quote
Old 01-28-2007, 10:59 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by samnavy View Post
No respectable Miata owner keeps them. Take them off and toss them.
Braineack is offline   Reply With Quote
Old 01-28-2007, 11:01 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

If you can't fit the thing centered, try mounting it off-center such as FM does to move to away from the A/C Dryer.
Braineack is offline   Reply With Quote
Old 01-28-2007, 11:06 PM   #6
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

If it doesn't fit, it's too big! People go way overkill on their coolers, if you ask me.
Atlanta93LE is offline   Reply With Quote
Old 01-28-2007, 11:07 PM   #7
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Those towhooks are affectionately known as "baby teeth". No respectable Miata owner keeps them. Take them off and toss them.
You mean no respecting miata.netter keeps them.

I've got mine still on the car.
jayc72 is offline   Reply With Quote
Old 01-29-2007, 12:17 AM   #8
Junior Member

Join Date: Dec 2006
Posts: 85
Total Cats: 0
Default

Quote:
Originally Posted by jayc72 View Post
You mean no respecting miata.netter keeps them.

I've got mine still on the car.
t25miata is offline   Reply With Quote
Old 01-29-2007, 12:19 AM   #9
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

And I thought all along I was in the presence of "greatness"... well, maybe "really goodness" is closer. I'll forgive you baby-teeth keepers for now... but don't let me near your car with a crescent wrench or I may not be able to help myself.

Atlanta is right... we overkill our IC's around here, but it sure is nice to fill up the entire grill.
samnavy is offline   Reply With Quote
Old 01-29-2007, 12:31 AM   #10
Junior Member

Join Date: Dec 2006
Posts: 85
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
Atlanta is right... we overkill our IC's around here, but it sure is nice to fill up the entire grill.

It looks good, but it was almost 100* here the other day and I was overheating like a biatch with no airflow through there!

60AGS
t25miata is offline   Reply With Quote
Old 01-29-2007, 12:42 AM   #11
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

100*? January? Not in the US?
Atlanta93LE is offline   Reply With Quote
Old 01-29-2007, 12:45 AM   #12
Junior Member

Join Date: Dec 2006
Posts: 85
Total Cats: 0
Default

Nope... Wrong hemisphere.
t25miata is offline   Reply With Quote
Old 01-29-2007, 12:47 AM   #13
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Damn. You had me thinking about moving
Atlanta93LE is offline   Reply With Quote
Old 01-29-2007, 12:49 AM   #14
Junior Member

Join Date: Jul 2006
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
If you can't fit the thing centered, try mounting it off-center such as FM does to move to away from the A/C Dryer.
Don't think that is his problem. The IC is 26" wide.
retro is offline   Reply With Quote
Old 01-29-2007, 01:12 AM   #15
Junior Member

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
Those towhooks are affectionately known as "baby teeth". No respectable Miata owner keeps them. Take them off and toss them.

sorry to disagree with this guy but don't toss them, these hooks saved my car when a BMW cut me off on the highway once. My car started fishtailing and I hit a wall at 80mph... guess what, no damage to the car other than a scrape on the bumper and a bit of misalignment on the hood...

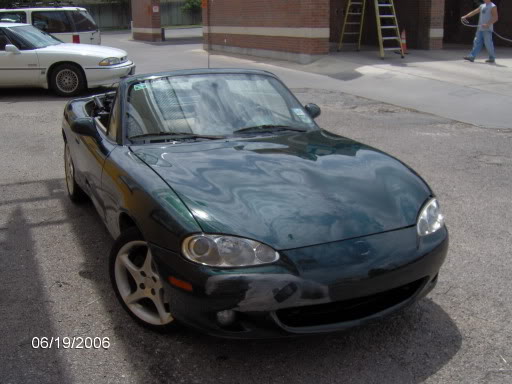

Name:  kabukiatthetrack011.jpg
Views: 2
Size:  39.5 KB

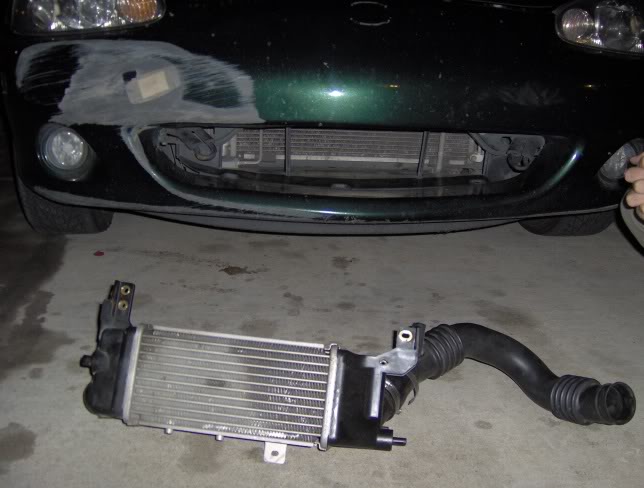

Name:  fiberglassphotoshoot006.jpg
Views: 2
Size:  46.1 KB

heh heh, i put some neosporin on
the bumper, lol...

oh yeah, this is my old 01 NB...
no longer own it, sold it and bought
an NA...
Mouglie is offline   Reply With Quote
Old 01-29-2007, 03:51 AM   #16
Newb
Thread Starter

Join Date: Nov 2006
Location: Anchorage, Alaska
Posts: 33
Total Cats: 0
Default

ya i think i kinda realize at this point my intercooler is much too big but the last thing i want to do is try to return it and or purchase a new one. I'm gonna try to make this thing work. Also i see people mainly routing their intercooler lines either over the top of the radiator or down below and around the radiator at the bottomm; is there any reason people dont route them to the side under the headlights or atleast near them? I was looking at this earlier and it seems the simplest way to route.
SUPERAnimal is offline   Reply With Quote
Old 01-29-2007, 09:00 PM   #17
Junior Member

Join Date: Dec 2006
Posts: 85
Total Cats: 0
Default

Yeah, but you have to cut up your chassis to do that. I'd rather not.

60AGS
t25miata is offline   Reply With Quote
Old 01-29-2007, 09:22 PM   #18
Senior Member

Join Date: Mar 2005
Location: Holiday, FL
Posts: 563
Total Cats: 0
Default

I'm going to route mine behind the headlights, its honestly the easiest looking way to do it
Fritch is offline   Reply With Quote
Old 01-29-2007, 10:54 PM   #19
Newb
Thread Starter

Join Date: Nov 2006
Location: Anchorage, Alaska
Posts: 33
Total Cats: 0
Cool

yes ditto.
SUPERAnimal is offline   Reply With Quote
Old 01-30-2007, 10:54 AM   #20
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

People here don't oversize their ICs, they undersize their turbos.

Frank
