Old 09-18-2008, 01:17 AM   #21
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Just looks big. I run the same on my daily as do a bunch of others on here core is 18x12x3.

Splittime has the sick setup and definitely wins for shortest piping.
paul is offline   Reply With Quote
Old 09-18-2008, 01:22 AM   #22
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

and I'm having problems attempting to mount up an 18x6x2.5 because I refuse to ditch my A/C... :(
elesjuan is offline   Reply With Quote
Old 09-18-2008, 01:32 AM   #23
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by elesjuan View Post
and I'm having problems attempting to mount up an 18x6x2.5 because I refuse to ditch my A/C... :(
Pansie
KPLAFIN is offline   Reply With Quote
Old 09-18-2008, 01:37 AM   #24
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,791
Total Cats: 247
Default

Psh, 20x12x3 core and I have A/C. Short pipes. And I hide the IC while I was at it. Beat that.
patsmx5 is offline   Reply With Quote
Old 09-18-2008, 01:44 AM   #25
Junior Member

Join Date: May 2007
Location: Homestead Fl.
Posts: 92
Total Cats: 0
Default

have you looked into a stock srt4 intercooler? i know that theirs exits like that.
redrumracer is offline   Reply With Quote
Old 09-18-2008, 01:51 AM   #26
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,701
Total Cats: 236
Default

Why not go with a traditional FMIC, and an oil cooler in the hole you cut?

Edit: I just looked again, and that is a ridiculously huge hole you cut there. You really need to fill that whole thing with a FMIC or it will look stupid. Use one of the side vents for an oil cooler .
Fireindc is offline   Reply With Quote
Old 09-18-2008, 02:32 AM   #27
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by KPLAFIN View Post
Pansie
I don't wanna hear it.. You live in Virginia, not Kansas. Today it was sunny and 80, tomorrow it could literally snow, then Friday be 110 degrees. Thats seriously how the weather in the midwest is, and traffic here can turn into a bitch real fast. Nothing like bumper to bumper in 100 degree ambient air for a couple hours. Lest not forget about the rain; Nothing makes me happier than having to roll up the windows when its 90 degrees outside with a heavy rain storm.. Those can come out of nowhere. Hell, it rained for the last 2 weeks here. Windows fog up and you can't see ****, plus you're sweating and no air movement..

Plus I've always been a very warm blooded person and can sweat in the shade on a 90 degree day literally doing nothing. To me, Sweat == Misery.
elesjuan is offline   Reply With Quote
Old 09-18-2008, 09:58 AM   #28
Elite Member
Thread Starter
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Dude thats awesome. I might just put the larger one in and call it a day. im not to sure yet

Last edited by leatherface24; 09-18-2008 at 10:14 AM.
leatherface24 is offline   Reply With Quote
Old 09-18-2008, 10:15 AM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by elesjuan View Post
and I'm having problems attempting to mount up an 18x6x2.5 because I refuse to ditch my A/C... :(
I have the same intercooler paul has and I still have a/c....

IMG_5106Medium.jpg?t=1221743605


Leather, search keyword Rx7...I know they make something like this:



15"x10"x3.25" core
21"x10"x3.25" overall

http://cgi.ebay.com/ebaymotors/Parts...=p4506.c0.m245

with endtanks that point out the top...
Braineack is offline   Reply With Quote
Old 09-18-2008, 10:19 AM   #30
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

off center FMIC FTL. Tim too.

If I had AC I'd probably use it 3-4 times a year. Like if I'm heading to a wedding or funeral and it's hot as ***** and/or raining. I couldn't warrant keeping it. We can just take one of the other cars for that.
paul is offline   Reply With Quote
Old 09-18-2008, 10:21 AM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Leather, this would probably work:



18"x11"x3" core
24x11"x3" overall

http://cgi.ebay.com/ebaymotors/Parts...=p4506.c0.m245

same size as mine and paul's pictured....if you mount it high enough you shoudl have plenty of direct airflow to the rad through the mouth.
Braineack is offline   Reply With Quote
Old 09-18-2008, 10:24 AM   #32
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

FYI Scott....kinda did a half-way double post there.
KPLAFIN is offline   Reply With Quote
Old 09-18-2008, 10:28 AM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by paul View Post
off center FMIC FTL. Tim too.

If I had AC I'd probably use it 3-4 times a year. Like if I'm heading to a wedding or funeral and it's hot as ***** and/or raining. I couldn't warrant keeping it. We can just take one of the other cars for that.
I've used it about 5 times this summer, and I appreciated every minute of it. It's also why I painted it black, I wouldn't like a shiny offset FMIC in there, it's more or less invisable, but hey I have some direct airflow to the rad still sucker.

Quote:
Originally Posted by KPLAFIN View Post
FYI Scott....kinda did a half-way double post there.

yeah i dunno what happened there...
Braineack is offline   Reply With Quote
Old 09-18-2008, 10:36 AM   #34
Elite Member
Thread Starter
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Ive been looking at that ic as possiblity. i want to make sure that ive exhausted every possibility before i actually buy anything.
leatherface24 is offline   Reply With Quote
Old 09-18-2008, 11:31 AM   #35
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Brain more pics please, I wanna see the connections to the FMIC. I think while my car is down im gonna shove one of those in there and ditch my old Bell/FM IC.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 09-18-2008, 11:32 AM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by levnubhin View Post
Brain more pics please, I wanna see the connections to the FMIC. I think while my car is down im gonna shove one of those in there and ditch my old Bell/FM IC.
http://s46.photobucket.com/albums/f1...d/Intercooler/


the draw back is slightly slower spool, however my intake temps only see about a 10*F delta during a 4th gear pull.
Braineack is offline   Reply With Quote
Old 09-18-2008, 12:09 PM   #37
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,791
Total Cats: 247
Default

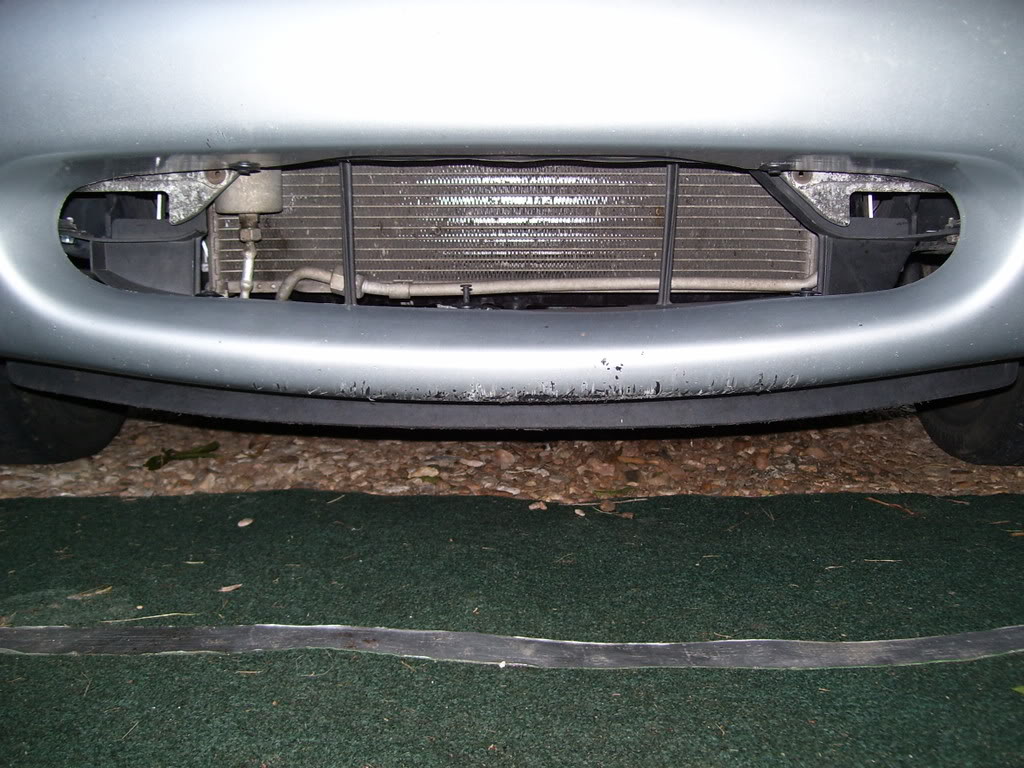

The camera flash makes the intercooler shine from behind the condenser. With flash:
Name:  FMIC11.jpg
Views: 2
Size:  154.8 KB

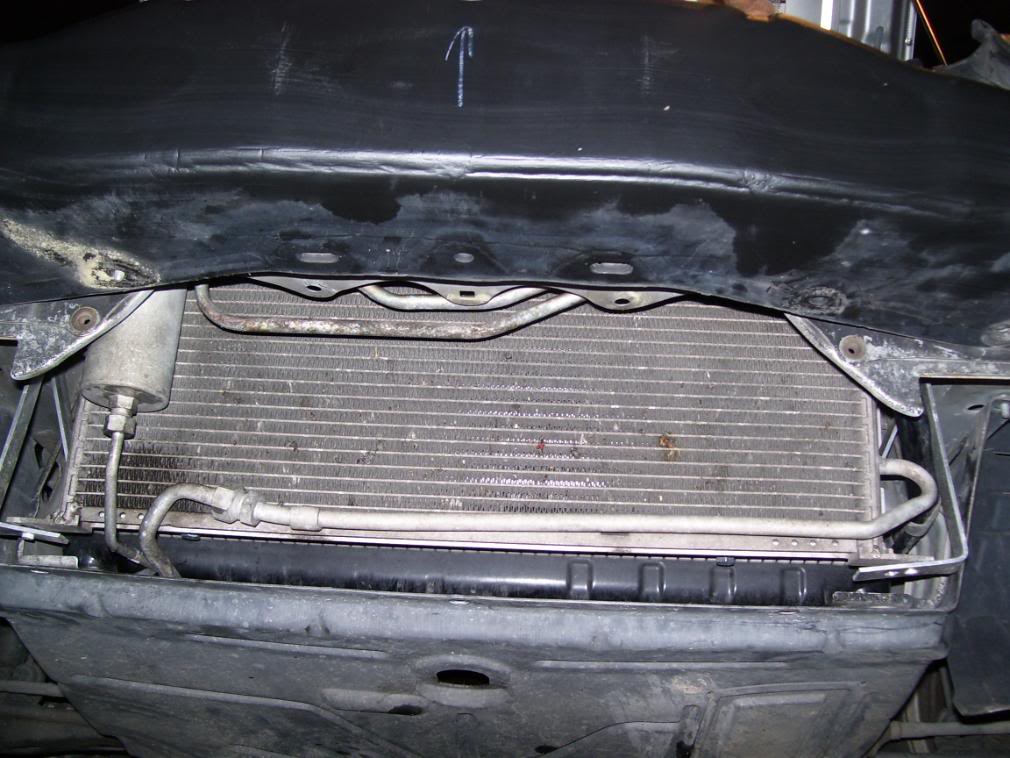

Without flash:
Name:  radiator5.jpg
Views: 2
Size:  114.0 KB

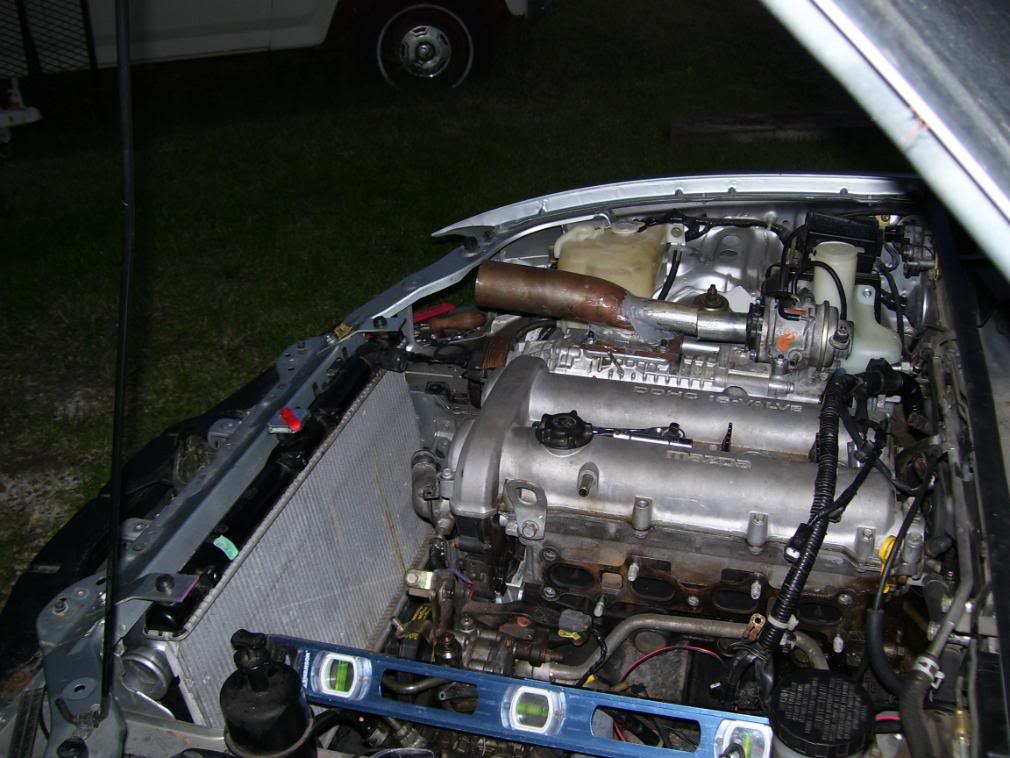

Name:  SC9.jpg
Views: 2
Size:  109.4 KB
patsmx5 is offline   Reply With Quote
Old 09-18-2008, 12:12 PM   #38
Elite Member
Thread Starter
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

thats cool^^
leatherface24 is offline   Reply With Quote
Old 09-20-2008, 07:27 PM   #39
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

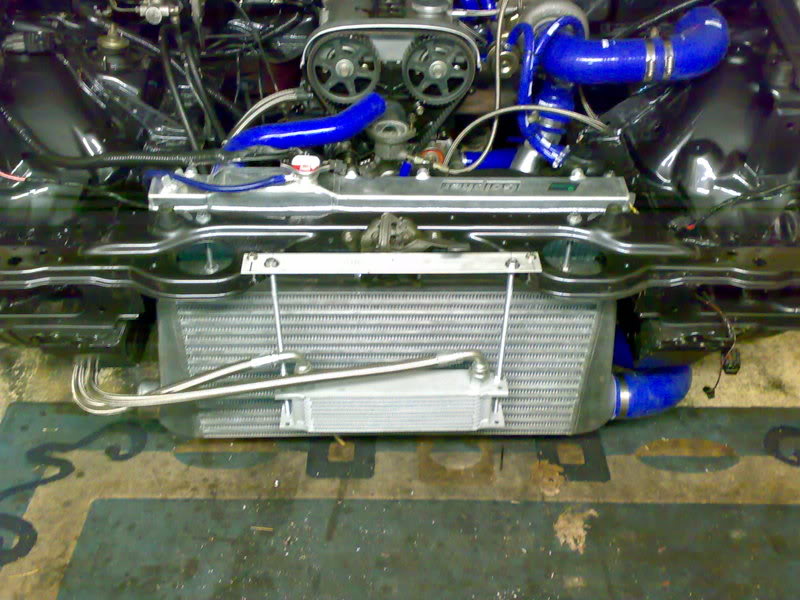

mines huge hehehe notice anything missing from the front end

Name:  28032008642.jpg
Views: 2
Size:  98.2 KB
madmalc is offline   Reply With Quote
Old 09-21-2008, 02:15 AM   #40
Elite Member
Thread Starter
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

im lovin that oil cooler set up^^^^^ I bought my intercooler yesterday. After reading lots of threads and everyones input, i decided on the 15x7.5x4. Itll fit great in that opening and allow more air to pass through the rad. Ill be making a shroud for it as well as mounting an oil cooler below like the pic above. Pics of everything will be up as i progress. Thanks guys for the help
leatherface24 is offline   Reply With Quote
