Default Intercooler piping and DIY

1. Question for the diy'ers that have the compressor outlet pointing down.

How are you guys assembling, where are you getting the pipes for the hot side?

2. If you have a T25 and have the outlet facing upwards.

How did you assemble your intercooler piping, and please post pics.

Thank You
Saml01 is offline   Reply With Quote
Old 01-15-2008, 08:28 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default







Braineack is online now   Reply With Quote
Old 01-15-2008, 10:47 PM   #3
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Sweet, just sent my turbo away to get the holes widend for larger studs and have it converted for downward output.
Saml01 is offline   Reply With Quote
Old 01-15-2008, 11:36 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Glad you grew a set and decided to clock it.
cjernigan is offline   Reply With Quote
Old 01-15-2008, 11:40 PM   #5
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Toronto, ON
Posts: 83
Total Cats: 0
Default

A few pics taken when I was tack welding my IC piping:





92MX5 is offline   Reply With Quote
Old 01-16-2008, 01:43 AM   #6
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by cjernigan View Post
Glad you grew a set and decided to clock it.
Well im not, im having my mechanic doing it. Hes also going to incorporate a new wastegate actuator, the kind that FM sells that I got for 20 bucks.
Saml01 is offline   Reply With Quote
Old 01-16-2008, 10:19 AM   #7
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

How are you guys building the pipes on both sides? ebay kit pieced together?
Saml01 is offline   Reply With Quote
Old 01-16-2008, 11:35 AM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

these might help- components are covered by most of the ebay kits. There will be some tweaking needed for your compressor exit.

m2cupcar is offline   Reply With Quote
Old 01-16-2008, 02:22 PM   #9
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

^ That Is Genius
Saml01 is offline   Reply With Quote
Old 01-16-2008, 11:22 PM   #10
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Toronto, ON
Posts: 83
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
How are you guys building the pipes on both sides? ebay kit pieced together?
I put my IC pipes together with 2 2.5" u-bends, 1 2" u-bend, one 2.25" u-bend, and one 2 to 2.25" transition. Could have built it minus the 2.25" if I had a 2.5 to 2.75" silicone transition handy, but it was easier to buy and weld another diameter pipe instead.

My layout it almost exactly the same as m2cupcar's 2nd diagram, except I welded up the transitions to the TB and compressor outlet rather than using 45 or 90 degree silicone hoses.

Jeff
92MX5 is offline   Reply With Quote
Old 01-18-2008, 12:45 AM   #11
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Saml01 View Post
Well im not, im having my mechanic doing it. Hes also going to incorporate a new wastegate actuator, the kind that FM sells that I got for 20 bucks.
My guy came through. I am stunned at how well he did it.

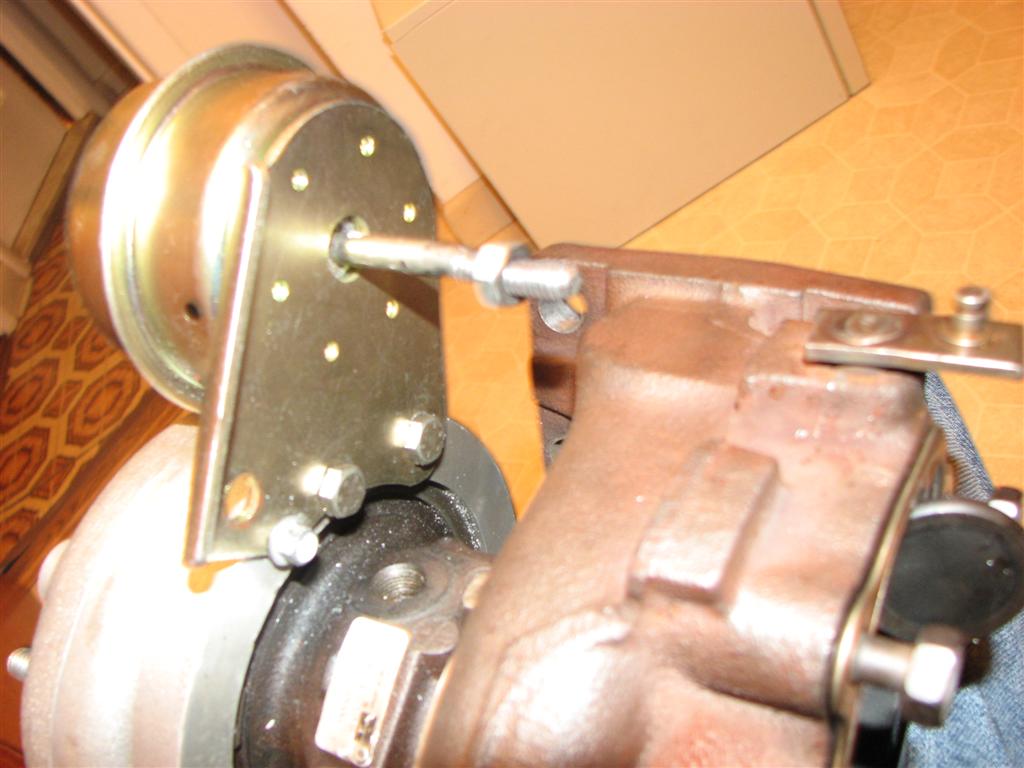

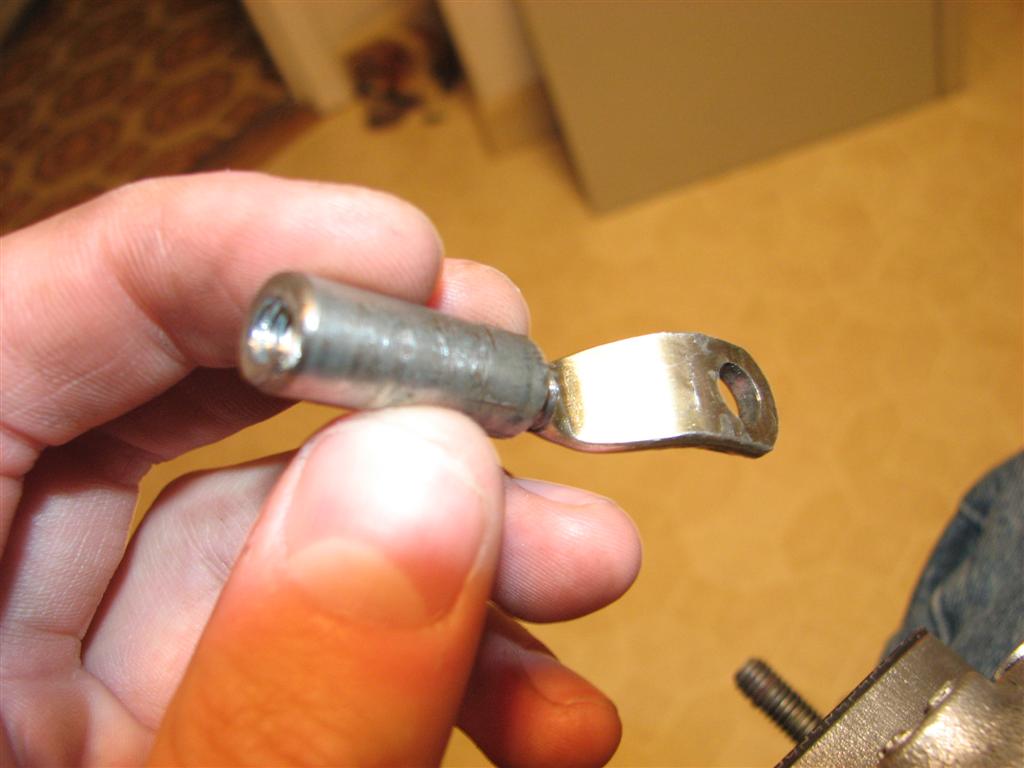

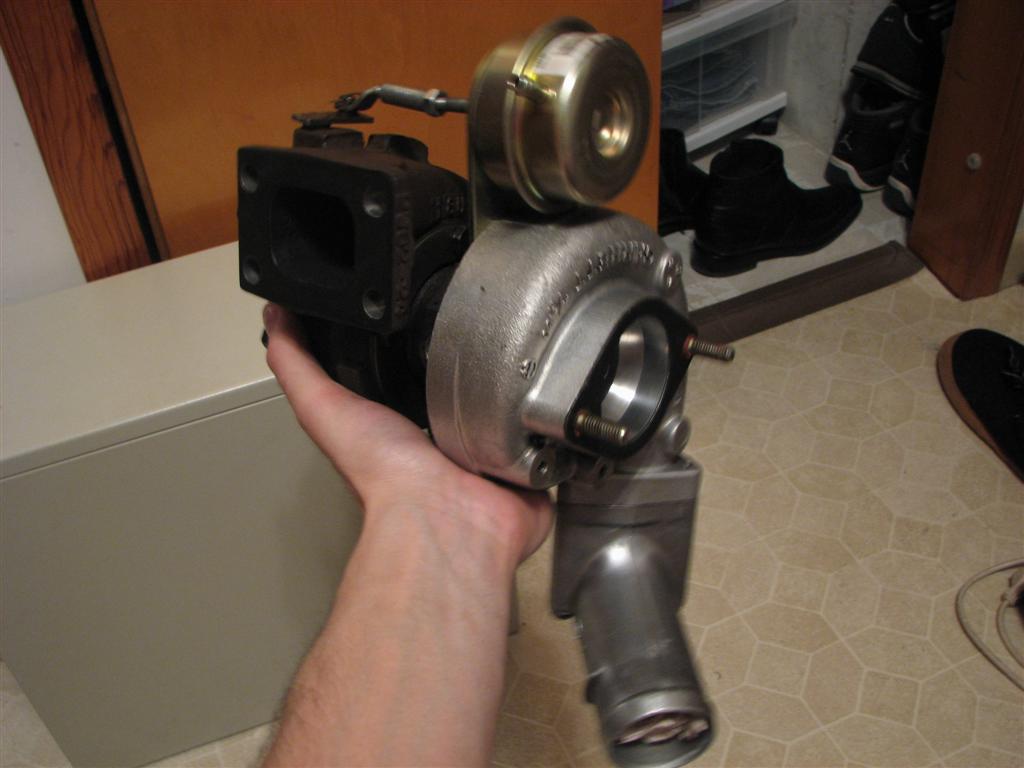

Turned a FM non adjustable wastegate actuator into an adjustable one.
Attached Thumbnails
Intercooler piping and DIY-img_2962-large-.jpg   Intercooler piping and DIY-img_2963-large-.jpg   Intercooler piping and DIY-img_2964-large-.jpg
Saml01 is offline   Reply With Quote
Old 01-18-2008, 12:47 AM   #12
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
My guy came through. I am stunned at how well he did it.
Turned a FM non adjustable wastegate actuator into an adjustable one.
A tap and die can be quite handy.
jasonrobo02 is offline   Reply With Quote
Old 01-18-2008, 01:01 AM   #13
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Its pretty ******* slick, I wish to have talents like that one day.

Last edited by Saml01; 01-18-2008 at 01:18 AM.
Saml01 is offline   Reply With Quote
Old 01-18-2008, 09:58 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

Sam, I think you're easily impressed... but that's a good thing. It keeps a guy happy.
m2cupcar is offline   Reply With Quote
Old 01-18-2008, 10:27 AM   #15
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by m2cupcar View Post
Sam, I think you're easily impressed... but that's a good thing. It keeps a guy happy.
I am impressed by things that are outside my ability.
-----------

Heres a question.

One of the threaded bungs for the wastegate bracket has no end. Its just a hole straight into the compressor housing, while the other has an end. Is that normal? I am guessing this is normal but with the bracket attached it seals the hole, but without it its gonna leak.
Saml01 is offline   Reply With Quote
Old 01-18-2008, 10:29 AM   #16
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

So leave the bolt in it. It's nothing new to have it like that, just don't leave it wide open.
cjernigan is offline   Reply With Quote
Old 01-18-2008, 10:37 AM   #17
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

OK. Ill go get a bolt then.

Better to ask then be sorry later.
