Old 05-01-2013, 04:14 PM   #41
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by HkFever View Post
lol yeah sounds like he's a busy guy... but if u have time to wait, wait for artech, im sure his exhausts are better. I wouldn't mind using that 3" tho, probably total $550 shipped to my house. I like my stuff to come soon after I pay for it =)
Yeah this is the first time I've ever waited this long for a part.... Not to mention I had to ship my turbo and EWG to him... I miss those guys lol but yeah at the end of the day it comes down to how much of a rush I am in when I decide it's time to buy an exhaust.... I have some time for now so we'll see lol
BTMiata is offline   Reply With Quote
Old 05-11-2013, 08:08 AM   #42
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Btw, I have driven close to 50k miles with this same turbo and it hasn't given me any problems yet.
southernmx5 is offline   Reply With Quote
Old 05-16-2013, 12:19 AM   #43
Newb

Join Date: May 2013
Location: Issaquah, WA (Seattle)
Posts: 7
Total Cats: -2
Default

So I'm curious because it seemed like this turbo had a 5 bolt downpipe flange an a lot of the kits (BEGI comes to mind) look to be 3 bolt.

Am I mistaken or are you guys using a different down pipe?
Thanks
Seven is offline   Reply With Quote
Old 05-16-2013, 07:52 AM   #44
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Seven View Post
So I'm curious because it seemed like this turbo had a 5 bolt downpipe flange an a lot of the kits (BEGI comes to mind) look to be 3 bolt.

Am I mistaken or are you guys using a different down pipe?
Thanks
Garrett turbos have 5 bolt flanges. Downpipe bolt patterns are different according to whatever turbo they are being mated to
BTMiata is offline   Reply With Quote
Old 05-16-2013, 08:23 AM   #45
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

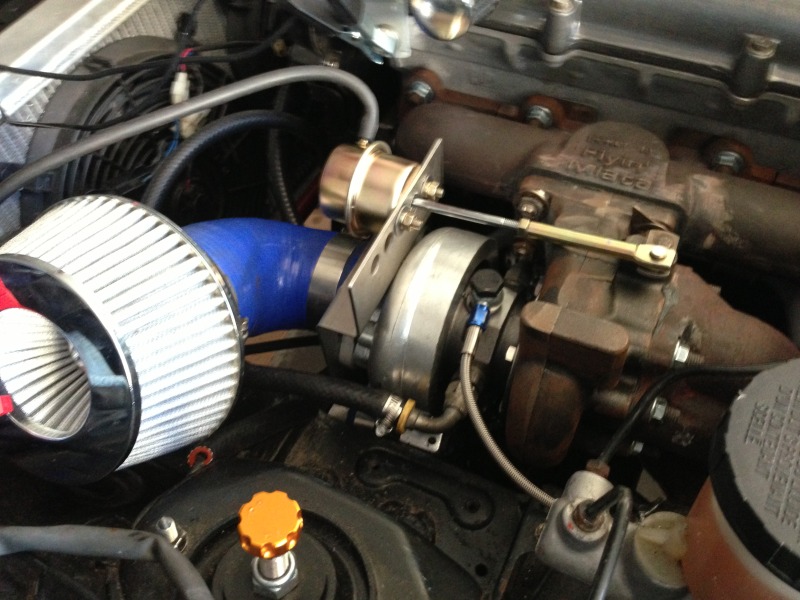

This turbo bolted right up to my flyin miata elbow designed for the Garrett 5 bolt flange.

I did have to make a custom wastegate actuator bracket after I clocked it.
Attached Thumbnails
ISIS T25/T28 turbo: time will tell-null_zps1c4c3ffb.jpg
240_to_miata is offline   Reply With Quote
Old 05-16-2013, 12:52 PM   #46
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Looks good.. how does it run?
Fireindc is offline   Reply With Quote
Old 05-16-2013, 12:58 PM   #47
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Don't know yet. Have to replace an injector o ring and oil dip stick o ring before start up
240_to_miata is offline   Reply With Quote
Old 05-16-2013, 06:09 PM   #48
Newb

Join Date: May 2013
Location: Issaquah, WA (Seattle)
Posts: 7
Total Cats: -2
Default

Quote:
Originally Posted by BTMiata View Post
Garrett turbos have 5 bolt flanges. Downpipe bolt patterns are different according to whatever turbo they are being mated to
So you're saying the BEGi Shanghai kit downpipe would work but not the Garrett kits?
Seven is offline   Reply With Quote
Old 05-16-2013, 08:16 PM   #49
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Seven View Post
So you're saying the BEGi Shanghai kit downpipe would work but not the Garrett kits?
Yes this is the same churbo begi sells with their kit
BTMiata is offline   Reply With Quote
Old 05-22-2013, 05:35 PM   #50
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Took my first drive today. First impressions? pretty much what I expected.

Spool is MUCH slower than my sr20 T25. No logs yet and only a handfull of half assed full throttle pulls, but it seems like it makes max boost @ 4000-4500 RPM. That's at least 750 rpm slower than the T25. Boost does seem smoother though, not an instant snap like the t25...not sure if that means it is making smoother power, or just less power?

Stock wastegate that came with the turbo seems to be around 10psi. I will probably add a MBC soon and bring that to 14ish.

For the $ this turbo gets me back into the power range I was in before, but without the worries of rebuilding a 20 yr old core.

Like the title says... Time will tell.

EDIT: full disclosure- This swap was done at the same time as a 99 head swap. My VICS is not setup yet. I am also running a bit less timing on my start up map than my map I had on the T25.
240_to_miata is offline   Reply With Quote
Old 05-22-2013, 05:58 PM   #51
Junior Member

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

Quote:
Originally Posted by 240_to_miata View Post
Spool is MUCH slower than my sr20 T25. No logs yet and only a handfull of half assed full throttle pulls, but it seems like it makes max boost @ 4000-4500 RPM. That's at least 750 rpm slower than the T25. Boost does seem smoother though, not an instant snap like the t25...not sure if that means it is making smoother power, or just less power?

Lol, smoother power. What you're describing seems to be exactly what you said, slower spool. You even said, it spools slower, and less snappy, but then say it's "smoother though".
AlexL is offline   Reply With Quote
Old 05-22-2013, 06:42 PM   #52
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Thanks for the honest review. I await some logs once you get it properly tuned. And a virtual dyno readout :P.
Fireindc is offline   Reply With Quote
Old 05-23-2013, 12:40 AM   #53
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

keeping an eye on this, im not sure if i will like not having top end power and this might be a good option for me for the same reasons you chose it.
redturbomiata is offline   Reply With Quote
Old 05-26-2013, 08:30 AM   #54
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default



I swapped from a wrx td04 to one of these recently. (10 psi on the t25/t28 feels about the same as 14psi on the td04-13t other than 500 rpm later spool.)
The t25/t28 wastegate actuates at 10 psi which makes traction difficult in the wet. I will probably get a daily friendly 6 psi wastegate actuator.

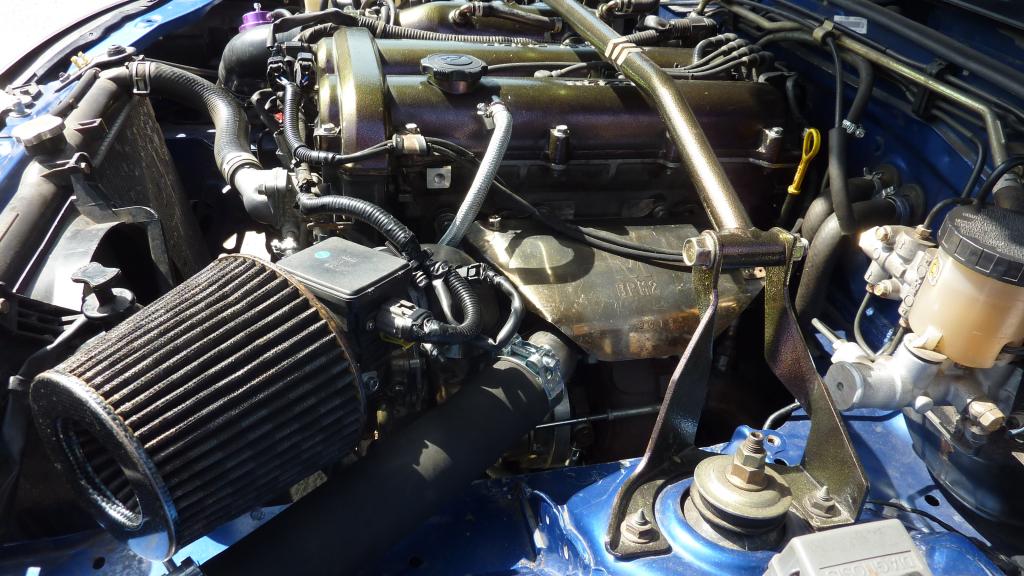

(Photo showing techsalvager inspired hose.)
Attached Thumbnails
ISIS T25/T28 turbo: time will tell-p1030433_zps43d24cb3.jpg
sturovo is offline   Reply With Quote
Old 05-26-2013, 11:33 PM   #55
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Someone do a virtual dyno pull with one of these. Neat. I want to go e85 and one of these to see if i can put down 250whp.
Fireindc is offline   Reply With Quote
Old 05-26-2013, 11:38 PM   #56
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I might try and do a 10PSI log tomorrow coming home from autox if I remember. I think you could sqeeze 250 out of this turbo. It is slightly bigger than my old T25 and I made 225 @ 12PSI on a 96 head.
240_to_miata is offline   Reply With Quote
Old 06-13-2013, 04:47 PM   #57
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Any updates from the guys running this thing?

Trying to decide what turbo to run down the road still. Will probably try to find a used oem 2560 from a s15 though.
Fireindc is offline   Reply With Quote
Old 06-13-2013, 06:10 PM   #58
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Abe still has mine I hope to see it again in the next week or 2 though! Wont have it on till winter most likely ...
BTMiata is offline   Reply With Quote
Old 06-13-2013, 06:22 PM   #59
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

My T25 is currently maxed out at 12 psi on the stock wastegate actuator.
southernmx5 is offline   Reply With Quote
Old 06-13-2013, 07:04 PM   #60
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I haven't gotten to drive the car much yet. My wideband was giving me **** so I am in the middle of replacing it...Then I need to retune.

I did do one autox on Memorial day and it was great. I had NO issues falling off boost even with the shitty spool of this turbo. I am still at the wastegate pressure of 10 PSI.

More to come next week I hope
240_to_miata is offline   Reply With Quote
