Old 06-29-2013, 10:24 PM   #61
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Finally got VICS hooked up and a slightly better tune on there. Timing isn't too agressive IMO.

VICS made quite a difference in spool. Apparently I had it stuck in the open position before, so no "long runner" low end torque. I hit 10PSI @ about 3800-4000 now. Still not good, but better.

Logs will come eventually when I stop being ghey.
240_to_miata is offline   Reply With Quote
Old 10-09-2013, 06:05 PM   #62
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

So this would be a pretty poor replacement to my SR20 T25 on a 1.6. Thanks for the review! Will hold out for a GT2560r
albumleaf is offline   Reply With Quote
Old 10-09-2013, 06:17 PM   #63
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

It would not be a good upgrade, but it still holds as a good brand new turbo for roughly the price of a rebuild & balance.

So far I have about 4 autox's, 1 HPDE, and 1500 street miles on it. Running strong, just miss my low end! lol
240_to_miata is offline   Reply With Quote
Old 10-09-2013, 07:24 PM   #64
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

Of all the days not to have a T3 manifold so I could pick up Brain's chinacharger. I don't think there's a good cheap alternative to the 2650r (Nissan ones pop up now and then but I keep missing them, argh). There's a 2554r locally for cheap-ish that would be a bit nicer for spool but nothing on the top end.
albumleaf is offline   Reply With Quote
Old 11-17-2013, 02:29 AM   #65
Newb

Join Date: Mar 2012
Location: Edmonton
Posts: 2
Total Cats: 0
Default

what did you end up using for turbo feed?

I am ordering this turbo right now for my build, just curious what route you took for oil feed, enjuku mentions to use -3an line only, but everything seems difficult to find in -3an. Im thinking of just running -4an and using a restrictor such as:
http://www.summitracing.com/int/part...0287/overview/
would you run .060, .045 or . 030


also, are these the correct fittings for water and drain?
http://www.summitracing.com/int/part...0229/overview/
http://www.summitracing.com/int/part...7070/overview/

I would like to order the correct parts the first time and help would would be great.

Last edited by stuff; 11-17-2013 at 03:59 AM.
stuff is offline   Reply With Quote
Old 11-17-2013, 02:39 AM   #66
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Bros! if anyone is looking for a 2871 china charger I'm selling one! It's the godspeed one many people have had good results from. Comes with a bunch of random fittings, no idea if they will work though.

/thread jack
FRT_Fun is offline   Reply With Quote
Old 11-17-2013, 10:16 AM   #67
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by stuff View Post
what did you end up using for turbo feed?

I am ordering this turbo right now for my build, just curious what route you took for oil feed, enjuku mentions to use -3an line only, but everything seems difficult to find in -3an. Im thinking of just running -4an and using a restrictor such as:
http://www.summitracing.com/int/part...0287/overview/
would you run .060, .045 or . 030


also, are these the correct fittings for water and drain?
http://www.summitracing.com/int/part...0229/overview/
http://www.summitracing.com/int/part...7070/overview/

I would like to order the correct parts the first time and help would would be great.

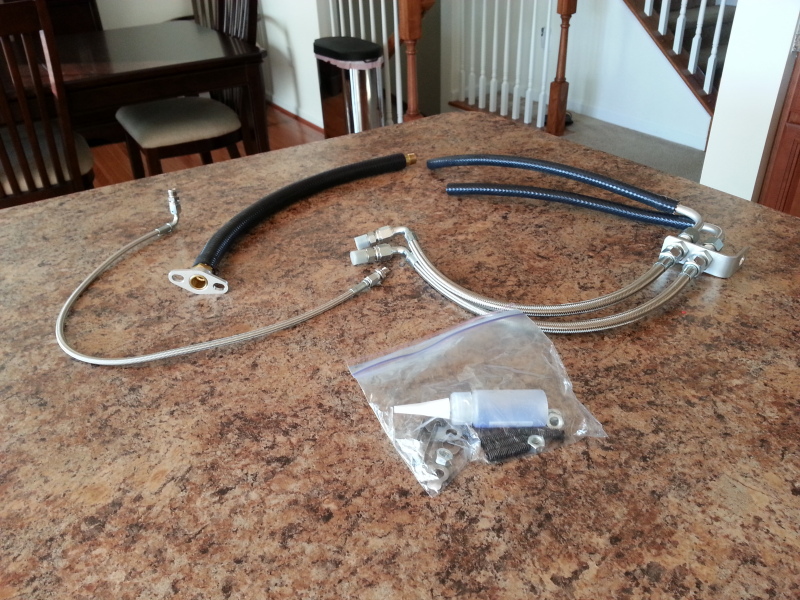

I just went with Artech oil/water lines.

Attached Thumbnails
ISIS T25/T28 turbo: time will tell-20131002_163639_zps47426214.jpg
BTMiata is offline   Reply With Quote
Old 11-17-2013, 10:19 AM   #68
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I used the same -3 stuff and coolant kit I had on my sr20 t25. Think I got them from tunertoys but they are long gone.
240_to_miata is offline   Reply With Quote
Old 11-28-2013, 02:22 PM   #69
Junior Member
iTrader: (1)

Meeners's Avatar

Join Date: Jul 2008
Posts: 194
Total Cats: 0
Default

If it is truly a t28 hybrid, it won't "shine" until around 13psi... Granted it's a generic one, from messing around with Nissans for a grip, the compromise you get in the slightly later spool is a little better efficiency up top... Hoping to hear back after you tune and up boost a little.
Meeners is offline   Reply With Quote
Old 10-21-2014, 11:06 PM   #70
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Figured I'd bring this back from the dead... My car is alive with this turbo but I won't have it tuned until next week.. For now I'm just buttoning up the small things. I'll update with how it feels after next Tuesday once I can wipe the grin off my face and get out of the car haha
BTMiata is offline   Reply With Quote
Old 04-01-2015, 05:06 PM   #71
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Few thousand miles on this turbo now. I started to hear a faint noise today that could either be the turbo or a coupler loose... It is only audible in higher RPM's and when it reaches full boost (Only 10psi for me). Hopefully its just a coupler or something else stupid. If this thing dies I'll probably throw a used garrett on it
BTMiata is offline   Reply With Quote
Old 04-01-2015, 05:22 PM   #72
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

No problems or issues for me yet. Then again I've driven about 3 miles since November. The car has ms3 now with ebc so I'll be tuning up to 16-18psi And find out where she runs out of breath
240_to_miata is offline   Reply With Quote
Old 04-01-2015, 05:25 PM   #73
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by 240_to_miata View Post
No problems or issues for me yet. Then again I've driven about 3 miles since November. The car has ms3 now with ebc so I'll be tuning up to 16-18psi And find out where she runs out of breath
Any idea how many miles you have on it since installing it?
BTMiata is offline   Reply With Quote
Old 04-01-2015, 05:29 PM   #74
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

About 5000 miles , 2 track days at 10 psi and the rest at about 14 psi with a mbc
240_to_miata is offline   Reply With Quote
Old 04-01-2015, 05:32 PM   #75
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by 240_to_miata View Post
About 5000 miles , 2 track days at 10 psi and the rest at about 14 psi with a mbc
Nicee i'm really hoping mine is just a coupler or a boost leak somewhere... Really dont want to spend $$ on a turbo. I have been on the fence with the Wilwood BBK on Fab9's site so i'd much rather spend money there haha
BTMiata is offline   Reply With Quote
Old 04-26-2015, 09:01 PM   #76
Newb

Join Date: Apr 2015
Posts: 21
Total Cats: 0
Default

Quote:
Originally Posted by 240_to_miata View Post
I haven't gotten to drive the car much yet. My wideband was giving me **** so I am in the middle of replacing it...Then I need to retune.

I did do one autox on Memorial day and it was great. I had NO issues falling off boost even with the shitty spool of this turbo. I am still at the wastegate pressure of 10 PSI.

More to come next week I hope
I'm having thoughts about purchasing a kit from begi so is this the same Churbo from begi
Gt2554 or the gt2560?
Minosum is offline   Reply With Quote
Old 05-07-2015, 10:04 AM   #77
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Well, time has told ...

Blew the turbo today. Side to side shaft play and bad noises when entering boost. It happened during a track day.

Street miles : 5000
track days: 8-10 20 min sessions
boost:10-15 street, 10 track
oil: 15/40 Rotella.
Feed: -3 an
bov: shitty greddy type rs


Track oil Temps got to 250 during a session. I know the 15/40 isn't great for high oil temps so I'll be changing to another oil. That may have had something to do with this.

Oh well. Time to buy a real turbo. At least I cought it before it blew into pieces and went into my motor.
240_to_miata is offline   Reply With Quote
Old 05-07-2015, 10:08 AM   #78
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I hear a howling noise in boost in 3rd gear or higher up to redline... I wonder if mine is doomed for the same fate. I checked the shaft and it literally had 0 play. I better start saving for a Garrett lol
BTMiata is offline   Reply With Quote
Old 05-07-2015, 10:15 AM   #79
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

And it might be more of a "Whine" than a "howl".... You can kind of hear the noise here. Its been like this for a while and didn't think much of it until now because there is no shaft play or anything. Maybe I'm just crazy and the noise is normal I dont know lol

BTMiata is offline   Reply With Quote
Old 05-07-2015, 10:18 AM   #80
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Yeah I checked shaft play last week and had none. I checked last night when I got home and had no front to back but Was able to find side to side. It was stiff though which explains why I was able to drive home and not have an issue. It was only when I pushed pretty good that I was able to move side to side.
240_to_miata is offline   Reply With Quote
