Default ITT: Fabbing for compound curves..

Anyone can make a square or a flat piece to fit on a flat surface (well, almost anyone)..
The trick is to make something like a cold air box fit in a volume made up of compound curves.

I spent a great deal of my youth building and designing model aircraft, and picked up a few tricks here and there.
One of those tricks happens to come in pretty handy for automotive work, as well..

So, I just wanted to share my incredibly simple way of duplicating a compound curve:

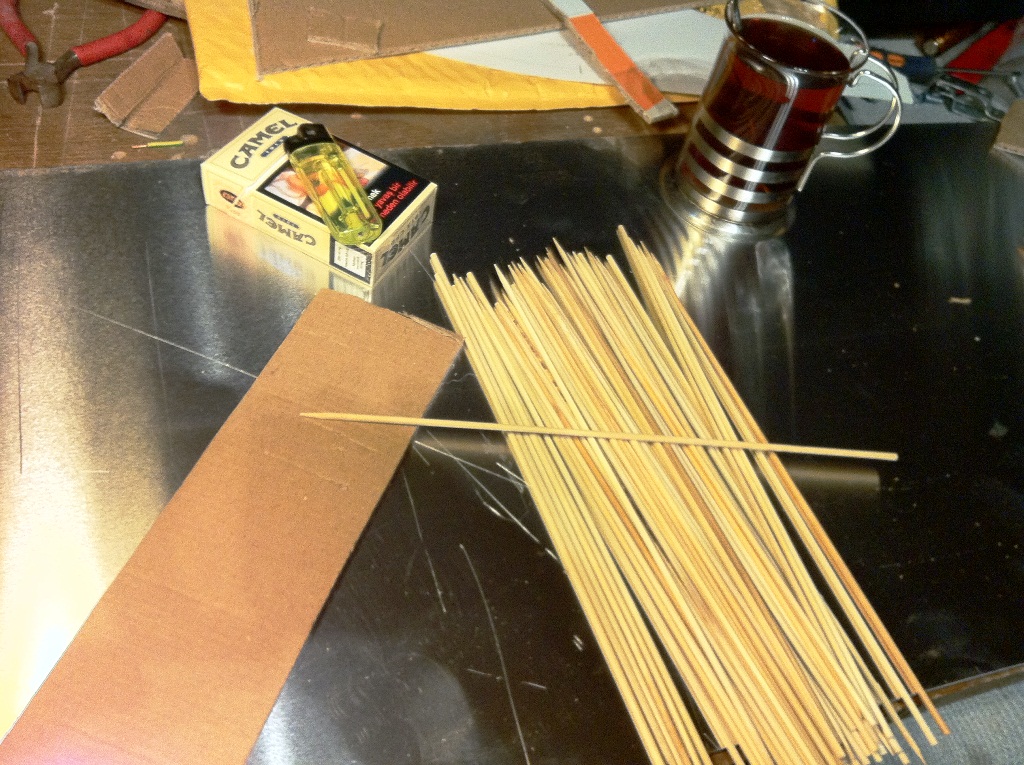

Obtain:
* a bunch of bamboo skewers
* enough corrugated cardboard to cover your project
* a pack of Camel cigarettes (as evidenced by the illustrious picture below)
* some sort of a marker, like a sharpie


Attached Thumbnails
ITT: Fabbing for compound curves..-img1152k.jpg
Godless Commie is offline   Reply With Quote
Old 02-06-2012, 09:23 PM   #2
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

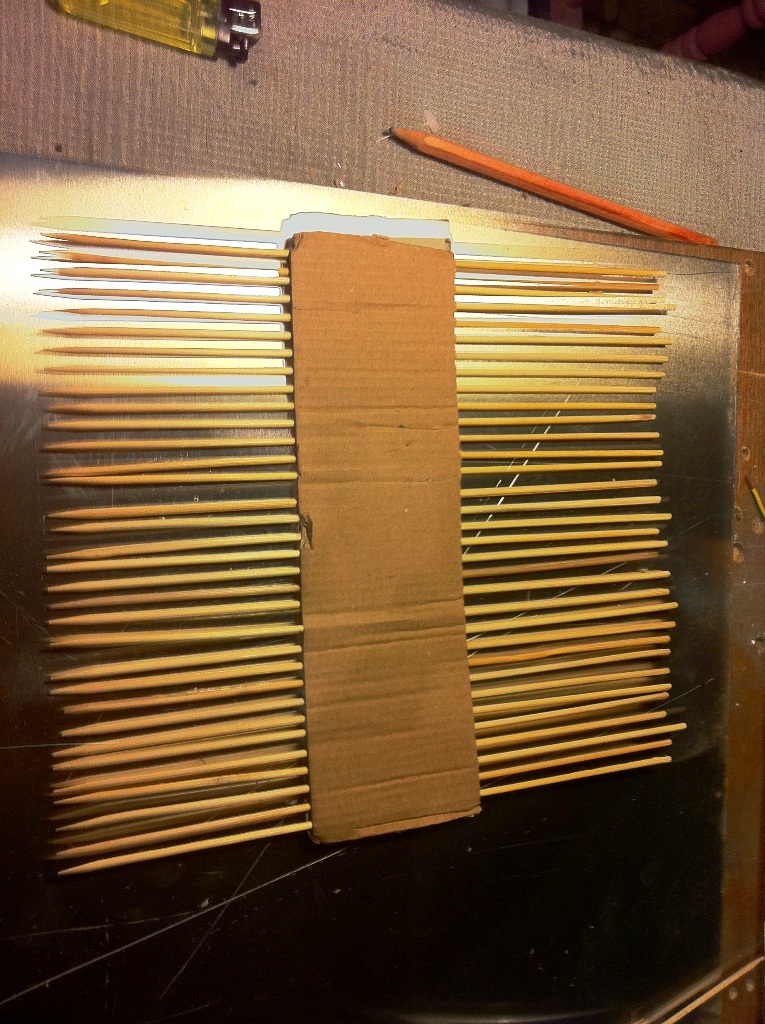

Next, cut a strip of the corrugated cardboard and stick the bamboo skewers through the grooves/holes/openings of the cardboard.
You can smoke one of the Camels at this point, if you so choose. I prefer mine with Earl Grey tea.



Inserting the skewers in every other opening will make life easier..
Attached Thumbnails
ITT: Fabbing for compound curves..-img1156mz.jpg
Godless Commie is offline   Reply With Quote
Old 02-06-2012, 09:25 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Bauce
hustler is offline   Reply With Quote
Old 02-06-2012, 09:27 PM   #4
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

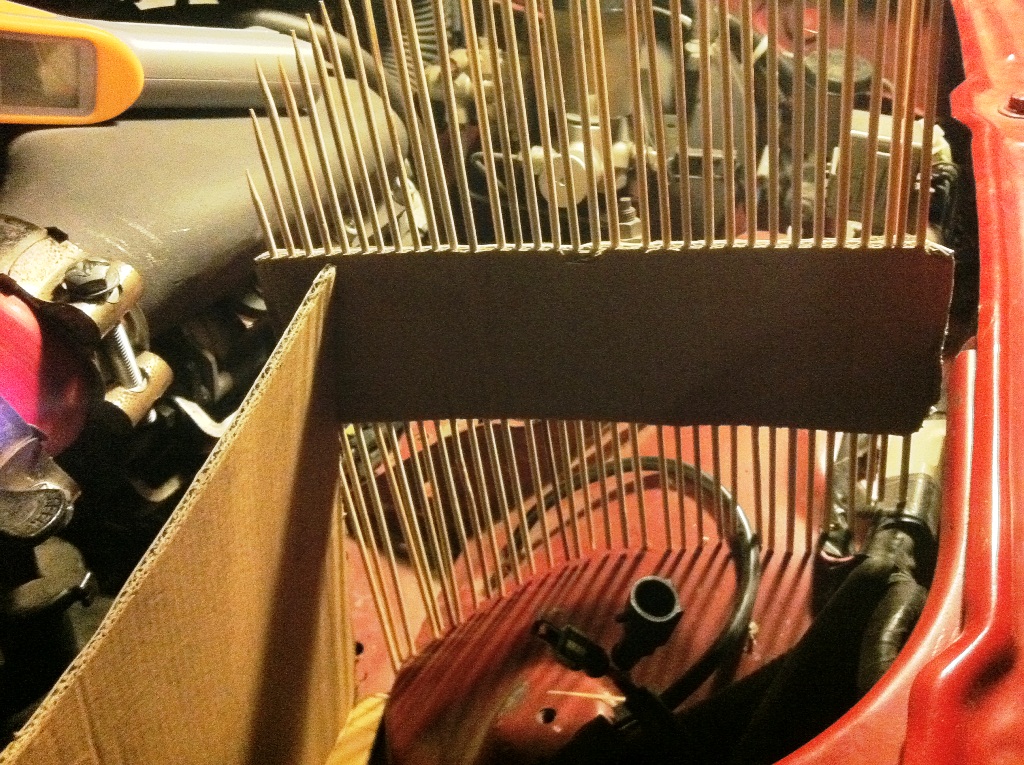

Then, position that funky tool you have fashioned over the compound curve you want to duplicate, and gently push on the skewers until they just touch the surface. Hold the cardboard level.

Attached Thumbnails
ITT: Fabbing for compound curves..-img1158f.jpg
Godless Commie is offline   Reply With Quote
Old 02-06-2012, 09:28 PM   #5
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

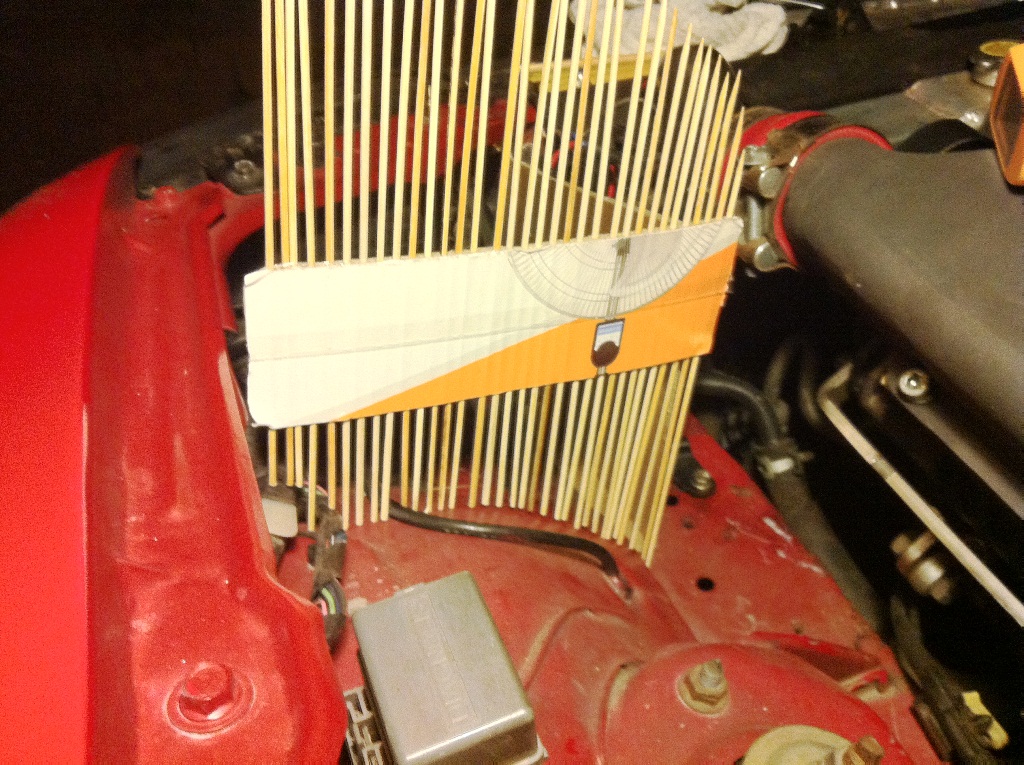

Here's another shot, from the other side, for clarity:

Attached Thumbnails
ITT: Fabbing for compound curves..-img1160lx.jpg
Godless Commie is offline   Reply With Quote
Old 02-06-2012, 09:33 PM   #6
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Once you have captured the shape of the curve(s), all you need to do is to trace it on another piece of cardboard and test fit.
By this time, I usually consume at least two of those Camels from the pack..
Then, transfer the shape on the material of your choice and cut away..

This is how my CAI was born. I made it out of 2mm Aluminum sheting, and used sheet metal screws.
The final step was covering the outside of the CAI with shiny heat retardant material to prevent heatsoak from the engine bay.

So there.. Hope it helps someone...

PS# You can use drinking straws instead of skewers for delicate surfaces, too.
Godless Commie is offline   Reply With Quote
Old 02-07-2012, 12:32 AM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

so simple yet so effective. great writeup man
18psi is offline   Reply With Quote
Old 02-07-2012, 11:08 AM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

smart plan. for finer detail work, you can buy various sized profile gauges that do essentially the same thing but more accurately. This is by far the best implementation of DIY I've seen though.
y8s is online now   Reply With Quote
Old 02-07-2012, 11:13 AM   #9
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Quote:
Originally Posted by y9s View Post
smart plan. for finer detail work, you can buy various sized profile gauges
I understand, but my setup is almost free. Just stuff laying around the house.
And, thank you.
Godless Commie is offline   Reply With Quote
Old 02-08-2012, 11:55 PM   #10
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Great write up!

Someone else on here a couple years back posted this same technique, but thanks nonetheless.
kenzo42 is offline   Reply With Quote
Old 02-09-2012, 12:02 AM   #11
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Really, link?

I would love to see that thread.
Godless Commie is offline   Reply With Quote
Old 02-09-2012, 12:34 AM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

curly is offline   Reply With Quote
