Default JIC, AN, Begi oil feed question

So I'm putting my motor in before I turbo it and wanted to get the oil feed and return done while the motor (92) was out. Bought the 10x1.5 to -3an fitting from Begi, and a -3an cap from Jegs.

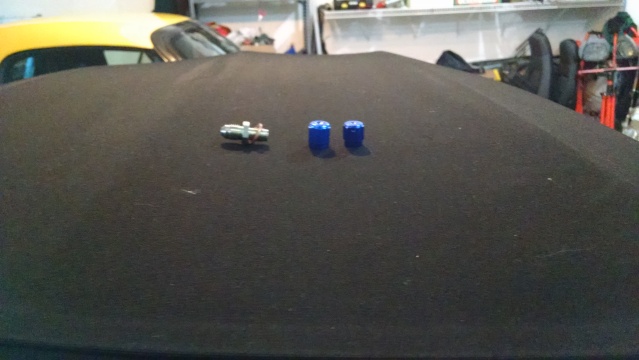

Fitting, -3an cap, and -4an cap.

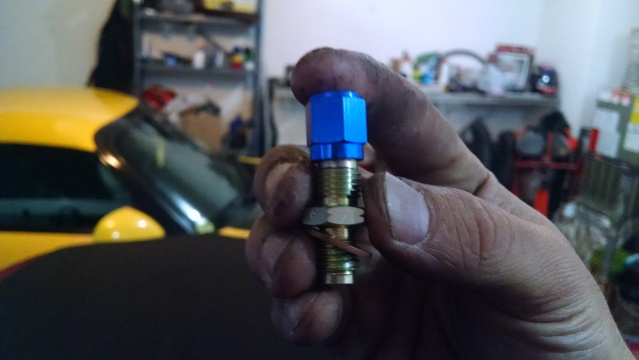

But when I tried to put the -3an cap on the fitting it was too small. Now begi listed the part on my sheet as a JIC 3/8-24 fitting, which I've since determined to be -3an...I think. But my -3an cap from Jegs doesn't fit:

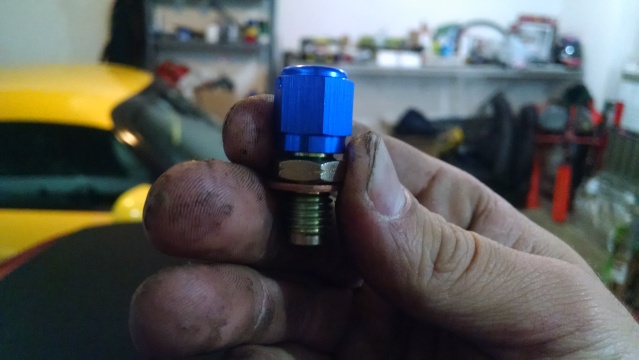

and the -4an cap does:



Stumped.
Attached Thumbnails
JIC, AN, Begi oil feed question-fck93b.jpg   JIC, AN, Begi oil feed question-20f9hj9.jpg   JIC, AN, Begi oil feed question-33wy4og.jpg
aidandj is offline   Reply With Quote
Old 11-10-2014, 09:58 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Oil feed fitting looks like a -4 AN. Bigger than any AN line I've used for a turbo feed.
curly is offline   Reply With Quote
Old 11-10-2014, 10:36 PM   #3
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I ordered a -3 I'll call them tomorrow.
aidandj is offline   Reply With Quote
Old 11-11-2014, 07:53 AM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by curly View Post
Oil feed fitting looks like a -4 AN. Bigger than any AN line I've used for a turbo feed.
I have always used a -4an oil feed line, just had to put in a restrictor depending on what turbo.
shuiend is offline   Reply With Quote
Old 11-11-2014, 11:10 AM   #5
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

+1 for "I've always used -4AN."

However, if you ordered -3AN, that's certainly not what you got.
concealer404 is offline   Reply With Quote
Old 11-11-2014, 11:34 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

WHAT?!

Are you guys suggesting that Begi sent someone the wrong part?

Surely, you jest
18psi is offline   Reply With Quote
Old 11-11-2014, 11:48 AM   #7
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

More googling has revealed that an/jic -3 should have a 3/8 outer thread diameter. Mine is more like .43. Called BEGI but shipping wasn't in yet.
aidandj is offline   Reply With Quote
Old 11-11-2014, 11:49 AM   #8
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

What does shipping have to do with it?
concealer404 is offline   Reply With Quote
Old 11-11-2014, 11:51 AM   #9
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I'm assuming its because they shipped the wrong part? Just what I was told on the phone.
aidandj is offline   Reply With Quote
Old 11-11-2014, 11:51 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

18psi is offline   Reply With Quote
Old 11-11-2014, 11:57 AM   #11
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

So they can't help you at all until their "shipping department" decides to roll into the shop?

That sounds... silly.
concealer404 is offline   Reply With Quote
Old 11-11-2014, 11:59 AM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

My guess is the bin for the -4 is right next to the -3, and some have fallen in over the years. Happened to me when I got my turbo adapter from Abe.
curly is offline   Reply With Quote
Old 11-11-2014, 12:00 PM   #13
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by concealer404 View Post
So they can't help you at all until their "shipping department" decides to roll into the shop?

That sounds... silly.
Whoever picked up the phone the first time was the only person there. Not sure who it was but when I called back just now the lady was very helpful.
aidandj is offline   Reply With Quote
Old 11-11-2014, 12:01 PM   #14
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by curly View Post
My guess is the bin for the -4 is right next to the -3, and some have fallen in over the years. Happened to me when I got my turbo adapter from Abe.
They made it sound like the -3 part isn't ordered very often. And they only had one -3 fitting left. Oh well, they are sending the new part out today.
aidandj is offline   Reply With Quote
Old 11-11-2014, 02:44 PM   #15
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

for future reference, find a local hydraulics supply shop (such as Easton) ... they typically have what you need in stock, even metric adapters.
