Old 11-17-2008, 11:34 PM   #1
I'm Miserable!
Thread Starter
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default just bought a T3

just bought a 42/48 T3. say hello to faster spool up!!!! will either have it or my t3/t4 up for sale soon depending on which one i like better.
bryantaylor is offline   Reply With Quote
Old 11-17-2008, 11:54 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

what size compressor wheel?
Braineack is online now   Reply With Quote
Old 11-18-2008, 12:30 AM   #3
I'm Miserable!
Thread Starter
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

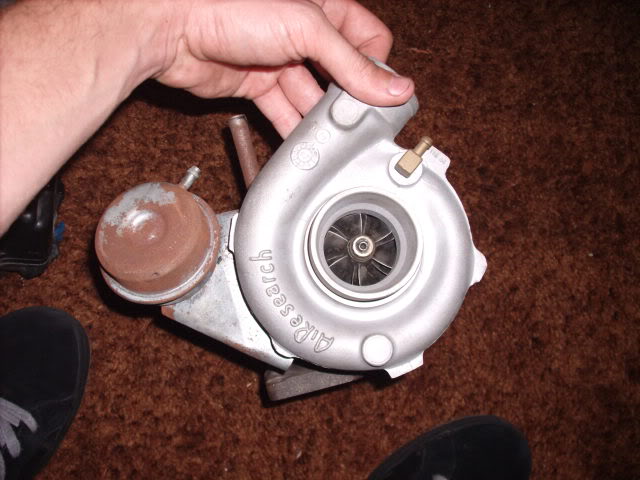

no idea, here is a pic from the seller though.

Name:  GEDC0249.jpg
Views: 4
Size:  52.1 KB
bryantaylor is offline   Reply With Quote
Old 11-18-2008, 01:08 AM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

probably a 50 trim.
cjernigan is offline   Reply With Quote
Old 11-18-2008, 04:06 AM   #5
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

I have a few on the shelf if you need any parts or fittings.
zoom2zoom is offline   Reply With Quote
Old 11-18-2008, 08:31 PM   #6
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

looks like a 50 trim... mine is maxed out at 230 whp :( I needs me a bigger compressor.
Arkmage is offline   Reply With Quote
Old 11-18-2008, 09:27 PM   #7
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

Watch eBay. I just picked up an this t3 cold side 60/60 setup, looks like new, lots of stuffs.

Thought this was a good deal for a larger stage1 63AR turbine housing too. Supposedly the center section just needs a rebuild.
m2cupcar is offline   Reply With Quote
Old 11-18-2008, 11:50 PM   #8
I'm Miserable!
Thread Starter
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

well, we will see this weekend how i like it. should spool up a TON faster than my t3/t4. which is like .48 or .50 hot and like a .63 cold side.
bryantaylor is offline   Reply With Quote
Old 11-18-2008, 11:55 PM   #9
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Damn, my turbo is a .78 hotside... But it's going on a 1.8. Do comparison vids! Before and after the turbo swap. That would be awesome to see the difference keeping everything else the same.
patsmx5 is offline   Reply With Quote
Old 11-19-2008, 12:17 AM   #10
I'm Miserable!
Thread Starter
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Damn, my turbo is a .78 hotside... But it's going on a 1.8. Do comparison vids! Before and after the turbo swap. That would be awesome to see the difference keeping everything else the same.
thats a good idea, will do that this weekend.
bryantaylor is offline   Reply With Quote
Old 11-19-2008, 09:49 AM   #11
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

A .78 hotside on a t3? that's BIG.
m2cupcar is offline   Reply With Quote
Old 11-19-2008, 10:55 AM   #12
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeah, GT3271, twin scroll, externally gated. Bigger than what most run here.
patsmx5 is offline   Reply With Quote
Old 11-19-2008, 10:55 AM   #13
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I don't even think I'd want a .63 on my 1.8 let alone .78.
.63 would be ok for track duty but not normal street driving or autocross.
cjernigan is offline   Reply With Quote
Old 11-19-2008, 01:42 PM   #14
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

Nice Bryan, I have the same Garrett T3(42/48) turbo on a shelf in the garage. It has a cracked turbine housing that needs to be replaced. I was wondering what the spooling would be compared to my T3/4 .60/.48 hot side that I have now. I would be curious to know how you like it.
96rdstr is offline   Reply With Quote
Old 11-19-2008, 01:46 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

it'll spool up hella faster, but wont be able to output the same power.


you could just swap your coldside parts (wheel, housing, back plate) onto your hotside (turbine, chra, housing) of the current one.
Braineack is online now   Reply With Quote
Old 11-19-2008, 07:06 PM   #16
I'm Miserable!
Thread Starter
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

a slight power drop wont really bother me, it hauls a ton of *** in over 2nd gear, but the spool up sucks for in town.
bryantaylor is offline   Reply With Quote
Old 11-19-2008, 07:49 PM   #17
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by cjernigan View Post
I don't even think I'd want a .63 on my 1.8 let alone .78.
.63 would be ok for track duty but not normal street driving or autocross.
I've been wondering how my .63 T3/.60 T4 is going to spool...
elesjuan is offline   Reply With Quote
Old 11-19-2008, 10:17 PM   #18
I'm Miserable!
Thread Starter
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

Quote:
Originally Posted by elesjuan View Post
I've been wondering how my .63 T3/.60 T4 is going to spool...
here is my t3/t4

Engine: '90 1.6L
Turbo: turbonetics t3/t4
Manifold: ebay cast
Downpipe Size/Style: single 2.5"
Exhaust Size: 3"
Exhaust Components: none, just straight pipe
Intercooler Core Size: stock starion
Intake Manifold: Stock
Headwork: none
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters: 2" hot side and 2.5" cold side charge pipes
Trans & Rear End Ratio: 5-speed, stock 1.6 open
Rear tire size: 205-50-15

4th gear pull

1800 1.0
2400 2.0
2700 3.0
2900 4.0
3100 5.0
3300 6.0
3600 8.0
3800 9.0
4000 10.0
4200 12.0
bryantaylor is offline   Reply With Quote
Old 11-19-2008, 10:30 PM   #19
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by bryantaylor View Post
here is my t3/t4
That looks pretty good, but what Turbine / Compressor?

I have a gateless T3 Turbine with .63ar and the compressor is a .60ar T04B S3 from Turbonetics, planning on using an external Turbonetics Deltagate mkII
elesjuan is offline   Reply With Quote
Old 11-19-2008, 10:46 PM   #20
I'm Miserable!
Thread Starter
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

no idea man. bought the turbo from a guy that bought it from another guy.
bryantaylor is offline   Reply With Quote
