Default Just finished my first turbo rebuild.. have a few questions

Well I just finished rebuliding my garrett t3 from a mercadies today. I used one of the kits from ebay, came with everything and then some. Its so awesome how it spins much free-r, and there is no shaft play. Now for the Qs:

When I put it together, I used mobil 1 5w-30 synthetic oil to lube everything up. Is that a good oil to use in the car with the turbo?

The turbo has its own wastegate. How can I find out what psi it is set at?

The turbo is THIS ONE http://cgi.ebay.com/ebaymotors/MERCE...QQcmdZViewItem

It has its own BOV, anyone have experence with turbos that have their own BOV? Will it work good?

Thanks for the help guys!
cardriverx is offline   Reply With Quote
Old 06-26-2007, 11:57 AM   #2
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

anyone?
cardriverx is offline   Reply With Quote
Old 06-26-2007, 12:01 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

most likely 5-7psi.

the bov the thing on the compressor outlet? it should be fine, one less thing you gotta do.

please remove silly flexible exhaust thingy.
Braineack is offline   Reply With Quote
Old 06-26-2007, 12:13 PM   #4
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by cardriverx View Post
The turbo has its own wastegate. How can I find out what psi it is set at?
hook it up to an air compressor with a gauge and slowly turn up the pressure until it moves...

The integrated BOV thing is kinda cool, but that looks more like a VNT (variable nozzle) turbo.
Arkmage is offline   Reply With Quote
Old 06-26-2007, 12:33 PM   #5
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

mine doesent have a flexable exhaust thing, it has a 2.5 inch v band flange. Also, its not a VNT or VGT, it just has its own BOV.

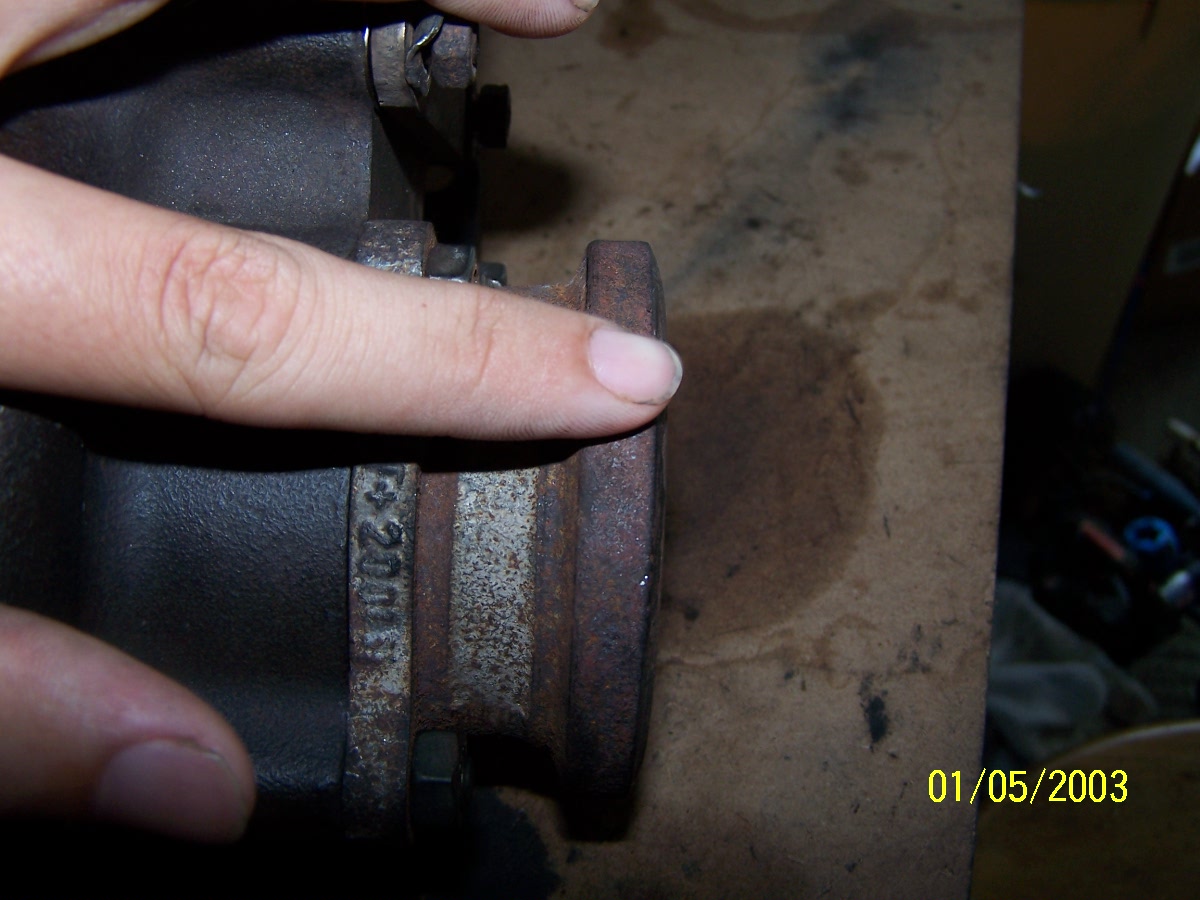

Question, Does the v band flange look too thick to you?
Attached Thumbnails

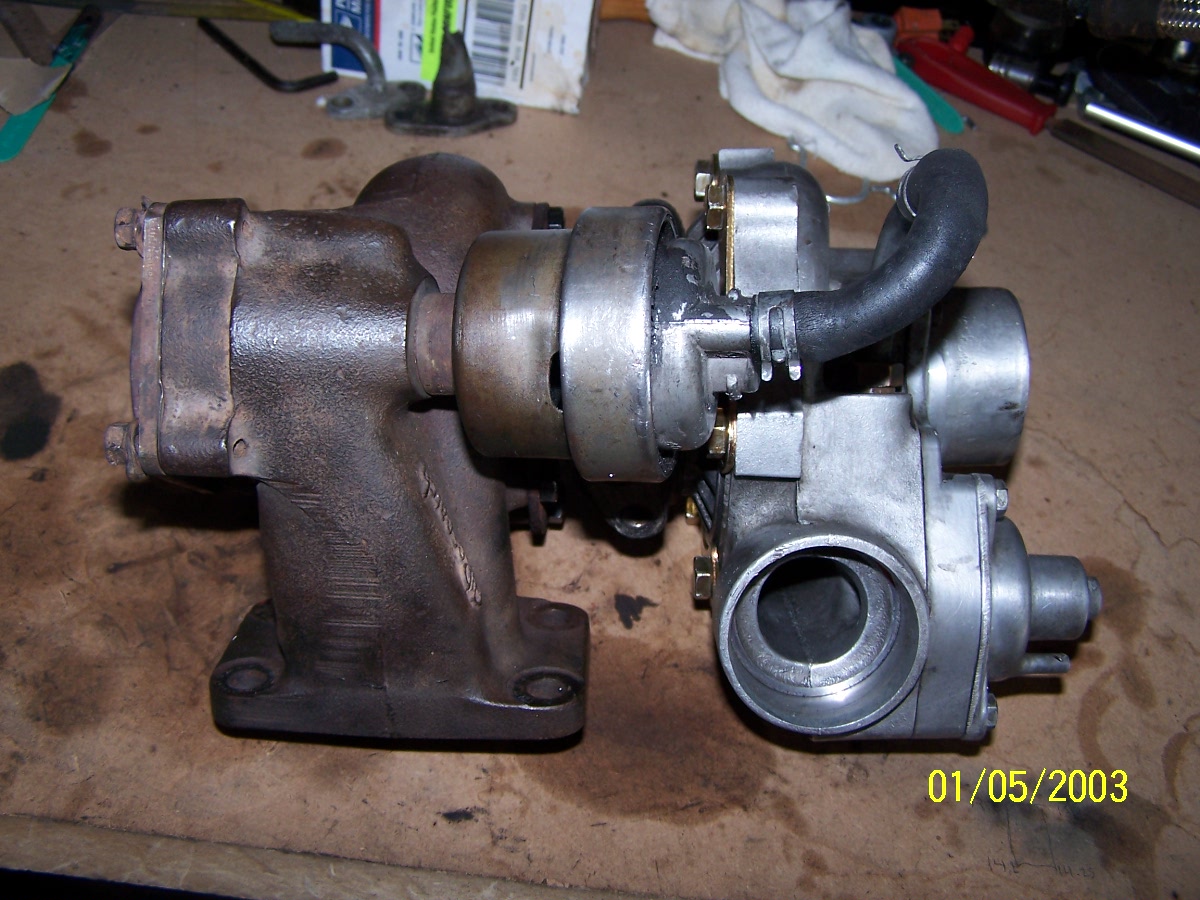

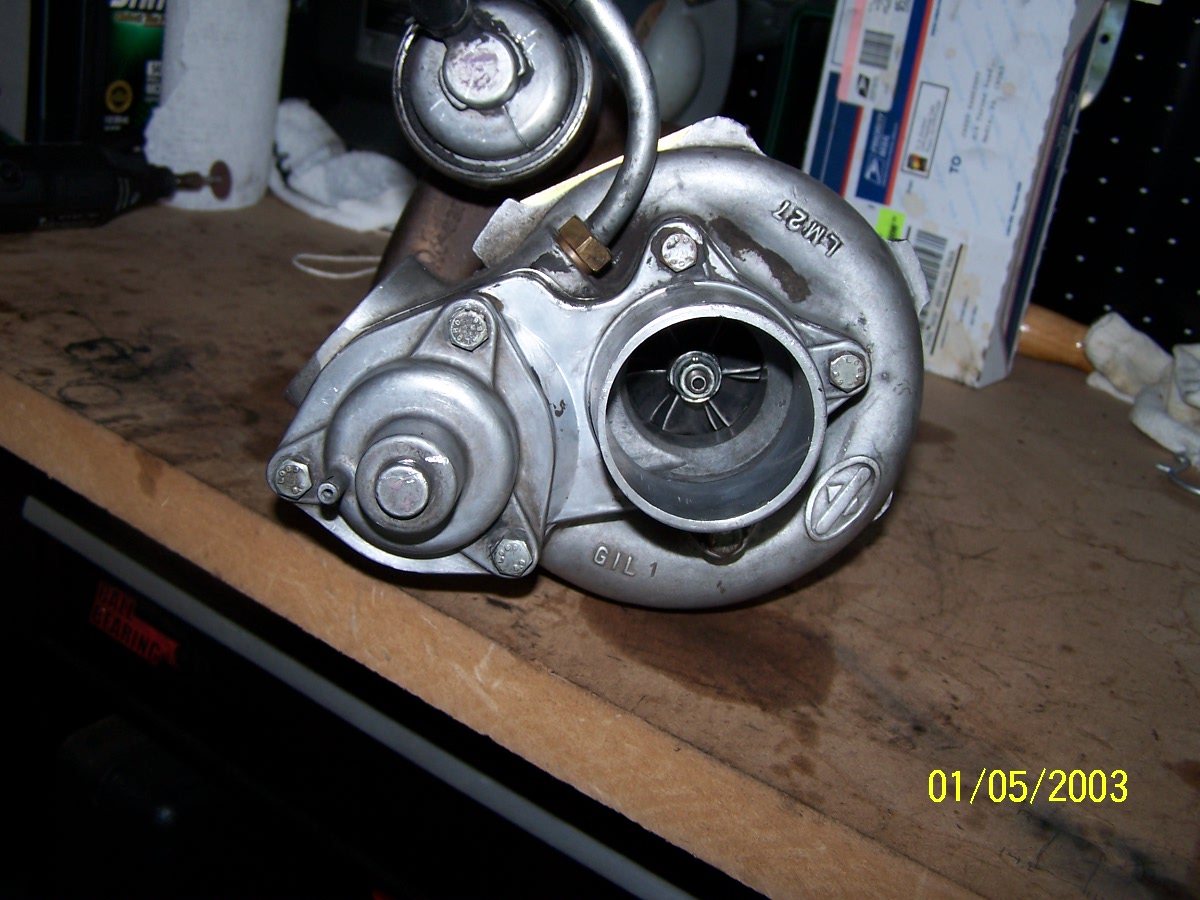

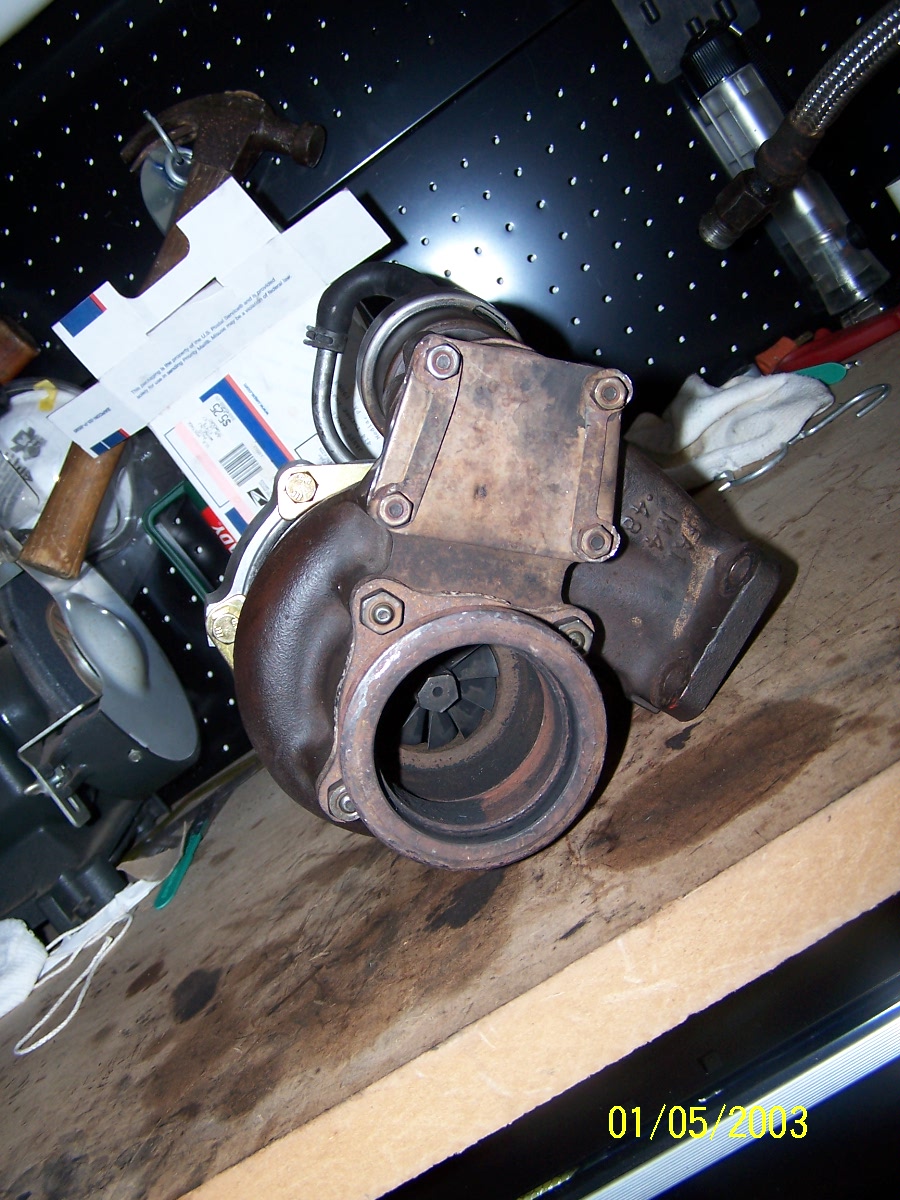

Just finished my first turbo rebuild.. have a few questions-turbooo-001.jpg   Just finished my first turbo rebuild.. have a few questions-turbooo-002.jpg   Just finished my first turbo rebuild.. have a few questions-turbooo-003.jpg   Just finished my first turbo rebuild.. have a few questions-turbooo-004.jpg
cardriverx is offline   Reply With Quote
Old 06-26-2007, 02:51 PM   #6
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

For Oil, I think that the recommended weight in the owners manual is 20w50. I used 20w50 when I was naturally aspirated religiously. I've been expirimenting lately changing oil every 2k miles (a different weight every time)to see if I can tell a difference... just for ***** and grins.

I'd planned a report once I'd used six or seven different weights, but I'll let y'all in on my findings now. Bottom line, I've noticed no difference between 20w50, 5w30, 10w30, 15w30, and one or two other weights.
Mobil1 synth FTW.
samnavy is offline   Reply With Quote
Old 06-26-2007, 03:19 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

i run 5w-30 in the winter and 10w-40 in the summer...

Engines need oil that is thin enough for cold starts, and thick enough when the engine is hot. Since oil gets thinner when heated, and thicker when cooled.

The first number follow by a W meets SAE low temp ratings (0°). The lower this number the thinner it is, so the better it does in the cold.

The second numer, with no W, is the high temp rating. The higher this number the thicker the oil, so the better it does in the heat.
Braineack is offline   Reply With Quote
Old 06-26-2007, 09:40 PM   #8
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Is that v band flange that is on the turbo the normal thickness?
cardriverx is offline   Reply With Quote
Old 06-26-2007, 09:44 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

No that is about 3 times standard thickness. You'll need something special for that fitting or you need to get another adapter to bolt to the turbo. That must be some mercedes flange, if you had the downpipe from the mercedes you could cut the flange off of it.
cjernigan is offline   Reply With Quote
Old 06-26-2007, 10:13 PM   #10
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

what if I grinded it down to the normal thickness?
cardriverx is offline   Reply With Quote
Old 06-27-2007, 01:10 AM   #11
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Ok, I am pretty sure the wastegate is set at 11 psi... now say the wastegate is not adjustable and I only want to run about 6 psi.. what should I do?
cardriverx is offline   Reply With Quote
Old 06-27-2007, 04:14 AM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Some people can adjust the rod length to achieve lower boost but that isn't an ideal way of doing it. You would cut it and use a specal nut to go into the cut section after cutting threads on the rod.

As for the vband, they are very precision machined and are made to be exactly alike. If you ground it down it would surely still not fit another vband you bought somewhere else and would most definitely leak.
I would cut the flange off and weld a new vband on it.
cjernigan is offline   Reply With Quote
Old 06-27-2007, 01:39 PM   #13
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

The thing is, I dont know if the wastegate on there can even come off
cardriverx is offline   Reply With Quote
