Default Just a little crack!

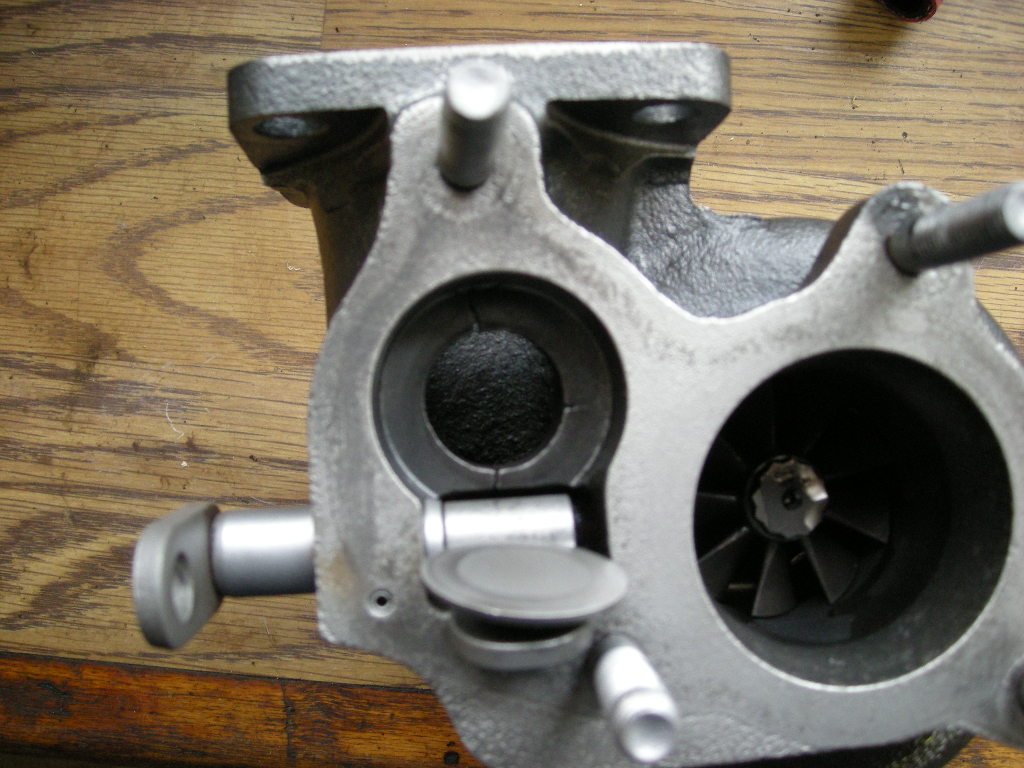

I had the IHI RHB5 turbo rebuilt and upgraded with the larger Ford 2.3 compressor. The upgrade was done by Blouch Turbo. On return I inspected the exhaust side and found 3 small cracks under the waist gate flapper valve. I don't think it's big deal but I thought I would ask is this looks serious or should I not worry about it.

Thanks

Graham
Attached Thumbnails
Just a little crack!-dscn0312.jpg
FastG is offline   Reply With Quote
Old 02-11-2010, 05:41 PM   #2
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Ouch, certainly won't help spool any, but doesn't look like a big deal stucturally.

Off/on topic, how much did they charge you for that compressor upgrade?

I'm about to do the same thing. Did you provide the Tbird CHRA or did they do it all?
gospeed81 is offline   Reply With Quote
Old 02-11-2010, 05:52 PM   #3
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

As long as nothing breaks or chips off, it should be fine. We are finding stock MSM turbos in worse shape than that.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 02-11-2010, 05:58 PM   #4
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Weld it shut, go EWG.
gospeed81 is offline   Reply With Quote
Old 02-11-2010, 06:05 PM   #5
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by gospeed81 View Post
Weld it shut, go EWG.

damnit......you beat me to it!
WonTon is offline   Reply With Quote
Old 02-11-2010, 06:11 PM   #6
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by WonTon View Post
damnit......you beat me to it!
x2
wayne_curr is offline   Reply With Quote
Old 02-11-2010, 06:15 PM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

It's just going to get worse. I'm not a big fan of putting broken/damaged parts on my car.
Savington is offline   Reply With Quote
Old 02-11-2010, 06:15 PM   #8
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jan 2008
Location: Chicago
Posts: 88
Total Cats: 0
Default Blouch Turbo

gospeed81, I picked up a Ford compressor wheel and housing. The center of the cartridge has to be machined as the wheel is larger. Blouch did the machine work and re-balanced it. Blouch were great to deal with, they turned it around quickly and charged me $175 + shipping.

Graham
FastG is offline   Reply With Quote
Old 02-11-2010, 06:17 PM   #9
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I'm guessing that didn't include a rebuild?
gospeed81 is offline   Reply With Quote
Old 02-11-2010, 06:20 PM   #10
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jan 2008
Location: Chicago
Posts: 88
Total Cats: 0
Default Blouch Turbo

gospeed81, Blouch will not rebuild the IHI units, they claim there are no original rebuild parts available, and all the re-build kits you see are cheap junk. I cannot verify there opinion, but I sent them my turbo and they said it did not need a re-build.
FastG is offline   Reply With Quote
Old 02-11-2010, 06:46 PM   #11
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

You see that kind of cracking a lot with internal gates. One option is to see about the availability of a larger flaper, then port the opening to eliminate the cracks. Two birds one stone. Those cracks appear to be too deep for total elimination, but it would still help and there is the benefit of more overall flow through the housing too. I doubt you will loose any appreciable spool with those cracks.

The best option is definitely EWG. If you dont want to worry about a new manifold (which I assume you dont) a custom DP with separate main discharge and wastegate discharge is pretty easy to fab for that housing. You can then put the EWG itself on WG dischrge portion of the DP. This would also allow you to seriously enlarge the WG port for more flow and eliminate the flapper all together.
Sparetire is offline   Reply With Quote
Old 02-11-2010, 07:07 PM   #12
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

An older SR20 T25 turbo I had cracked in that same spot, and it spread through the cast and ended up screwing the turbo.
dustinb is offline   Reply With Quote
Old 02-11-2010, 07:50 PM   #13
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

***Caution I don't know what I'm talking about***

Can you not terminal drill those cracks and then have the holes and cracks welded?
BarbyCar is offline   Reply With Quote
