Default Link Cable

Hey guys,
Is it possible to get a COTS cable extension for the Link keypad?
ie, just add on the original one, using the original head mated to another cable?
Or are the connecting heads special?
qes78 is offline   Reply With Quote
Old 07-10-2007, 01:49 AM   #2
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

COTS?

Just go buy the correct length of ribbon cable and re-use the connectors.
jayc72 is offline   Reply With Quote
Old 07-11-2007, 05:04 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

Commercial off the shelf.
What i'm trying to do is retain the kaypad where the ashtray holder is for day to day driving, then use an extension cable for times when i'm tuning.
qes78 is offline   Reply With Quote
Old 07-11-2007, 10:24 AM   #4
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

nothing special - just connectors
m2cupcar is offline   Reply With Quote
Old 07-12-2007, 06:53 AM   #5
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

Thanks for the advice
I've made another 1m cable so that i can relocate the keypad from ashtray holder to the dash when i'm tuning.
qes78 is offline   Reply With Quote
Old 07-12-2007, 10:31 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

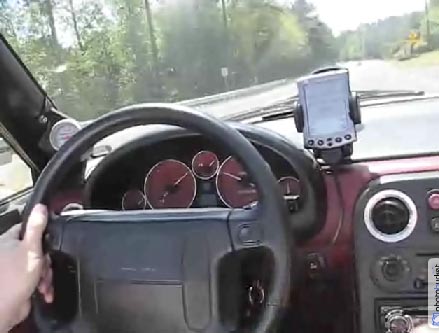

What about a pda holder/arm turned sideways to hold the keypad? Then you could run the cable under the center console, up through the dash by the gauge pod. Nice for watching data realtime while driving.
Attached Thumbnails
Link Cable-palmdash.jpg
m2cupcar is offline   Reply With Quote
Old 07-12-2007, 10:45 AM   #7
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

Hmm
I thought about it, but i would much rather hide the keypad away from prying eyes than in open view.
thanks for the idea tho
qes78 is offline   Reply With Quote
Old 07-12-2007, 11:41 AM   #8
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I very rarely use the keypad unless I intend to make adjustments. Most of the time it is sitting on a shelf at home. I bought FM's holder (over priced but effective) makes it nice and easy when tuning, I can't imagine having it as low as the console and attempting to run to the top of 4th gear while reading the display.
jayc72 is offline   Reply With Quote
Old 07-12-2007, 12:33 PM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

It's not permanent- it's just holder that grabs the palm, like it would the keypad. Just unhook the cable from the palm and throw the palm in the glovebox... or pocket... where ever.
m2cupcar is offline   Reply With Quote
Old 07-12-2007, 12:50 PM   #10
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

Nice, I gotta grab a m500 palm. I missed out on a few ebay auctions when I talked to you last about this setup. I'm getting tired of lugging my laptop every time I want to datalog.



Quote:
Originally Posted by m2cupcar View Post
It's not permanent- it's just holder that grabs the palm, like it would the keypad. Just unhook the cable from the palm and throw the palm in the glovebox... or pocket... where ever.
Stripes is offline   Reply With Quote
Old 07-13-2007, 11:32 AM   #11
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

I just hide the keypad in the ashtray holder most days, then extend it using the cable to relocate to my speedometer are when tuning.
I have a palm V that has a busted battery
qes78 is offline   Reply With Quote
Old 07-13-2007, 12:43 PM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Palm V won't run Plink, even with a good battery. Need at least 8mb memory. I understand the keypad is more of a tuning device and not a data display device (given it can't show more than two things at once). So there's probably not much of need to put it in line-of-sight while driving.
m2cupcar is offline   Reply With Quote
Old 07-13-2007, 12:44 PM   #13
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Having it in line of site is nice when you are tuning alone.
jayc72 is offline   Reply With Quote
Old 07-14-2007, 10:50 AM   #14
Junior Member
Thread Starter

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

Quote:
Originally Posted by jayc72 View Post
Having it in line of site is nice when you are tuning alone.
I ditto that. It makes like much easier when autotuning
